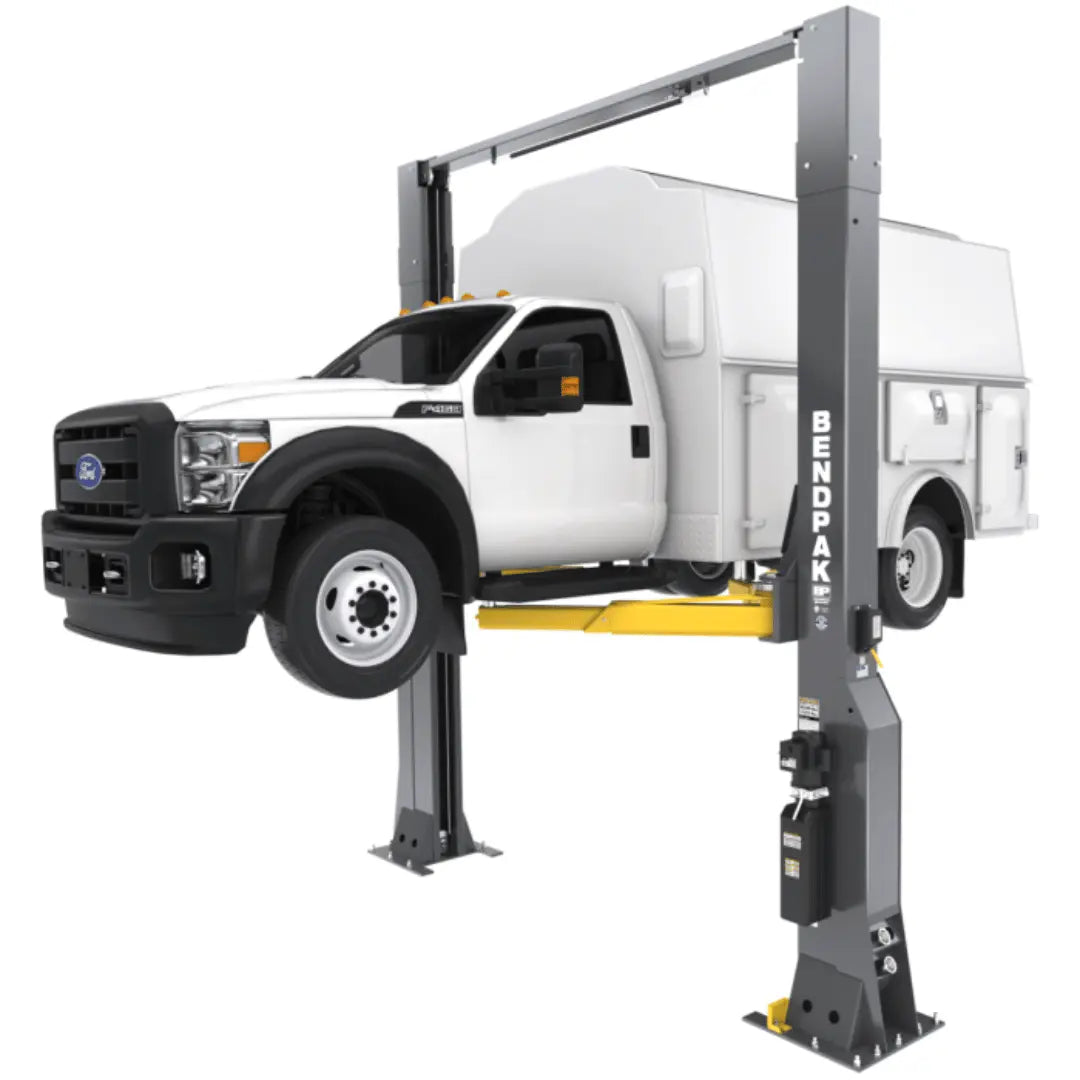

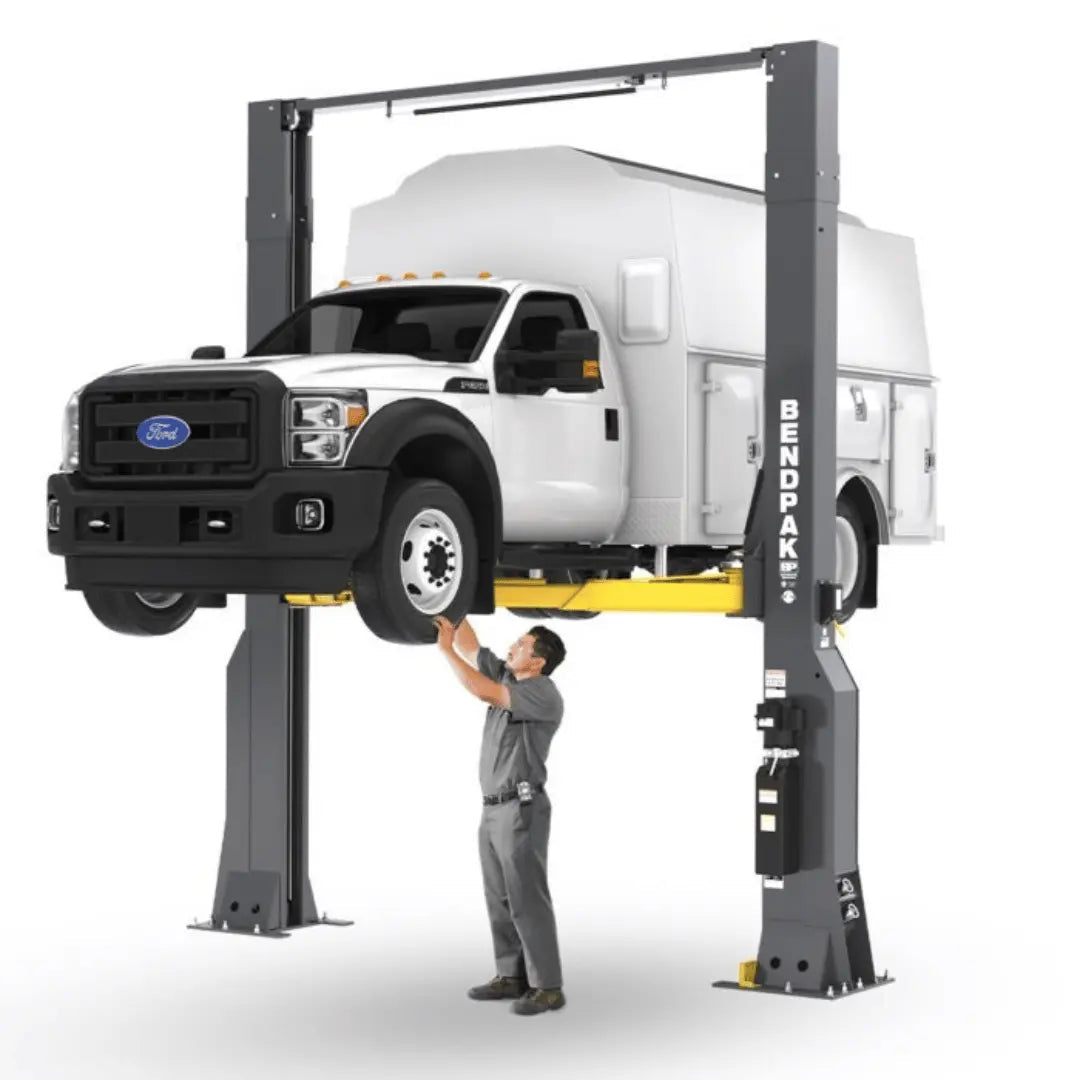

BendPak Car Lift 20AP-192 20,000-lbs. Capacity 2 Post High-Rise Car Lift - Extended Height

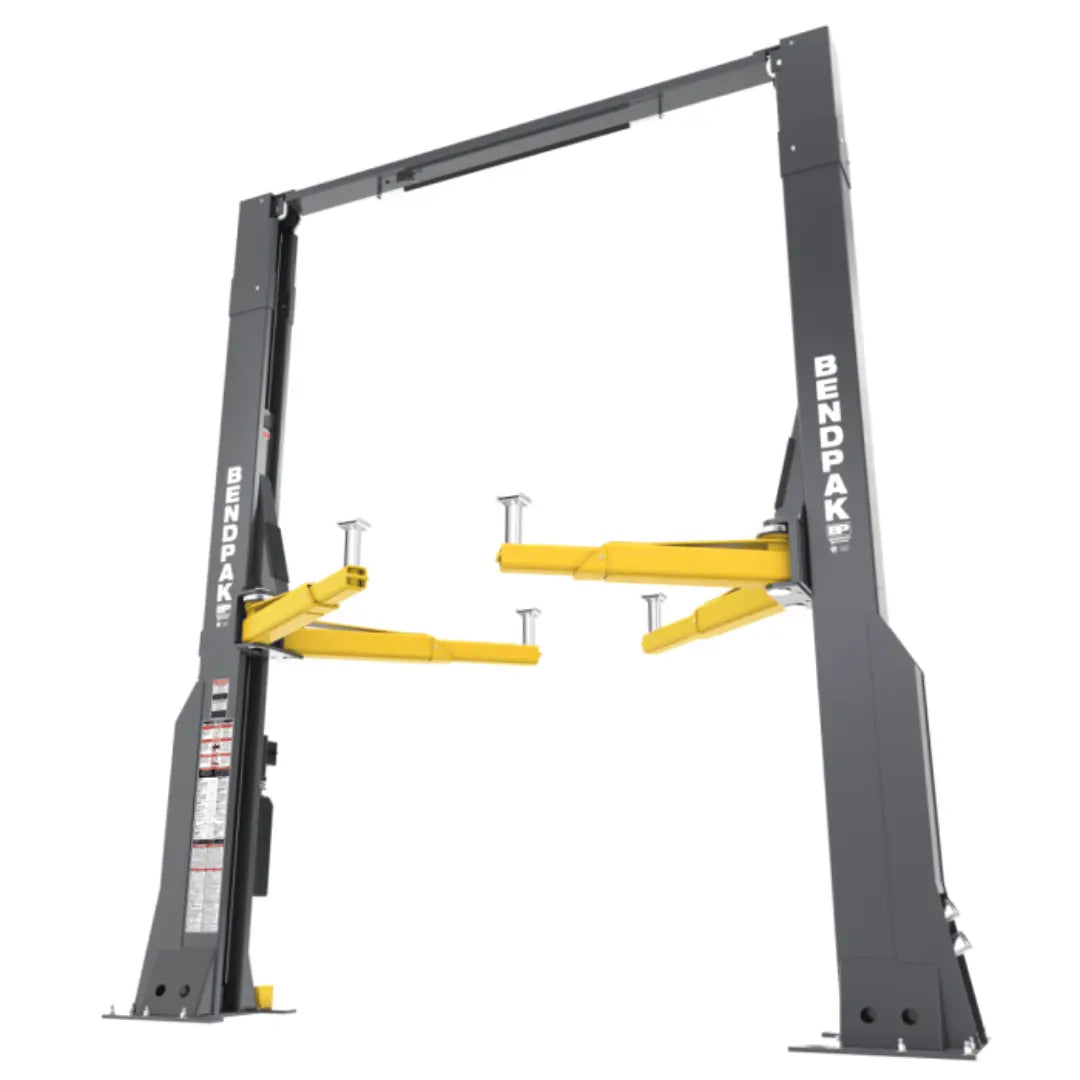

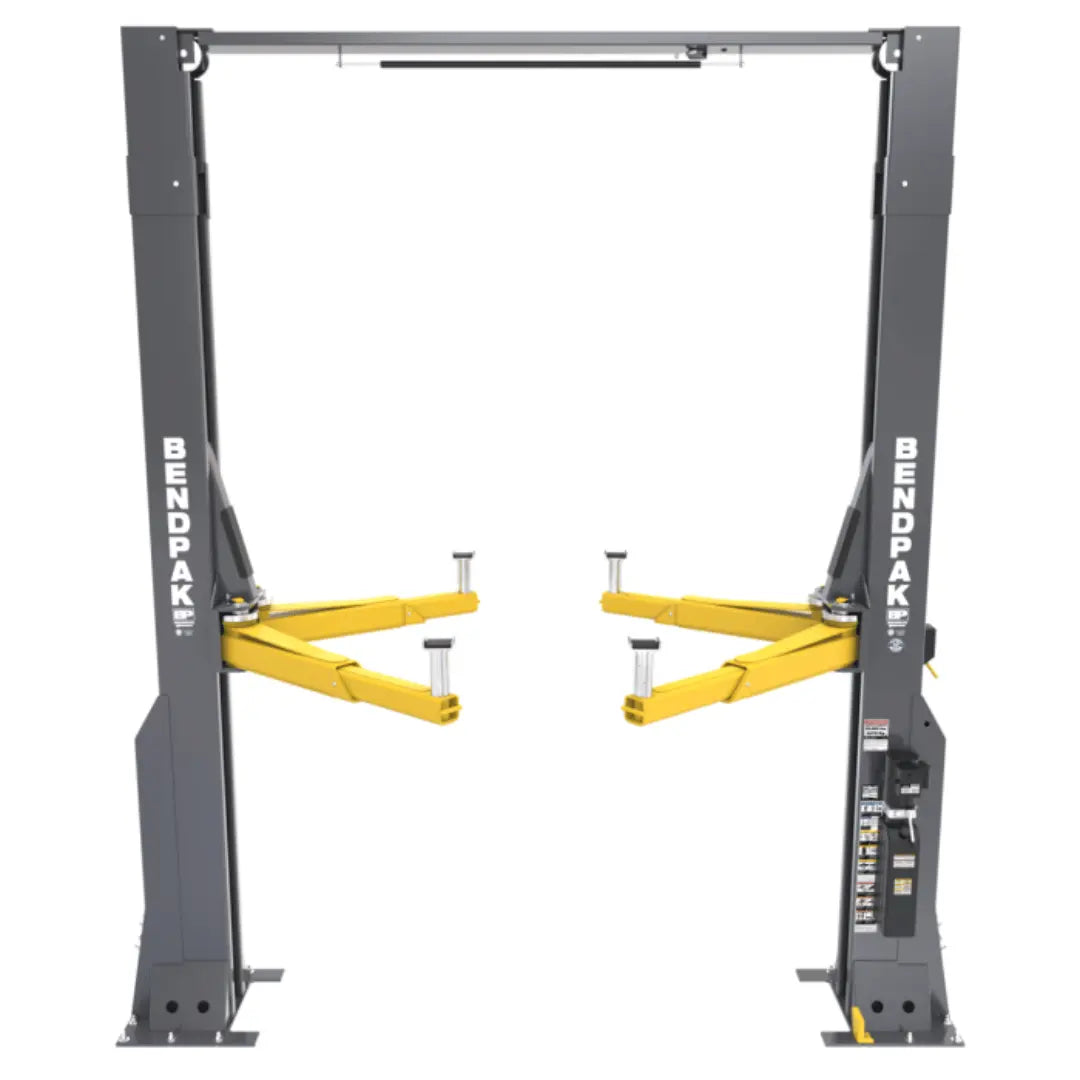

The top-of-the-line Bendpak car lift 20AP-192 delivers advanced technology, premium-grade materials, an innovative design, as well as a whopping 20,000 lb. lifting capacity. Unlike the regular 20AP, this lift offers an enhanced overall height of 193”, giving taller techs out there the room they need to get the job done as comfortably as possible.

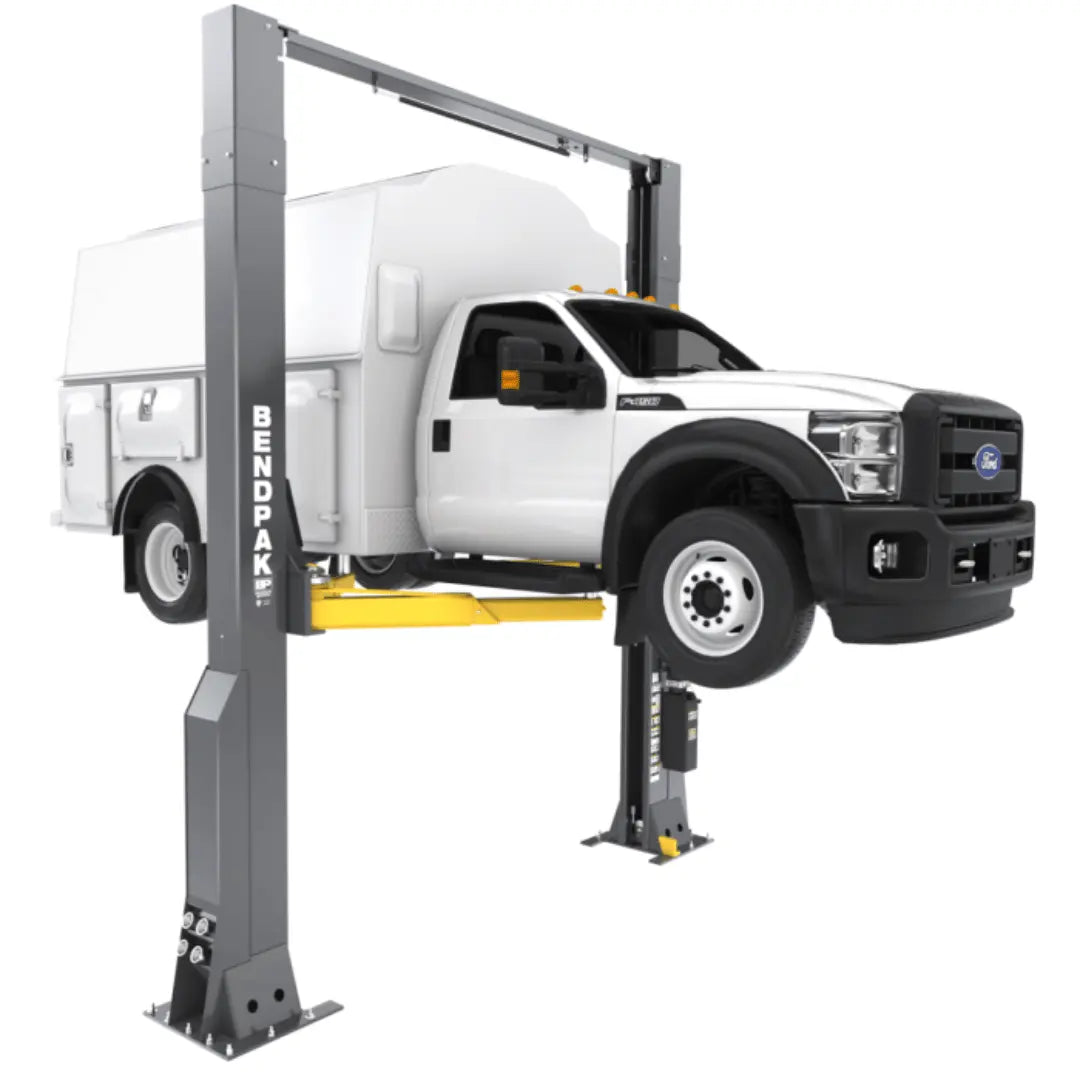

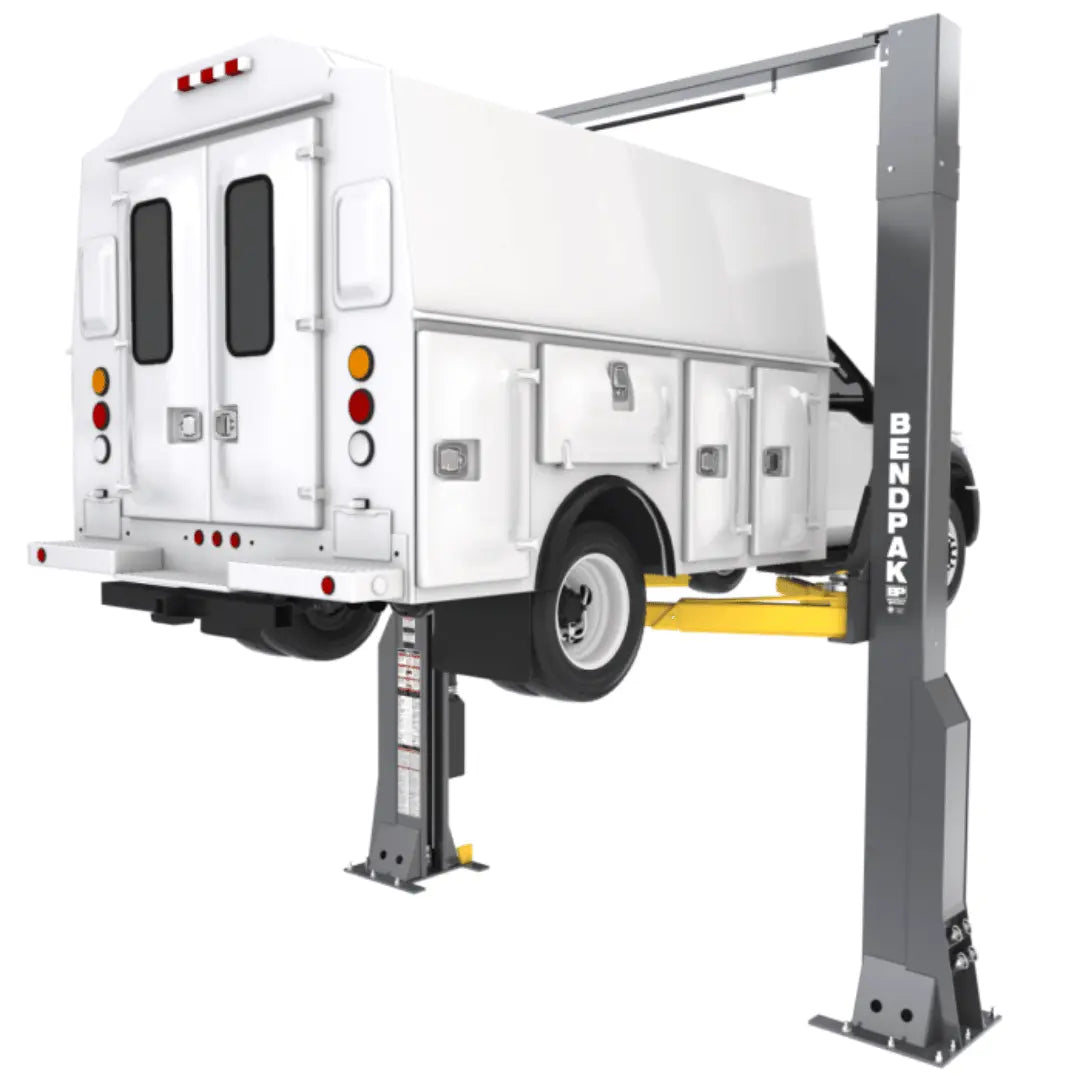

From heavy-duty fleet service to airport maintenance and emergency vehicle management, BendPak’s 20AP Series tackles them all. With an astounding 20,000-pound lifting capacity combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, our Super-Duty AP Series makes an ideal supplement to existing fleet operations. Over 50 years of lift-building heritage perfectly delivered.

With oversize dimensions and capabilities that go well beyond those typically found on traditional two-post lifts, they lift more, lift higher, reach farther, and realize more vehicle-supporting stability than ever before. And with fewer moving parts, they’re less susceptible to wear and tear, easier to maintain and less expensive to operate. And that all adds up to a cost-savings advantage you’ll appreciate regardless of your environment. More uptime means more free time. From accommodating large commercial trucks safer than ever before and lifting and supporting long awkward vehicles effortlessly, our Super-Duty AP Series handles heavy fleet tasks very comfortably. The key? Graciously spaced columns make for easier entry and exit and ruggedly built far reaching arms increase lifting point coverage delivering greater stability. Ergonomic operator controls allow for simple and safe operation, a benefit that boosts productivity resulting in higher output and greater profitability.

Every day the automotive industry evolves with new and advanced technologies, meaning that it’s crucial for auto repair shops to keep pace by outfitting themselves with the best of the best. That’s where the 20AP-192 comes in. As part of the revolutionary AP Series, this lift marks a new era in car lift engineering. It has been meticulously crafted to integrate the best features from existing two-post lift types into an entirely new concept, catering to extreme use, heavy loads, and operator safety and efficiency. The 20AP-192 delivers everything professionals love about the AP Series in a taller package. With an increased 193” overall height, techs will have more room to work comfortably.

BendPak’s AP Series introduces a game-changing solution for auto repair shops seeing flexibility in installation. This resilient, secure, and dependable car lift seamlessly combines wide and narrow installation options in a single customizable package. The intelligent lift design strikes a balance between simplicity and sophistication, resulting in minimal service and maintenance costs, leading to reduced operating expenses and heightened productivity.

Designed for maximum convenience and efficiency, our ASARS requires minimal operator involvement, thanks to its adaptive nature. Say goodbye to unplanned swing arm movement during lift use and vehicle service operations.

Product Features

  • Durable powder coat finish

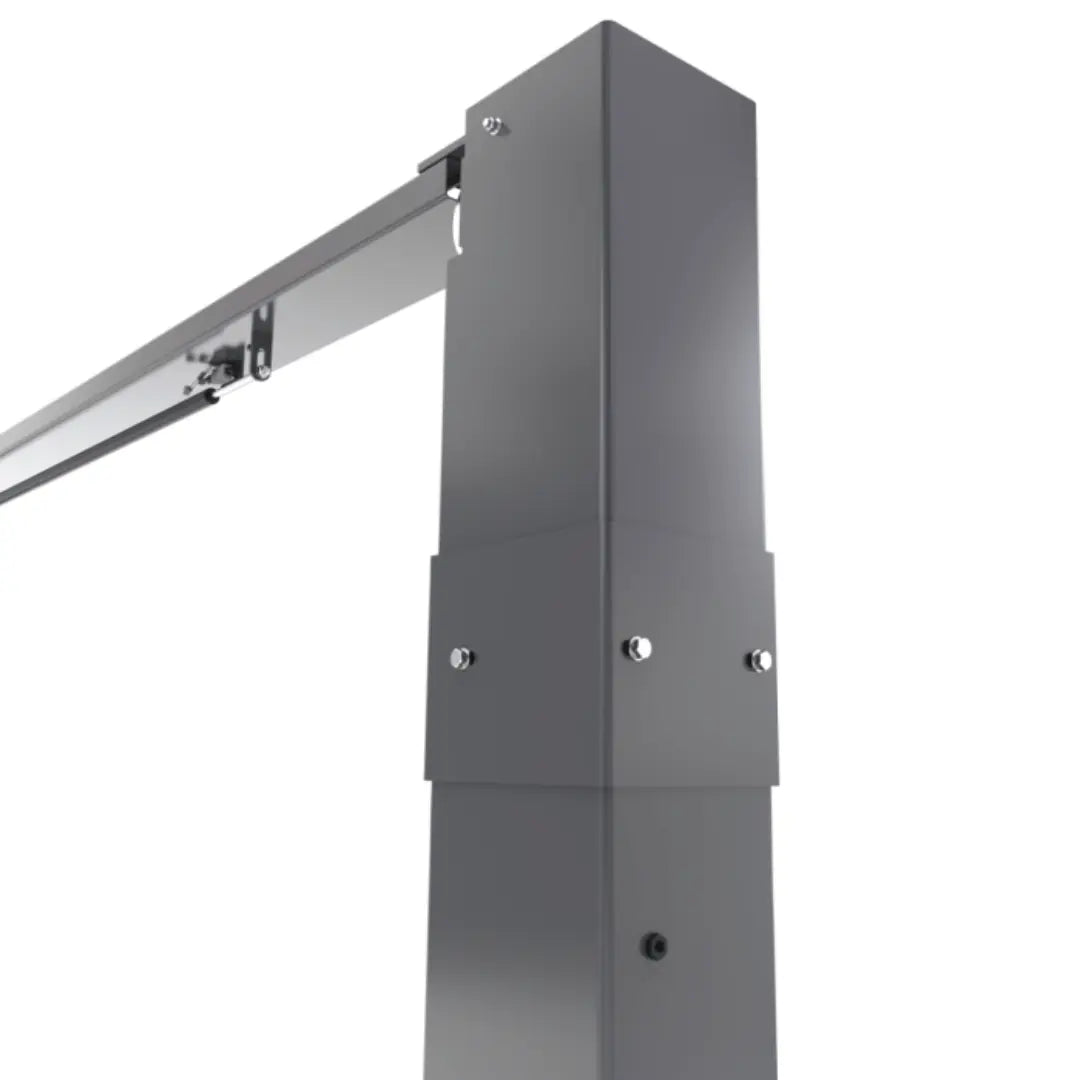

  • Expandable top beam accommodates wide or narrow drive-through configuration
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar

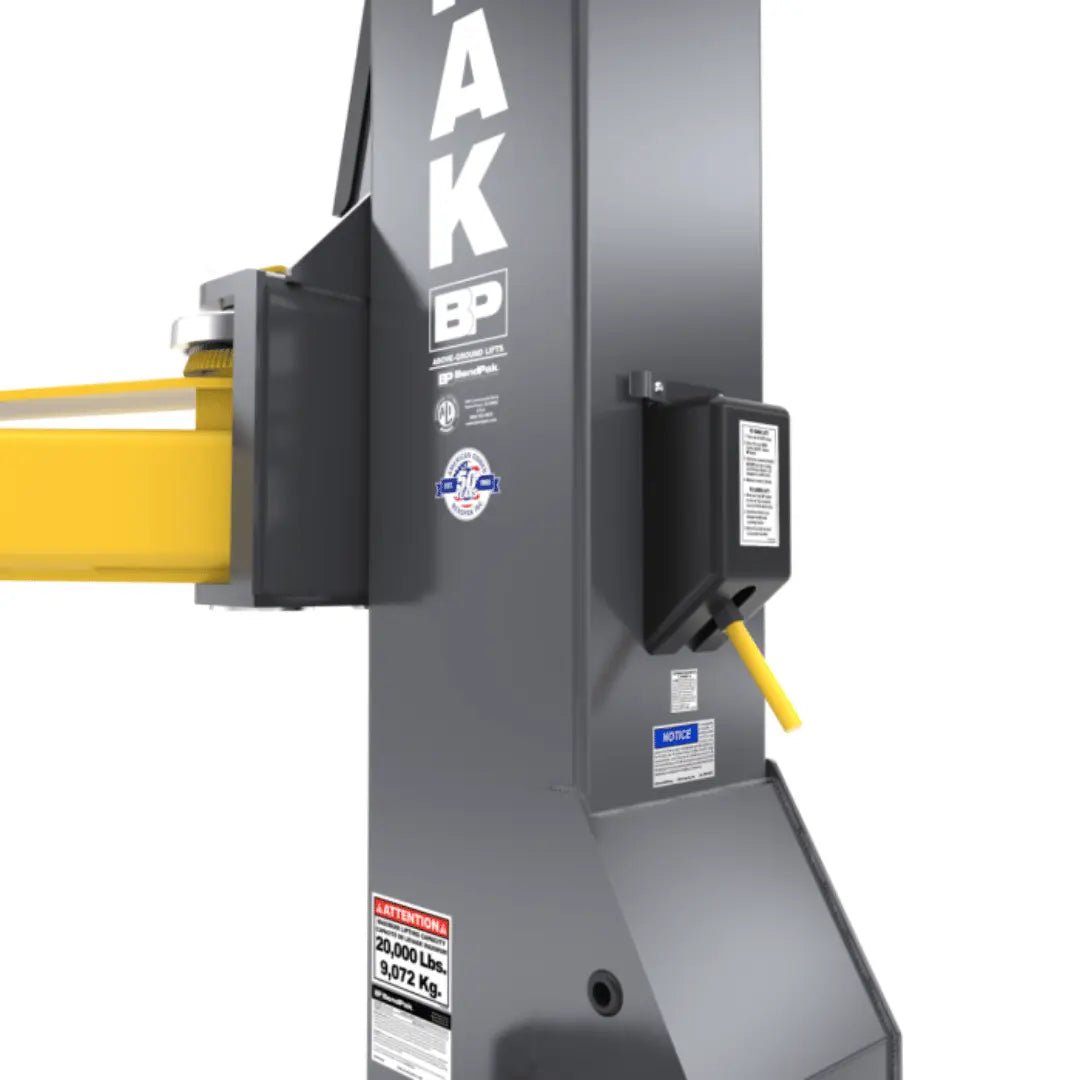

  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Electric / hydraulic HVLP power system
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 3”

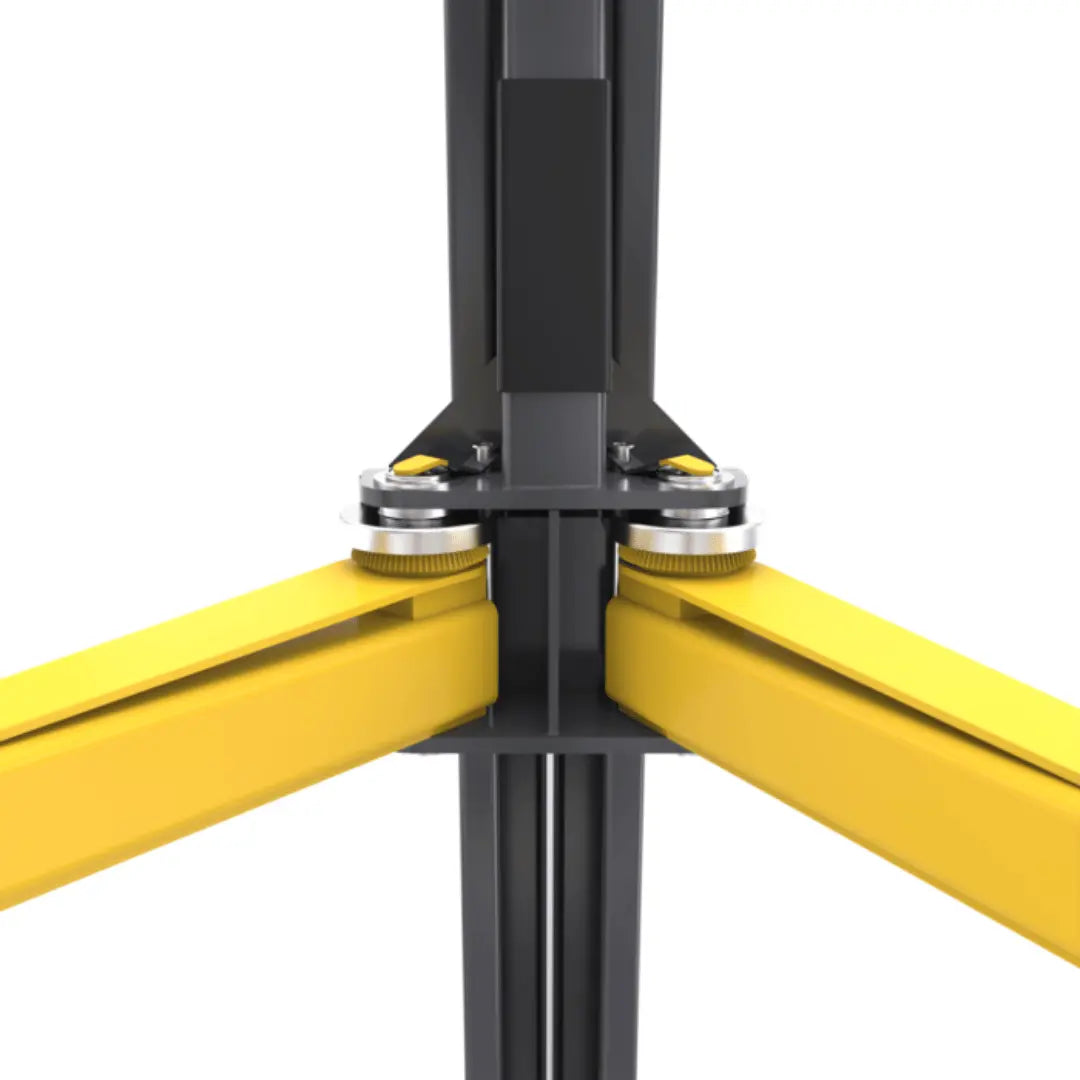

  • Automatic arm restraints withstand over 2000-pounds of side force
  • Heavy-duty ½” aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue

Product Specifications

Lifting capacity 20,000 lbs. / 9,072 kg
A – Under Clearance (Top Lock) 76.5 in. / 1,943 mm
B1 – Max. Lifting Height (Top Lock) 82.75 in. / 2,102 mm
B2 - Max Rise 83.25 in. / 2,114 mm
C – Max. Lifting Height w/ Adapters 90.25 in. / 2,292 mm
D – Min. Height w/ Pad 8 in. / 206 mm
E – Overall Height 193 in. / 4,904 mm
F – Overall Width 168 in. / 4,267 mm
G – Outside Posts 149 in. / 3,785 mm
H – Inside Posts 126 in. / 3,199 mm
I – Drive-Thru Width 107.75 in. / 2,740 mm
J – Floor to Top Switch 186.5 in. / 4,738 mm
K –Lift Arm Reach 35 in. / 893 mm (min) | 62 in. / 1,678 mm (max)
L – Base Plate Width 28 in. / 710 mm
M – Post to Base Plate 9.5 in. / 241 mm
Max. load per Lift Arm 5,000 lbs. / 2,268 kg
Motor 220 VAC, 60 Hz, 1 Phase
Sound <70 dB
