Tuxedo TP15KCX 15,000 lb Heavy Duty 2 Post Lift
- Free Shipping
- Certified Car Lifts
- 30-Day Hassle-Free Returns
- In stock, ready to ship
Product Description

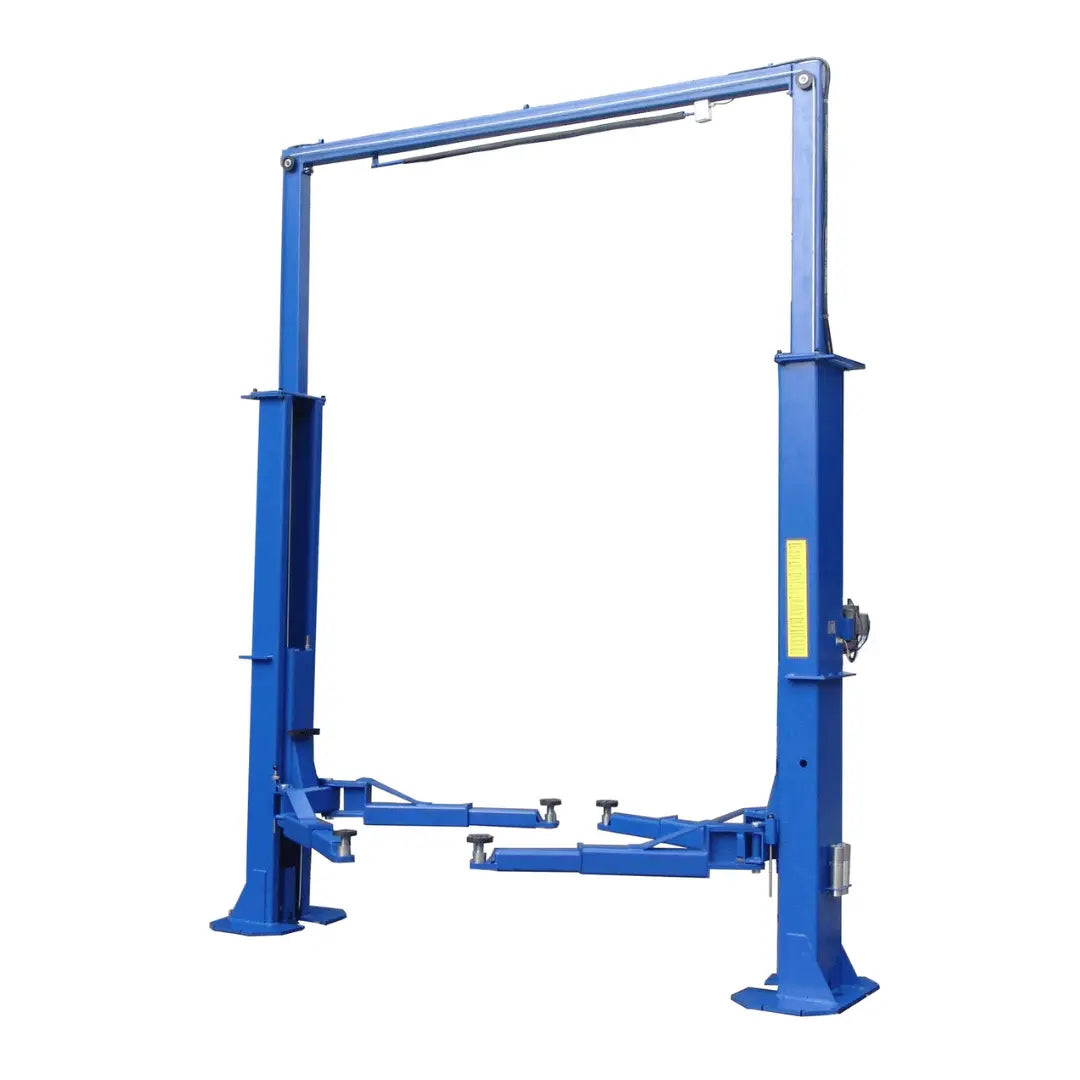

TP15KCX Two Post Clear Floor
Product Features
- 15,000 lbs Capacity
- Symmetric arms

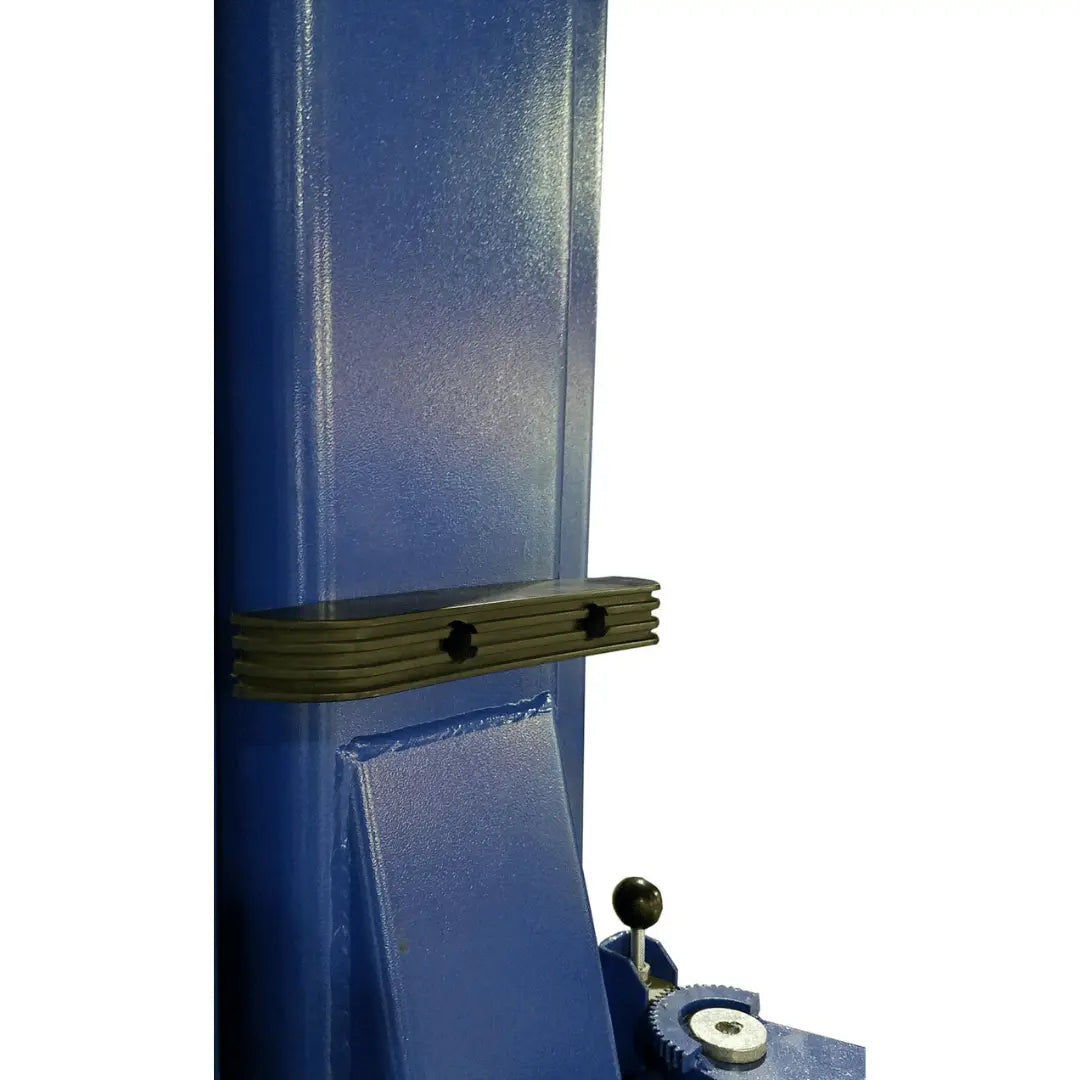

- Rubber Door Guards
- Direct Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System

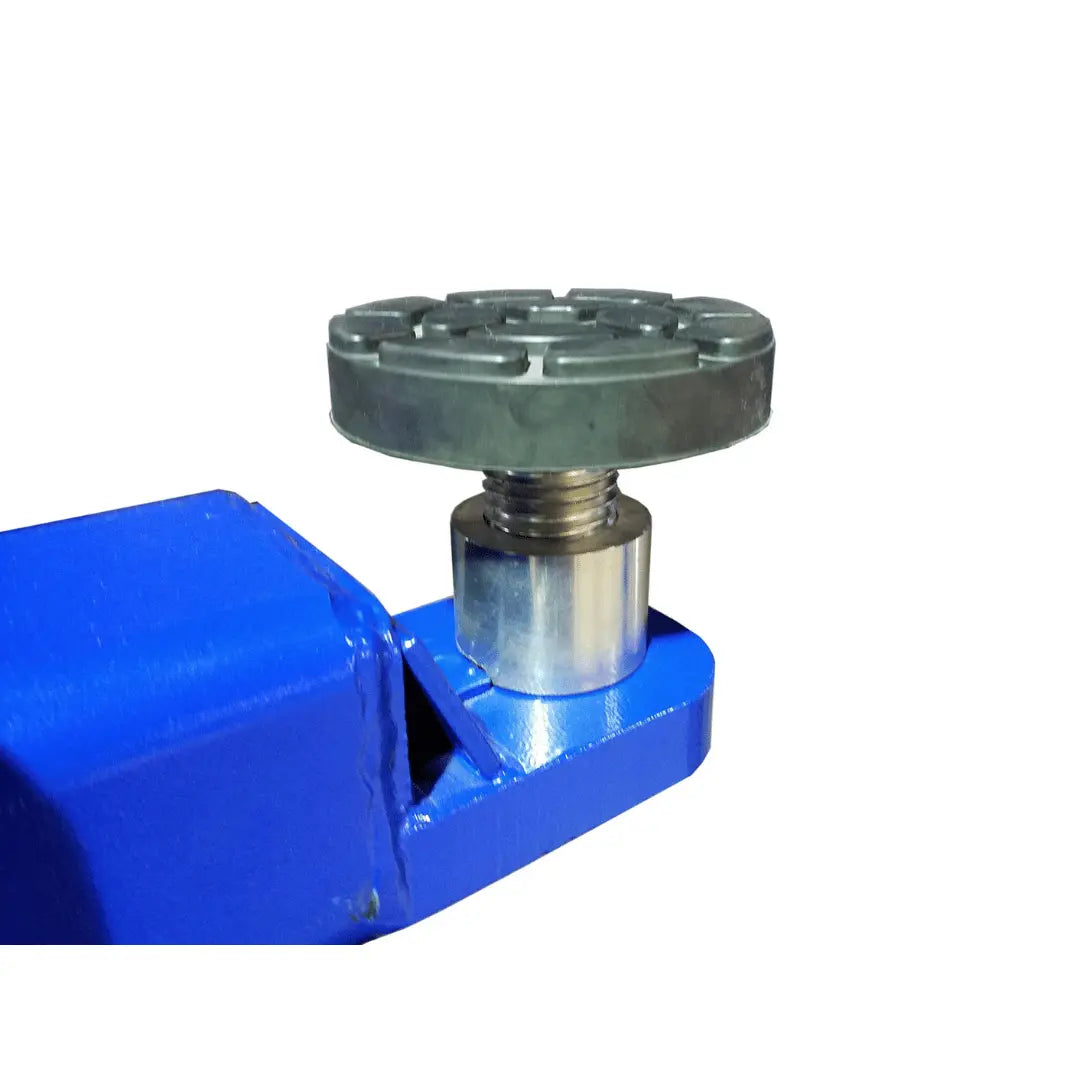

- Spin Up Lift Pads

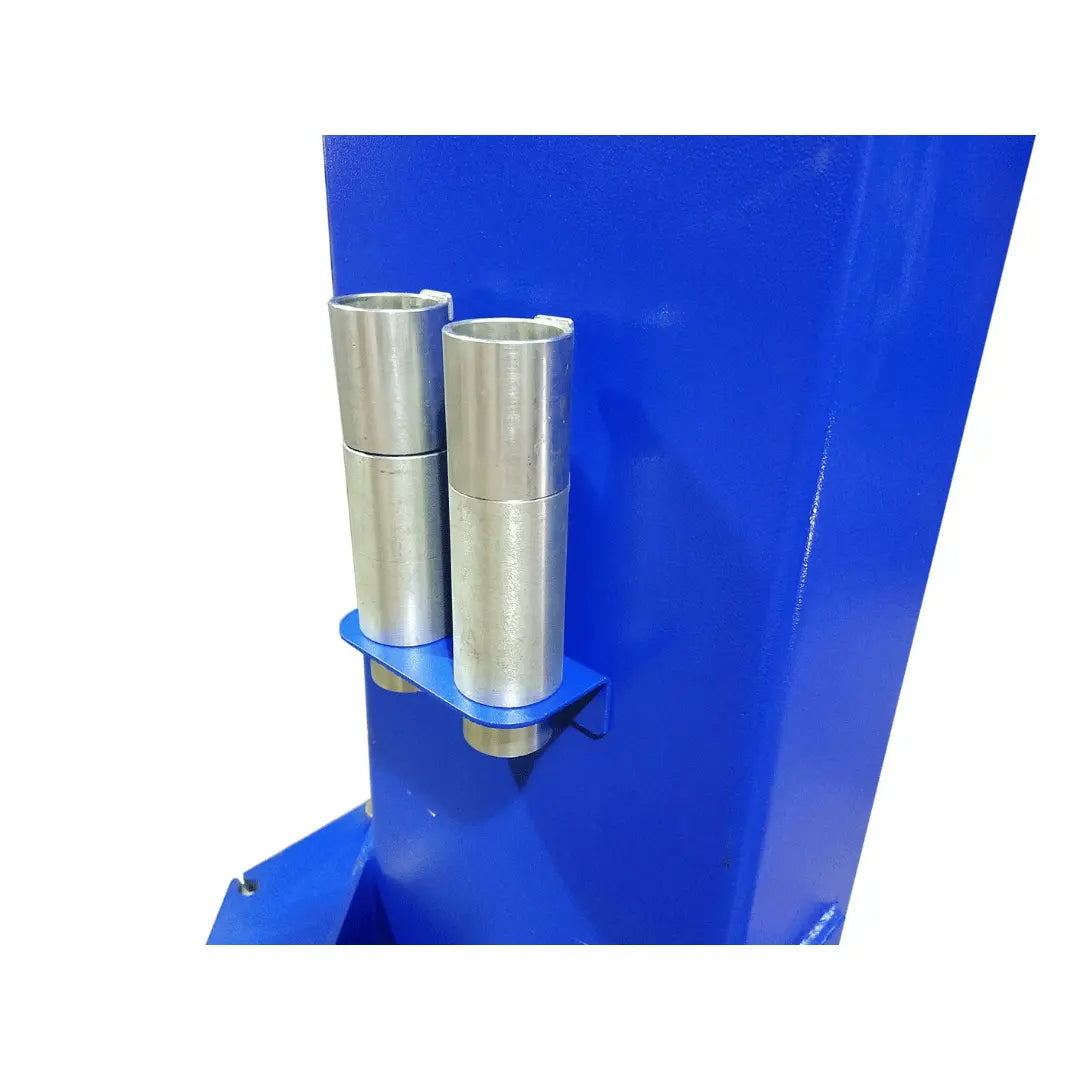

- Stackable Adapters Included
- Internal hose guards

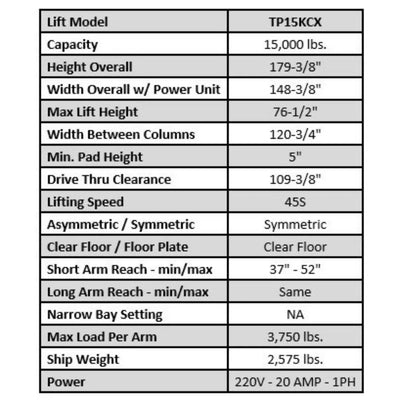

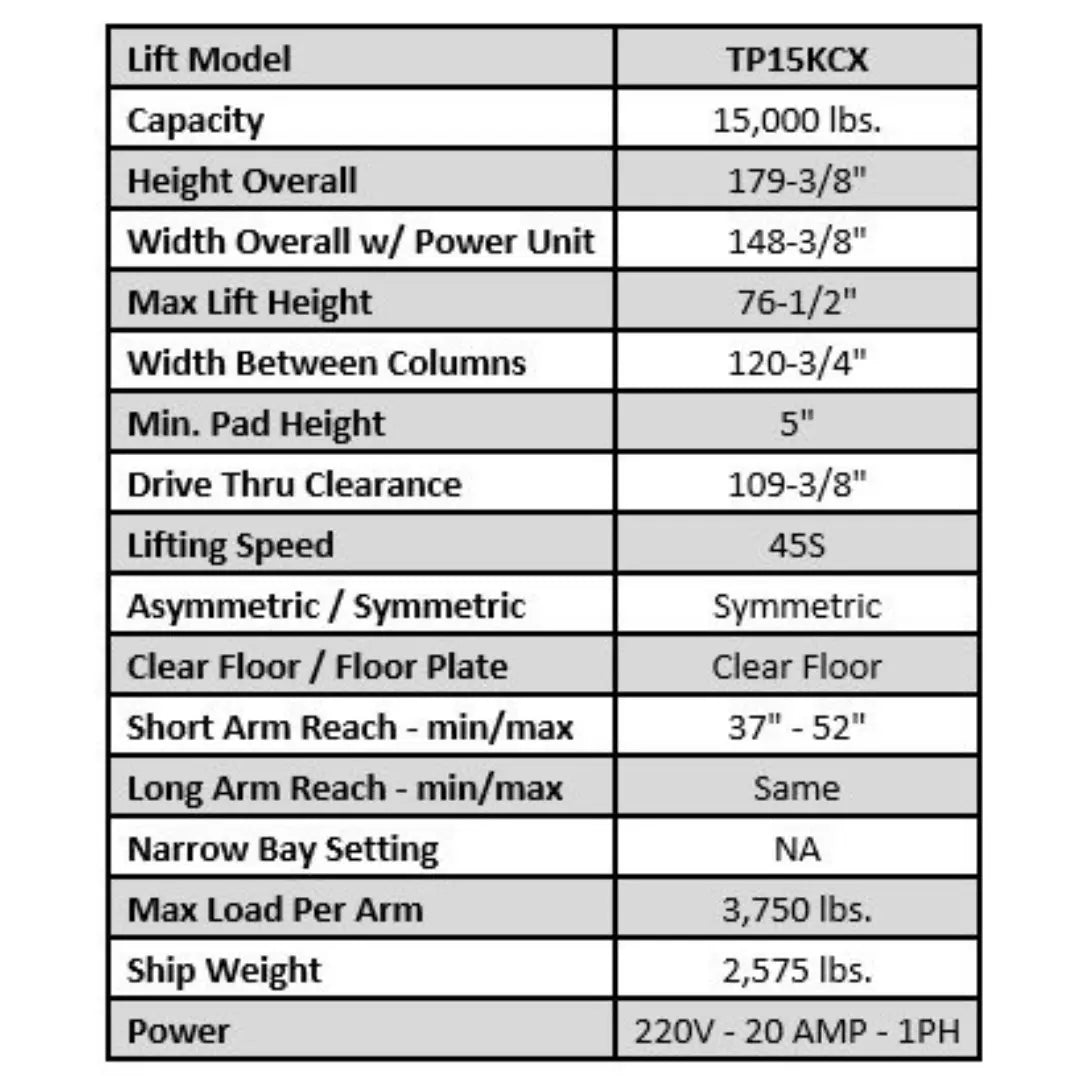

Product Specifications

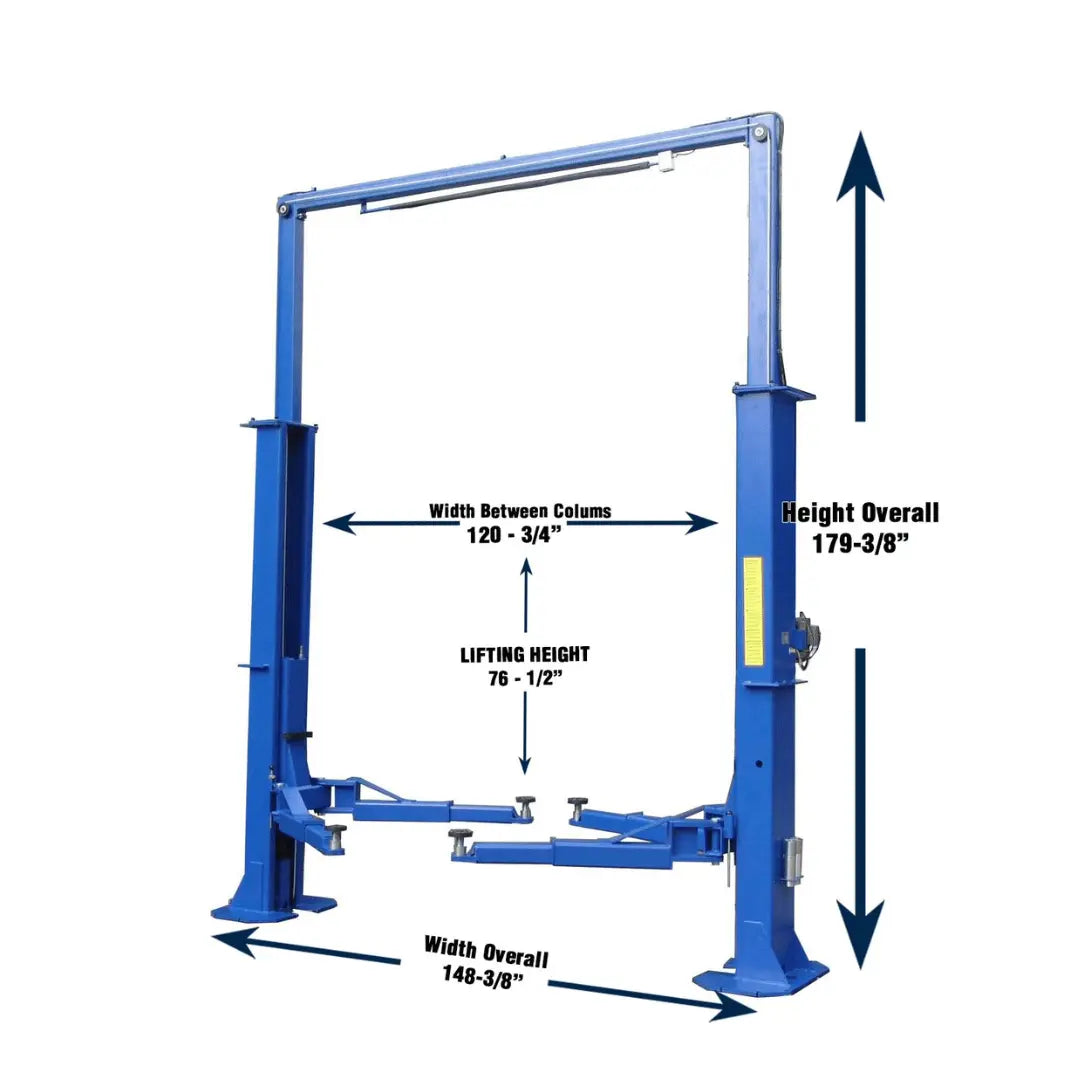

| Lift Model | TP15KCX |
|---|---|
| Capacity | 15,000 lbs |
| Height Overall | 179-3/8″ |
| Width Overall w/ Power Unit | 148-3/8″ |
| Max Lift Height | 76-1/2″ |
| Width Between Columns | 120-3/4″ |
| Min. Pad Height | 5″ |
| Drive Thru Clearance | 109-3/8″ |
| Lifting Speed | 45S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37″ – 52″ |
| Long Arm Reach – min/max | 37″ – 52″ |
| Max Load Per Arm | 3,750 lbs |
| Ship Weight | 2,275 lbs |

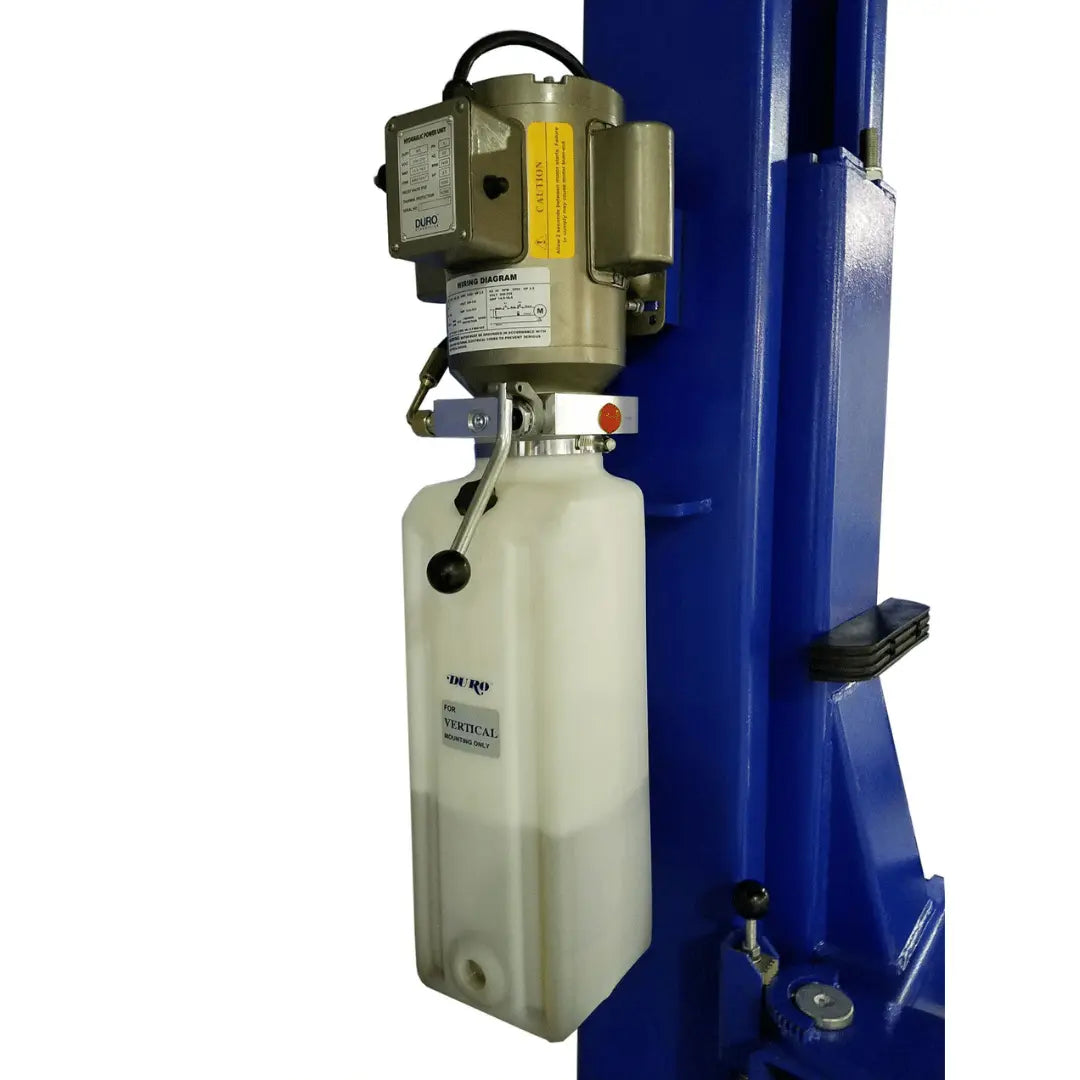

| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
