BendPak HD-7500BLX 7,500 lb. 4 Post Vehicle And Boat Storage Lift

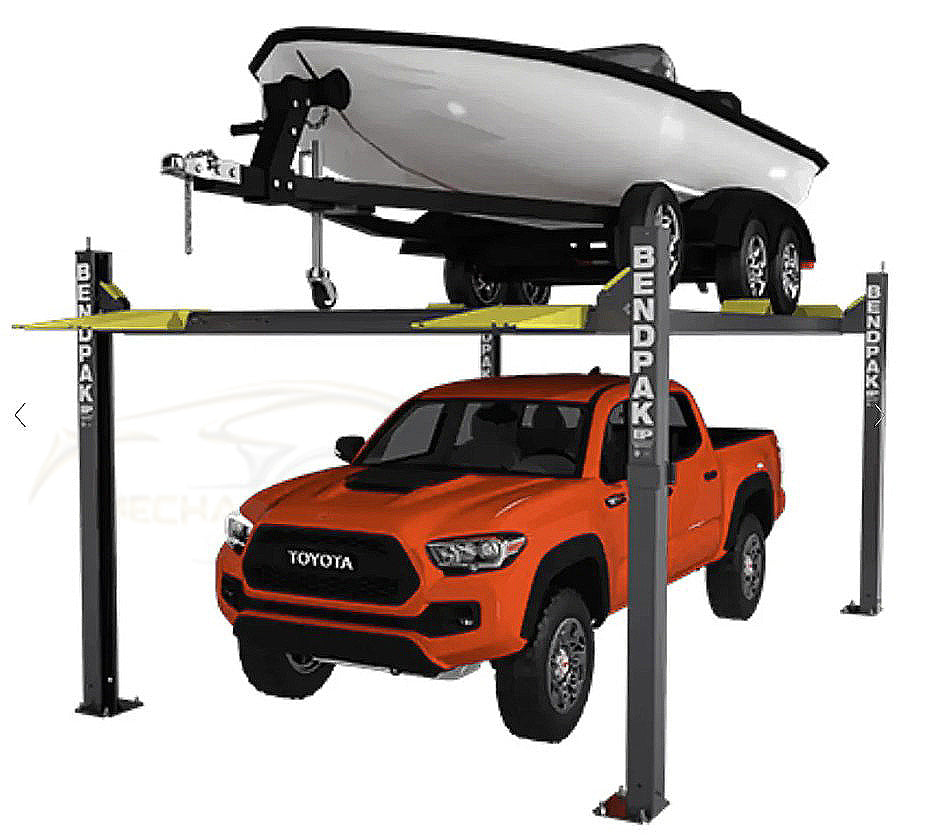

The BendPak HD-7500BLX 4 Post Lift is built for applications that require additional height and length, making it suitable for both vehicle storage and boat storage. With a 7,500-lb lifting capacity, it accommodates a variety of cars, trucks, and trailers, as well as most boat and personal watercraft configurations. Its extended runways provide the reach needed for longer wheelbases and trailer setups, while the taller design makes it effective for stacking vehicles in spaces with higher ceilings.
This 4 post car lift operates on an electric-hydraulic system for consistent and controlled lifting. Internal anti-sway slider blocks keep movement stable, and aircraft-grade steel cables with oversized rollers ensure smooth operation over repeated use. Safety is reinforced with multi-position locking points in each column and a pneumatic release system that allows all locks to disengage simultaneously.

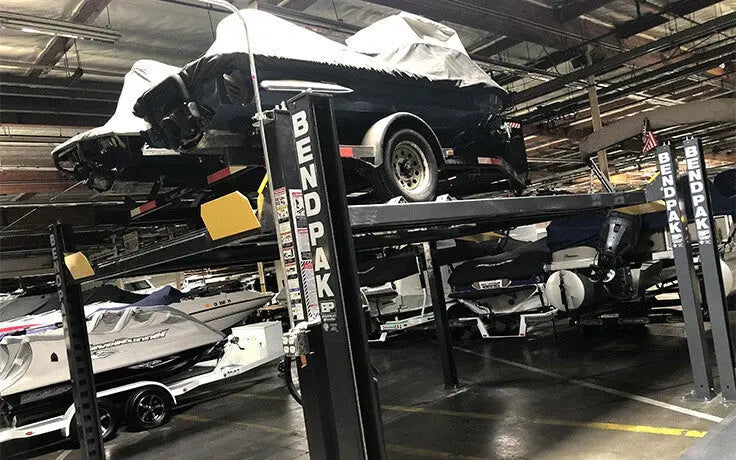

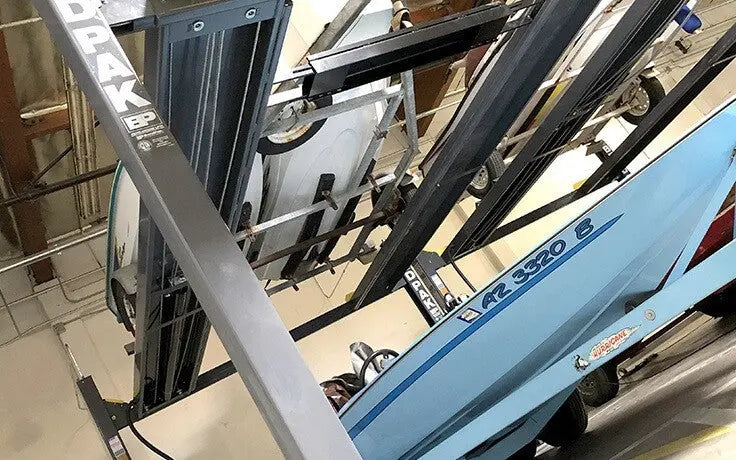

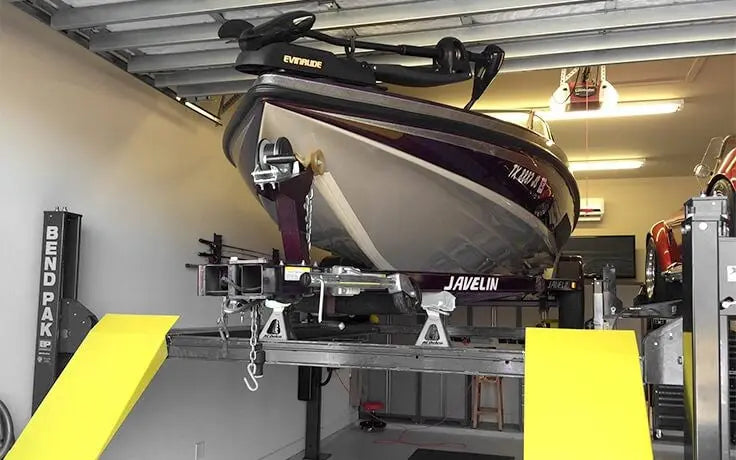

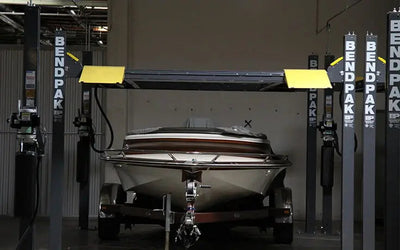

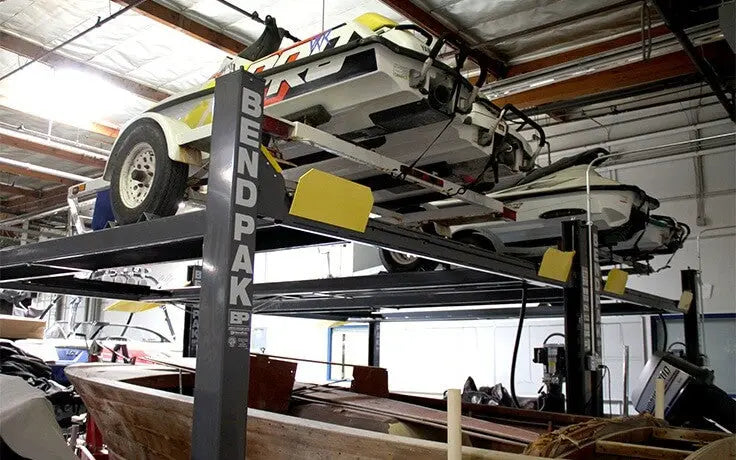

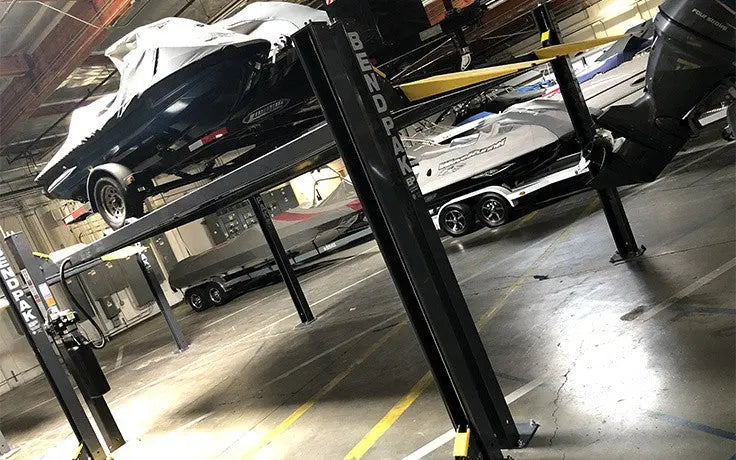

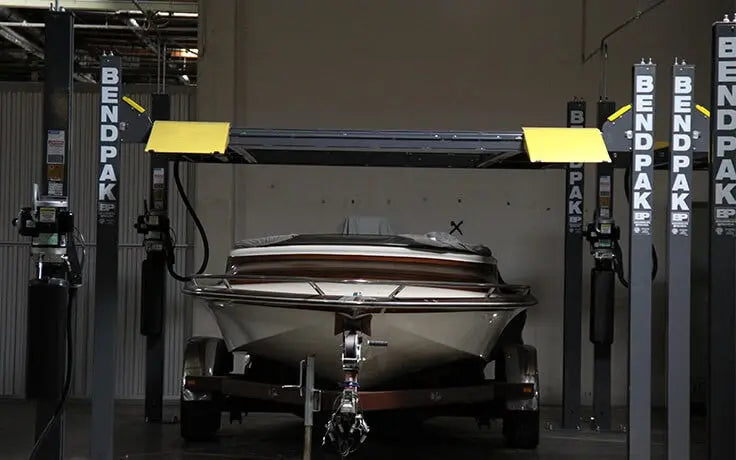

In addition to its capacity for automotive storage, the HD-7500BLX is frequently used for protecting boats from prolonged water exposure by elevating them safely above ground level. Its dual-purpose design makes it versatile for garages, shops, and storage facilities where space optimization and equipment reliability are equally important.
Product Features
- 7,500-pound lifting capacity
- Two different lifting heights to choose from
- Electric / hydraulic power system
- Internal anti-sway slider blocks in each column
- Both models feature heavy-duty 3/8" aircraft cable
- Multi-position safety locks in each column
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder underneath runway
- Over-sized self-lubricating cable rollers
- Rugged 1-1/4" roller axles
- Adjustable lock ladders
- Push-button pneumatic safety release
- Durable powder coat finish
Product Specifications
Capacity
| Lifting Capacity: | 7,500 lbs |
| Max. Capacity / Front Axle: | 3,750 lbs |
| Max. Capacity / Rear Axle: | 3,750 lbs |

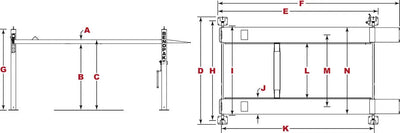

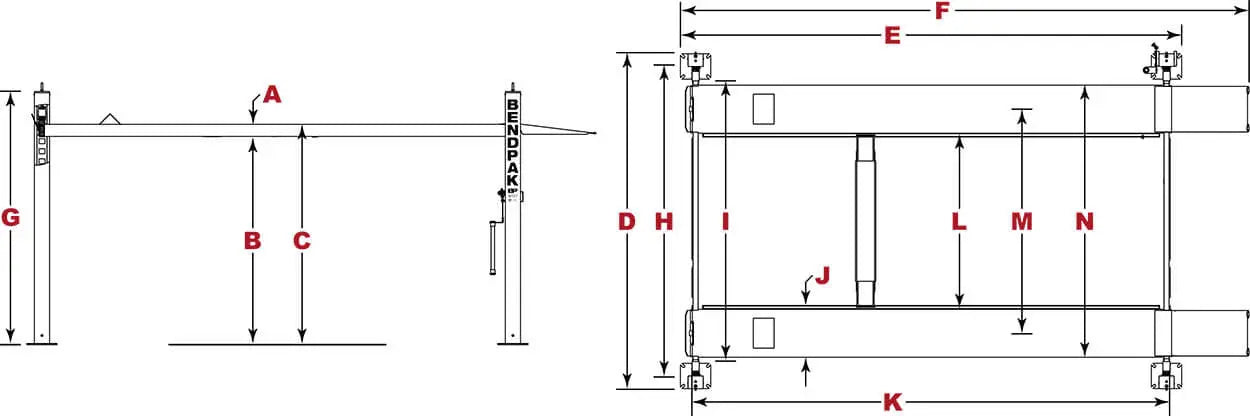

Rise
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 82" (2,083 mm) |
| C - Max. Lifting Height: | 85.75" (2,178 mm) |
| Lifting Time: | 55 Seconds |
Outside Dimensions
| D - Overall Width: | 132" (3,353 mm) |
| E - Outside Length | 198" (5,029 mm) |
| F - Overall Length | 224.5" (5,702 mm) |
| G - Height of Columns | 100" (2,540 mm) |
Inside Dimensions
| H - Width Between Columns: | 122" (3,099 mm) |
| I - Drive-Thru Clearance | 108.5" (2,756 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 182.25" (4,629 mm) |
| L - Width Between Runways | 46.5" (1,181 mm) or 66.5" (1,689 mm) |
| M - Runway Centerline | 68.5" (1,740 mm) or 88.5" (2,248 mm) |
| N - Outside Edge of Runways | 87.5" (2,223 mm) or 107.5" (2,730 mm) |
Minimum Wheelbase
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
Locking
| Locking Positions | 17 |
| Lock Spacing: | Every 4" (102 mm) |
Power Unit
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
Shipping
| Weight | 1,910 lbs. (866 kg) |
| Dimensions | 191'' x 22'' x 28'' (4,851 mm x 558 mm x 711 mm) |
