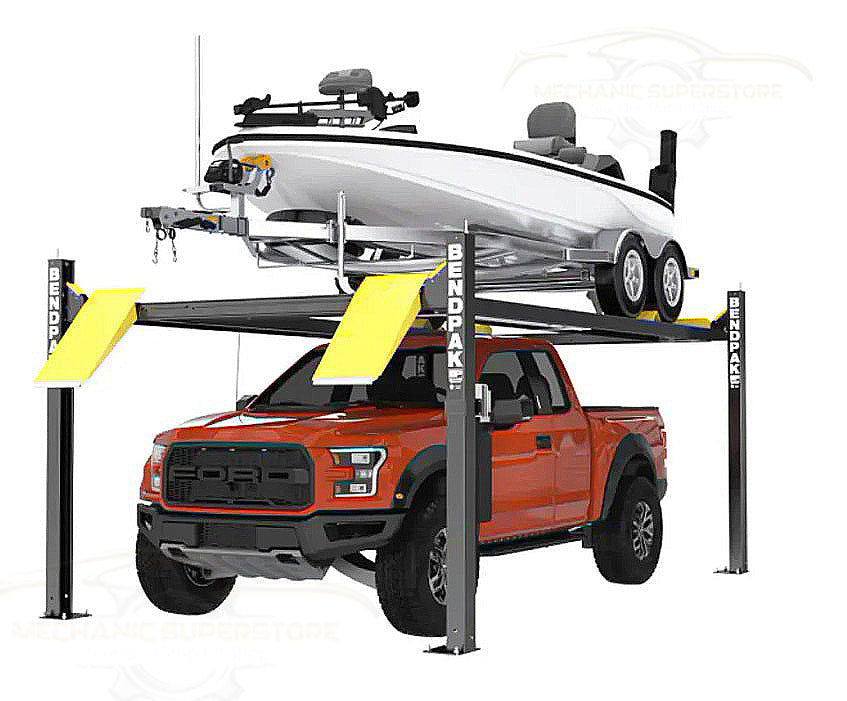

BendPak HD-75BXT 4 Post Vehicle And Boat Storage Lift
The HD-75BXT is the perfect dry-docking solution. Keep your boat in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-75BXT pulls double-duty as a professional-grade car lift for vehicles.
The Ultimate Dry-Docking Solution
You shouldn’t have to put up with ridiculous dry-docking fees, nor should you put your boat’s fate in the hands of unpredictable water. Saltwater corrosion, barnacles, rust damage, and coating blemishes are just a handful of ways that your prized boat could end up receiving irreversible damage. Bottom line is if you want to truly sleep soundly and not worry about your boat, you’re going to want to invest in a boat lift.
That’s where BendPak comes in. Keep your boat up in the air and out of the water with the HD-75BXT. The HD-75BXT has been crafted to meet the same level of quality you’d expect from any of our automotive lifts, meaning your lift is exceptionally safe.
No more docking fees
A boat lift is a great way to shield yourself from monthly boat storage fees. The larger the boat, the bigger the bill, so there’s no better way to keep your boat safe than to store it in your own garage.
Great for business owners
Boat storage business owners will also benefit from BendPak boat lifts. They understand better than anyone that more storage can help the business earn a bigger bottom line. Offer your customers the safest boat storage solutions; it’s one of the best business decisions you’ll ever make.
Fits most boat trailers
Wide and narrow installations help accommodate virtually all boat trailer types.
Dual-hub wire rope sheaves
Reduce stress and fatigue on the axles, sheaves, and cables. We insist on using dual-hub sheaves where appropriate, even if they cost us more to more.
Multi-level locking positions
BendPak boat lifts are equipped with multiple adjustable height locking positions for variable-height parking. Release all four independent safety locks at the same time with our handy lock system!
Electric-hydraulic power system
Maintenance-free electric hydraulic power systems come incorporated into each lift for ultimate dependability. All controls are placed conveniently close at hand.
Single hydraulic cylinder
Each lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum performance.
Longer approach ramps
Low-profile, extended-length approach ramps ensure boat trailers will load onto the runways with ease.
Automatic safety locks
Stainless and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button, and spring-loaded safety locks engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device for emergency protection.
Remember, dry docking is the only way to ensure that boats are safe from water-related damage. Don’t take chances! Make sure your boat is high and dry on the BendPak HD-75BXT boat lift.
Product Features
- 7,500 lb. lifting capacity
- Two different lifting heights to choose from
- Internal anti-sway slider blocks in each column
- No more docking fees
- Heavy-duty aircraft cable
- Electric-hydraulic power system
- Single hydraulic cylinder
- Dual-hub wire rope sheaves
- Multi-level locking positions
- Heavy-duty aircraft cable
- Rugged 1-1/4” roller axles
- Push-button pneumatic safety release
- Durable powder coat finish
- Longer approach ramps
Product Specifications
Capacity
| Lifting Capacity: | 7,500 lbs. (3,402 kg) |
| Max. Capacity / Front Axle: | 3,750 lbs. (1,701 kg) |
| Max. Capacity / Rear Axle: | 3,750 lbs. (1,701 kg) |
Rise
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 82" (2,083 mm) |
| C - Max. Lifting Height: | 87" (2,210 mm) |
| Lifting Time: | 50 Seconds |
Outside Dimensions
| D - Overall Width: | 133.75" (3,397 mm) |
| E - Outside Length | 222" (5,639 mm) |
| F - Overall Length | 248.5" (6,312 mm) |
| G - Height of Columns | 100" (2,540 mm) |
Inside Dimensions
| H - Width Between Columns: | 122" (3,099 mm) |
| I - Drive-Thru Clearance | 108.5" (2,756 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 206.25" (5,239 mm) |
| L - Width Between Runways | 46.5" (1,181 mm) or 66.5" (1,689 mm) |
| M - Runway Centerline | 68.5" (1,740 mm) or 88.5" (2,248 mm) |
| N - Outside Edge of Runways | 87.5" (2,223 mm) or 107.5" (2,730 mm) |
Minimum Wheelbase
| Rated Capacity | 150" (3,810 mm) |
| 75% Capacity | 130" (3,302 mm) |
| 50% Capacity | 110" (2,794 mm) |
| 25% Capacity | 90" (2,286 mm) |
Locking
| Locking Positions | 17 |
| Lock Spacing: | Spaced every 4 in. / 102 mm |
Power Unit
| Motor: | 208-230 VAC, 60 Hz, 1 Ph |
Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions.
Downloads
Brochure
Manual
Warranty
