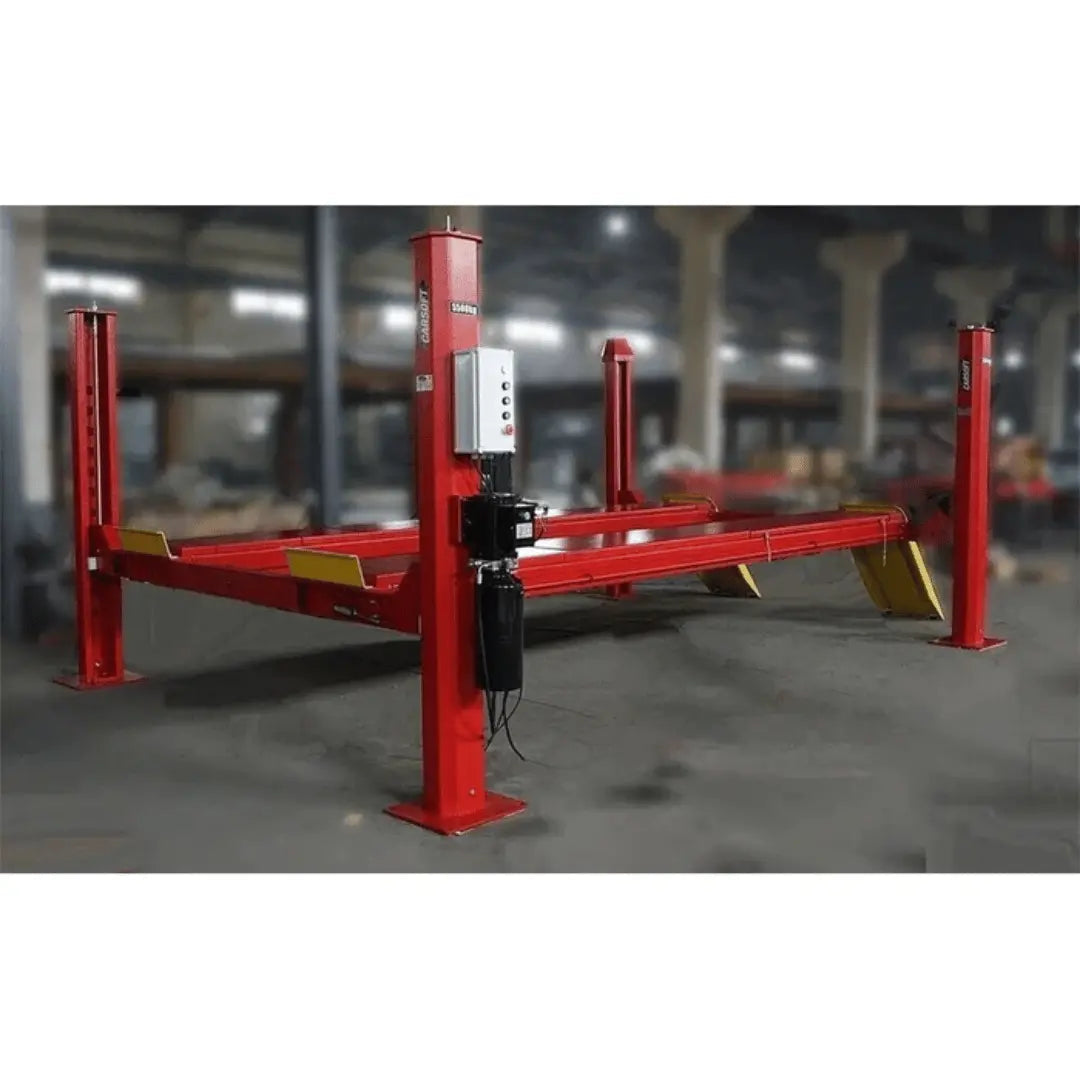

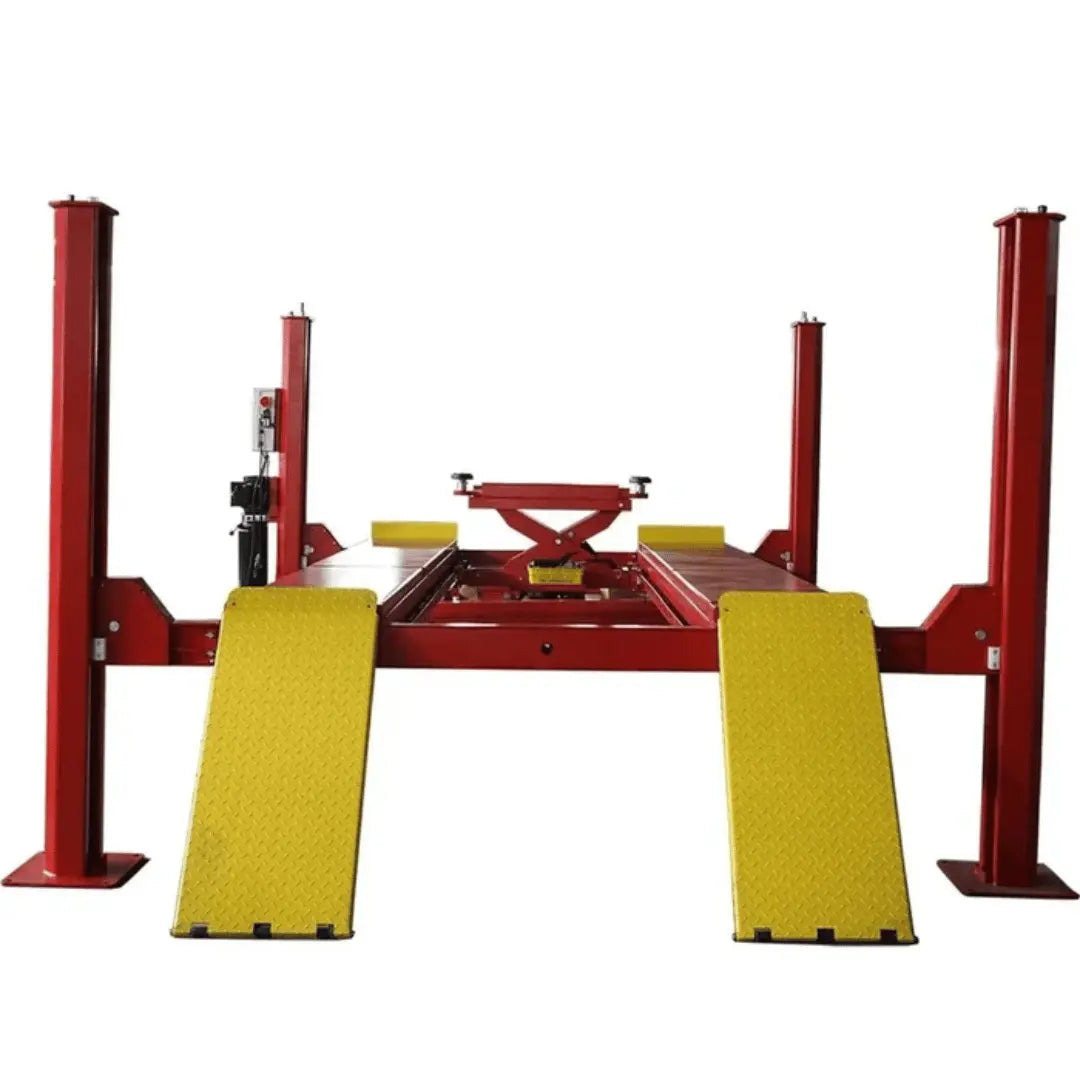

Katool KT-4H150 15,000 lbs 4 Post Alignment Lift With Rolling Jack
The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift offers exceptional performance and reliability with a robust 15,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards, including 115% dynamic loading capacity and 150% static loading capacity testing. This lift is designed for safety, efficiency, and versatility, making it the ideal choice for heavy-duty vehicle alignment and lifting operations.
Equipped with a single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H150 ensures secure and controlled operation. Its non-skid diamond platforms, adjustable safety lock ladders, and included turn tables for wheel alignment further enhance its functionality. Powered by a high-quality hydraulic system with a 3KW motor, this lift is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations. Additionally, it includes one 6,000 lbs rolling jack for added convenience.
Product Features
- 15,000 lbs Lifting Capacity: Ideal for heavy-duty vehicles.
- CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

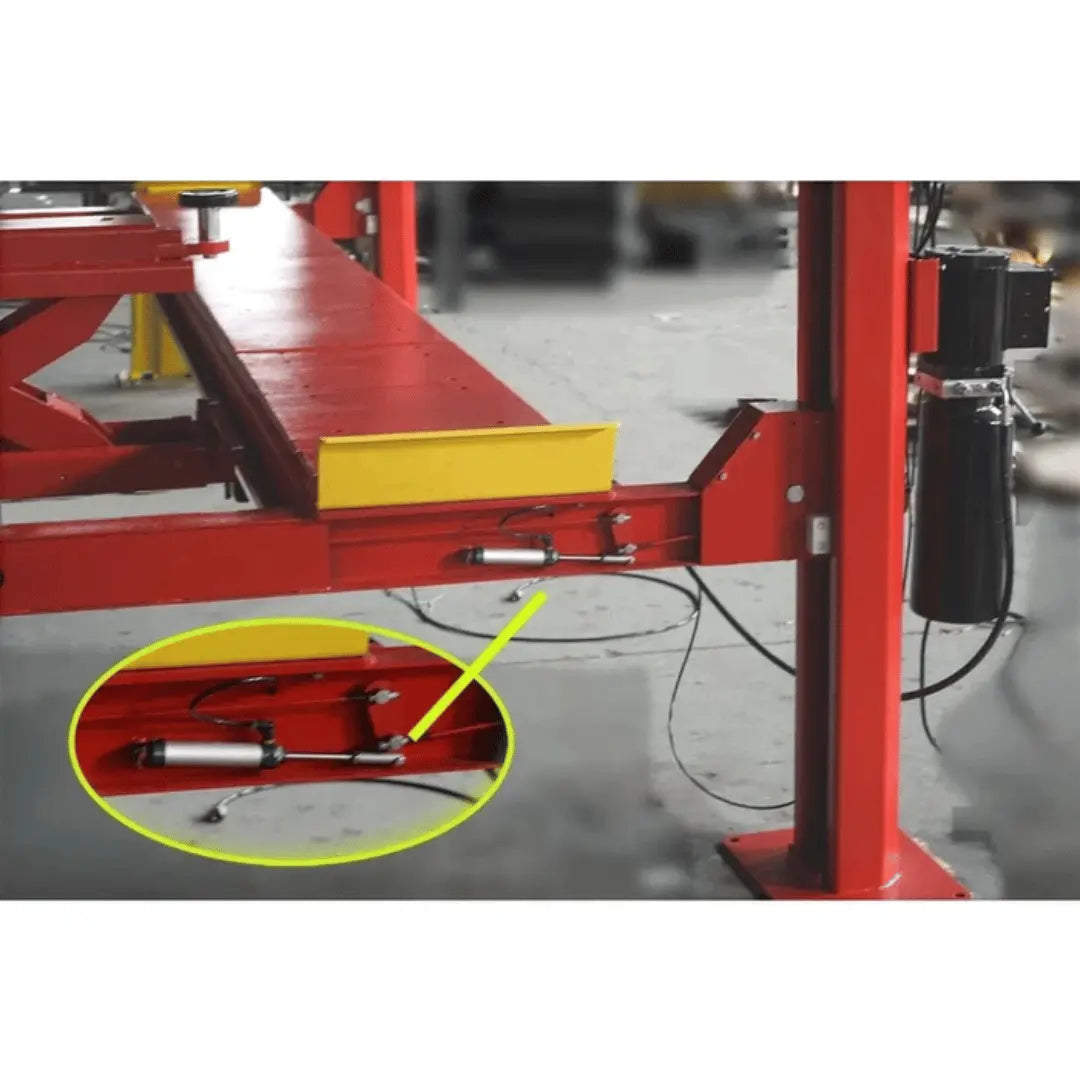

- Single-Point Manual Safety Lock Release: Ensures secure and efficient lifting operations.

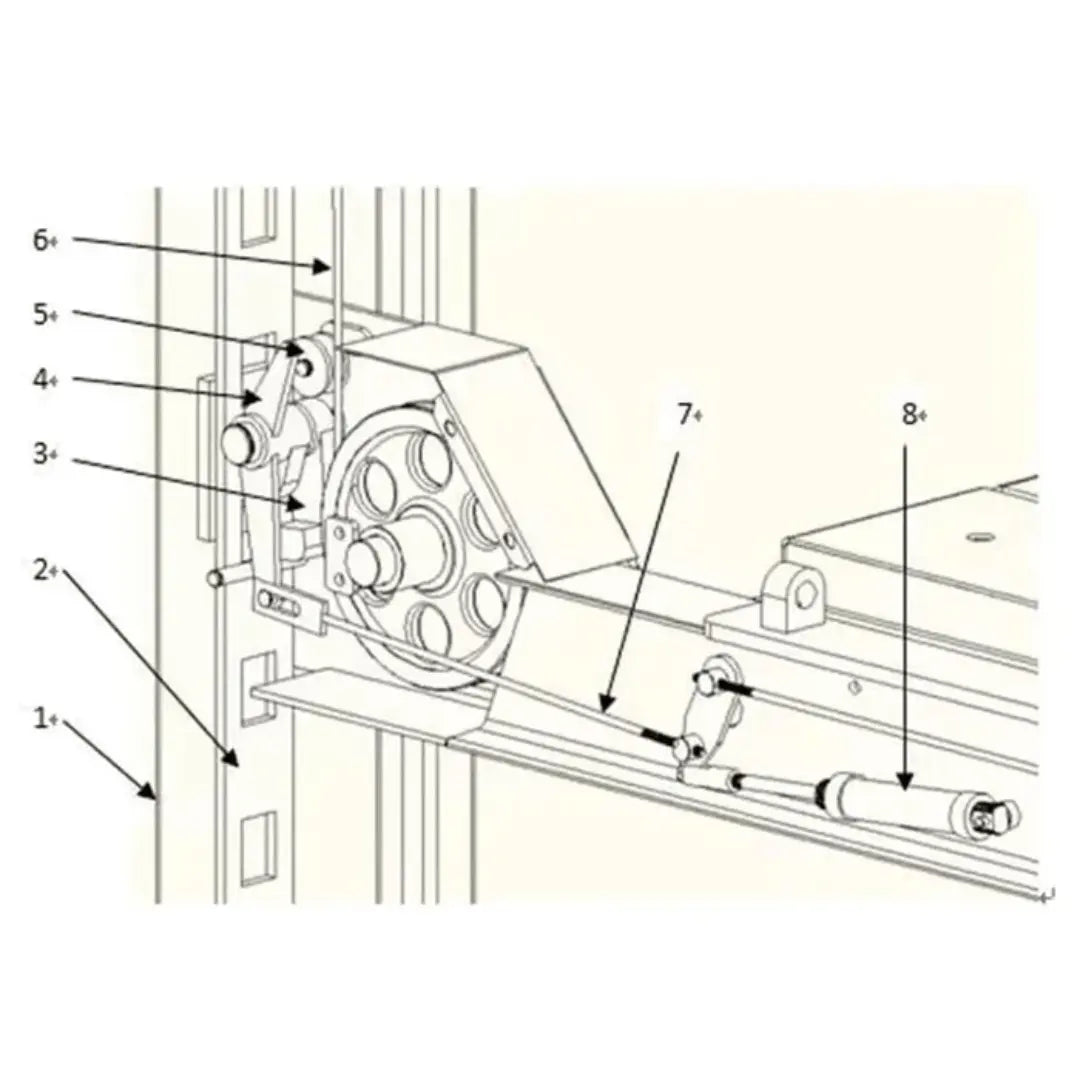

- Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for enhanced security.
- Powerside Column: Flexible installation options at either side, front, or rear.
- Non-Skid Diamond Platforms: Provides stability and safety during operation.

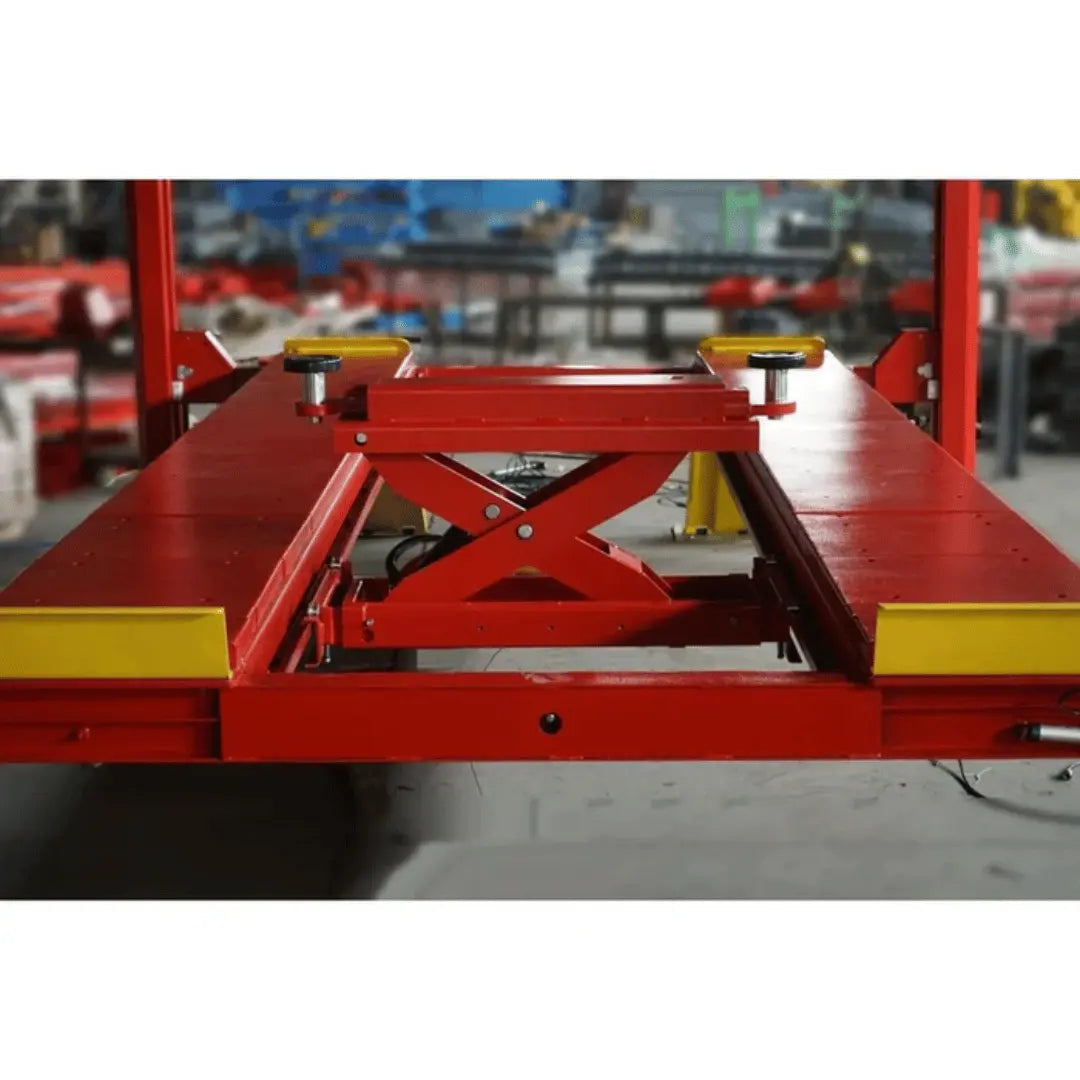

- Included Rolling Jack: One 6,000 lbs rolling jack for additional lifting capabilities.
- Optional Turn Tables for Wheel Alignment: Enhances the lift’s versatility for alignment tasks.

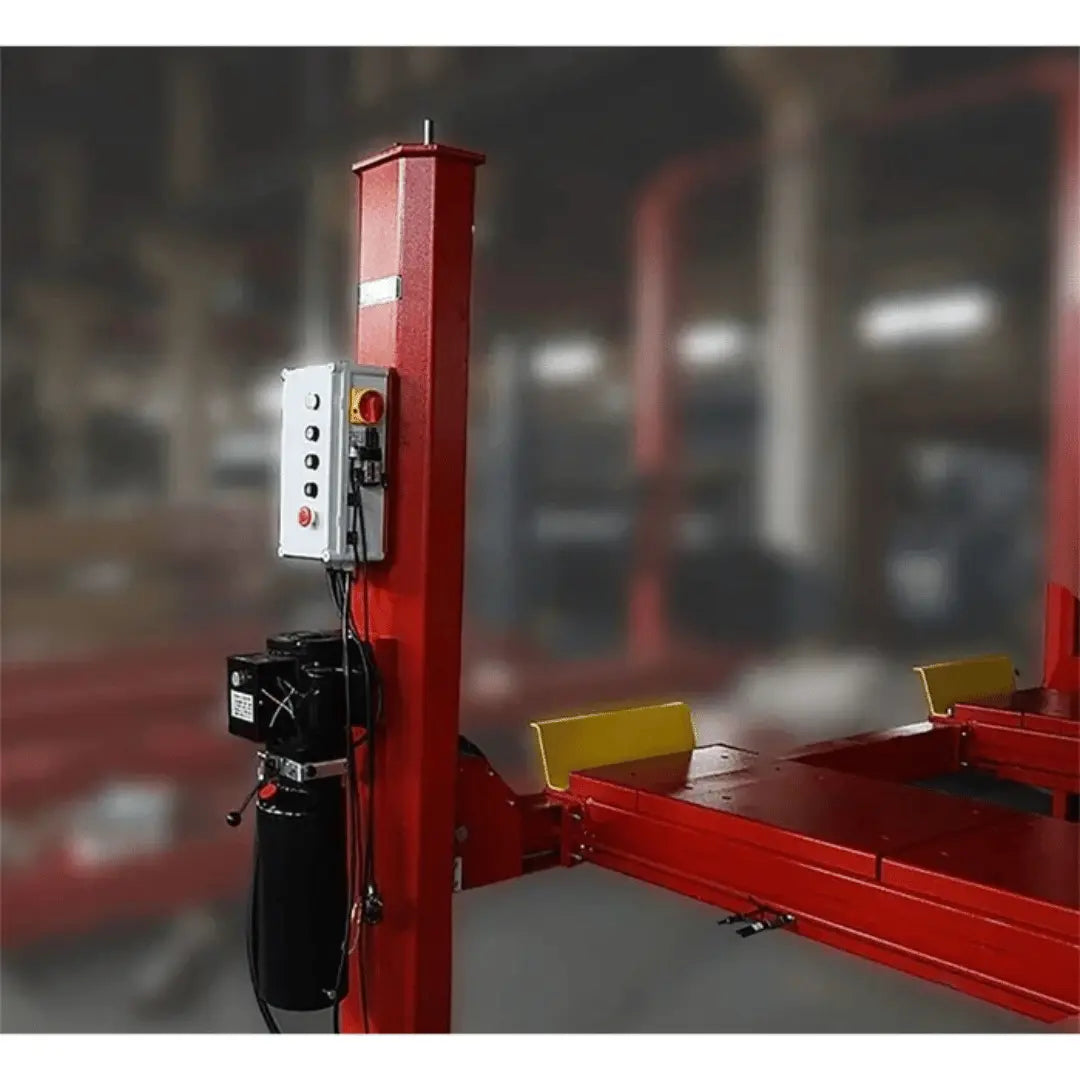

- High-Quality Hydraulic System: Powered by a 3KW motor, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

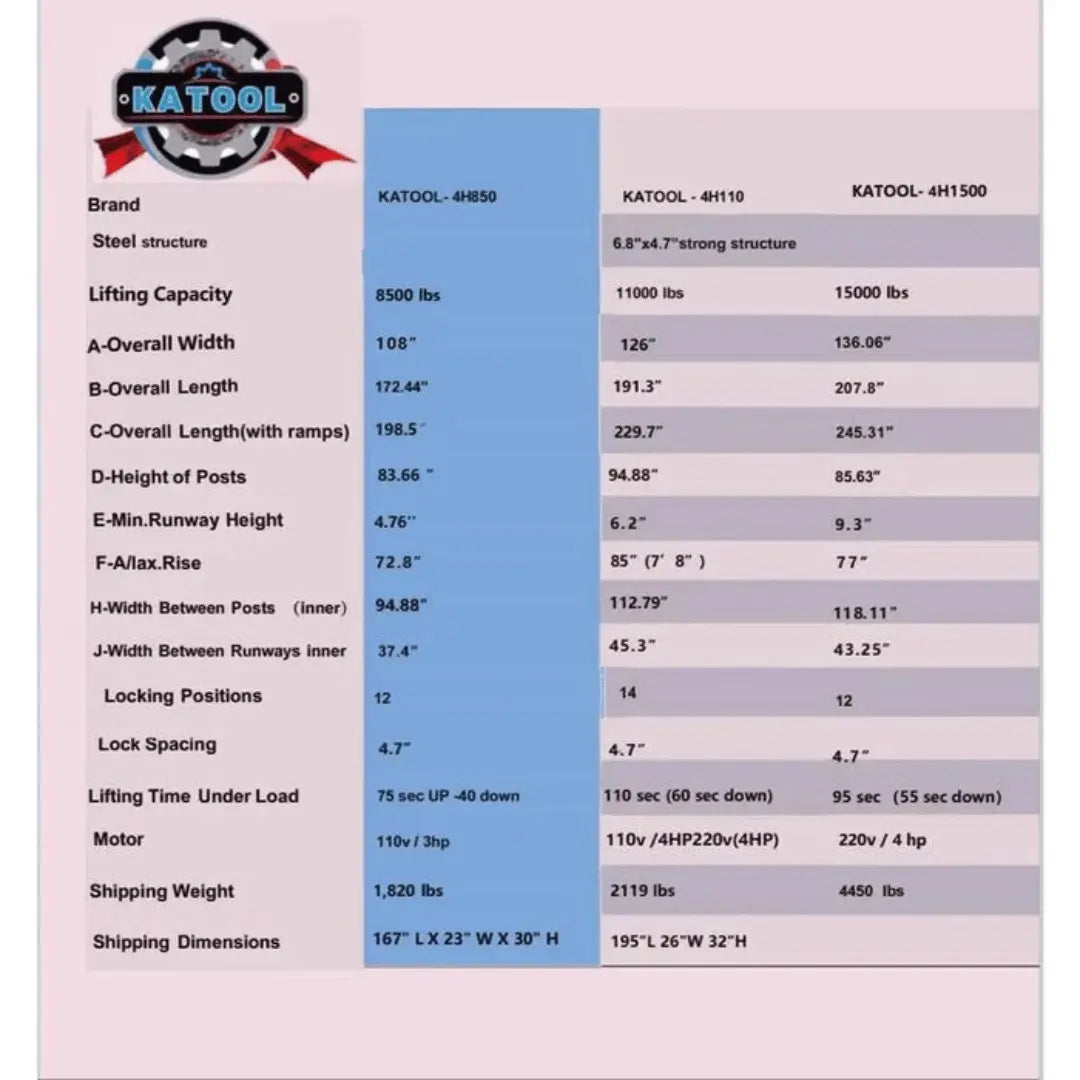

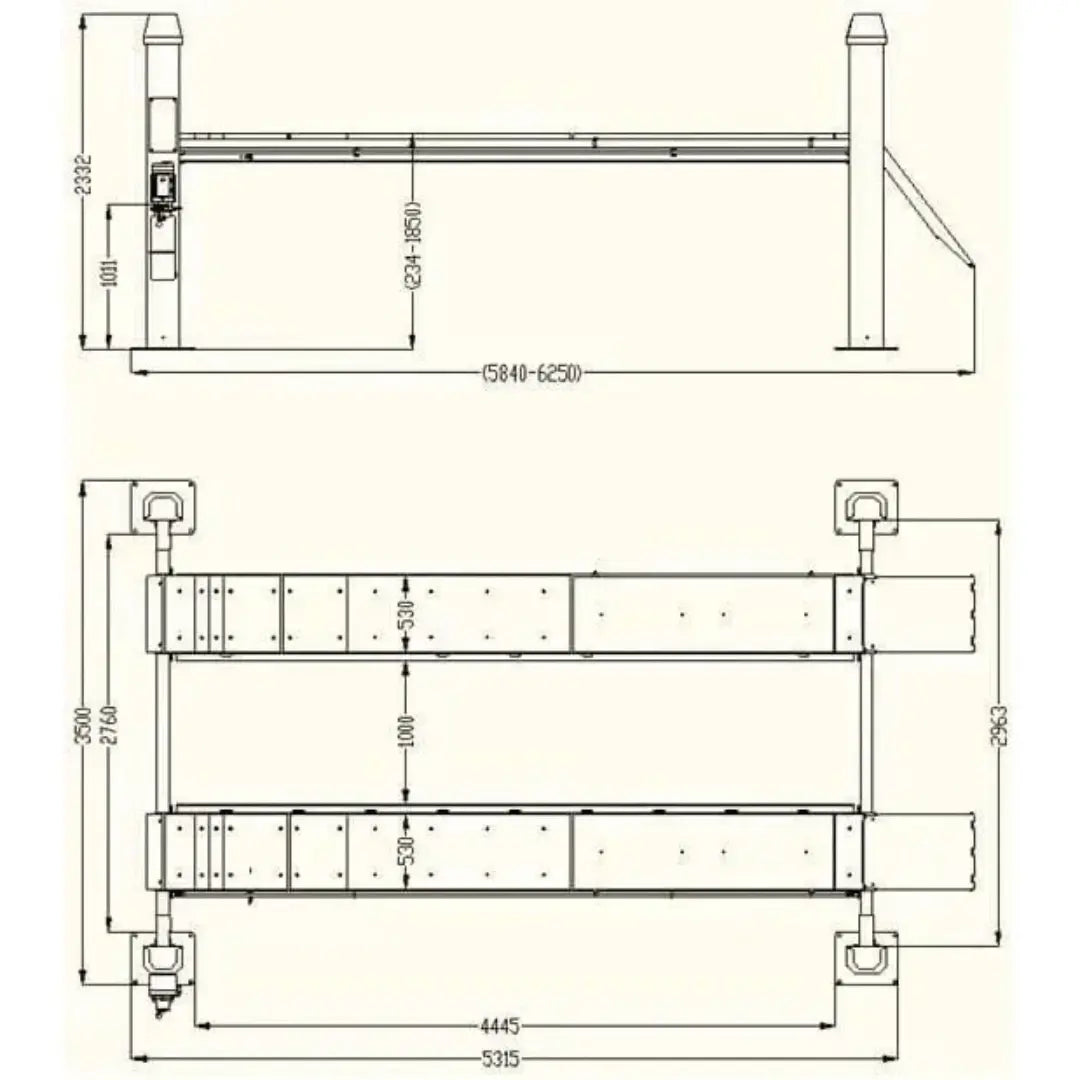

Product Specifications
| Lifting Capacity | 15,000 lbs (~6,803 kg) |
| Max. Lifting Height | 92.52" (2,350 mm) |
| Lifting Time | 95s Up / 55s Down |
| Height of Posts | 85.63" (2,175 mm) |
| Width Overall | 136.06" (3,456 mm) |
| Length Overall | 245.31" (6,231 mm, with ramps) |
| Inside Columns | 118.11" (3,000 mm) |
| Min. Runway Height | 9.3" (236 mm) |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 4,850 lbs (2,200 kg) |
Installation
Installing the KT-4H150 is straightforward, but proper concrete requirements are critical for safety. Ensure the concrete thickness is at least 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these specifications could lead to serious injury or equipment failure.
