$2,399.00 $1,319.45 Save $1,079.55
/
Shipping calculated at checkout.
Delivery Option
  • Free Shipping
  • Certified Car Lifts
  • 30-Day Hassle-Free Returns
  • In stock, ready to ship
  • Inventory on the way

All 2-Post Car Lifts

  • Industry-leading 3-YEAR WARRANTY (a $499 value!)

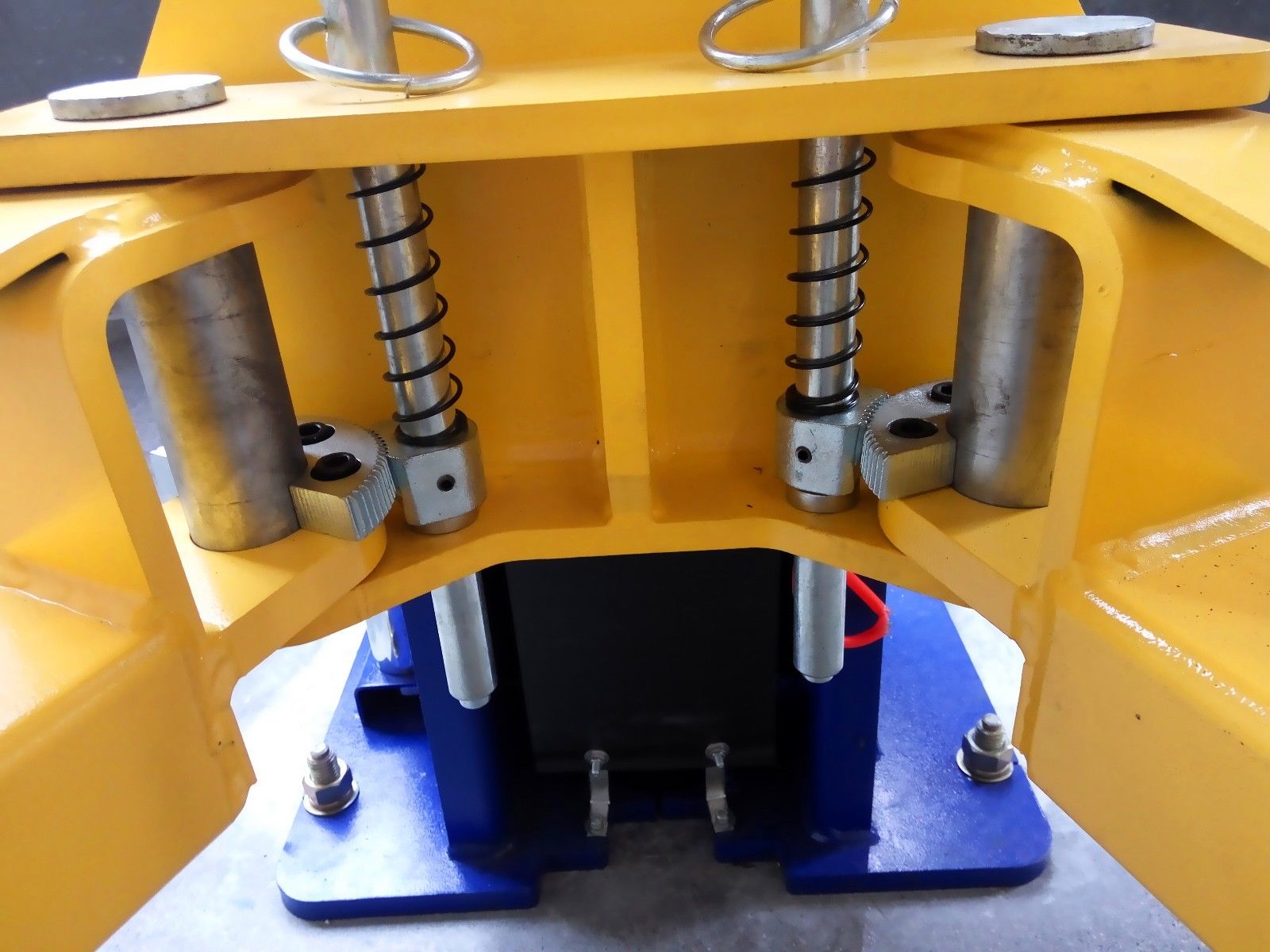

  • Combo (symmetrical and asymmetrical) Arm Assembly with Adjustable Screw Pads!

  • CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

  • One Set of 4" Tall Truck Adapters Included; 6'9" Lift Height Maximum with Truck Adapters

  • All Robot Welded Structure with Durable Powder Coated Finish

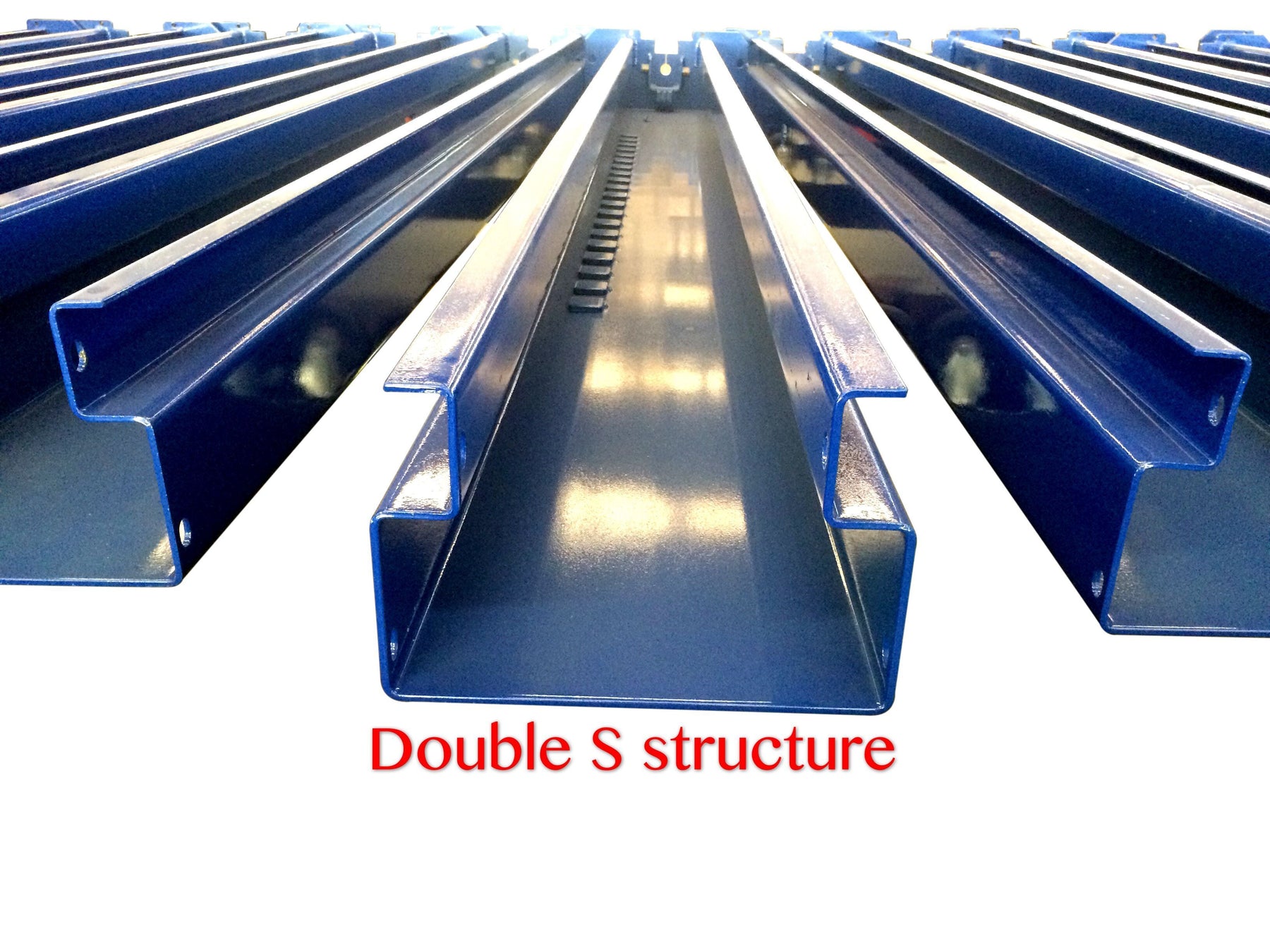

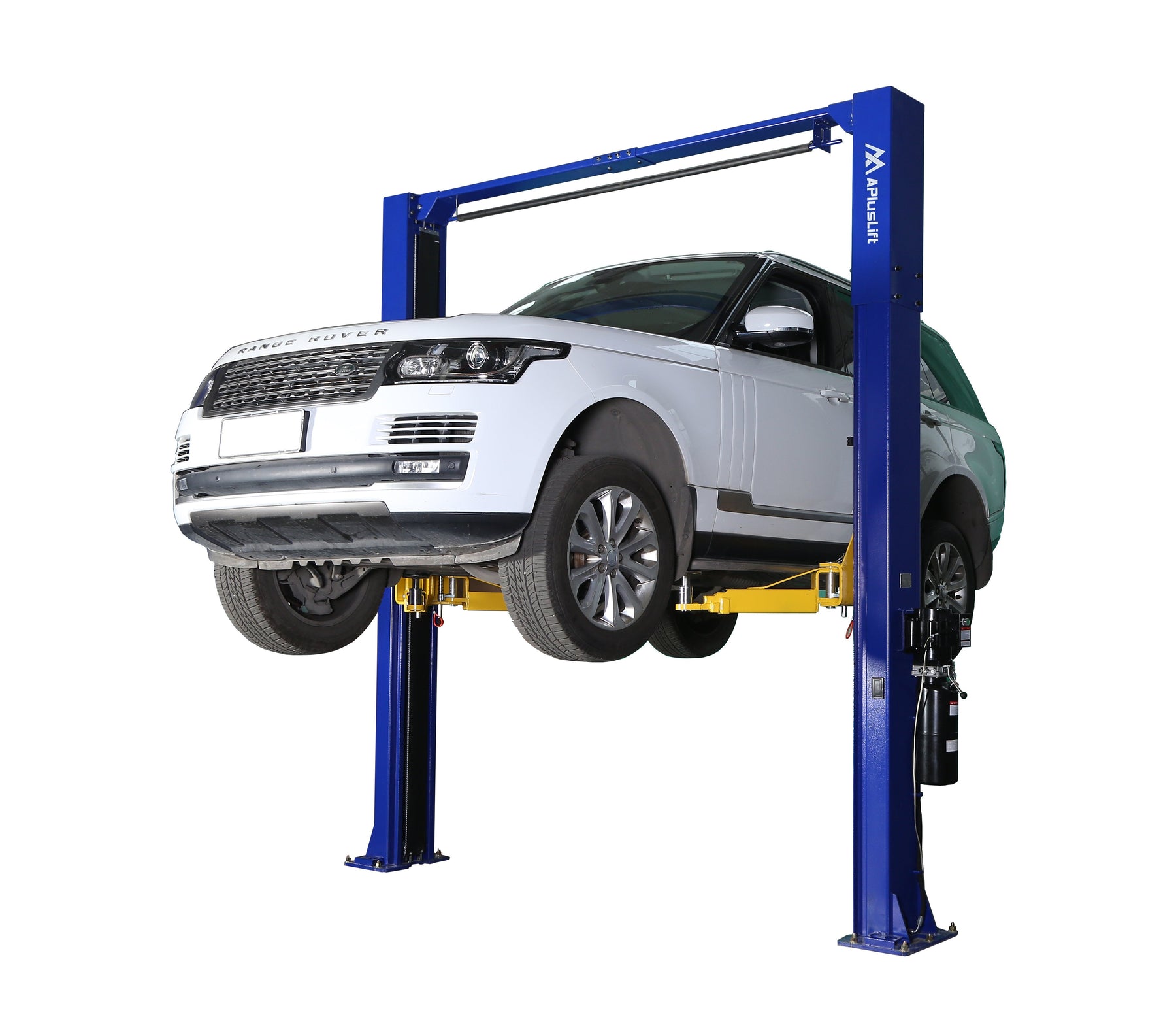

APlusLift HW-10KOH-A car lift (auto hoist) is one of the most affordable overhead car lifts built with quality materials and good workmanship. The lift has a strong double "S" column design to support 10,000 LB capacity. We also have an HW-10ASY 10000LB overhead car lift with a single-point release.

We are proud to offer an industry-leading 3-year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts. We welcome suggestions to improve our products and service!

Free shipping to the lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift; expenses are not reimbursed. See the shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $200 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Mobile (AL), Mansfield (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications
Model HW-10KOH-A
(This Model)		 HW-10ASY
(for Comparison)
Manual HW-10KOH-A Manual HW-10ASY Manual
Style Overhead Overhead
Lock Release Double Point Release Single Point Release
Warranty 3 Years (36 months) 3 Years (36 months)
Lifting Capacity 10,000 LB 10,000 LB
Overall Height 143 3/16" 143 3/16"

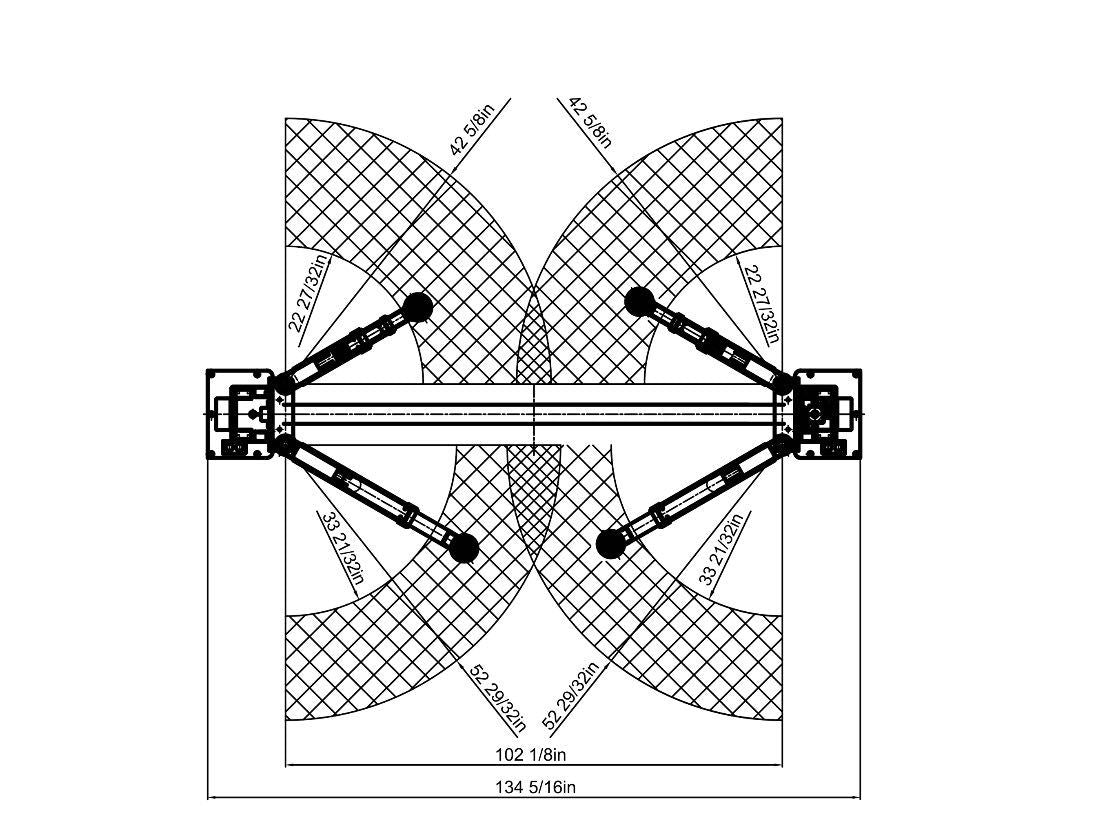

Overall Width 134 5/16" 139 1/8" (standard)
140 15/32" (post rotated)
Maximum Lift height with Truck Adapters 81" 81"
Maximum Lift height without Truck Adapters 75" 75"
Maximum lift height from bottom of the arm to the ground 71" 71"
Minimum Height of Adjustable Pads from Ground 4" 4"
Drive Through Width (Carriage to Carriage) 100" 104" (symmetric)
97" (asymmetric)
Column to Column Width 109" 113" (symmetric)
107" (asymmetric)
Column Cross Section 11"L x 7"W 11"L x 7"W

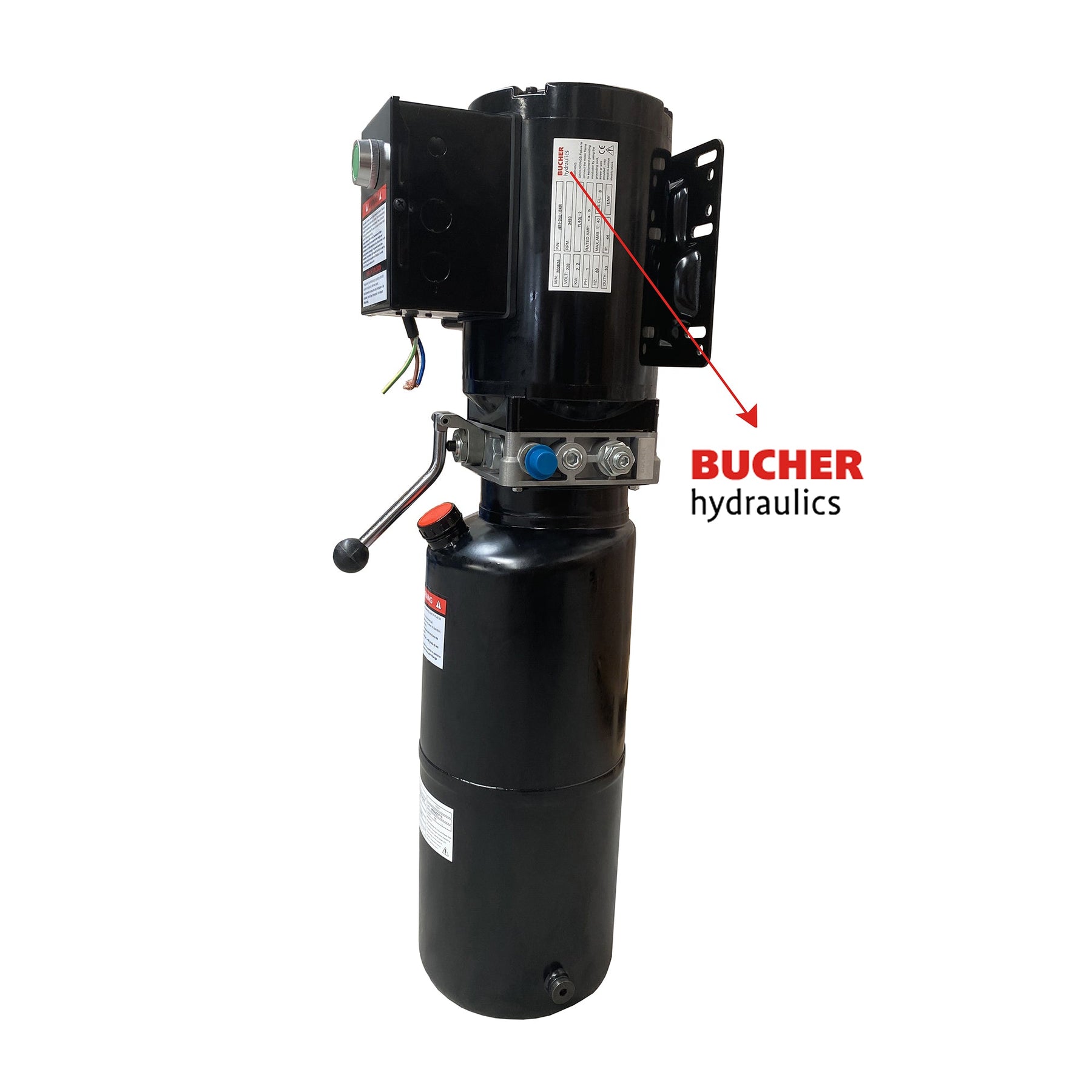

Driving Mode Dual hydraulic cylinders, chain drive Dual hydraulic cylinders, chain drive
Motor 220V Single Phase 3HP 10A (recommend a 30A breaker) 220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil 3-5 gallons AW32/AW46 (not included) 3-5 gallons AW32/AW46 (not included)
Time to full rise 50 seconds 50 seconds
Shipping Weight 1470 LB 1470 LB and 120 LB

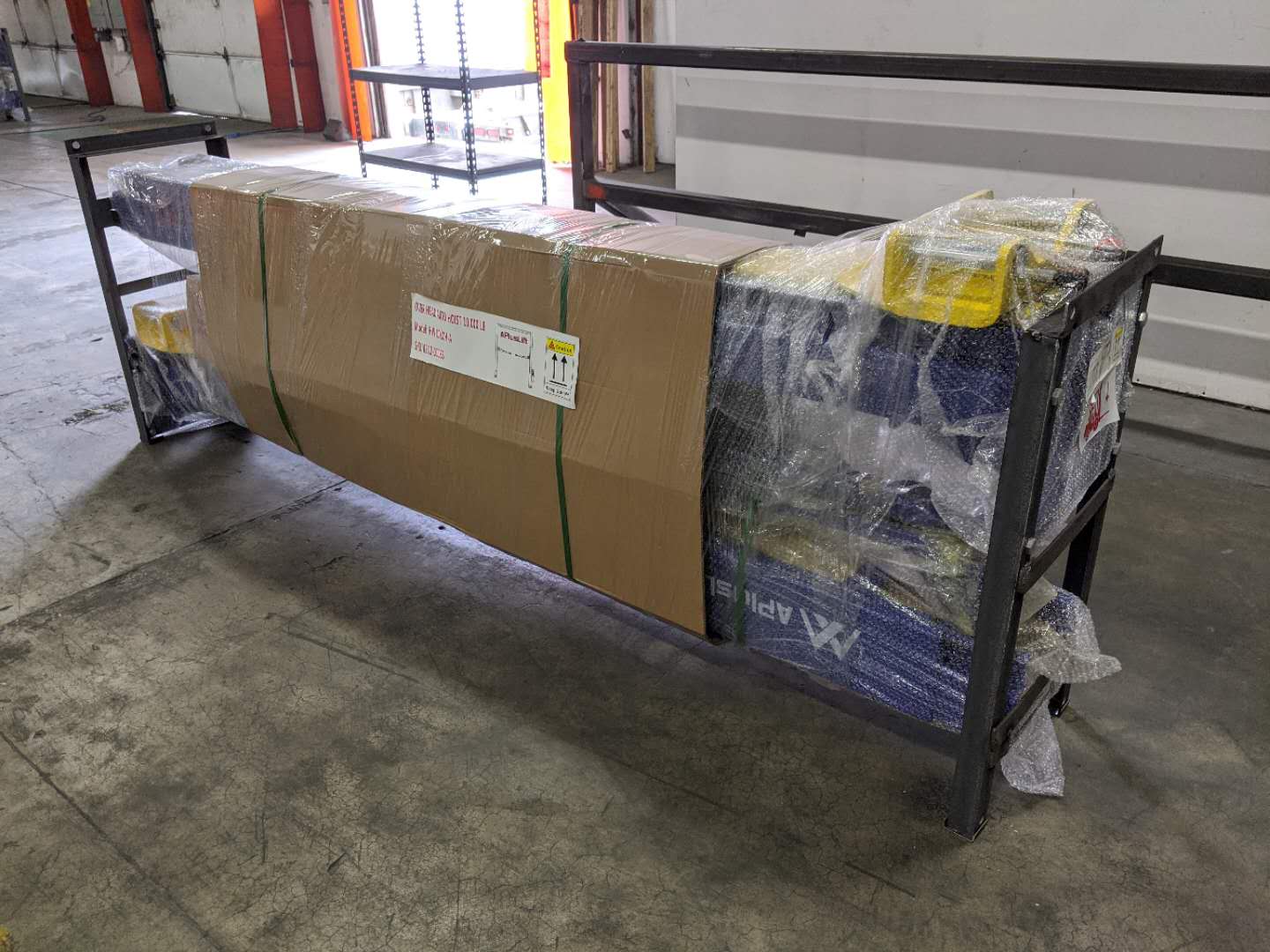

Shipping package size 113"L x 22"W x 40" H
  • 113"L x 22"W x 40"H (Car Lift)
  • 38"L x 17"W x 14" H (2 ft Height Extension Crate)
Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
Parts Included

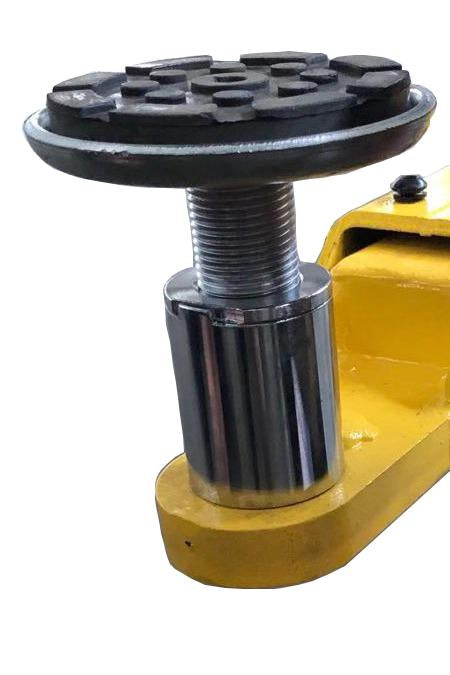

  • 4 pieces of adjustable screw pads
  • 4 pieces of 4" tall truck adapters (height extensions)
  • 10 anchor bolts
  • 10 shims

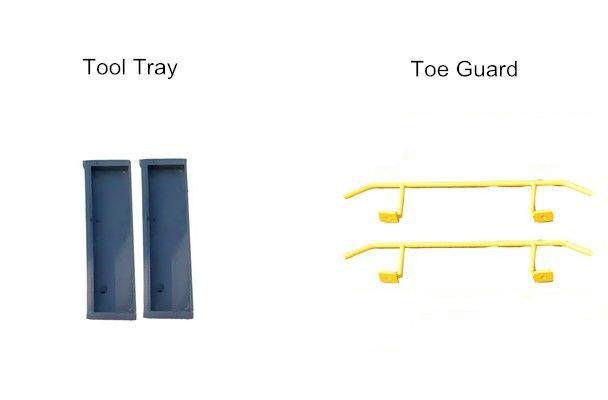

  • 2 tool trays
  • 2 toe guards
Optional Parts 2 3/4" and 6" Tall Truck Adapters

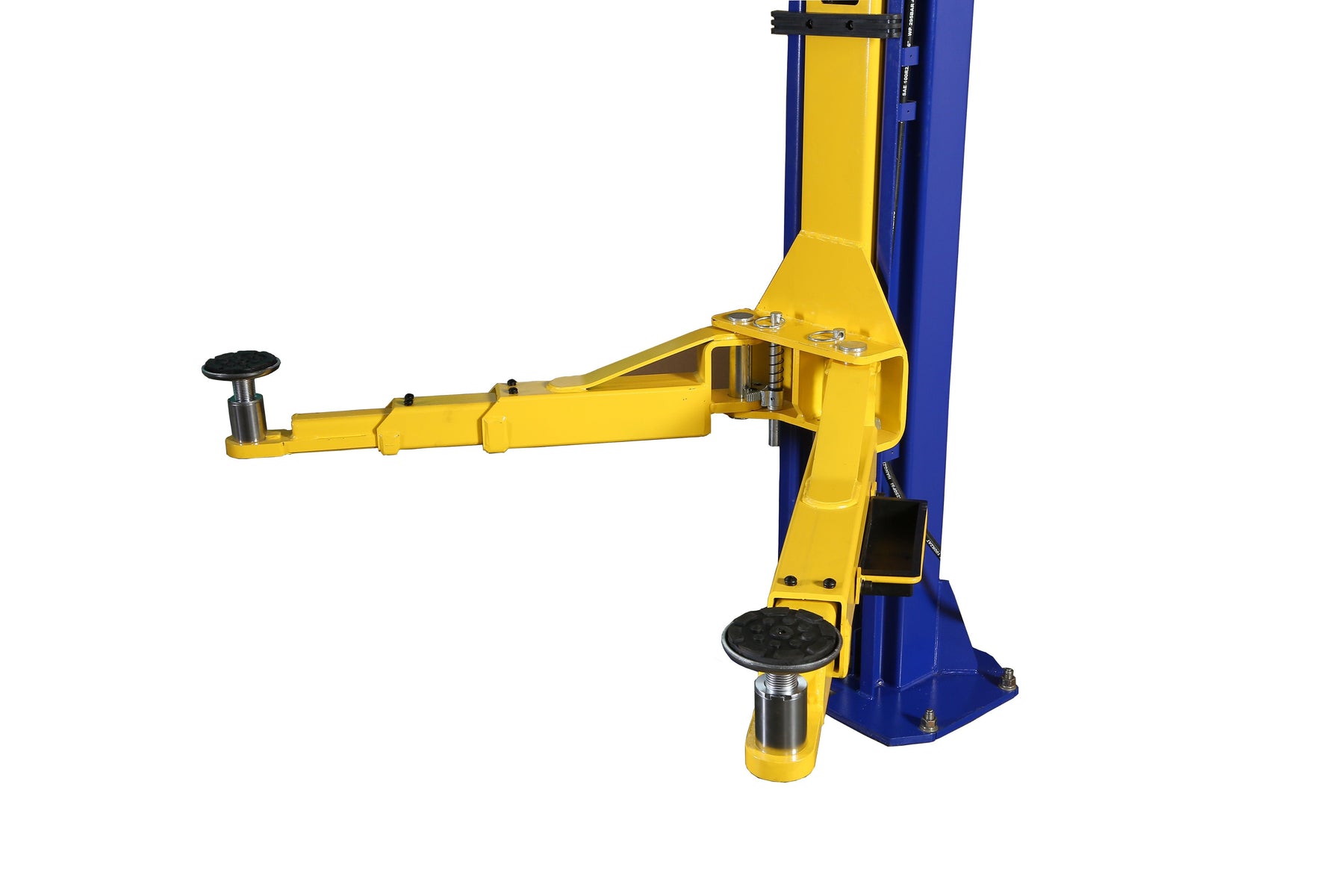

Arm Assembly Combo (symmetrical and asymmetrical) Arm Assembly

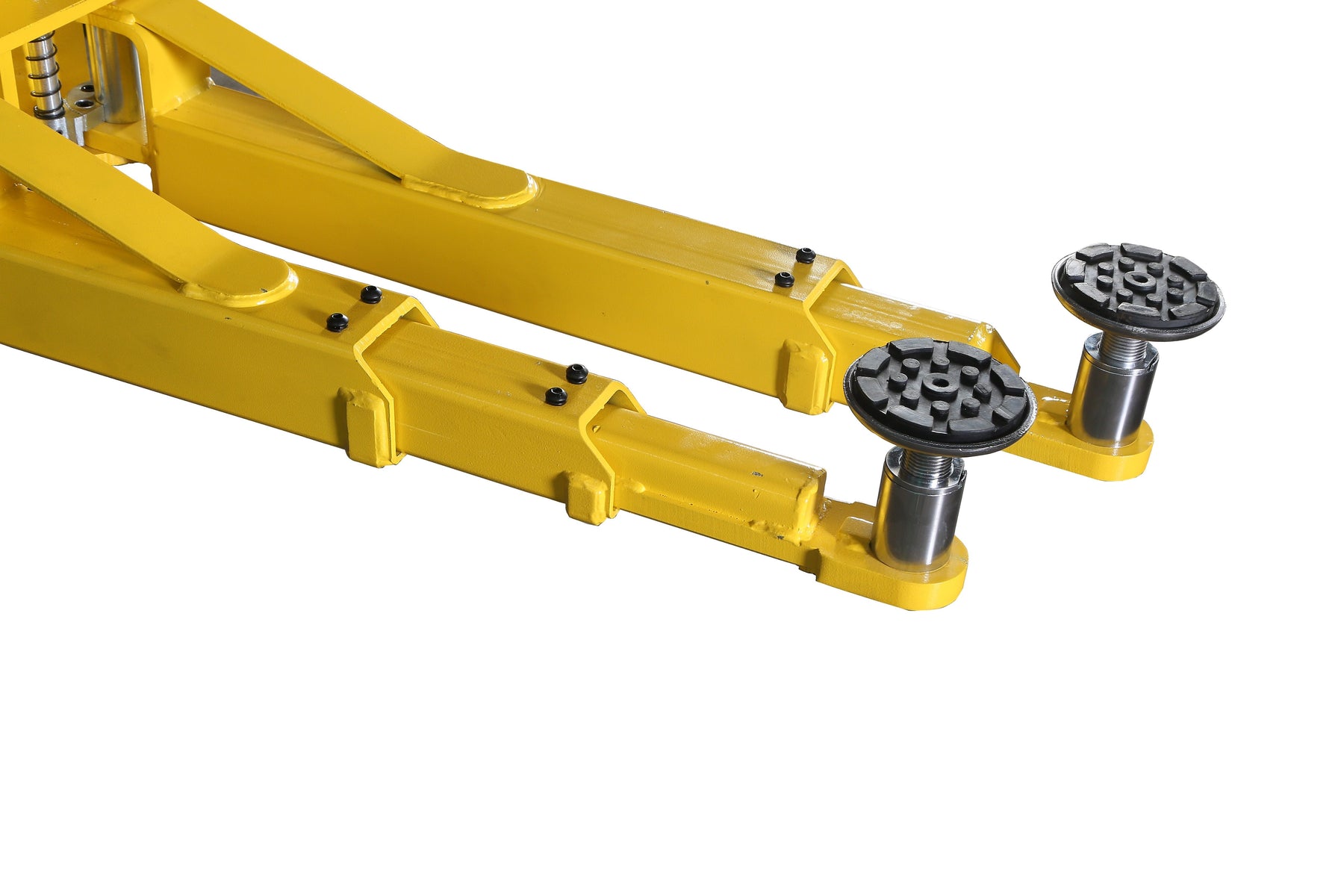

Front Arms Straight Front 3 Stage reach from 22 7/8" to 42 5/8"
Back Arms Straight Rear 2 Stage reach from 33 5/8" to 52 7/8"
Column Steel Thickness 13/64"
Carriage Steel Thickness 15/64"
Carriage Yoke Thickness 9/16"
Arm Steel Thickness 15/64"
Base Plate Steel Thickness 5/8"
Model HW-10KOH-A
(This Model)		 HW-10ASY
(for Comparison)

Features

  • CE Certified Lift Structure and Hydraulic System
  • Third-party tested with a dynamic load capacity of 115%
  • Third-party tested with a static load capacity of 150%
  • Durable hydraulic system
  • Easy to operate and maintain
  • Double-point safety lock release
  • Double seal rings protecting PU material
  • Carriage material Q355 (ASTM A572), stronger than normal Q235 steel
  • Lifting operation by pressing the "UP" button on the motor
  • Manual lowering operation by pressing the lever
  • Relief valve built-in power pump to prevent overloading

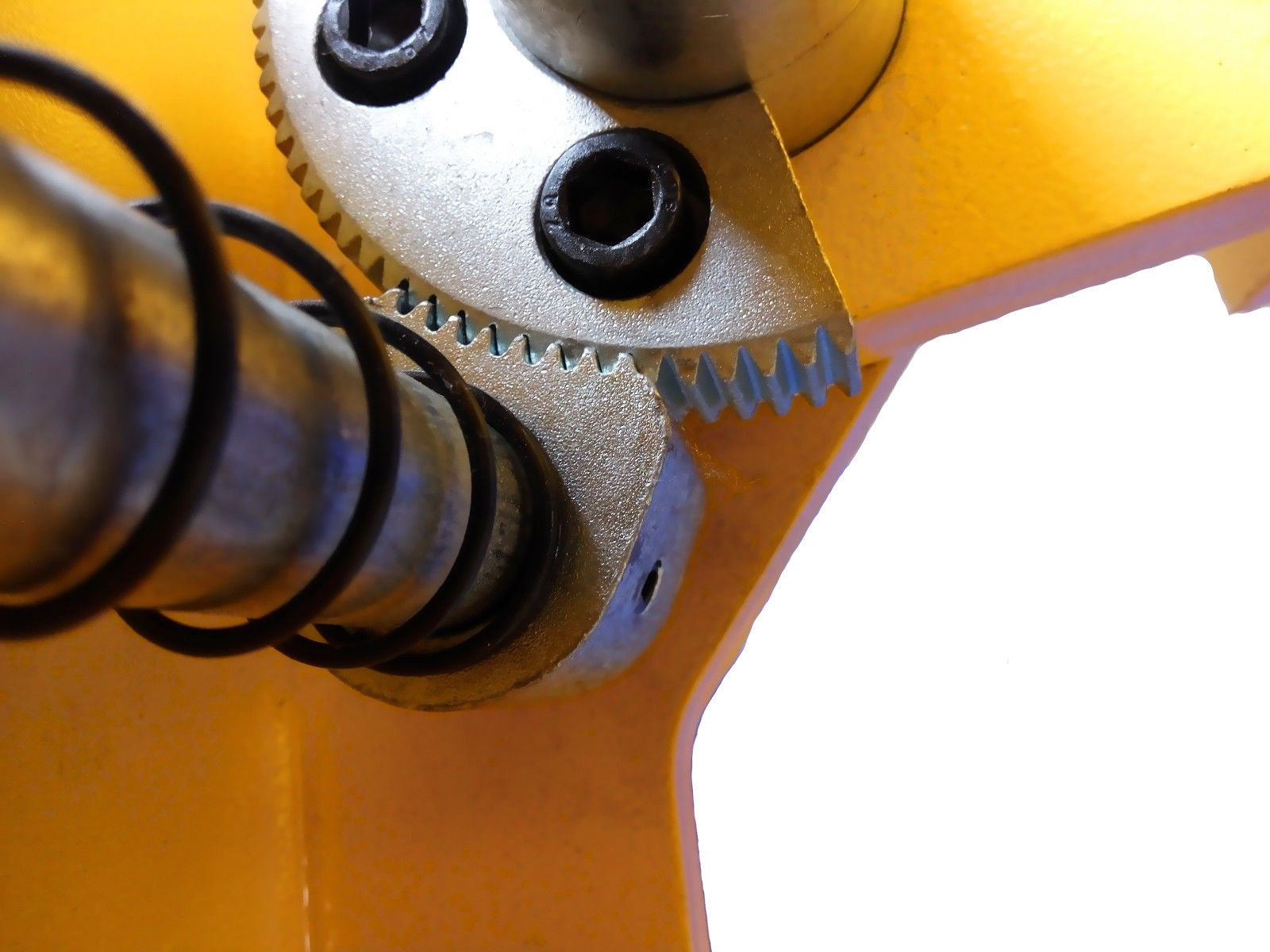

  • Automatic arm lock restraints
  • Relief valve built-in power pump to prevent overloading
  • Door guard protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope
  • Heavy duty 3/8" diameter cable and 5" pulley that reduce high stress on synchronization process and increase cable life
  • Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
