Regular price $7,099.00 Sale price$3,904.45 Save $3,194.55
/
Shipping calculated at checkout.

Delivery Option
  • Free Shipping
  • Certified Car Lifts
  • 30-Day Hassle-Free Returns
  • In stock, ready to ship
  • Inventory on the way

All 4-Post Lifts and Jacks.

  • The product is expected to be delivered in about 90-120 days starting from the day the product is ordered. Note that the current HW-12S is all blue color (not gray-blue). We require a 10% down (non-refundable) and the remaining balance paid before we ship it to your location. Please email us if you are interested.

  • Industry leading 3 YEAR WARRANTY (a $499 value!)

  • Drive Through Width 106 9/32"; Lifting Height: 77 11/32"; Overall Dimensions 243 1/2"L x 134 3/8"W x 106 9/32"H

  • Free Approach Ramps

  • Time-Tested Car Lift Model for 30 Years

  • Powder Coated Finish with Superior Corrosion Resistance

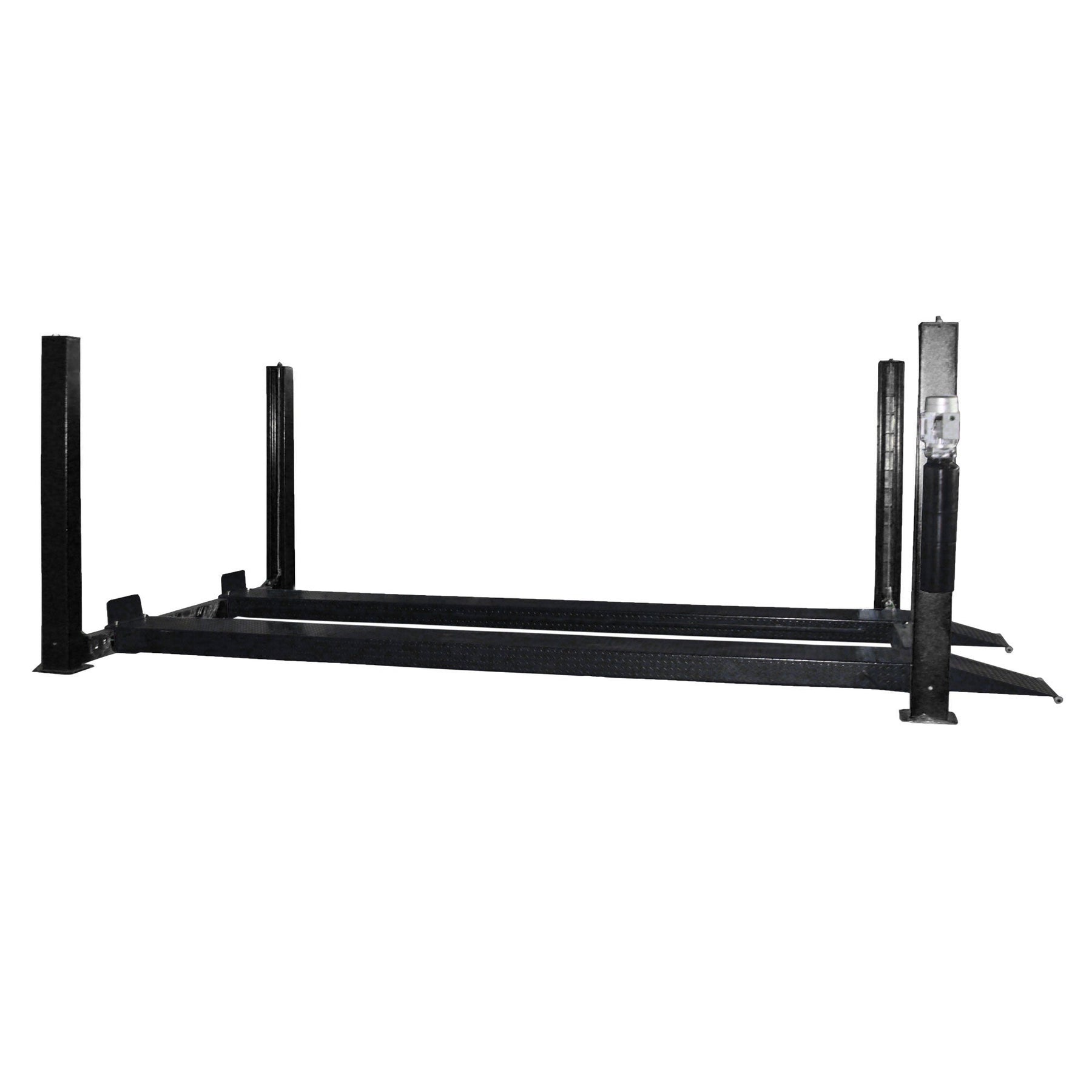

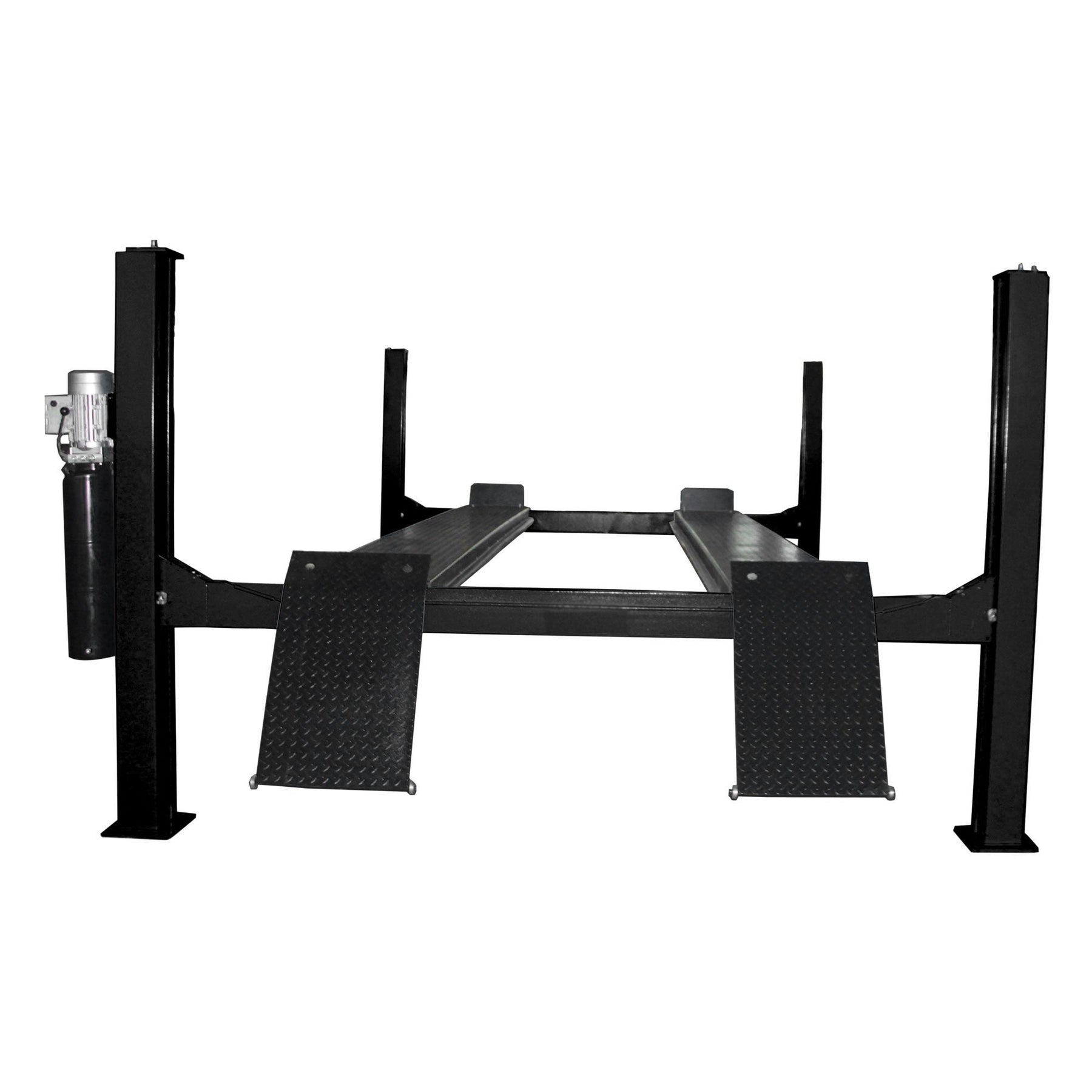

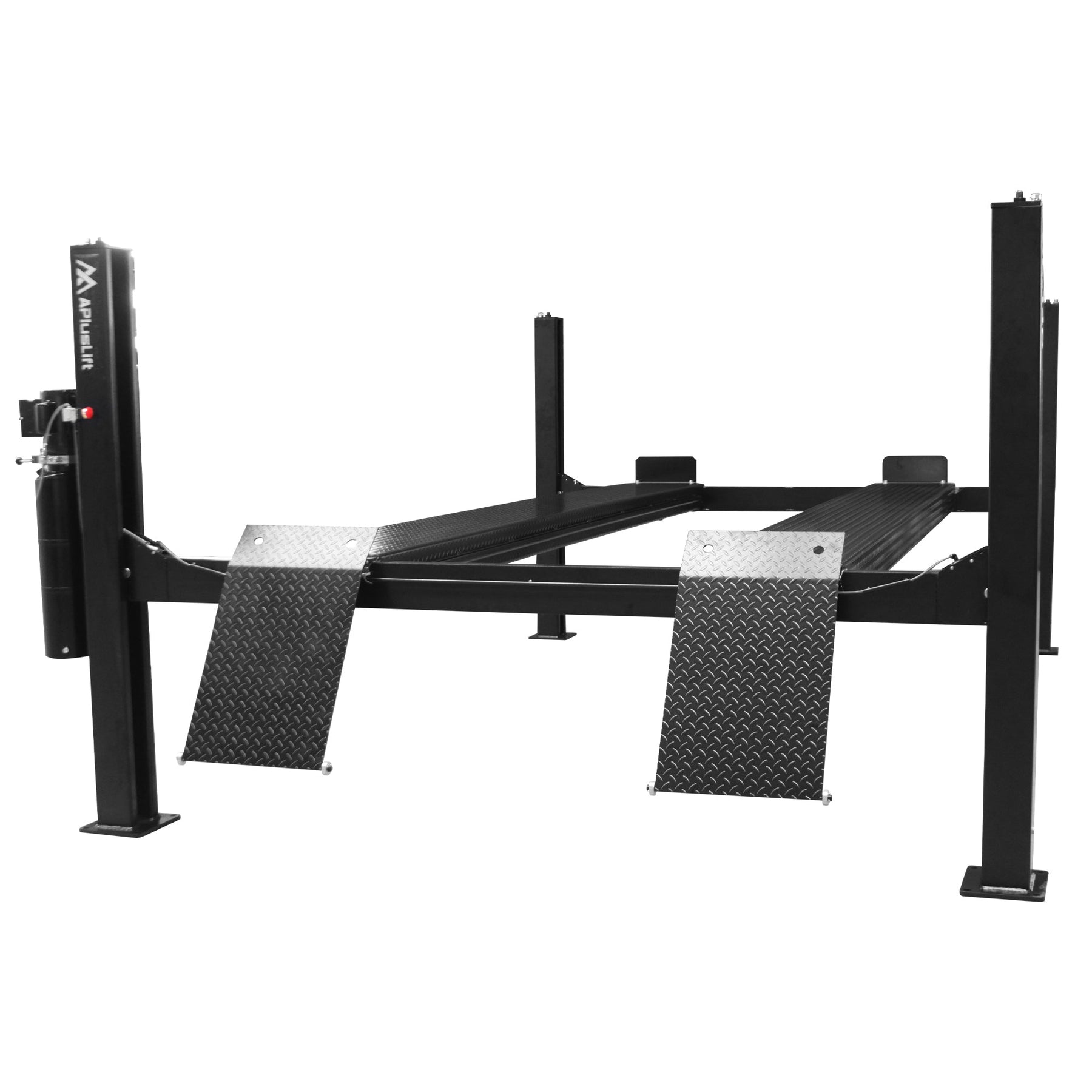

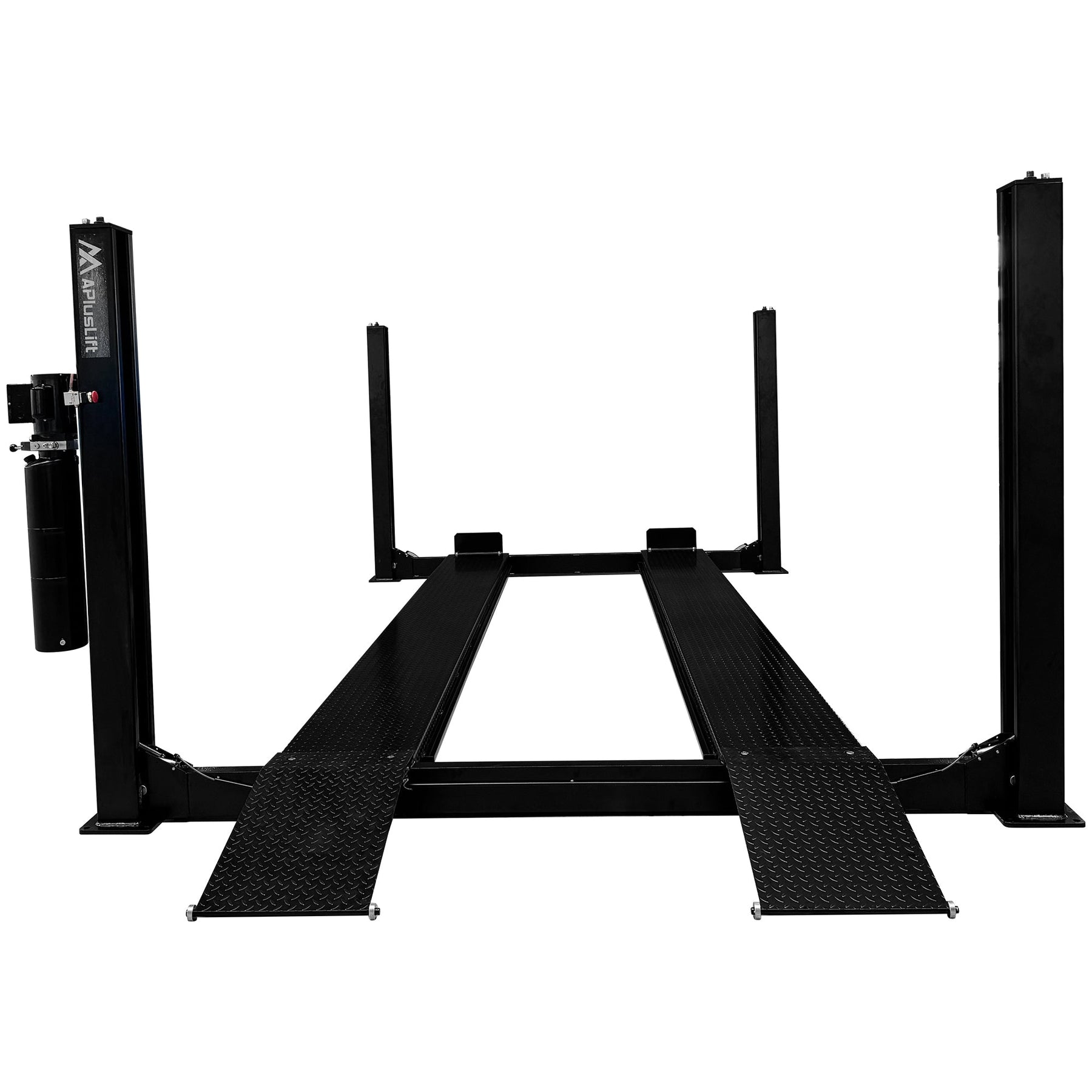

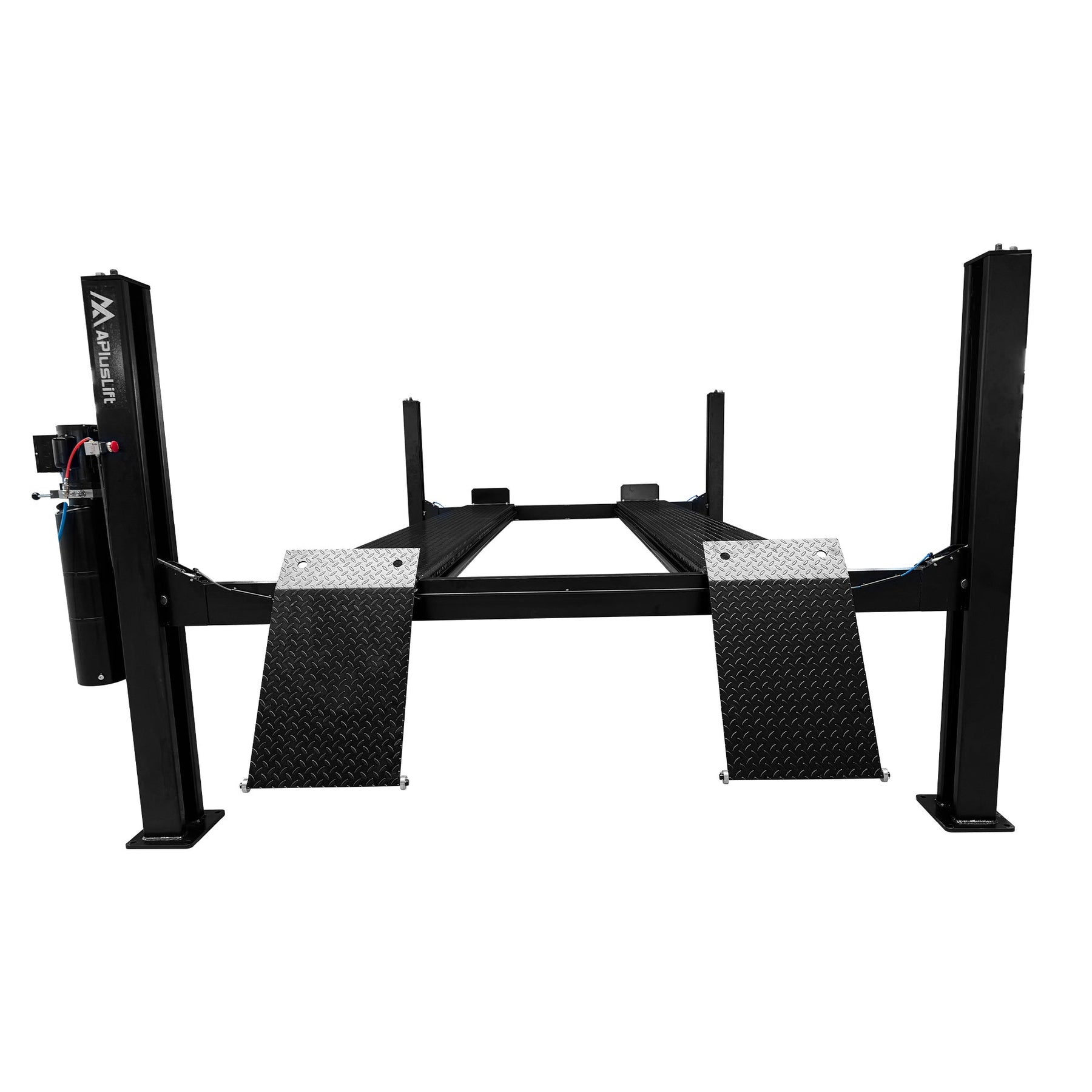

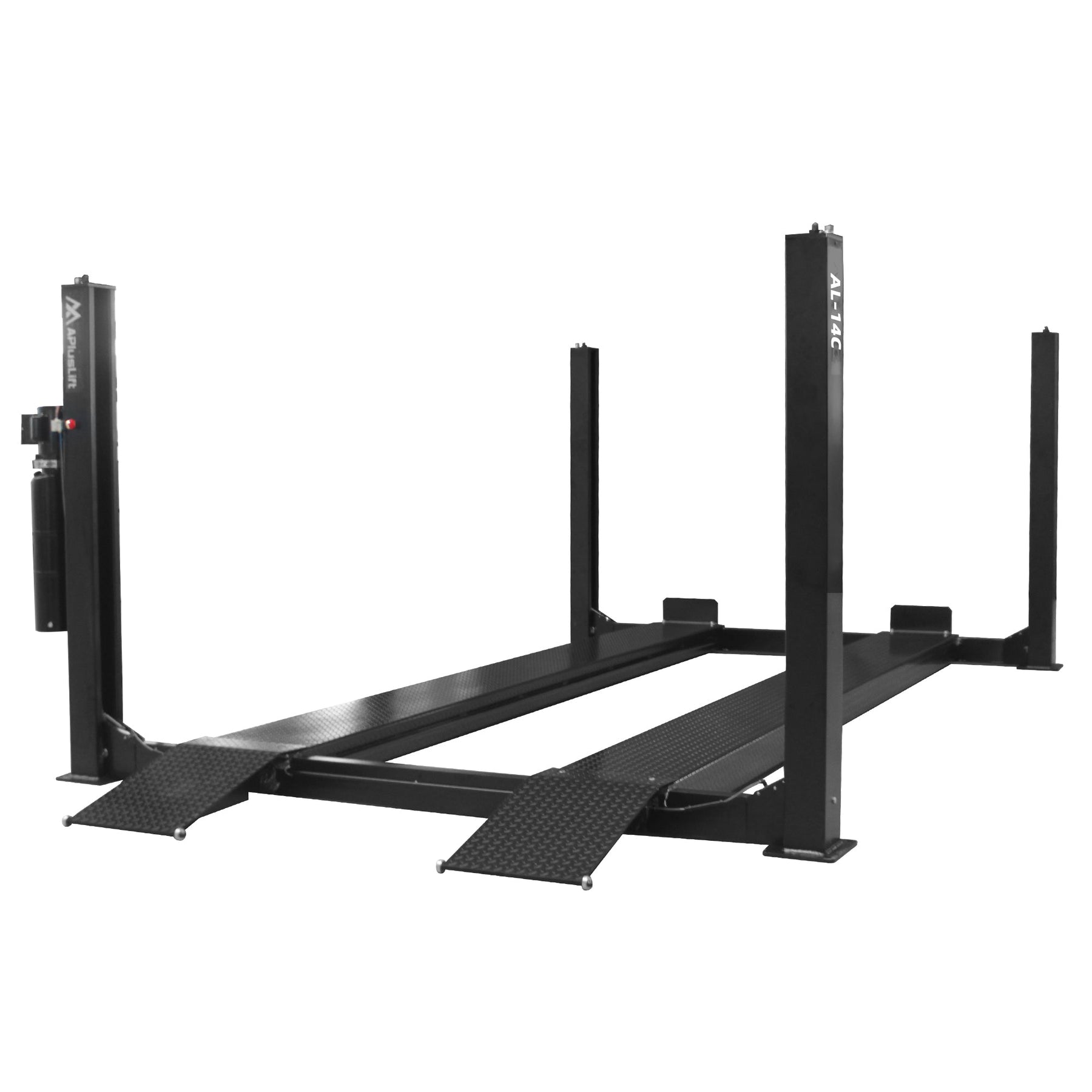

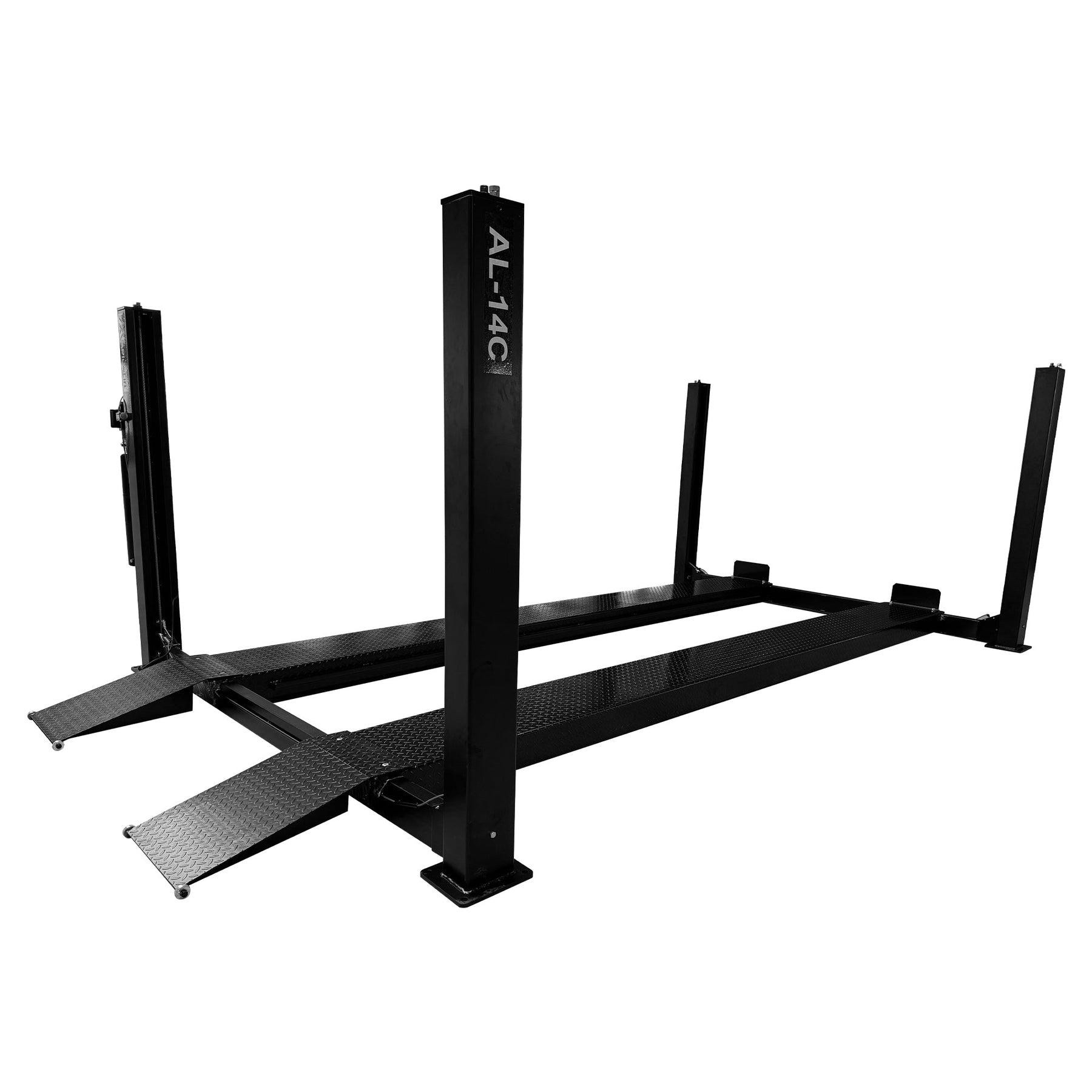

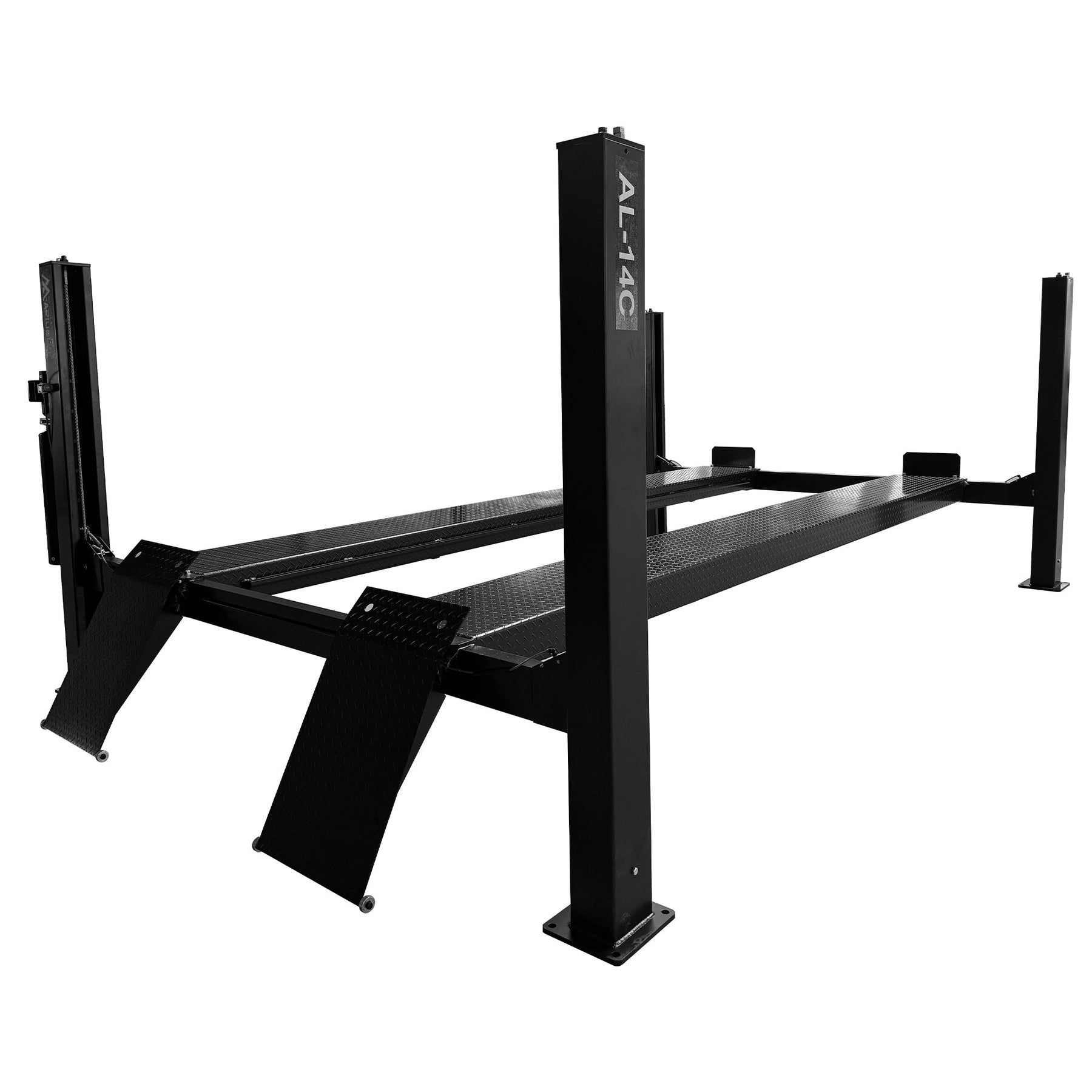

APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.

APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift package includesΒ  two approach ramps.

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $500 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Mobile (AL), Mansfield (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications and Features

Model AL-14C(HW-14AL)
(This Model)
AL-12A
for Comparison
Manual HW-14AL Manual AL-12A Manual
Warranty 3 Years (36 Months) 3 Years (36 Months)
Lifting Capacity 14,000 LB 12,000 LB
Overall Length 243 1/2" 230"
Overall Width 134 3/8" 130"
Drive Through Width 106 9/32" 113 5/8"
Overall Height 83" 87 1/2"

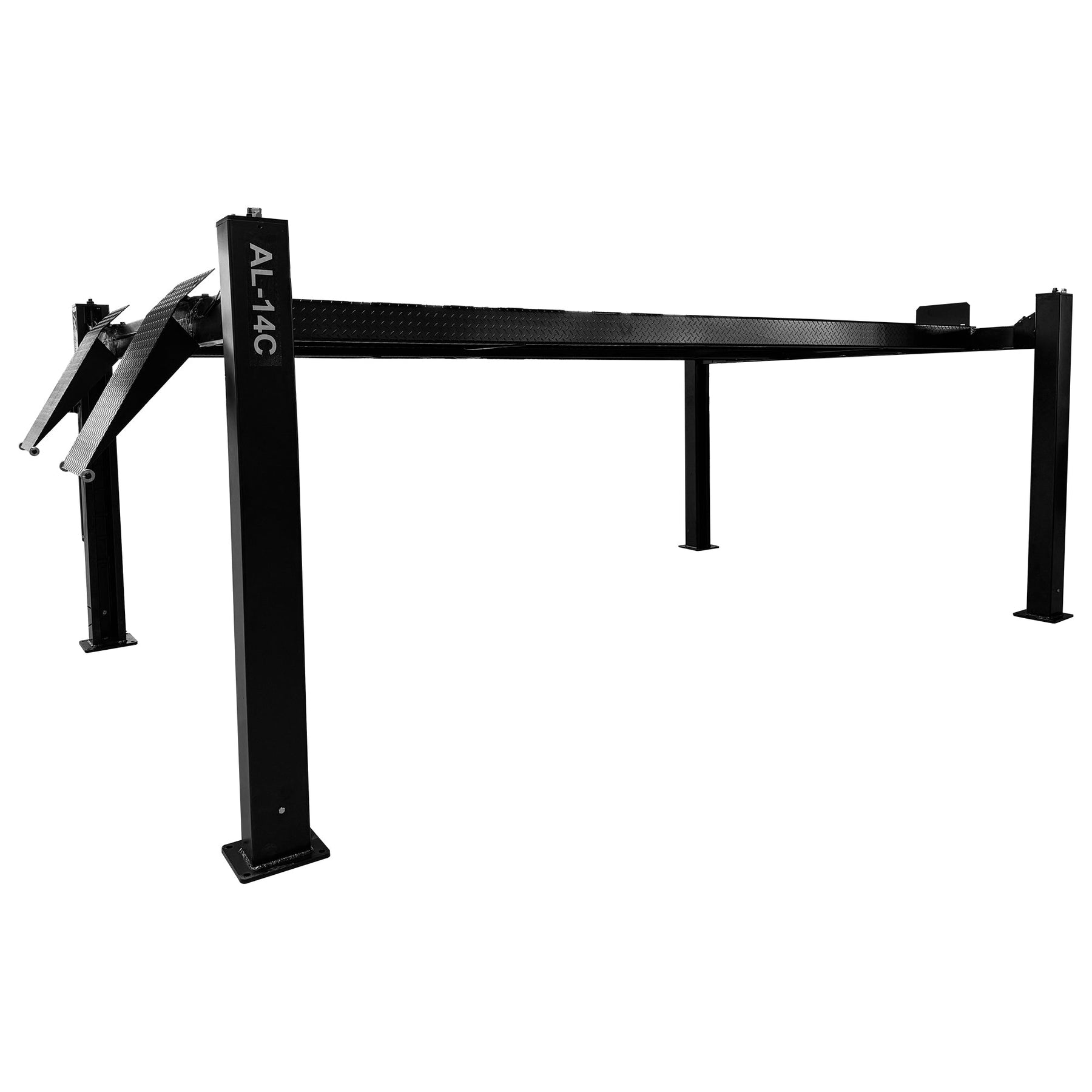

Lifting Height 77 11/32" 72"
Clearance Under Runway 70 27/32" 67"
Runway Size 203 15/16"L x 20"W 196"L x 23"W
Width Between Runways 43" Inside-Inside, 83" Outside-Outside 34 1/2" Inside-Inside,80 3/8" Outside-Outside
Runway Gauge Steel 15/64" 6 (13/64")
Column Cross Section 7 11/16"L x 6"W 7"L x 5"W
Removable Approach Ramps Size 27 31/32"L x 20 3/32"W 32"L x 18 1/2"W

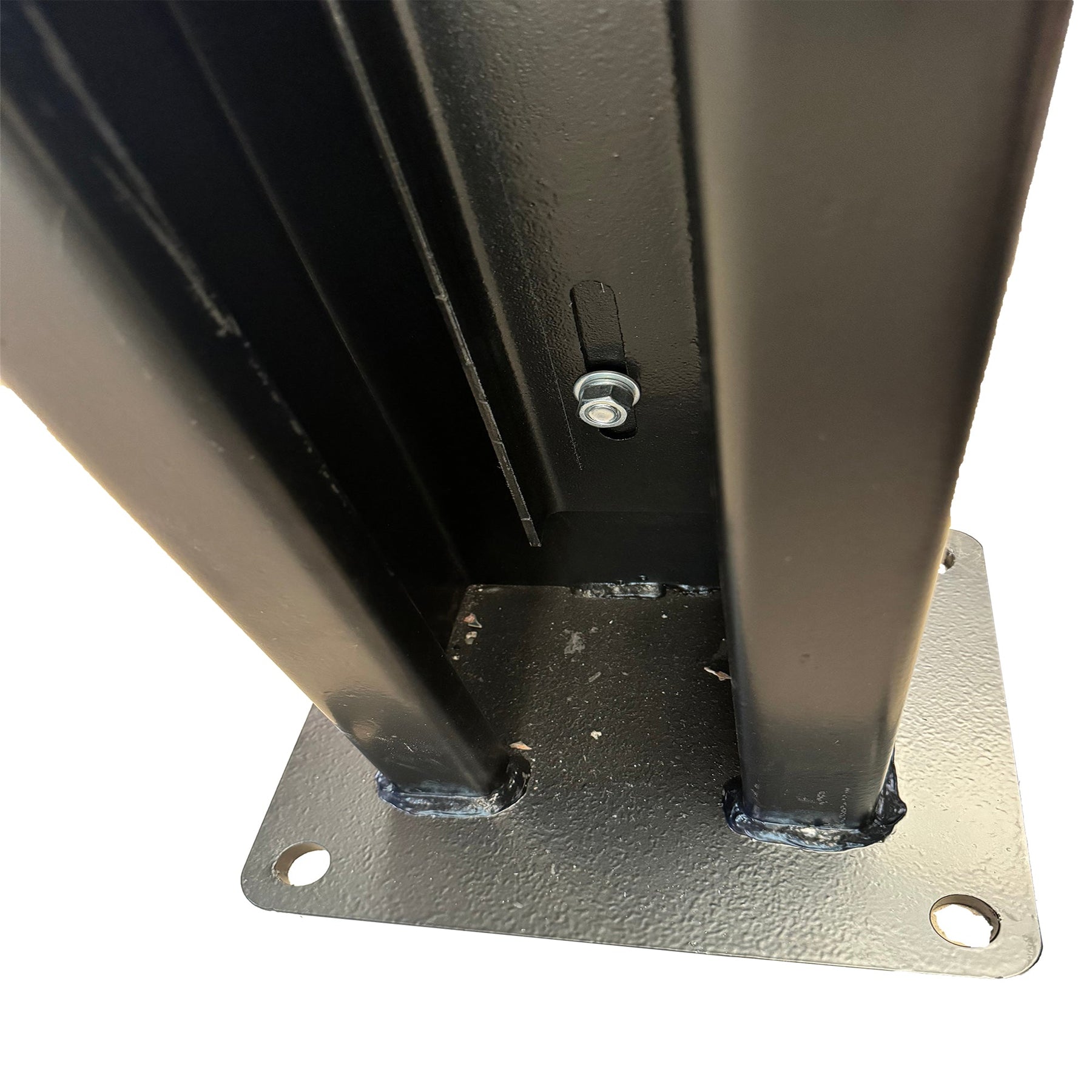

Lock Positions 10 Positions
  • 20 15/32"
  • 25 19/32"
  • 31 1/2"
  • 37 13/32"
  • 43 5/16"
  • 49 7/32"
  • 55 1/8"
  • 61 1/32"
  • 66 15/16"
  • 72 27/32"
14 Positions:
  • 19 3/4"
  • 23 1/2"
  • 27 1/2"
  • 31 1/2"
  • 35 1/2"
  • 39 3/8"
  • 43 3/8"
  • 47 1/4"
  • 51 1/4"
  • 55 1/8"
  • 59"
  • 63"
  • 66 31/32"
  • 70 7/8"
Lifting Time 100 seconds 60 seconds

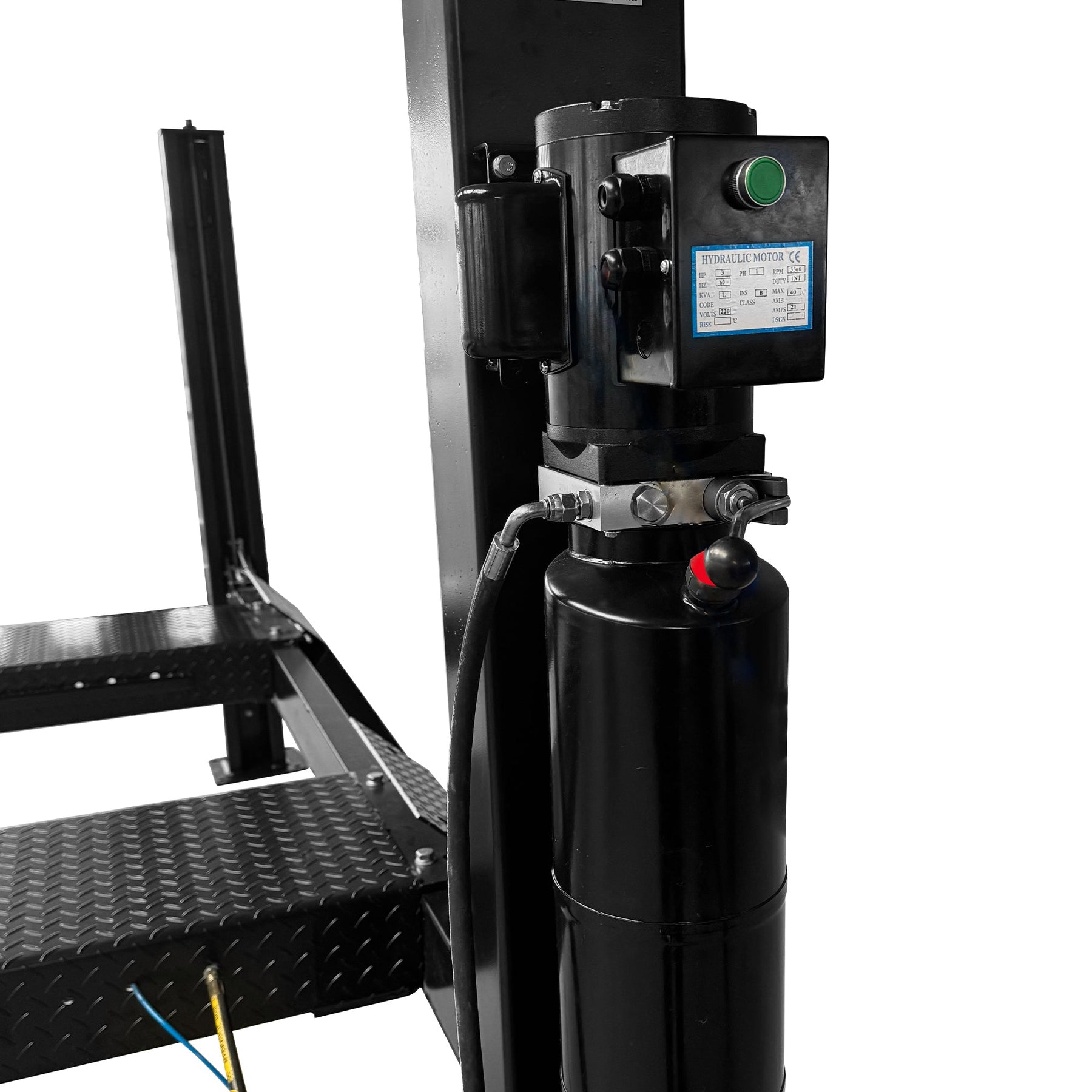

Motor 220V Single Phase 3HP 10A (recommend a 30A breaker) 220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil 4.3-5 gallons AW32/AW46 (Not Included) 3-5 gallons AW32/AW46 (Not Included)
Concrete Thickness 4" 3000psi 4" 3000psi
Shipping Weight 3,000 LB 3,300 LB
Shipping package size 214"L x 25"W x 31"H 201"L x 28"W x 25"H
Usage Parking/Storage/Service
Finish Powder Coated Finish with Superior Corrosion Resistance

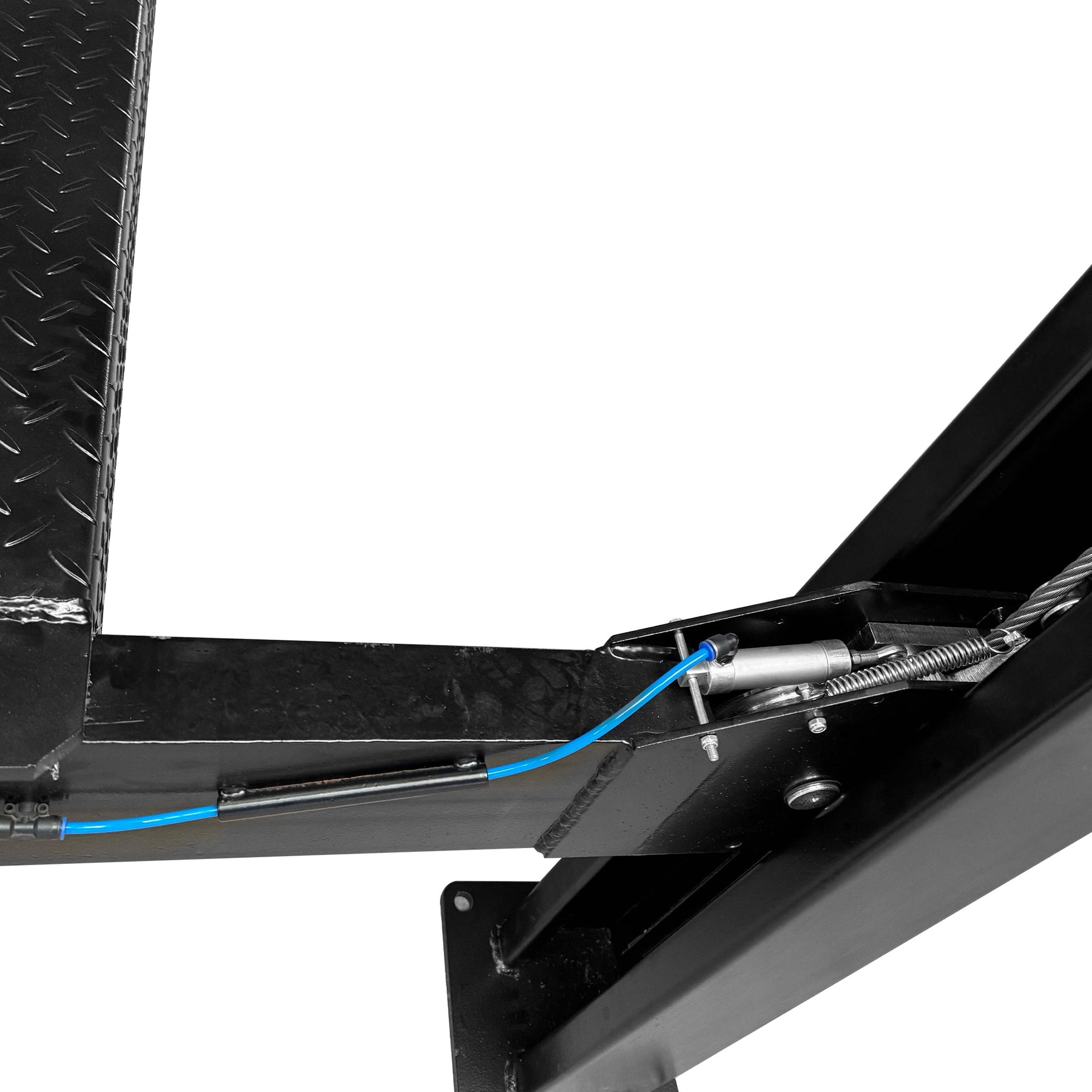

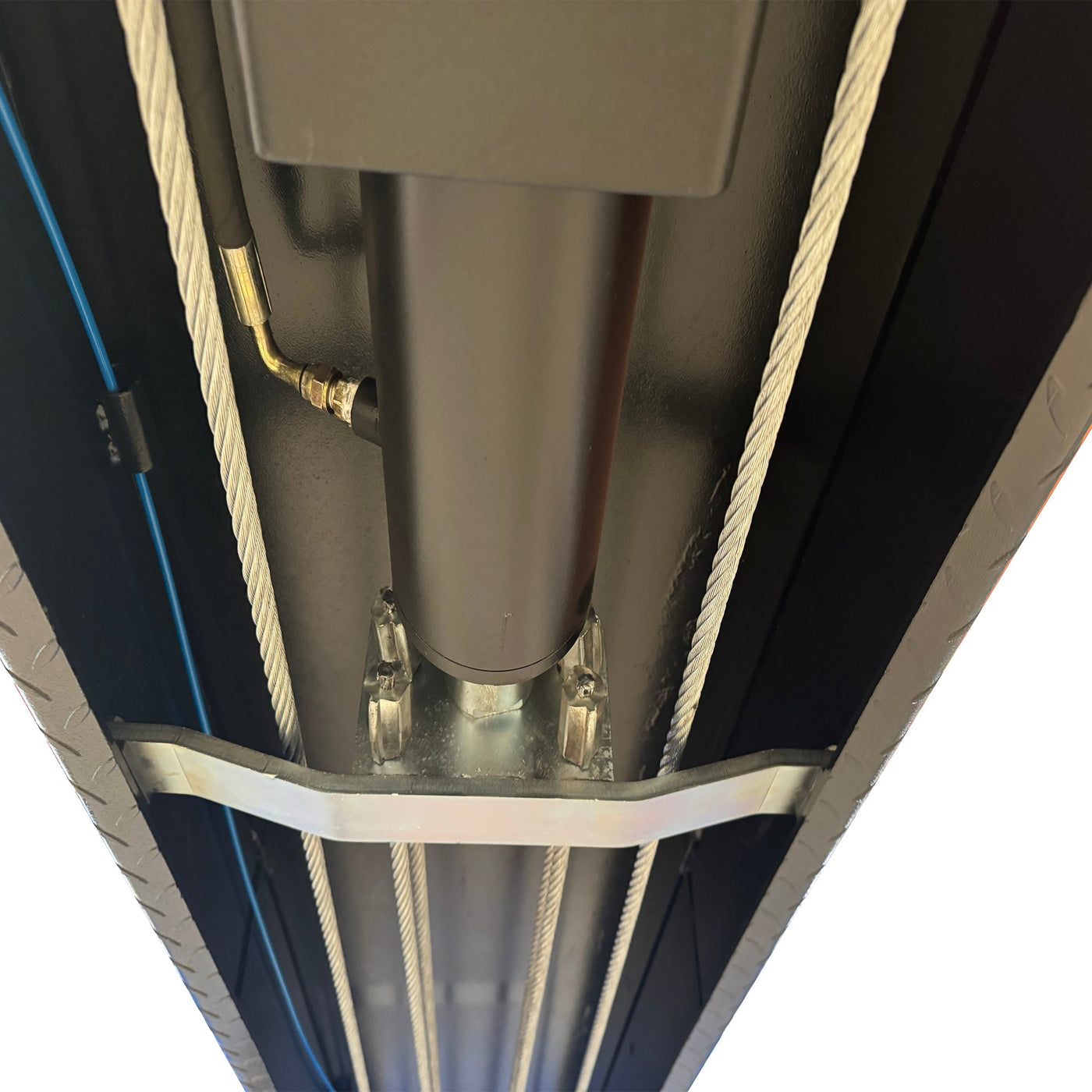

Cable Heavy duty 15/32" diameter cables that reduce high stress on synchronization process and increase cable life


Parts Included 2 Removable Approach Ramps Included Two Alignment Turn Plate Tables, One 6000LB Slidng Jack, Two Approach Ramps Included
