Atlas Garage PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo
- Free Shipping
- Certified Car Lifts
- 30-Day Hassle-Free Returns
- In stock, ready to ship
Atlas Garage PRO8000EXT 4 Post Lift RJ35 Sliding Jack Combo
The Atlas® Garage PRO8000EXT is a true 8,000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000.
Many of our customers drive an SUV or pick-up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However, their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79″ of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas® Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the Atlas® Garage PRO8000EXT is the perfect choice.
This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicle’s wheels off the lift’s runways in order to service tires and brakes.
Product Features
Garage PRO8000EXT 4-Post Lift
- 8,000 lb. Capacity
- Free Standing/Portable Design
- EXTRA TALL, GREATER CLEARANCE UNDER RUNWAYS
- Diamond Plated Runways

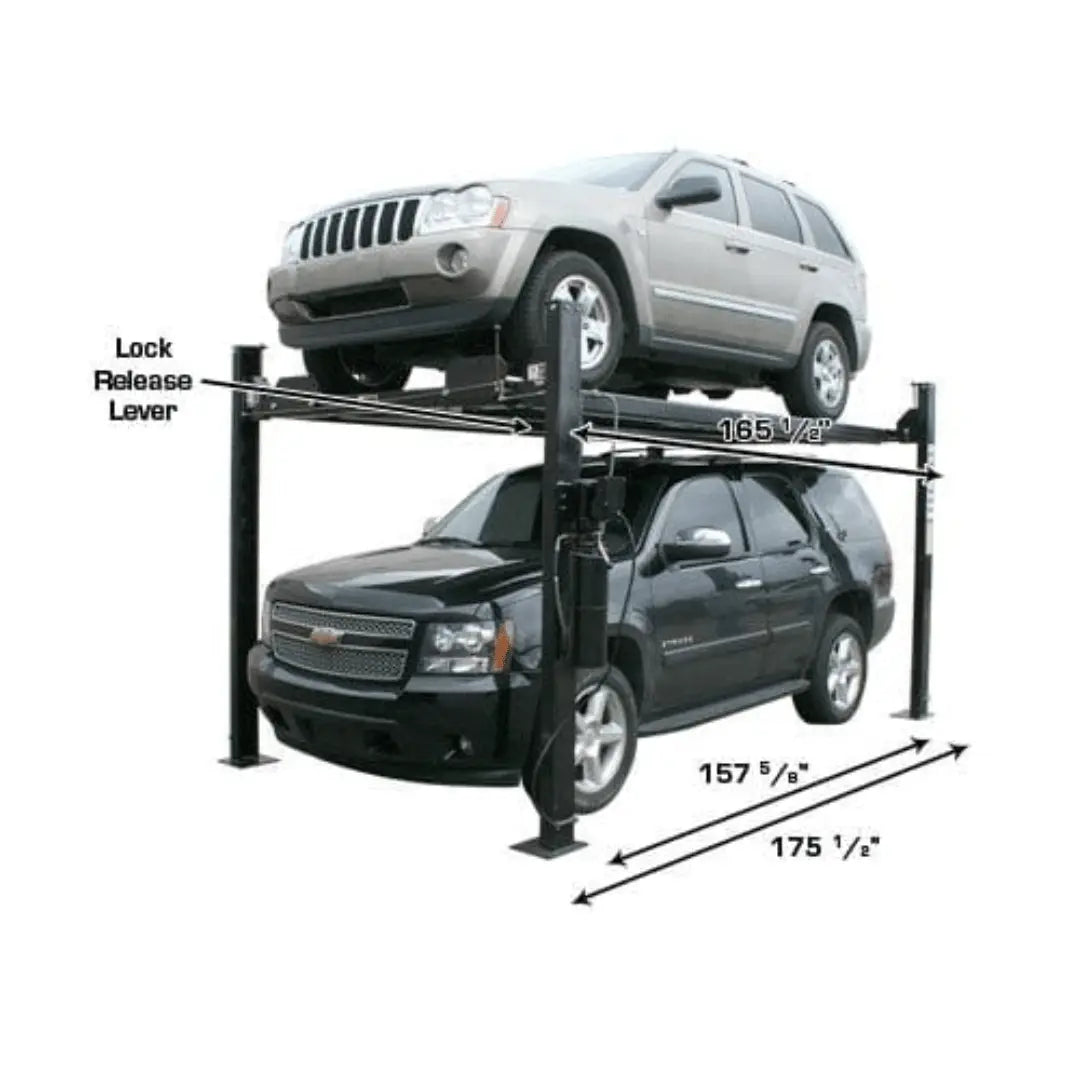

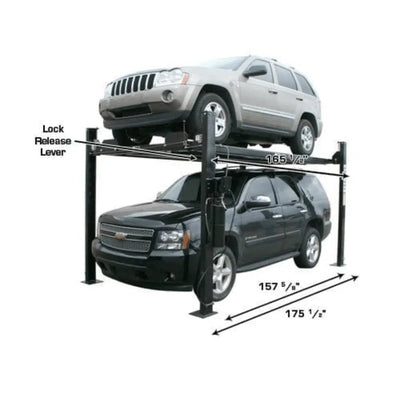

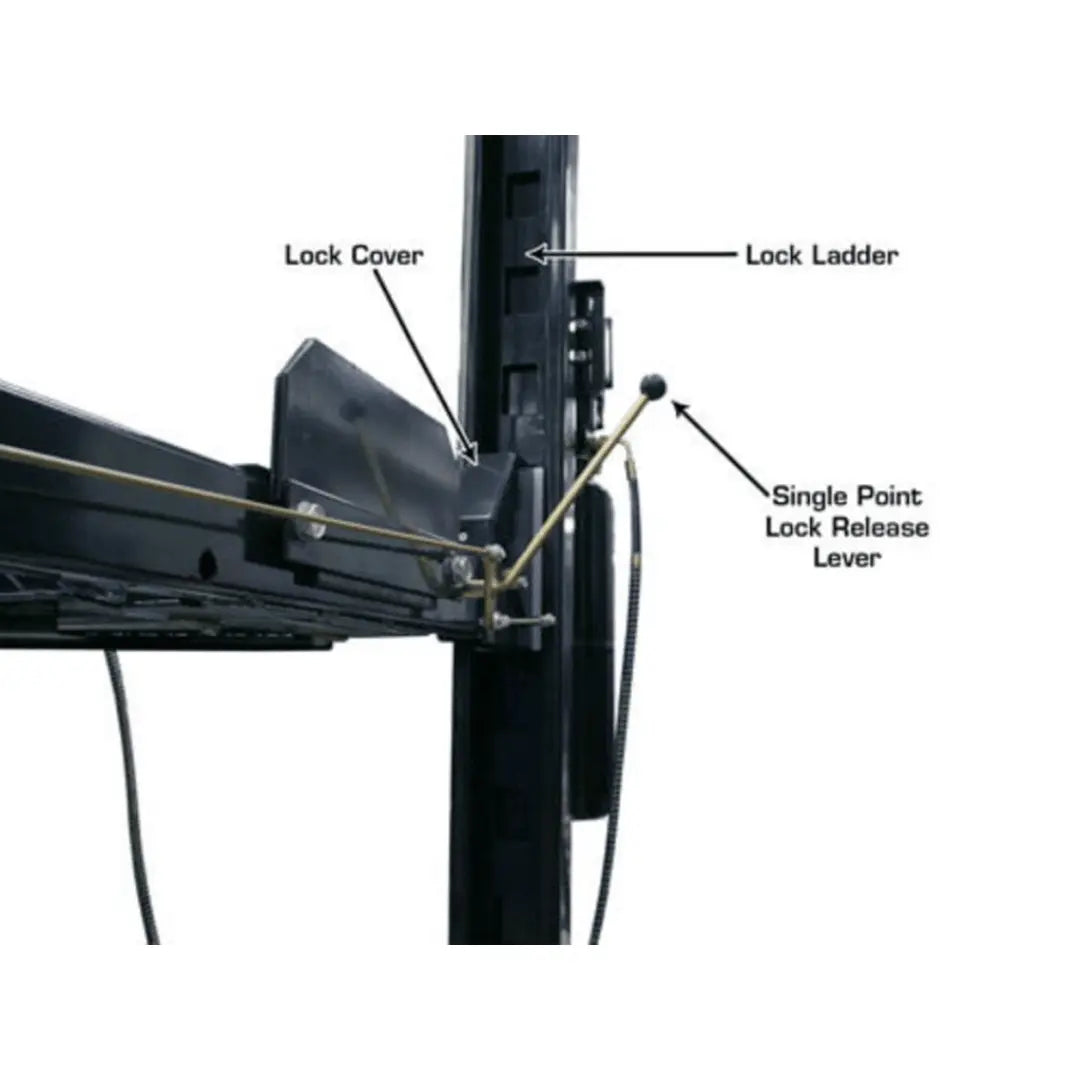

- Single-Point Lock Release

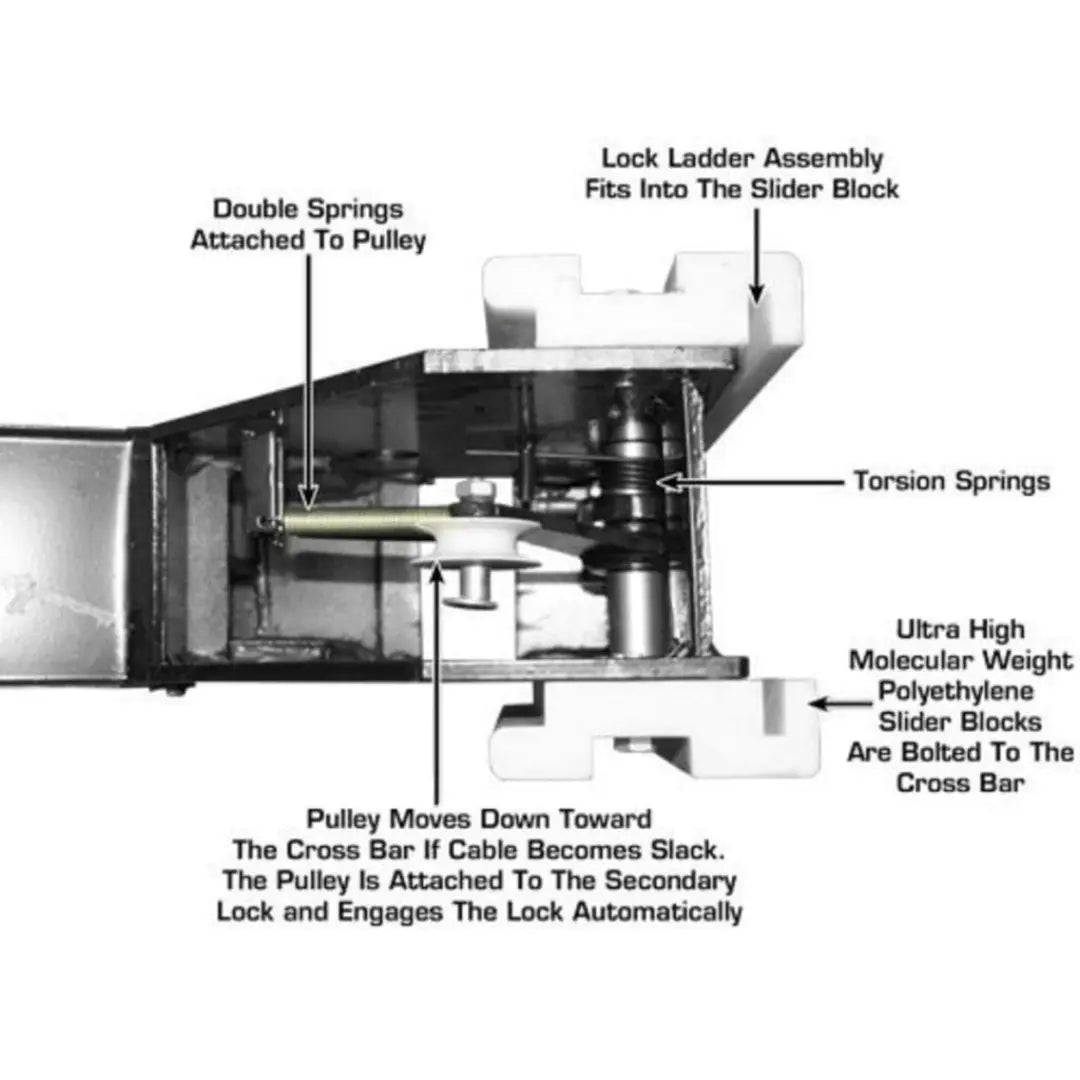

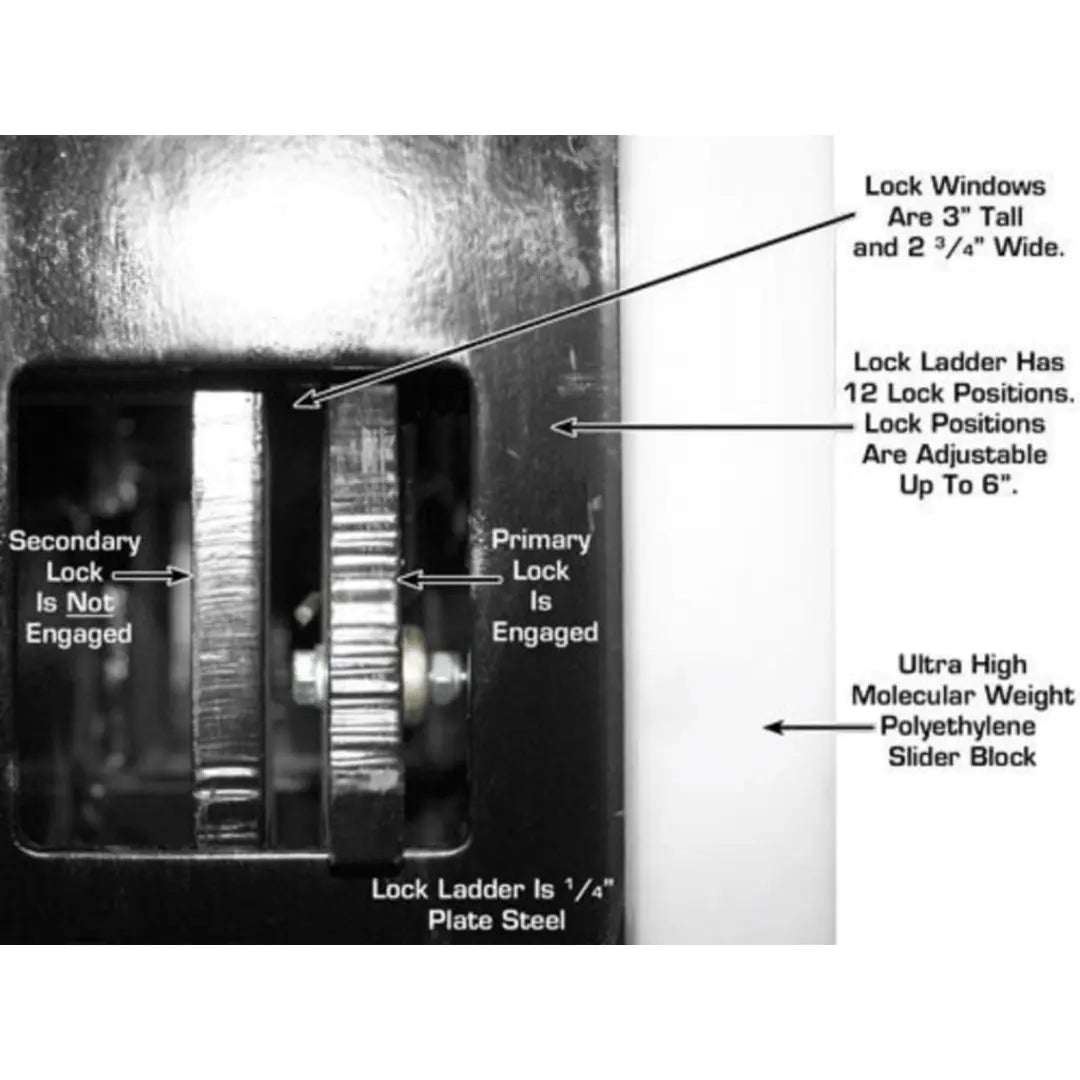

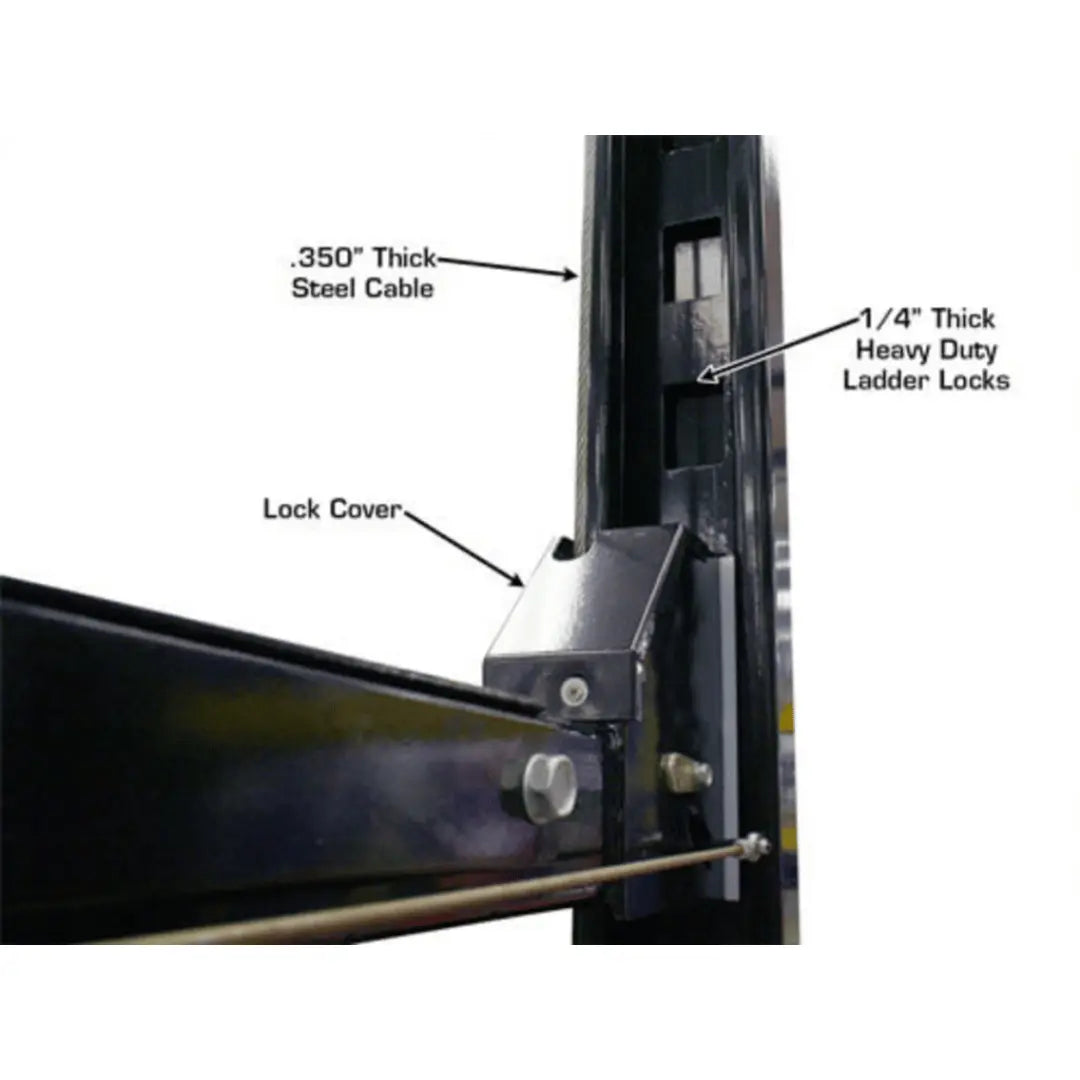

- Lock Ladder Design

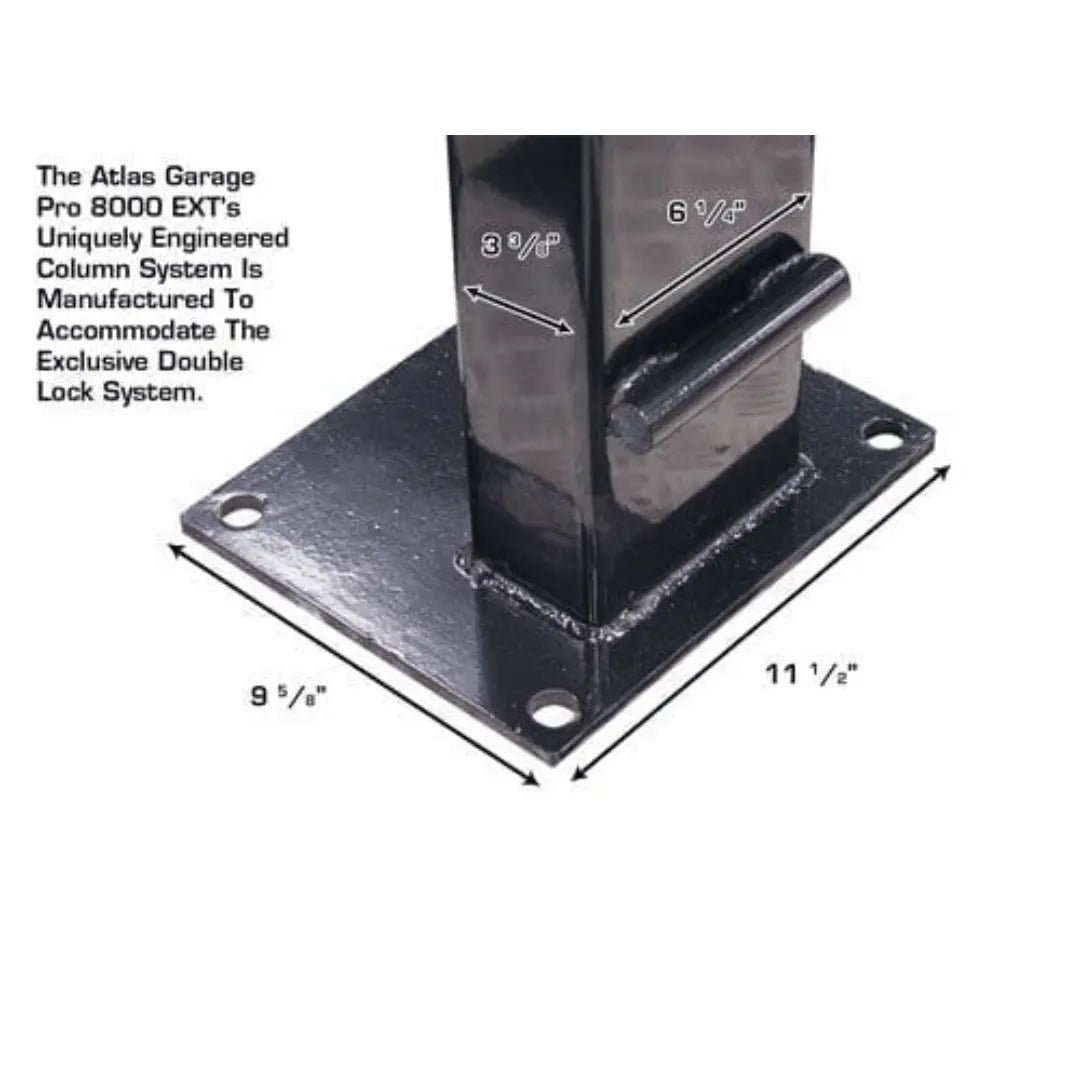

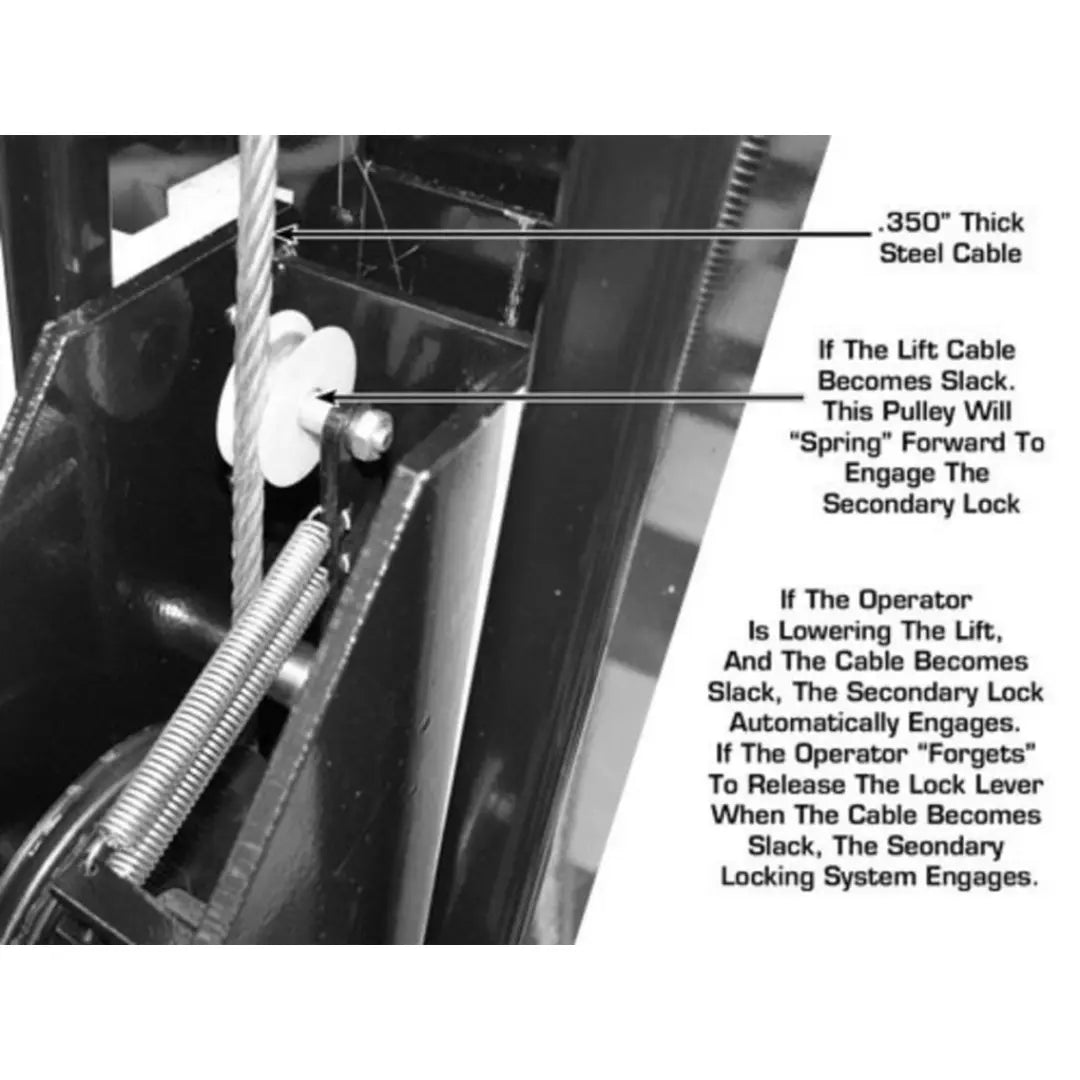

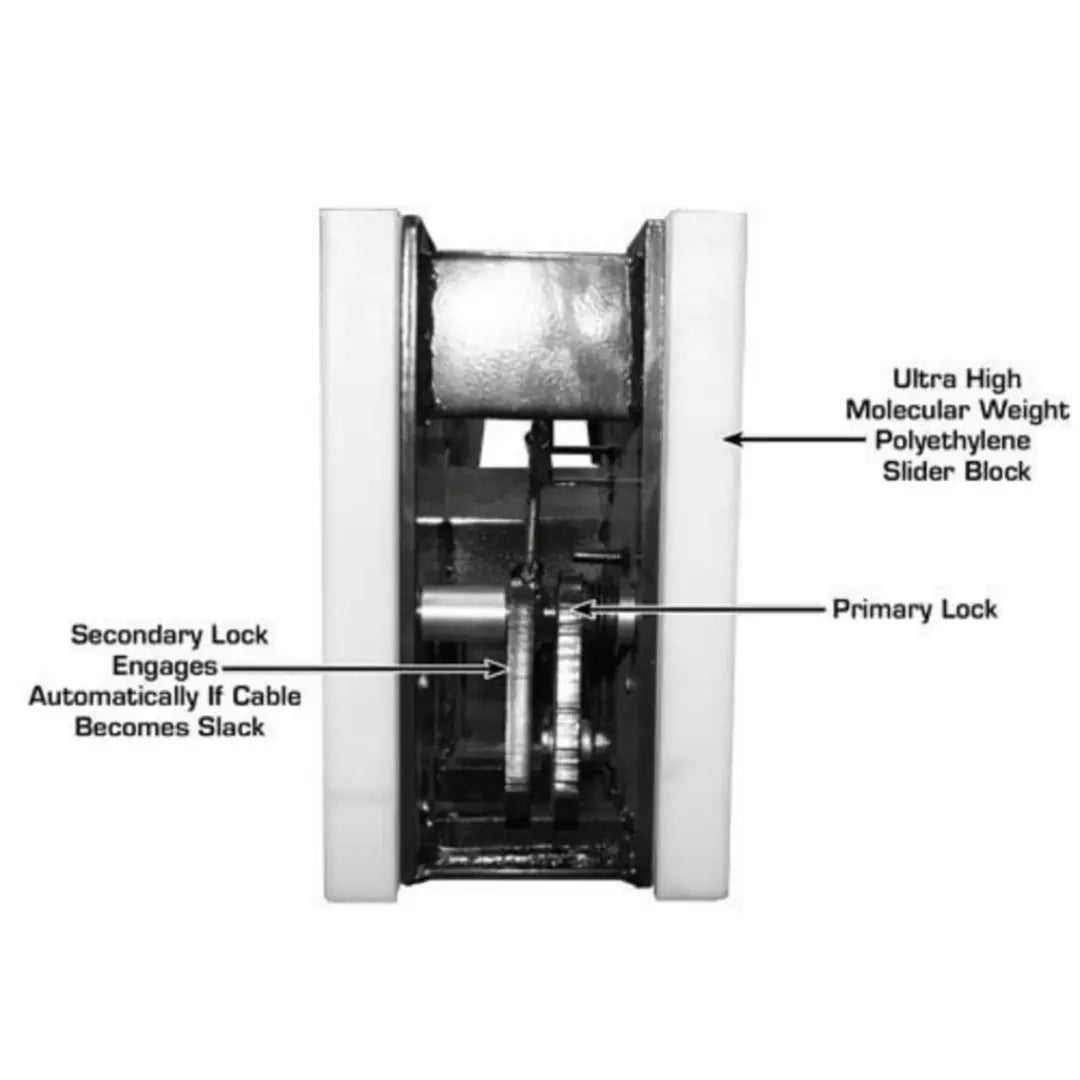

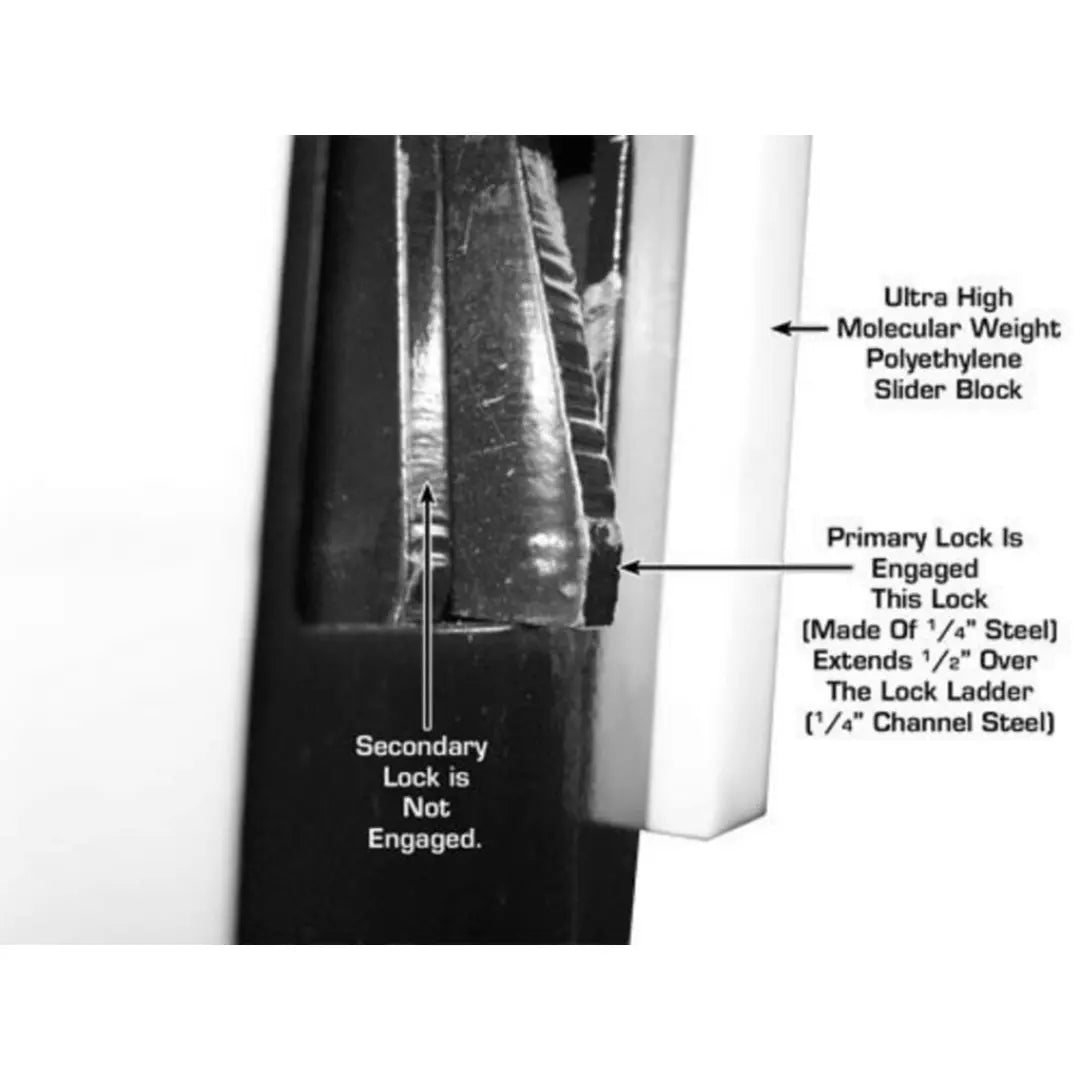

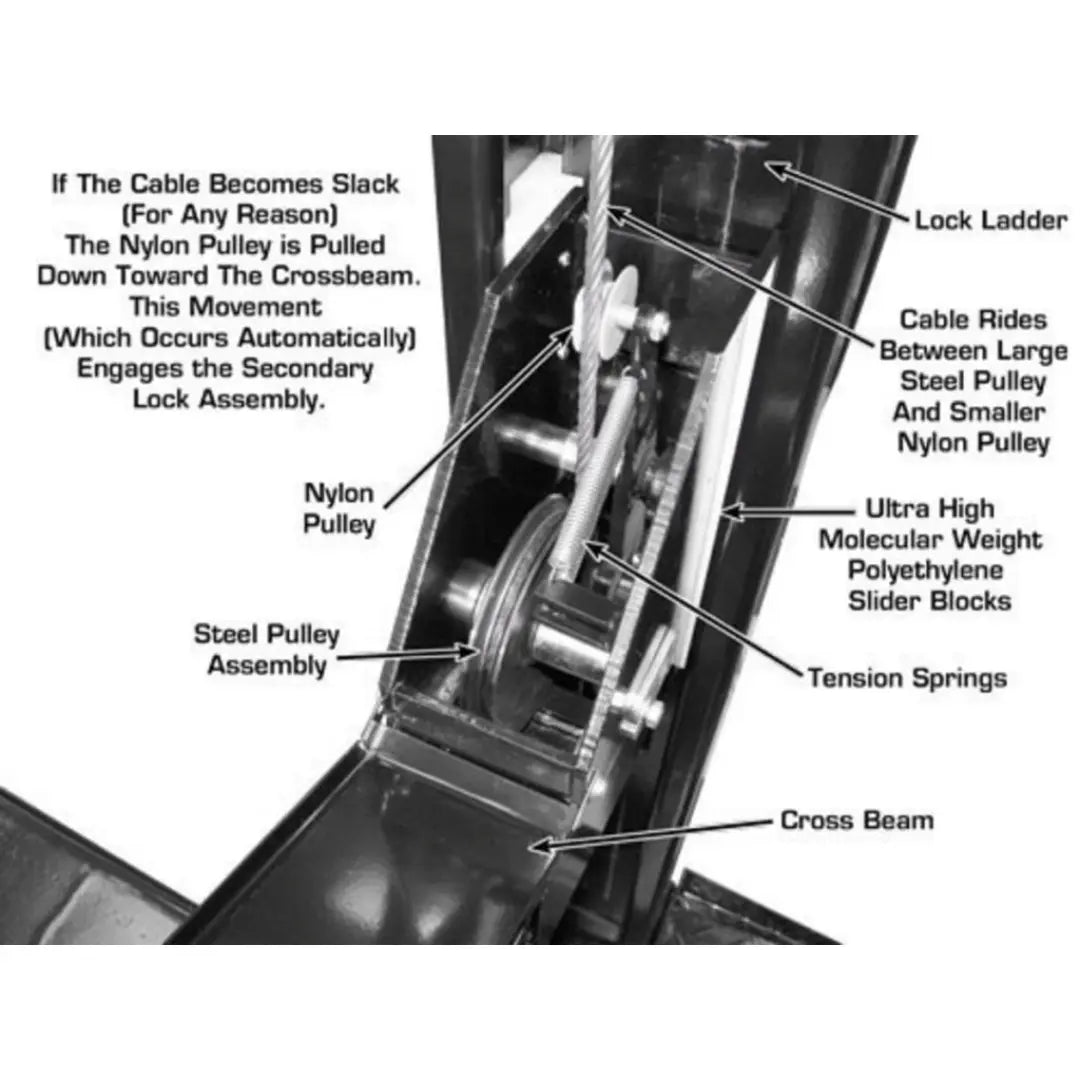

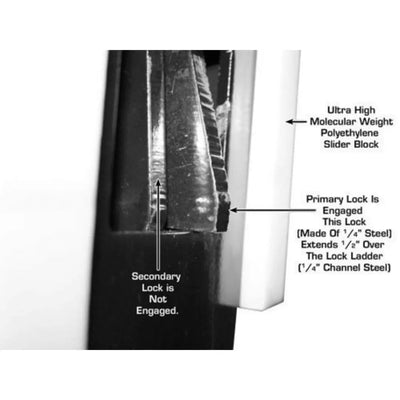

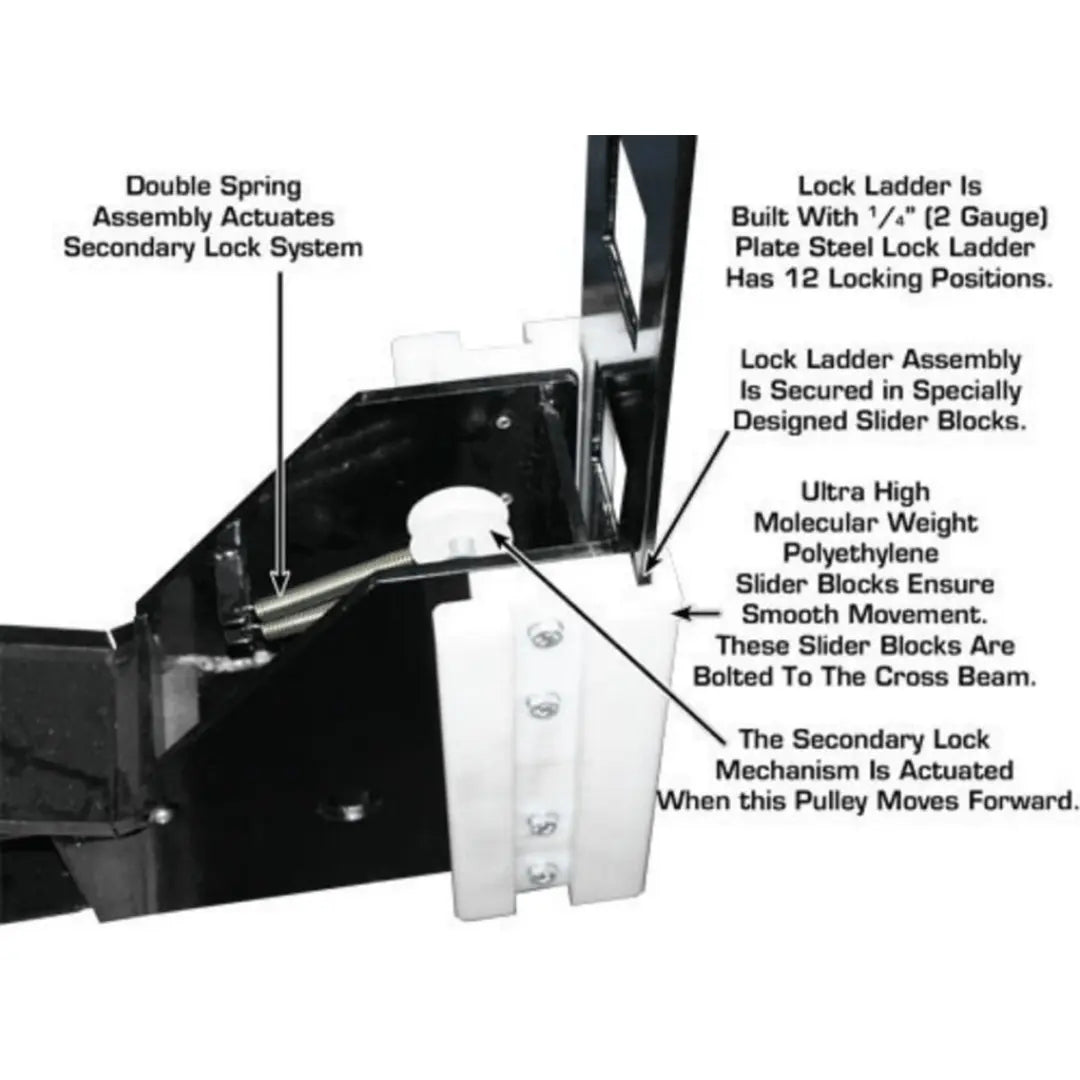

- Double Lock Safety System

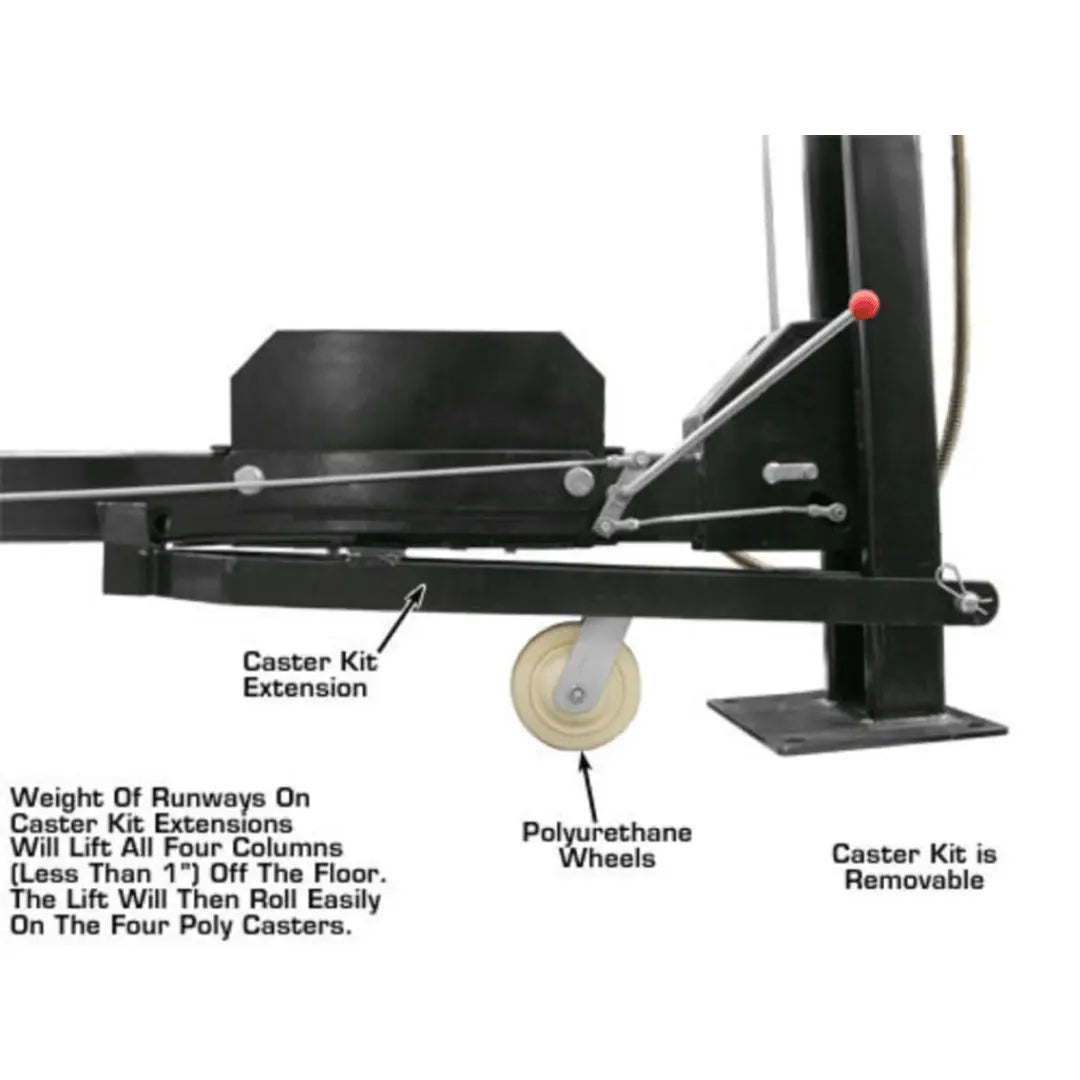

- Caster Kit With Polyurethane Wheels Included

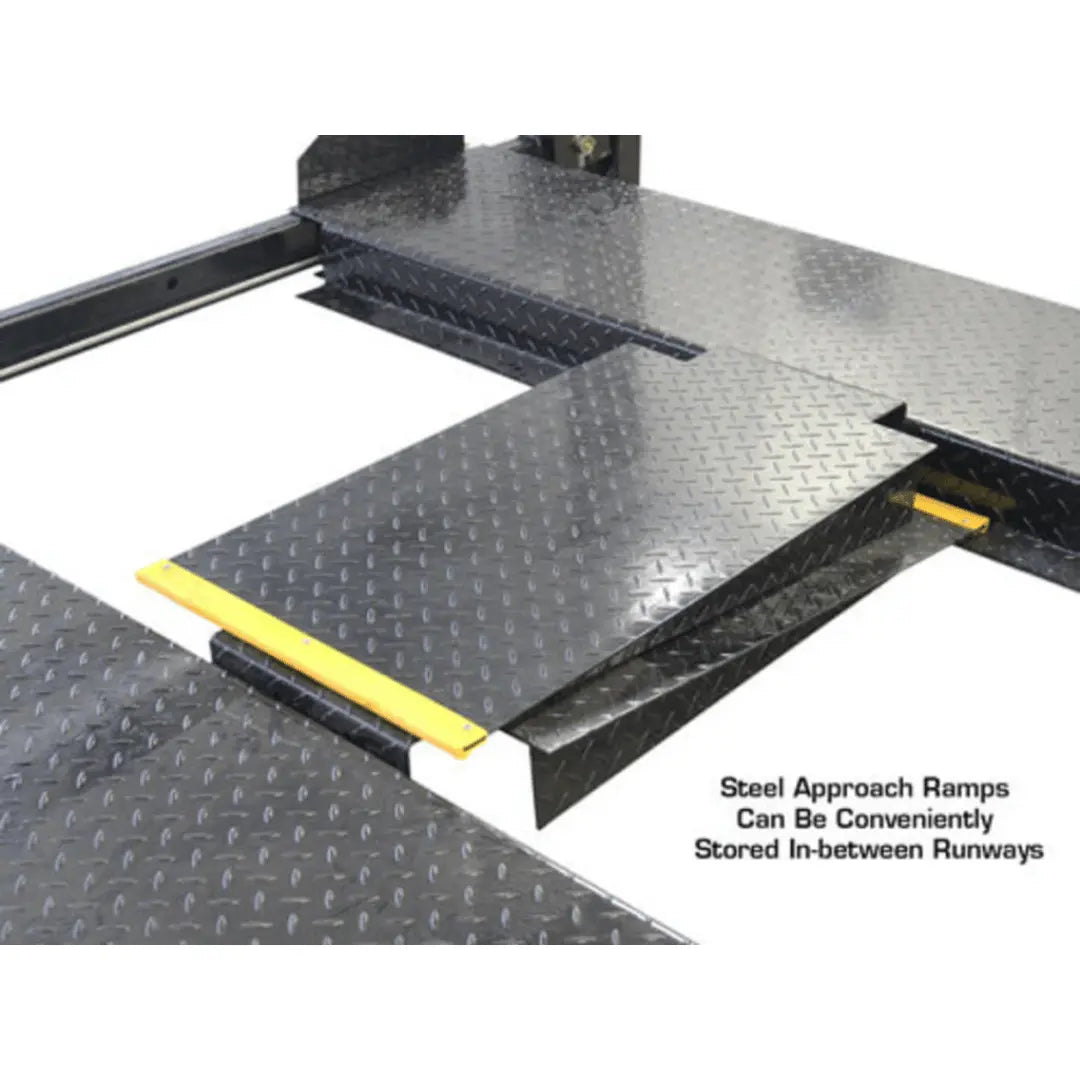

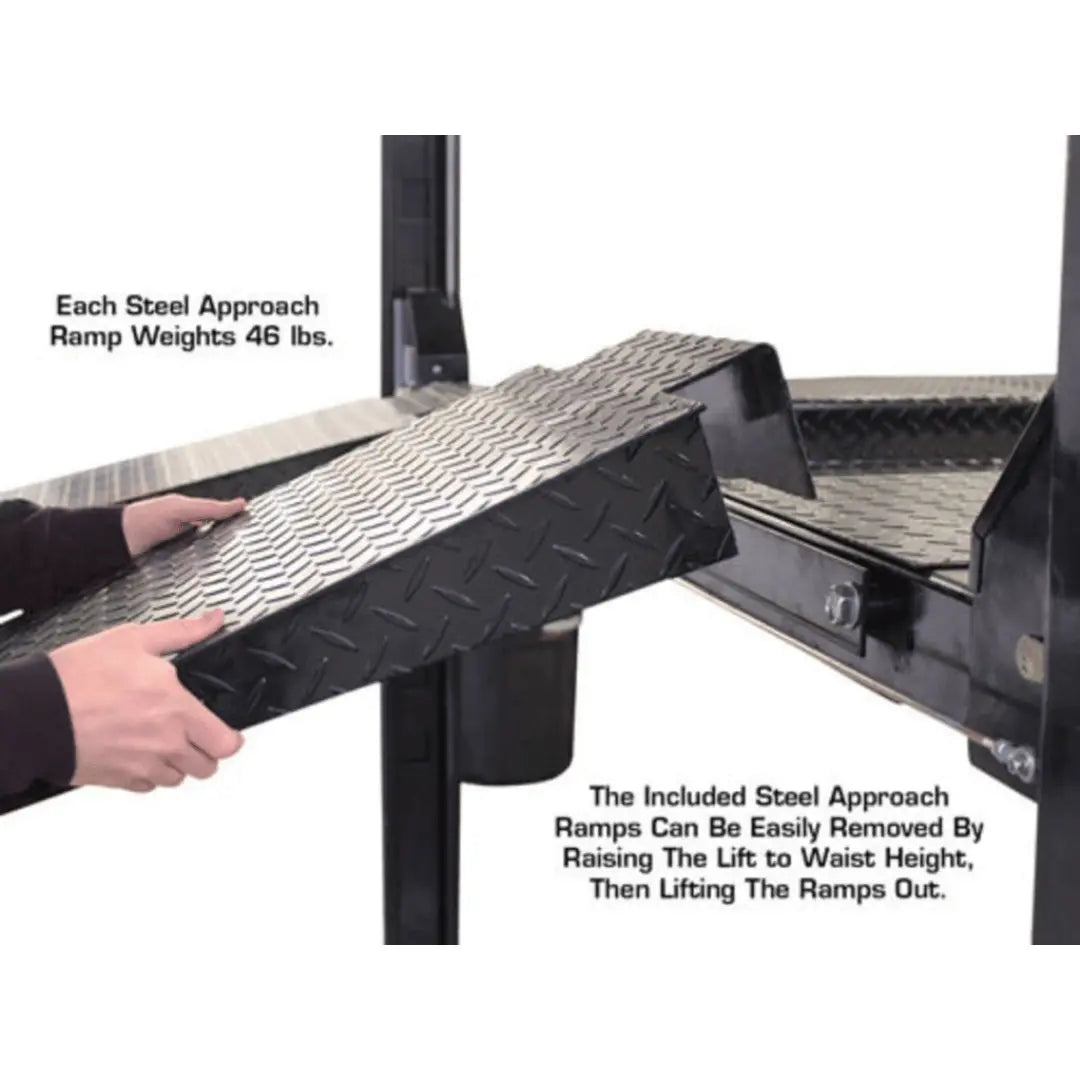

- Steel Approach Ramps Included

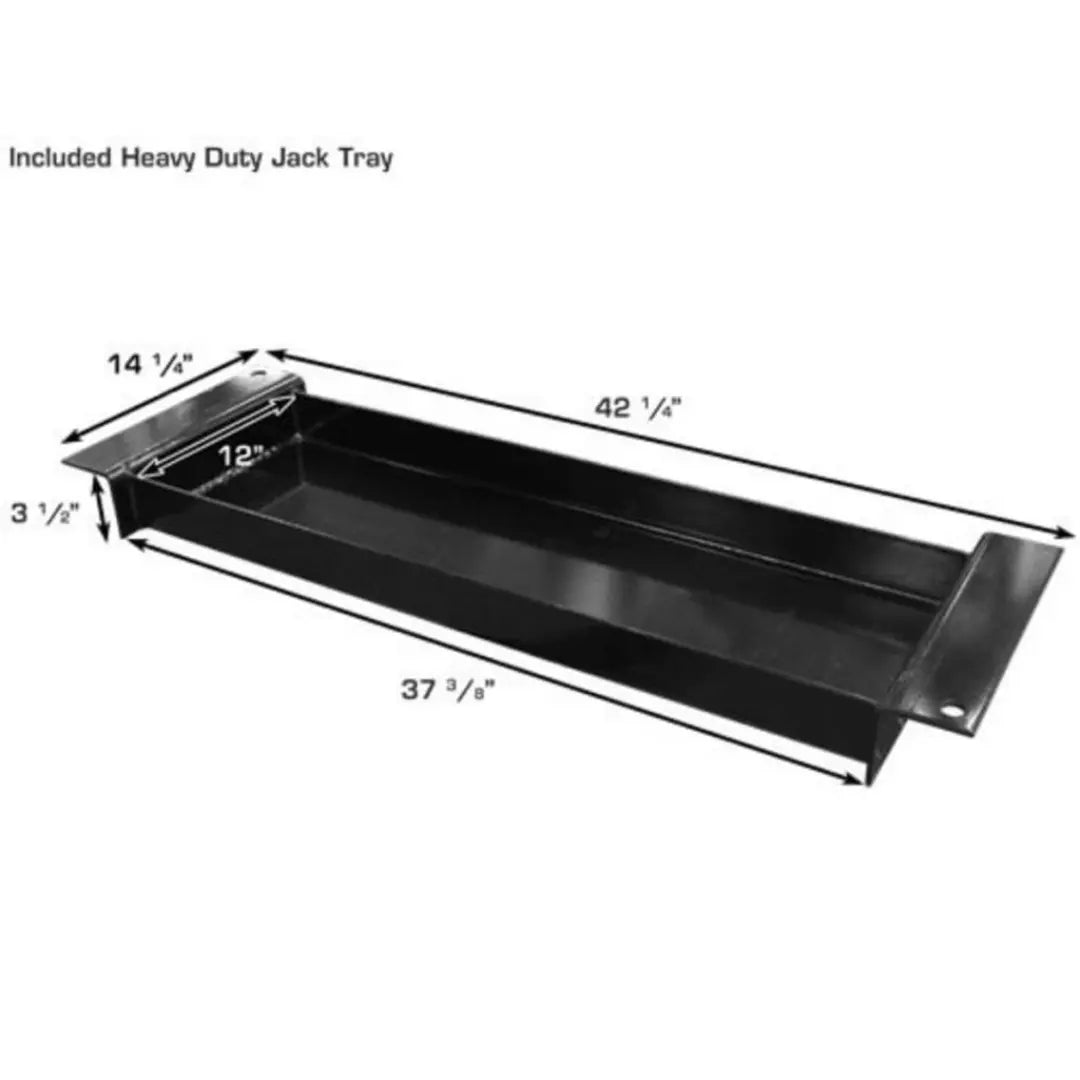

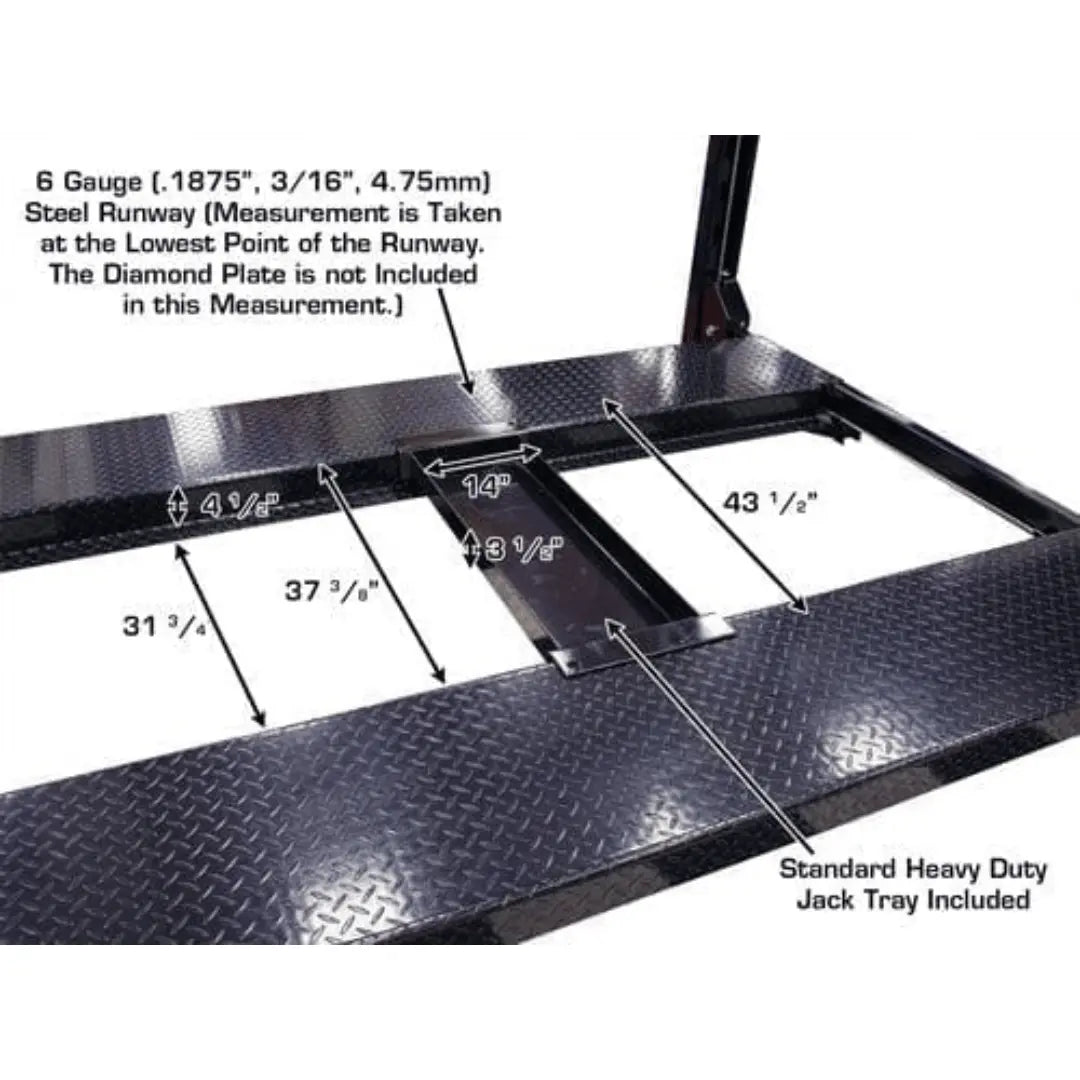

- Steel Jack Tray Included

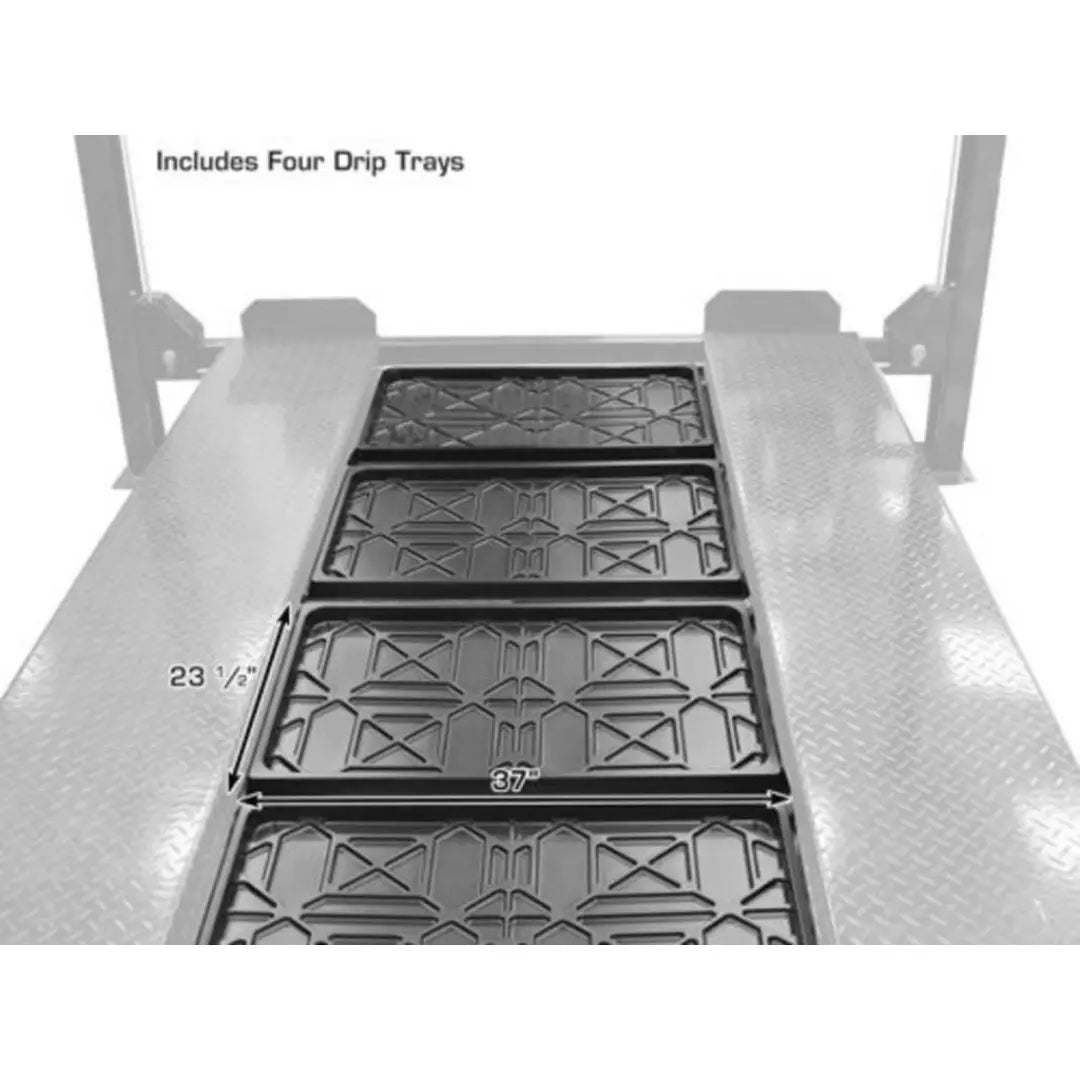

- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles

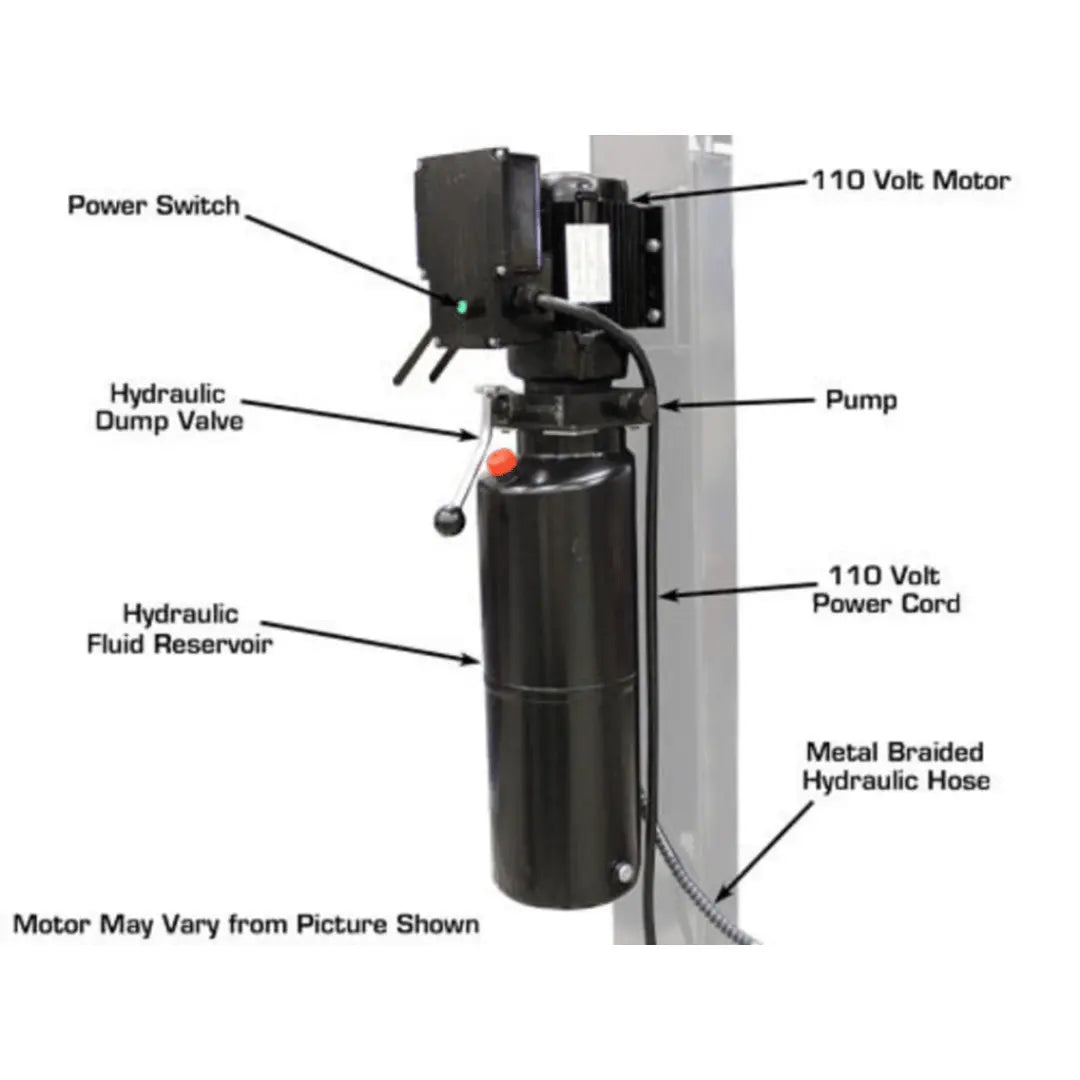

- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 1,850 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

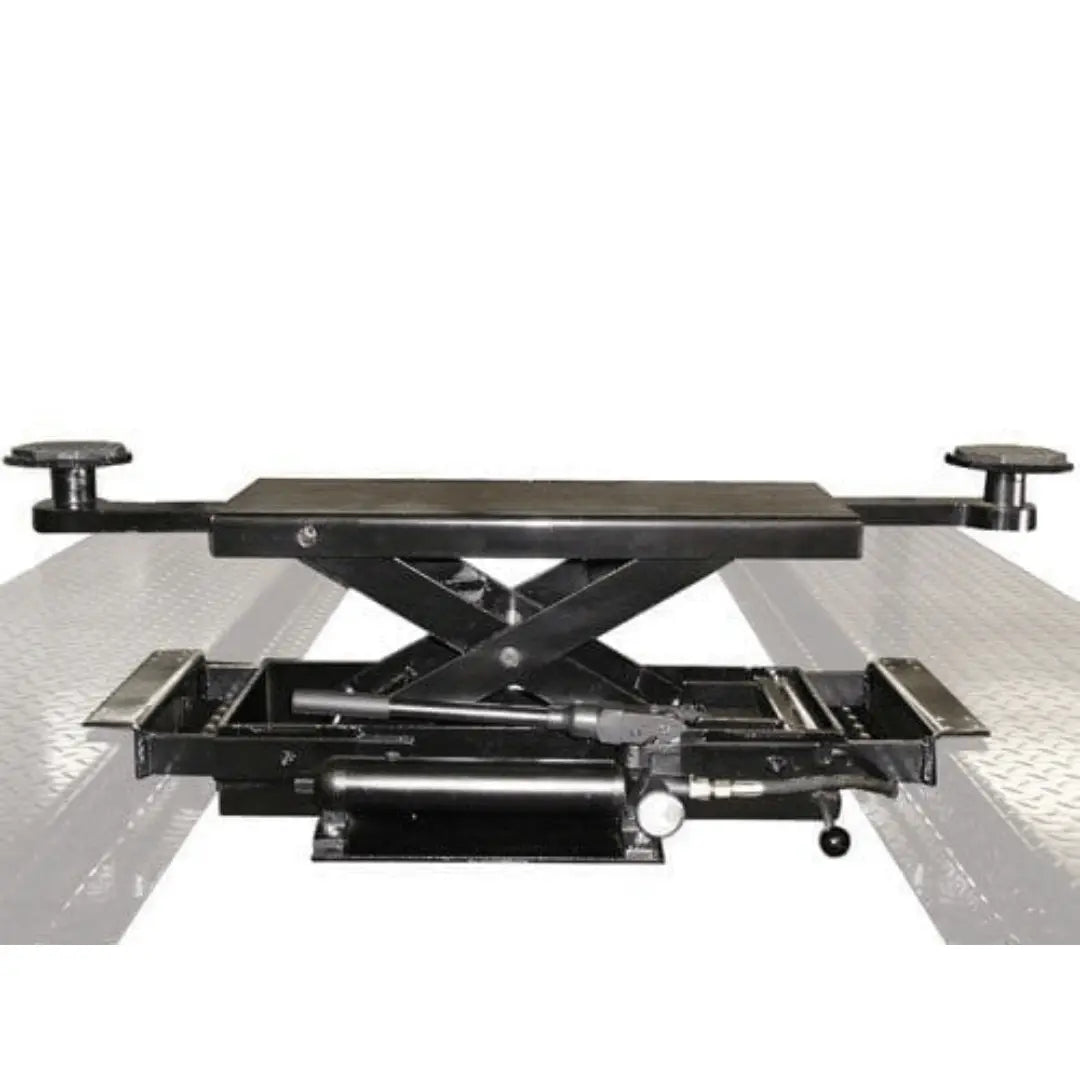

RJ35 Sliding Bridge Jack
- Sliding Bridge Jack
- Capacity: 3,500 lbs.

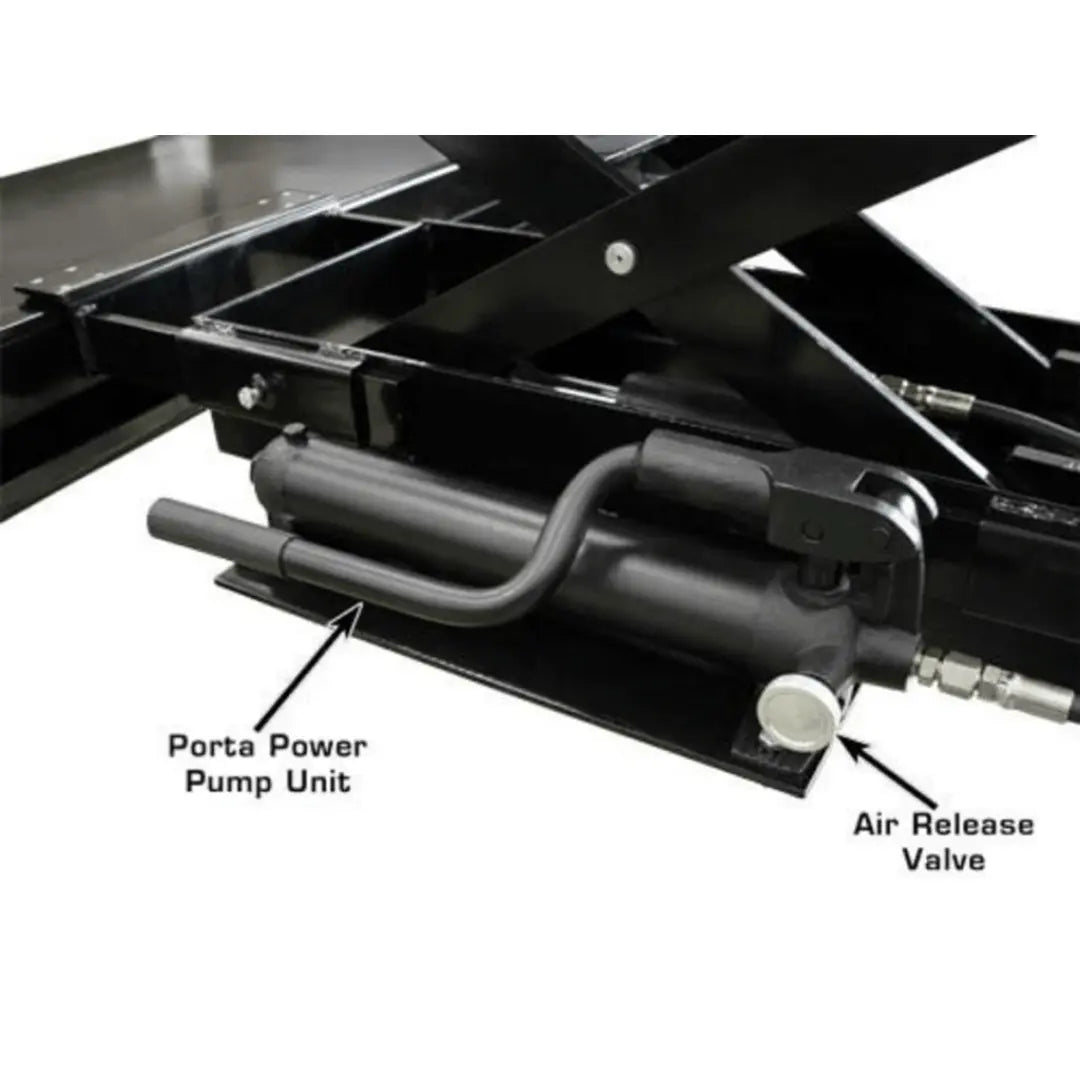

- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Product Specifications

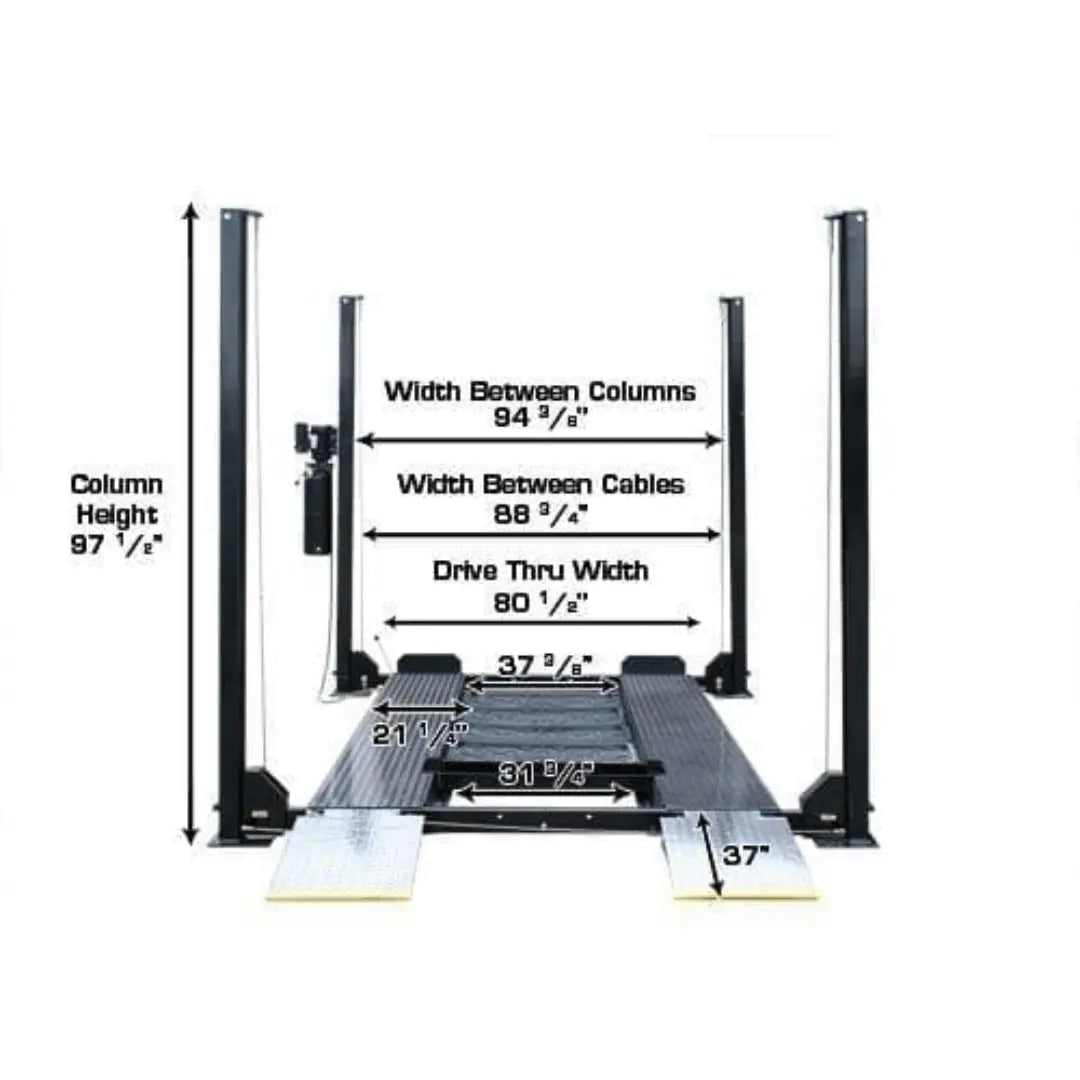

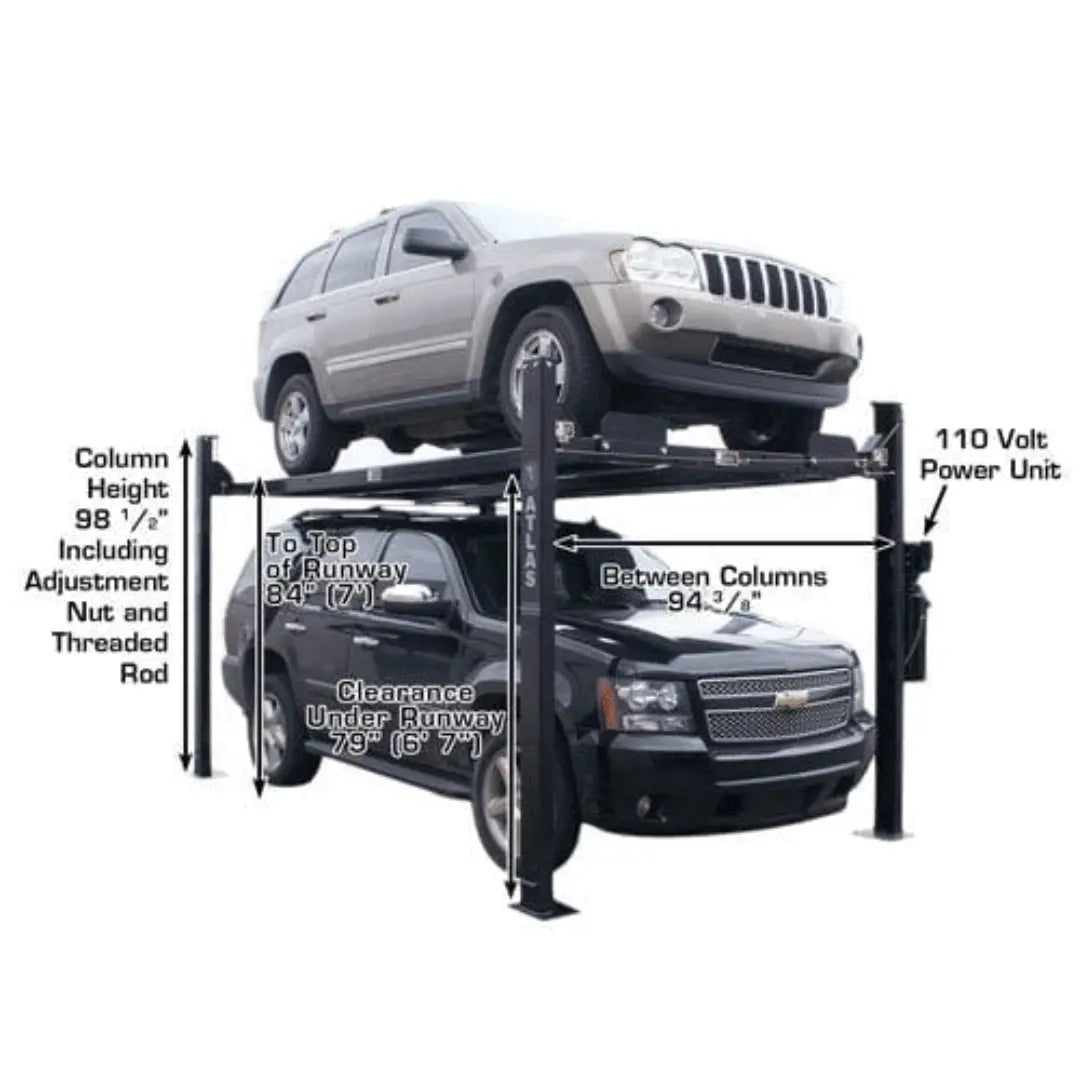

Atlas® Garage PRO8000EXT Specifications
| Capacity | 8,000 lbs. |
| Lifting Height To Top Of Runway | 84 1/4" (7' 1/4") |

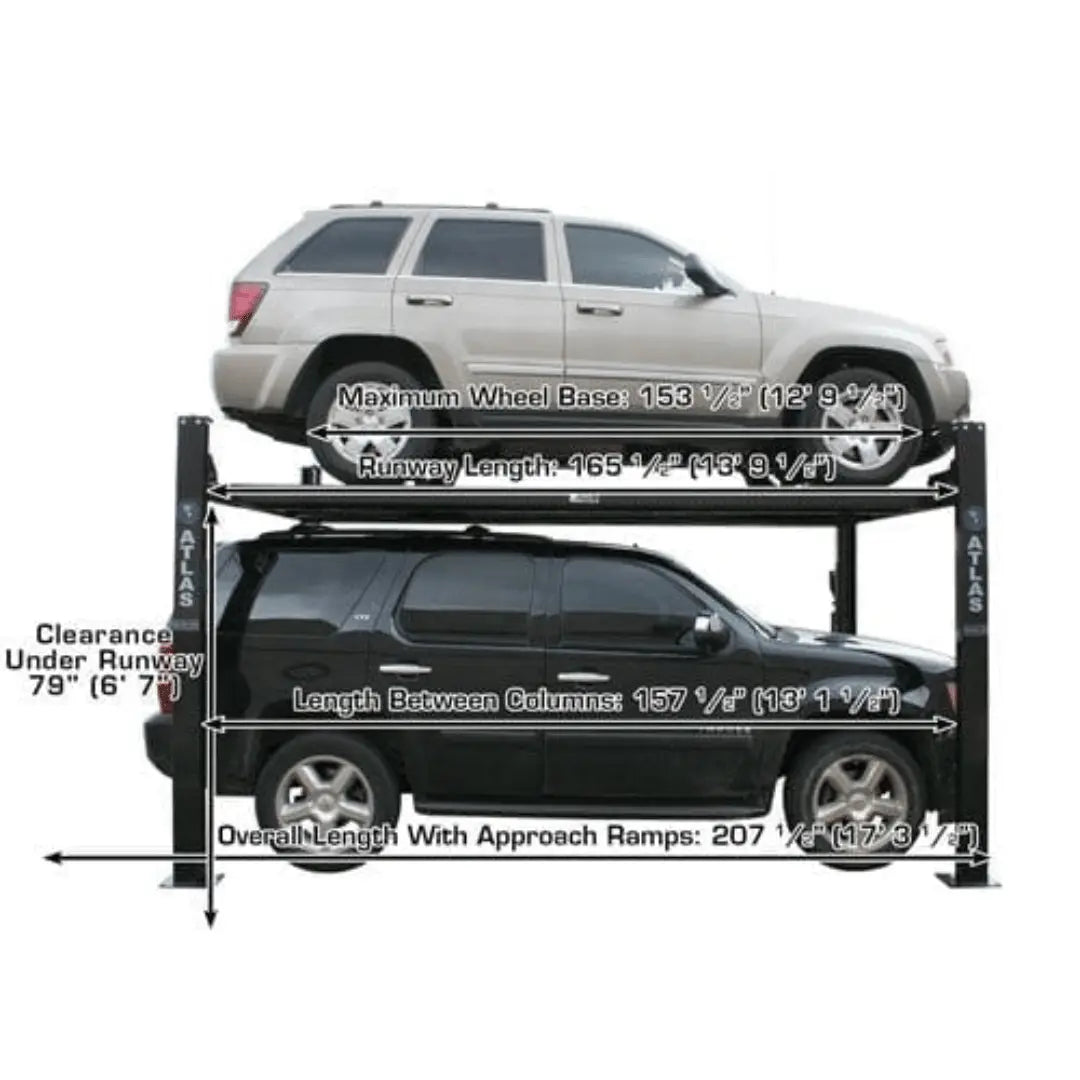

| Clearance Under Runways | 79" (6' 7") |

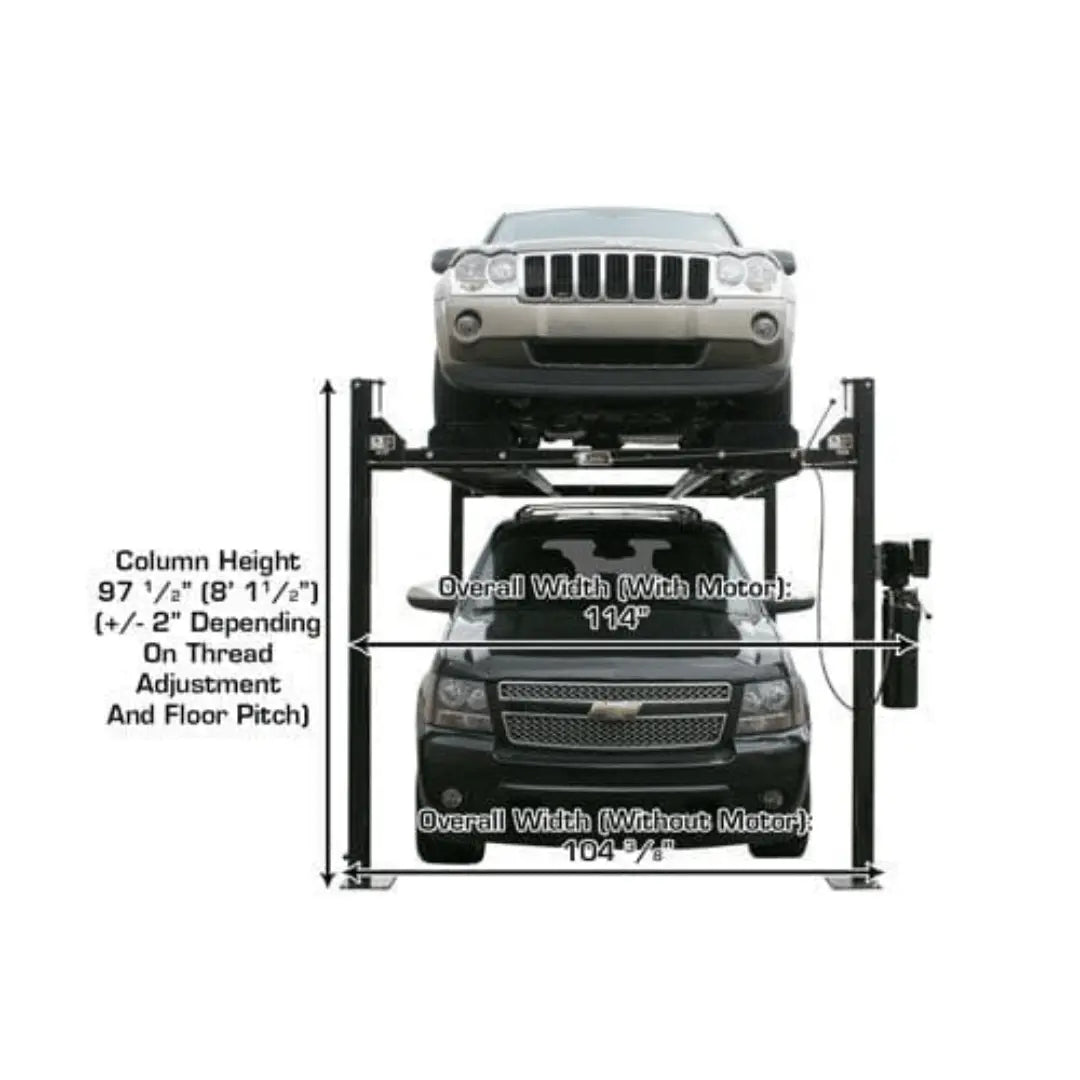

| Height Of Columns | 98 1/2" (8' 2 1/2") |
| Overall Width (Without Motor) | 104 1/2" (8' 8 1/2") |
| Overall Width (With Motor) | 115" (9' 7") |
| Overall Length With Approach Ramp | 206 3/4" (17' 2 3/4") |
| Approach Ramp | 37" (3' 1") |
| Runway Width | 21 1/4" (w/ Rails) or 18 3/4" (Driving Surface) |
| Runway Length | 165 3/4" (13' 9 3/4") |
| Runway Thickness | 4 1/2" |

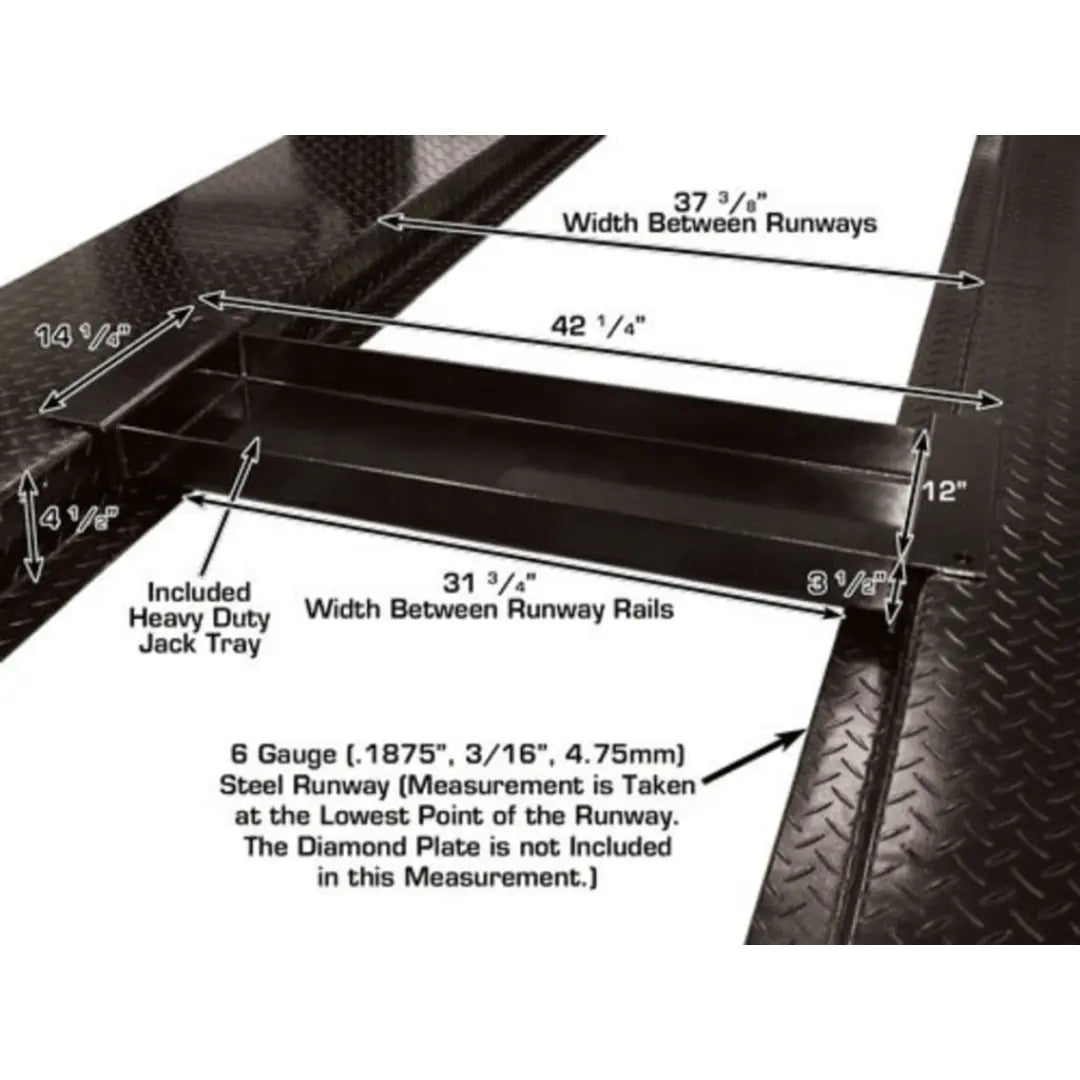

| Width Between Runways | 37" (3' 1") |
| Width Between Runway Rails | 31 1/2" (2' 7 1/2") |
| Outside Runway To Outside Runway | 74 5/8" (6' 2 5/8") |
| Clearance Between Columns | 94 1/2" (7' 10 1/2") |
| Length Between Columns | 157 1/2" (13' 1 1/2") |
| Maximum Wheel Base | 153 1/2" (12' 9 1/2") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 80 1/2" (6' 8 1/2") |
| Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 1,850 lbs. |

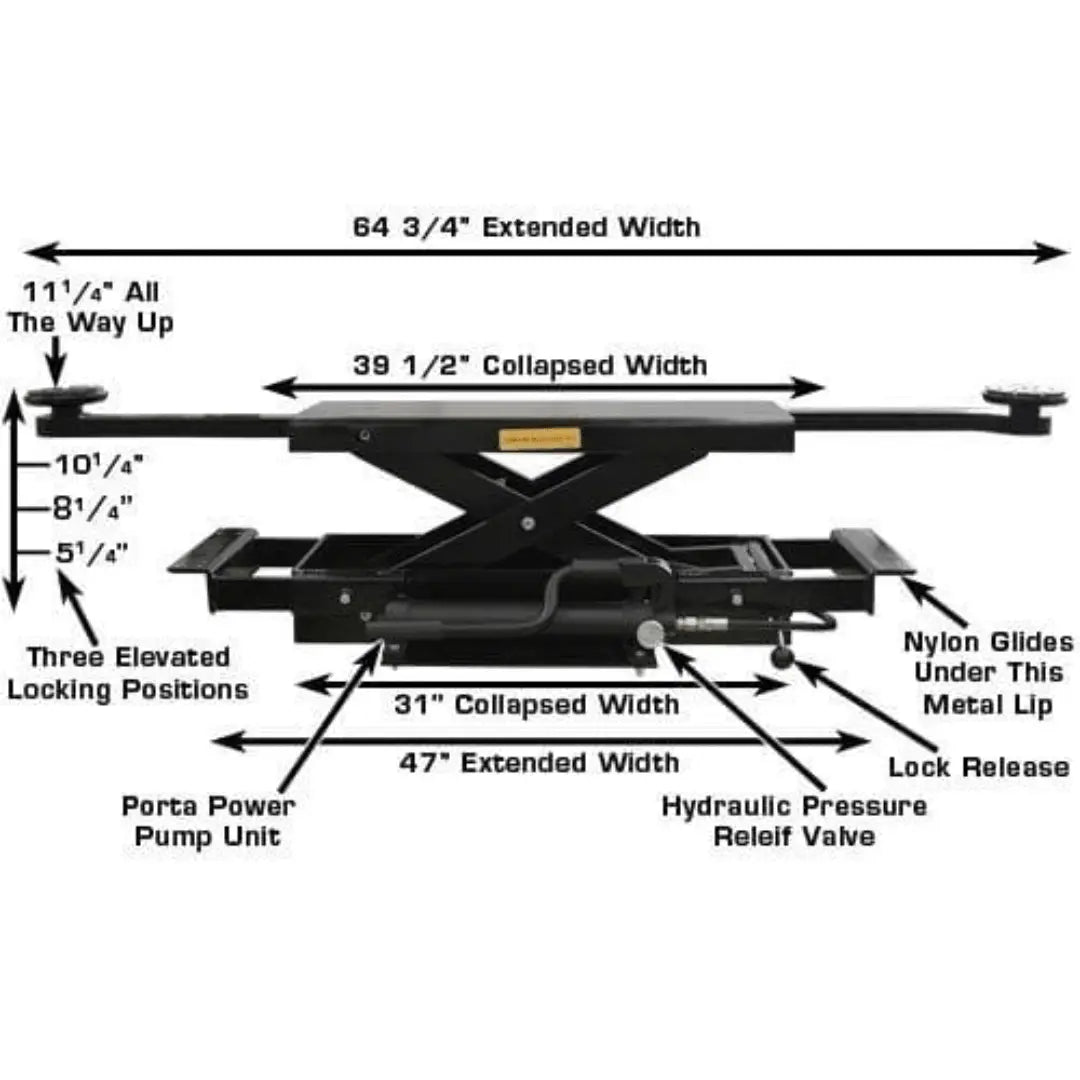

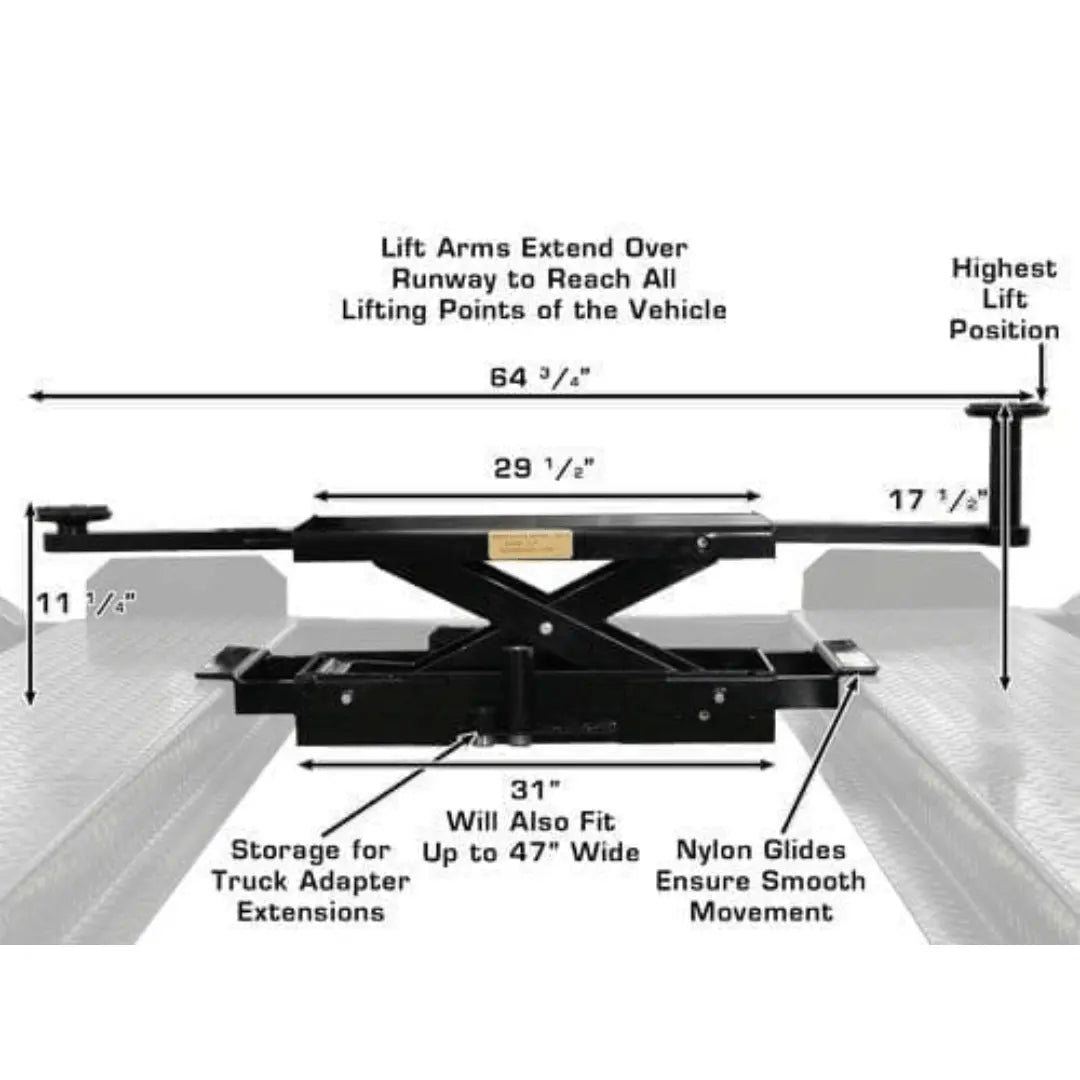

Atlas® PROJACK35 Specifications
| Maximum Capacity | 3,500 lbs. |
| Maximum Width | 64 3/4" (5' 4 3/4") |
| Minimum Width | 29 1/2" (2' 5 1/2") |

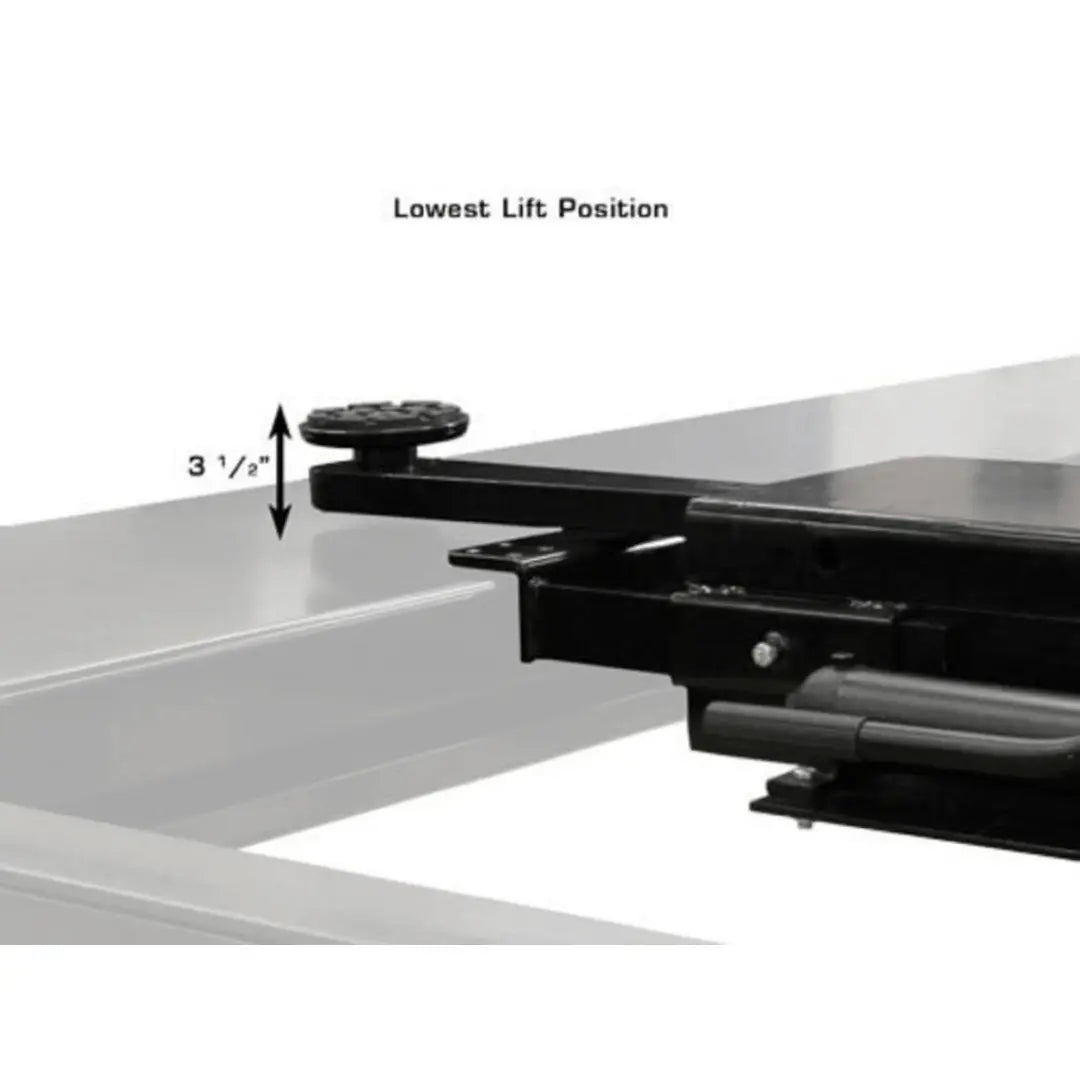

| Minimum Height with Lift Pad Above Runway | 3 1/2" (MAY VARY BY LIFT) |
| Lift Pad Height Above Arm | 1 3/8" |
| Max Raised height w/o Adapters | 11" |
| Max Raised height w/ Adapters | 17 1/4" |
| Adapter Heights | 2 each 1.5", 5" |
| Arm Hole/Adapter Peg Size | 1.5" |

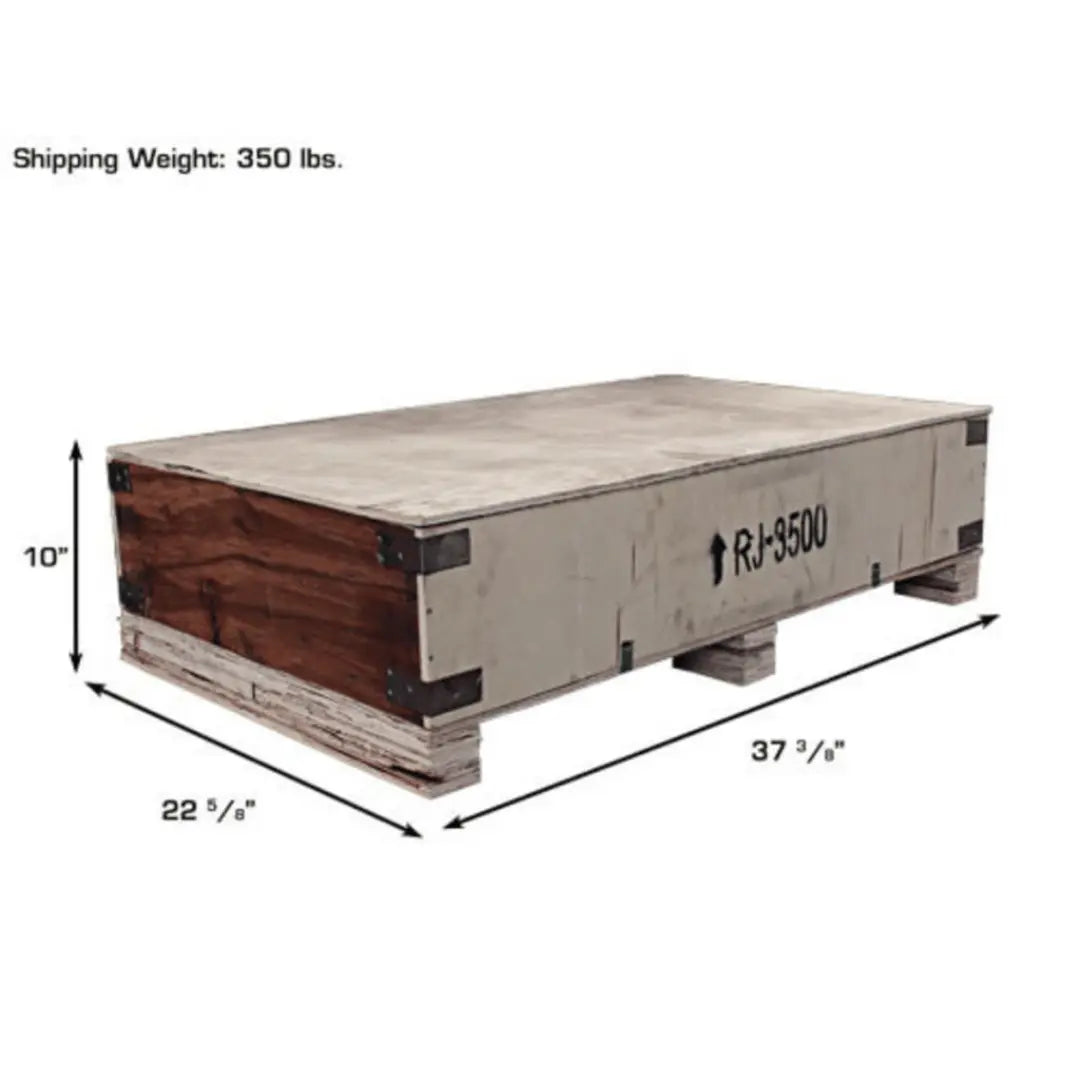

| Shipping Weight | 350 lbs |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
Downloads
Brochure
Manual
