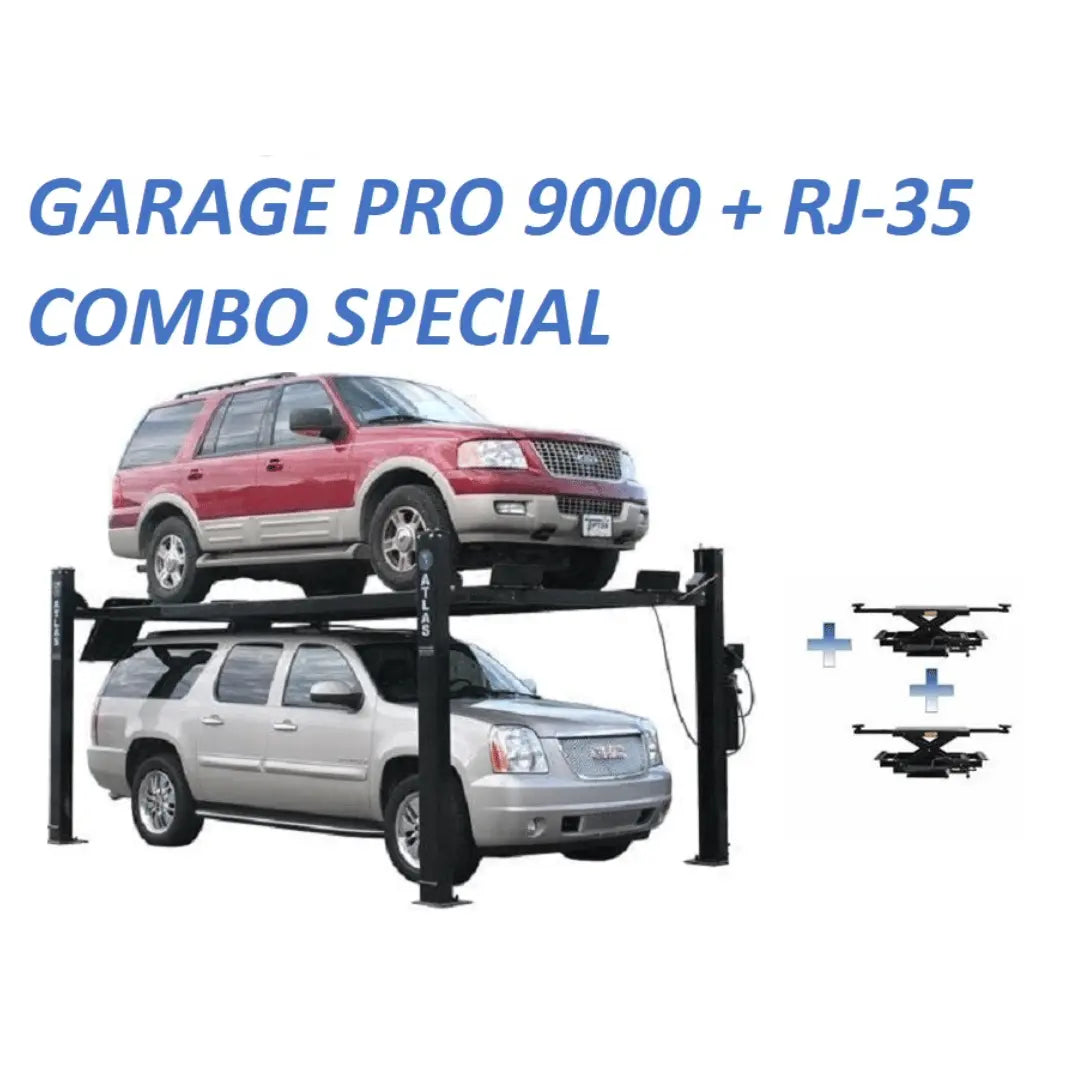

Atlas Garage PRO9000 4 Post Lift + RJ35 Sliding Jacks Combo
The Atlas® Garage PRO9000 4 post lift is a heavy-duty hobbyist lift and features the highest lifting capacity of all our Garage PRO series lifts. The Garage PRO9000 is extra-long and has the longest runways (we believe) of any portable 9,000 LB. four post on the market. That feature allows the lift to handle some of the longest wheelbase vehicles out there. The Garage PRO9000 is extra wide allowing even Diesel Duallys to be driven onto the runways. This lift also features extra height so everything from Smart Cars® to a Dually can be parked both below and on the runways.
The commercial grade features of the Garage Pro 9000 make this lift the perfect choice for automotive service centers or “Mr. Homeowner” that needs a PORTABLE professional four post lift at a competitive price.
This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicle’s wheels off the lift’s runways in order to service tires and brakes.
Product Features
Garage PRO9000 4-Post Lift
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall/Extra Wide/Extra Long

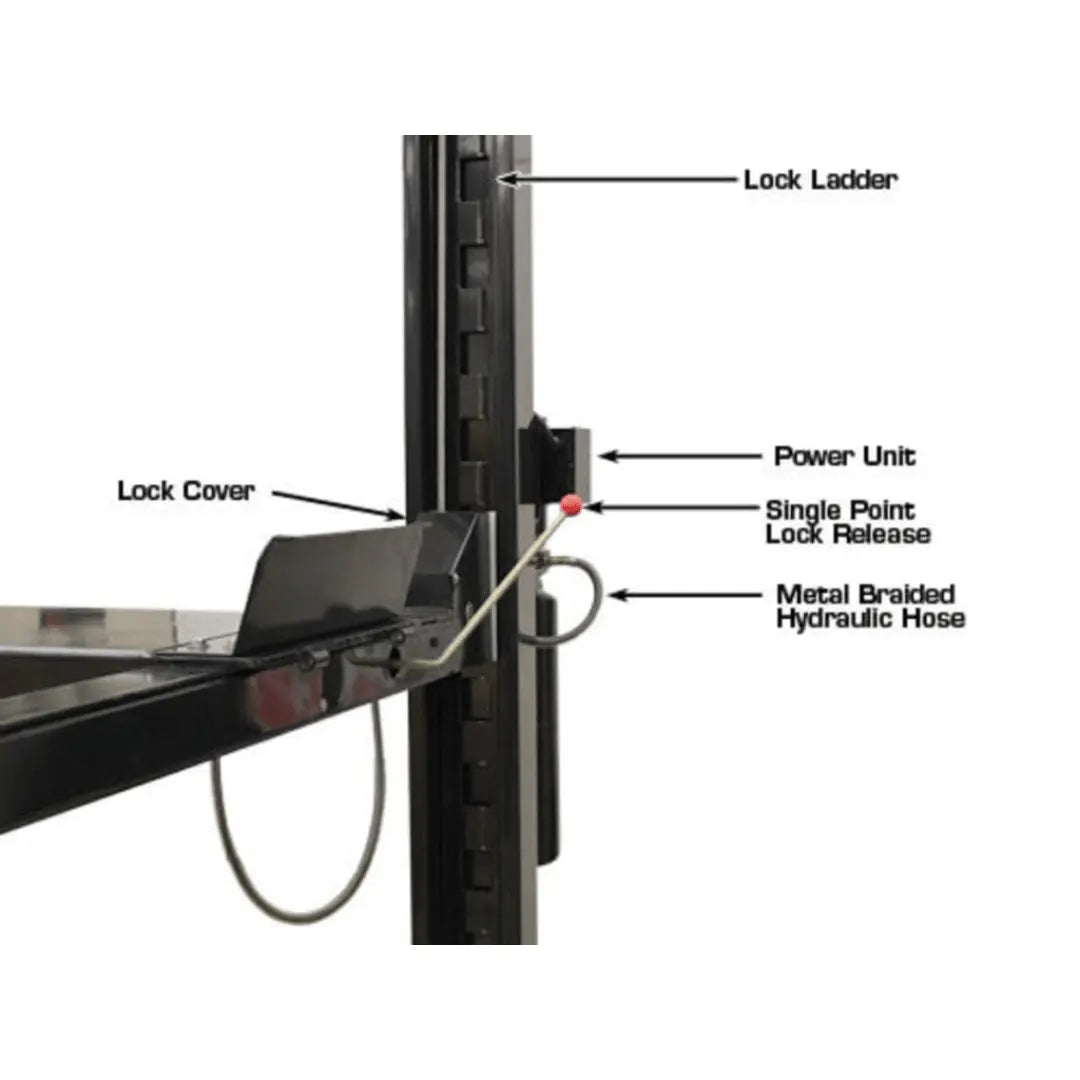

- Single-Point Lock Release

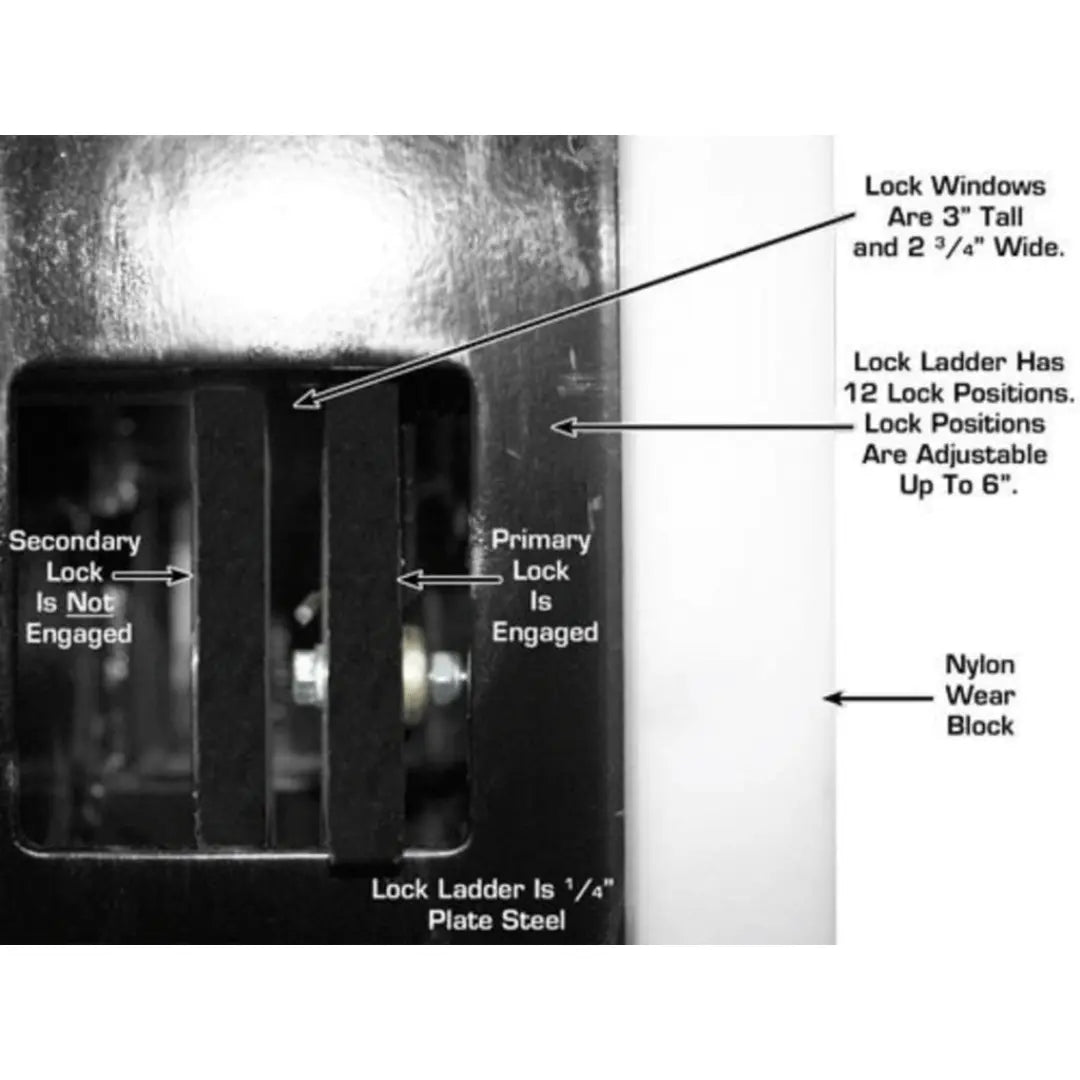

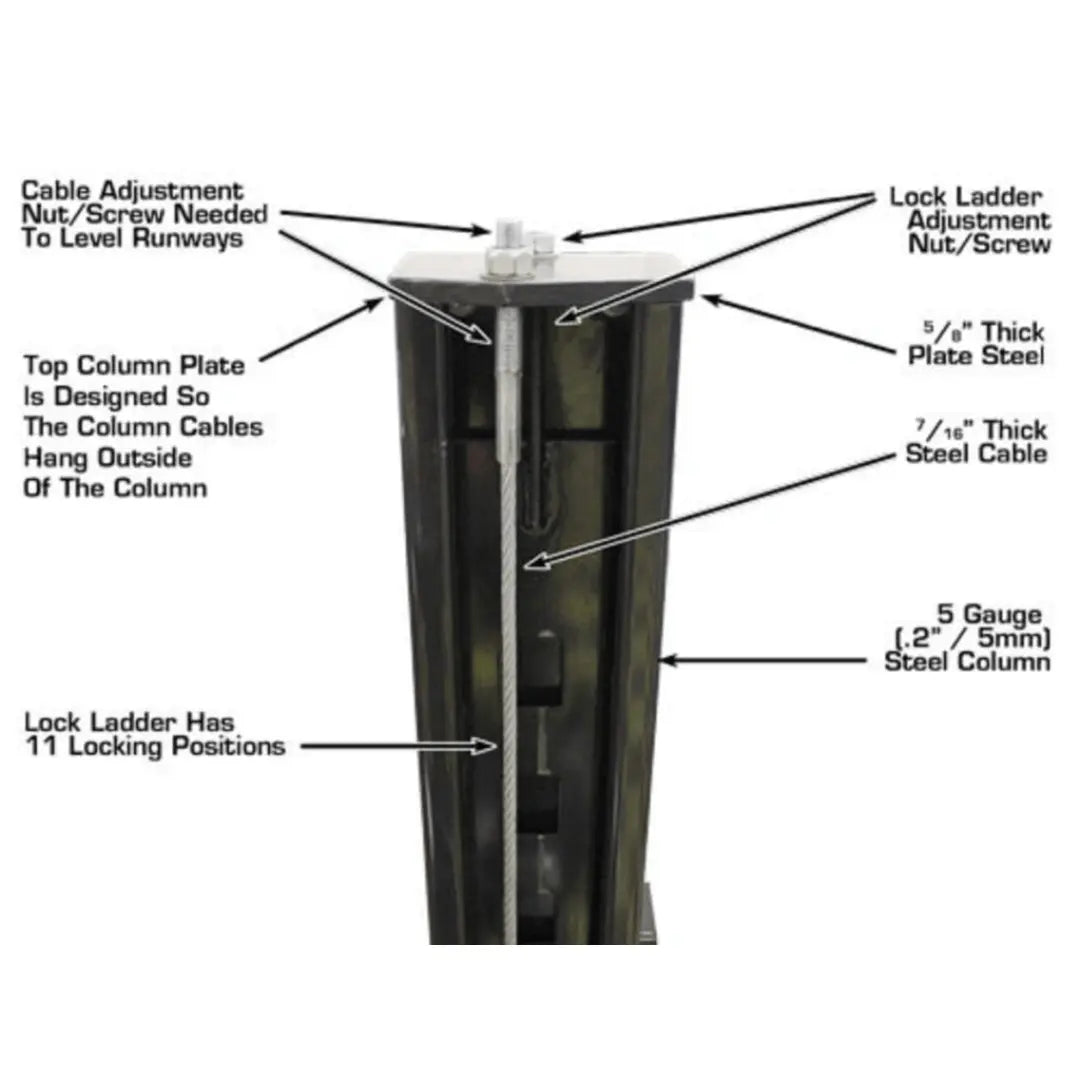

- Lock Ladder Design

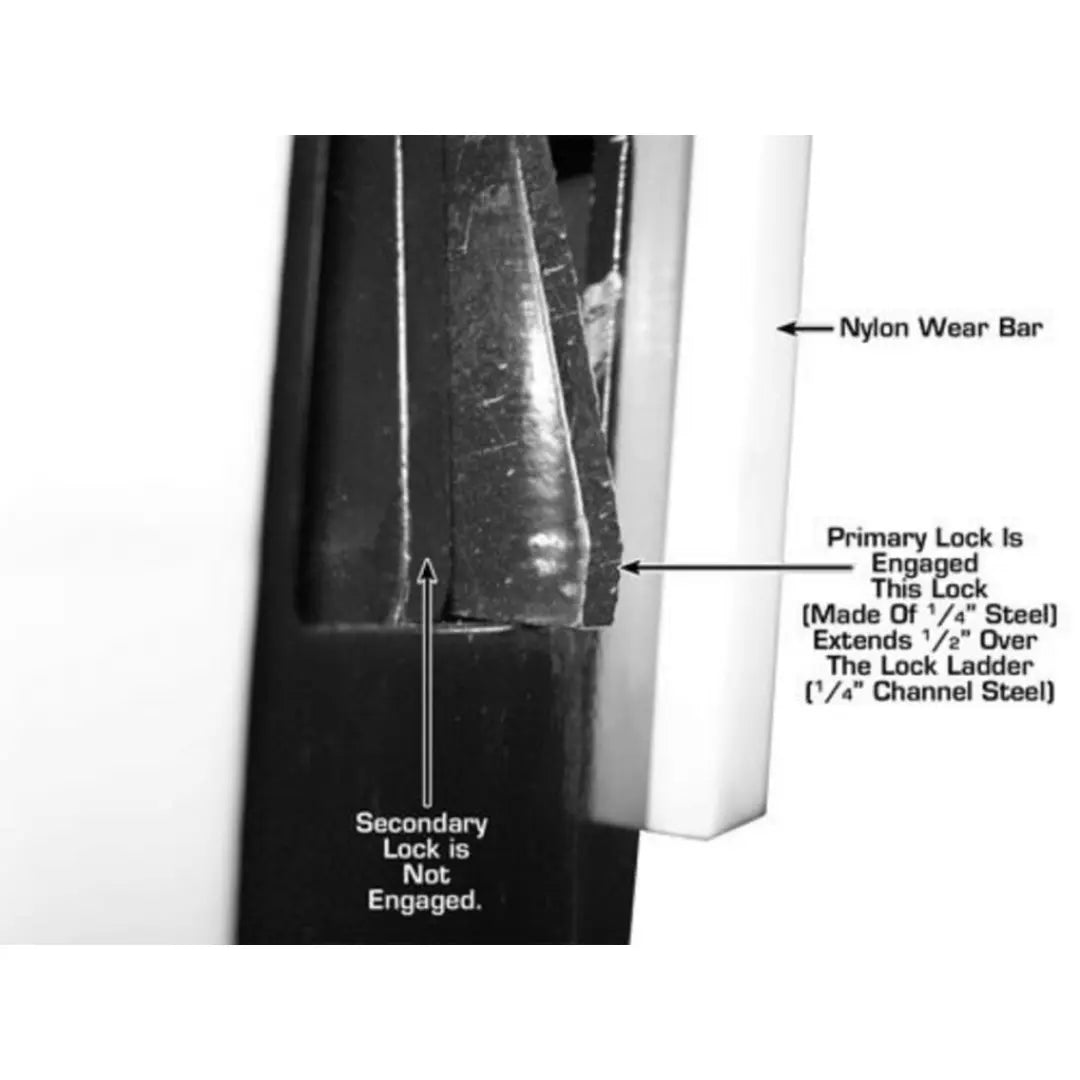

- Double Lock Safety System

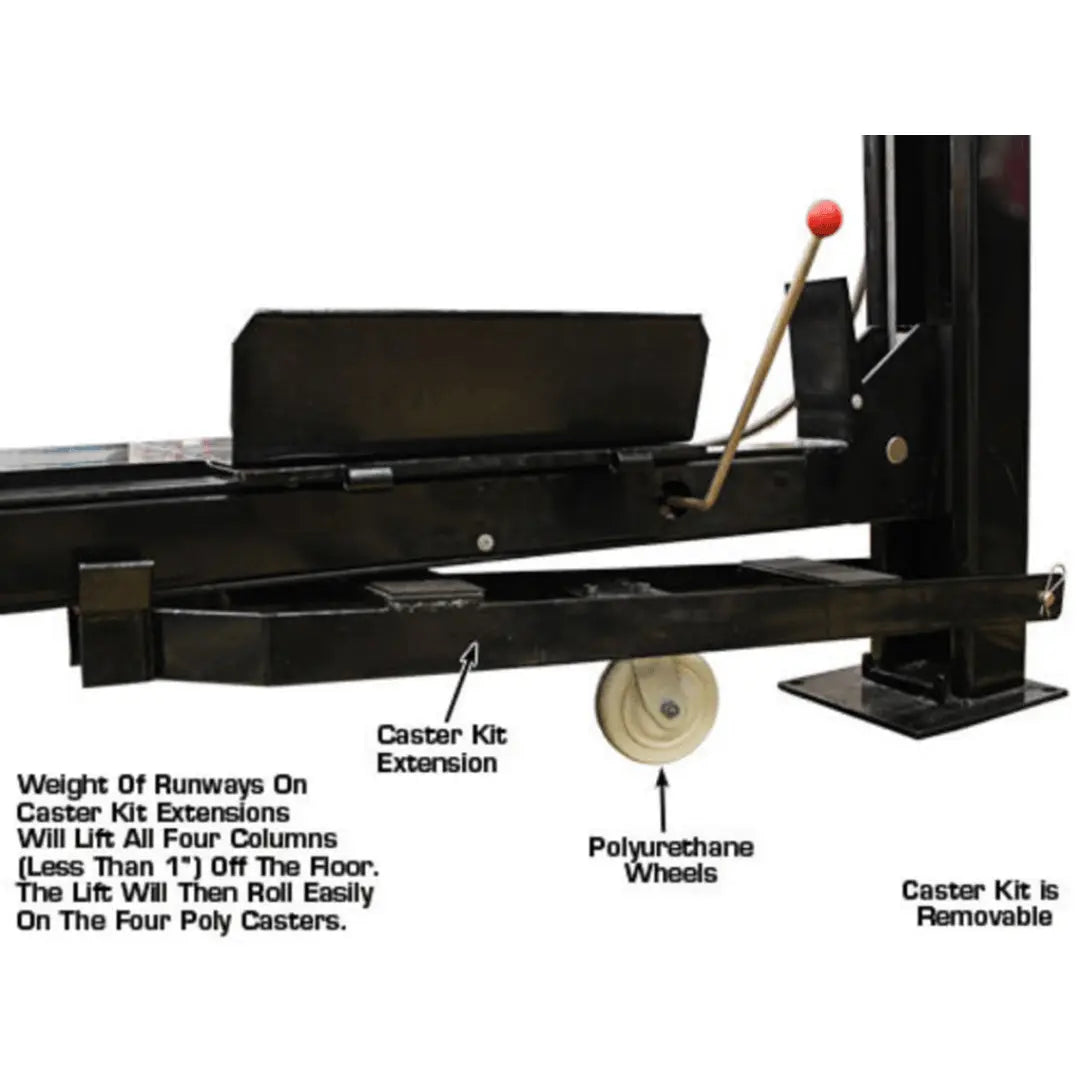

- Caster Kit With Polyurethane Wheels Included

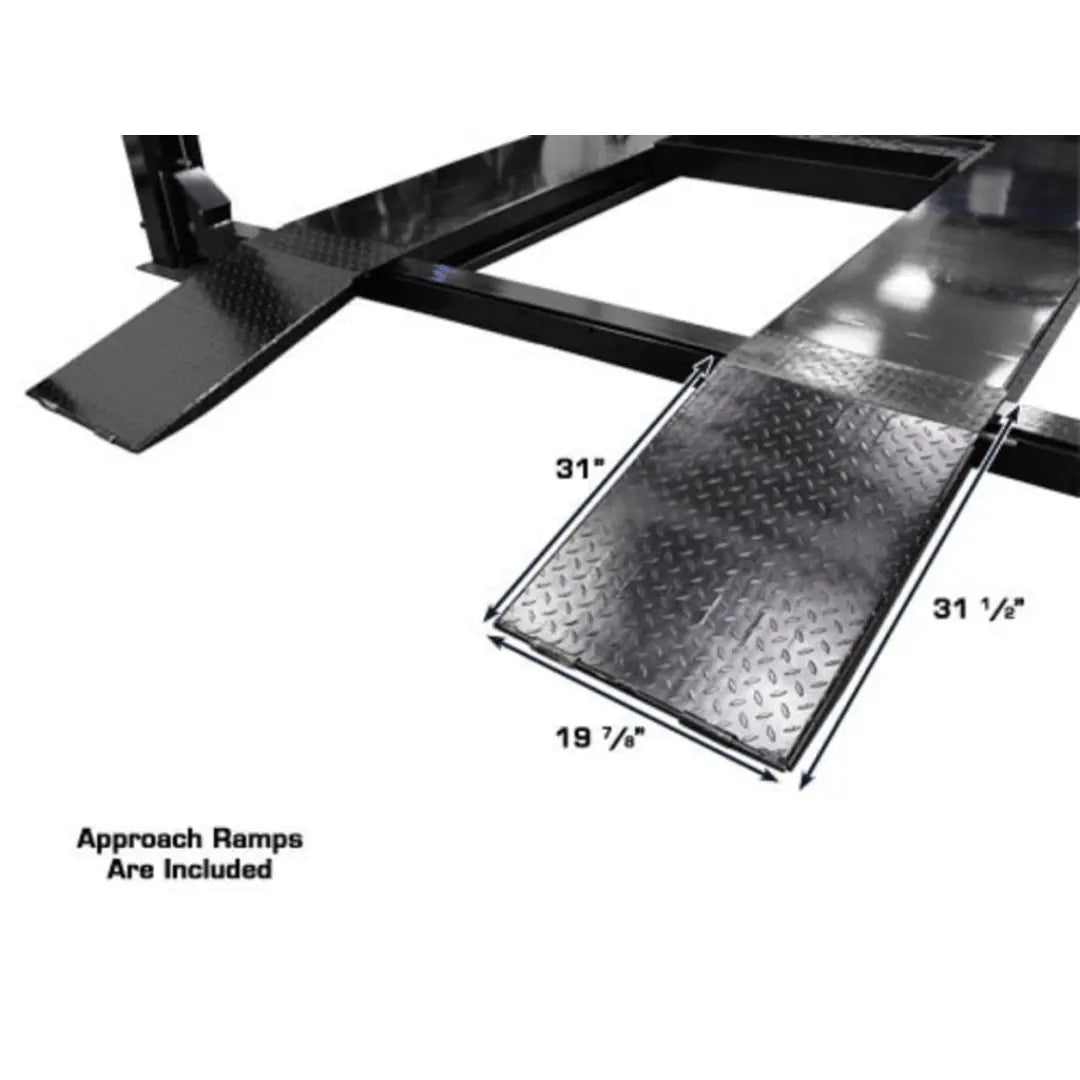

- Steel Approach Ramps Included
- Steel Jack Tray Included

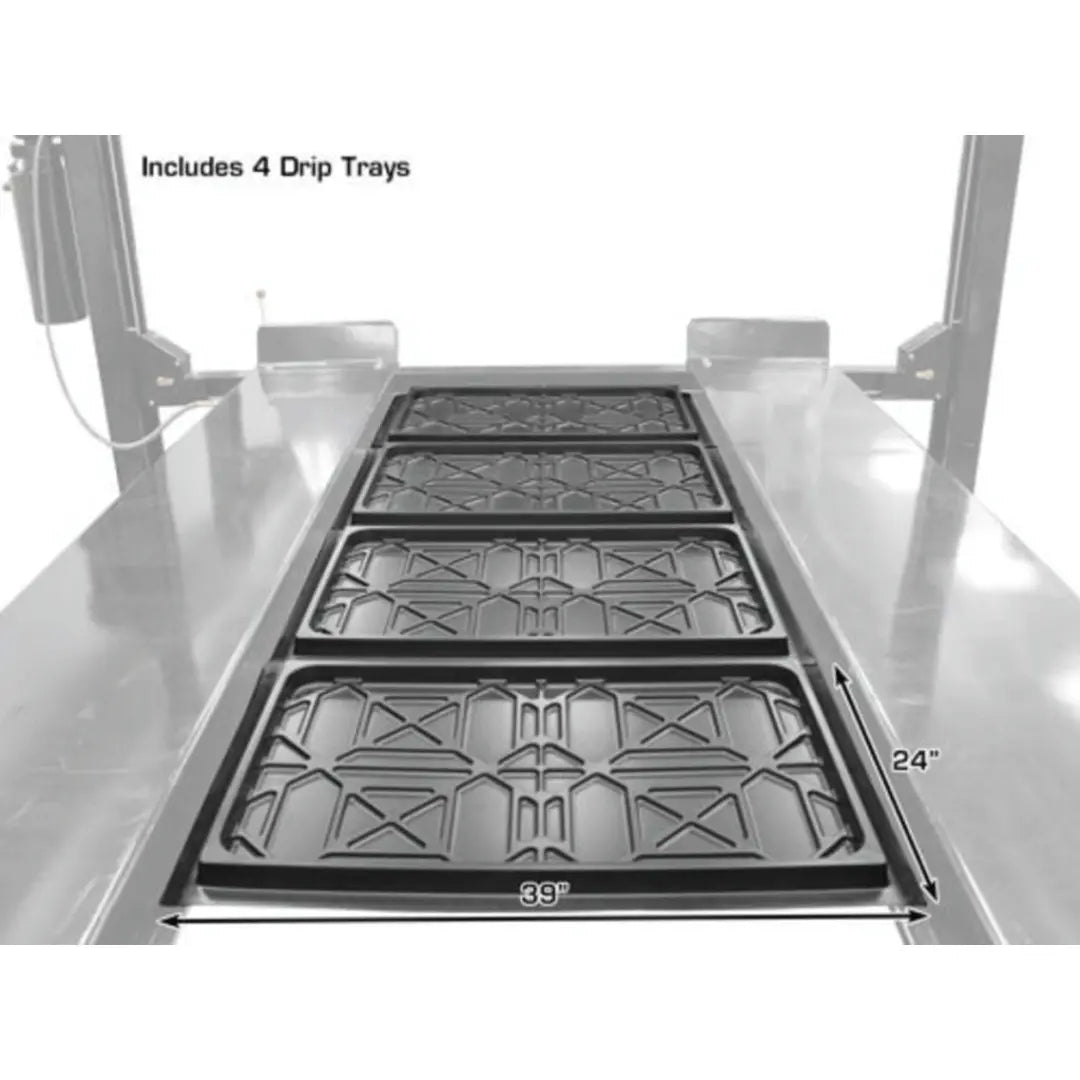

- 4 Plastic Drip Trays Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)

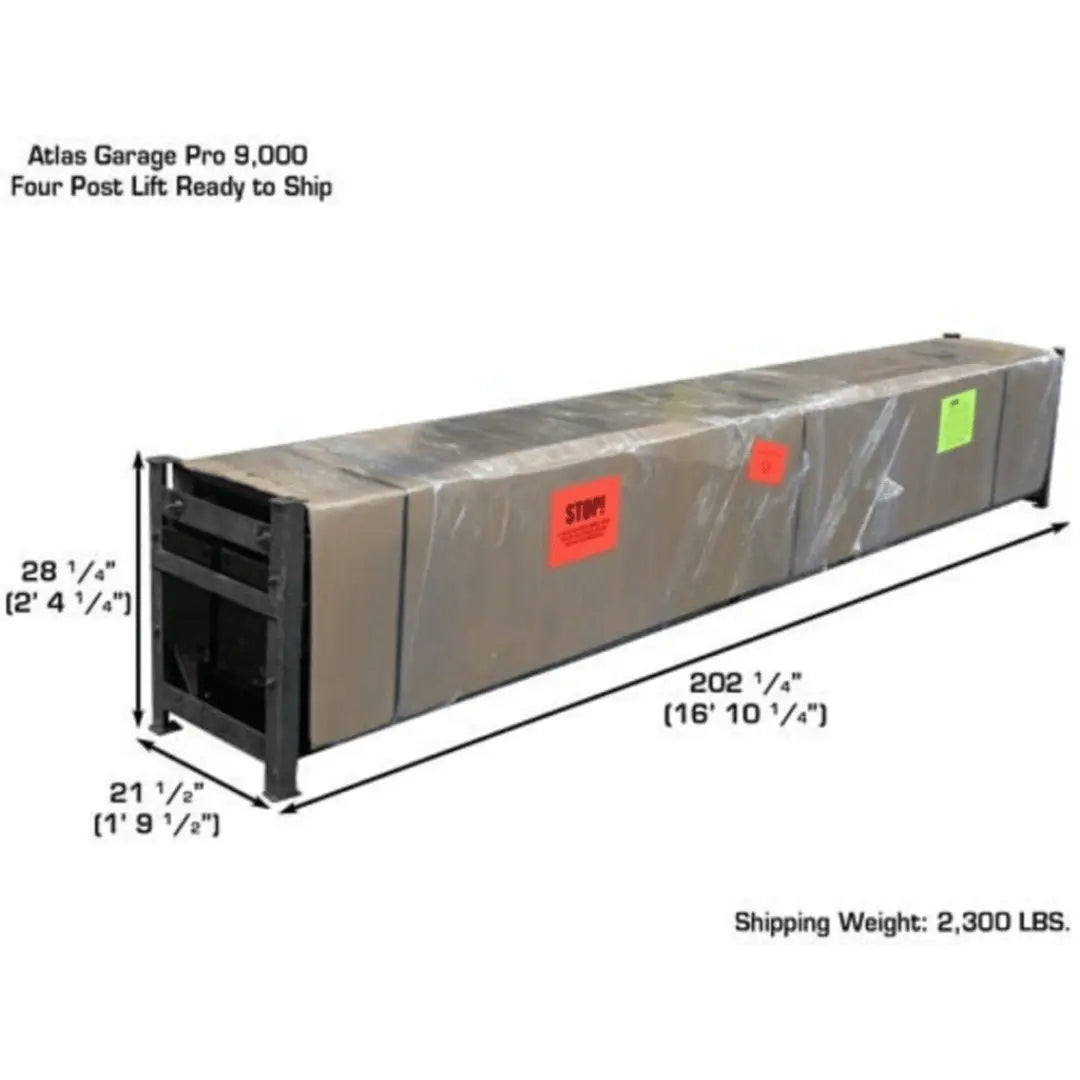

- Shipping Weight 2,300 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

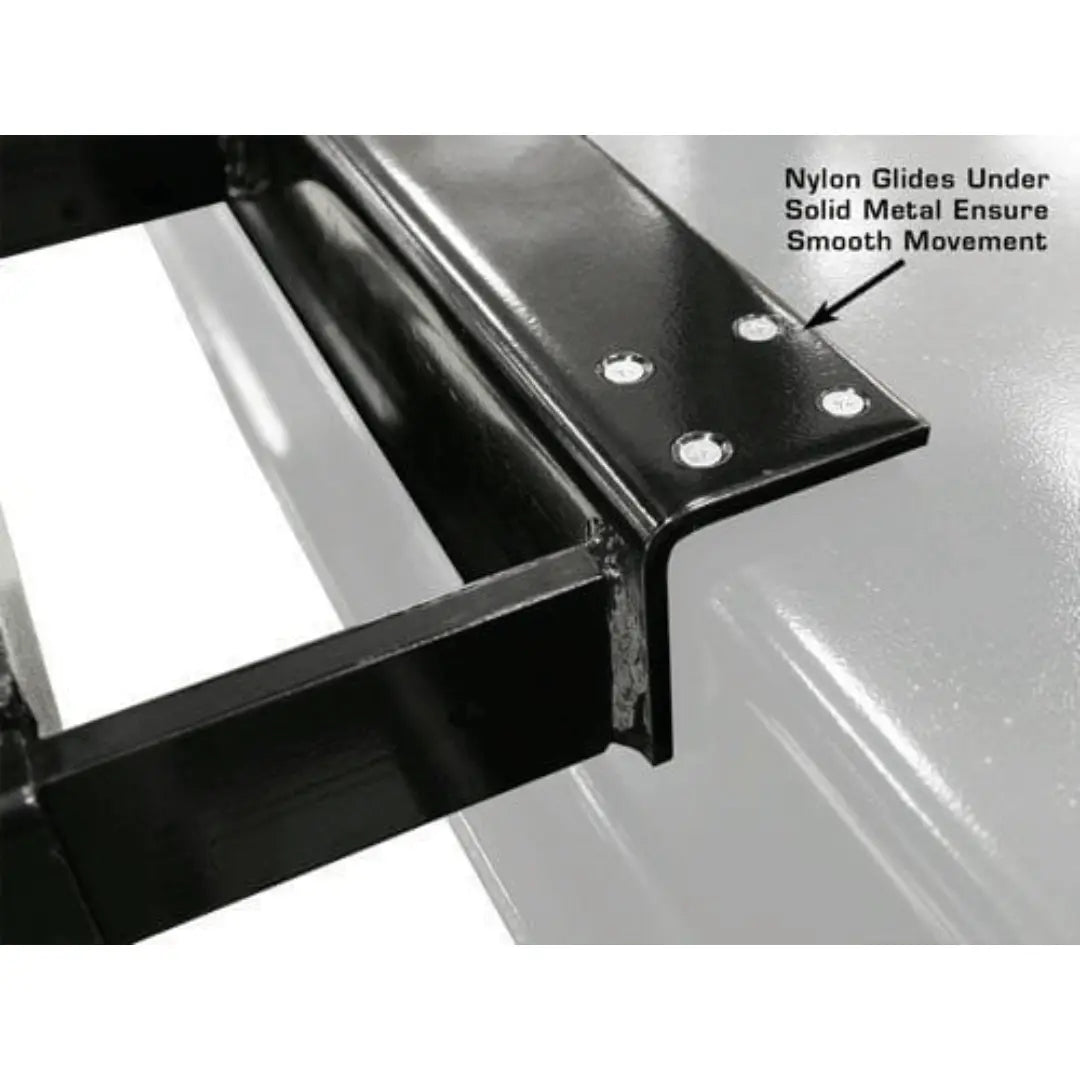

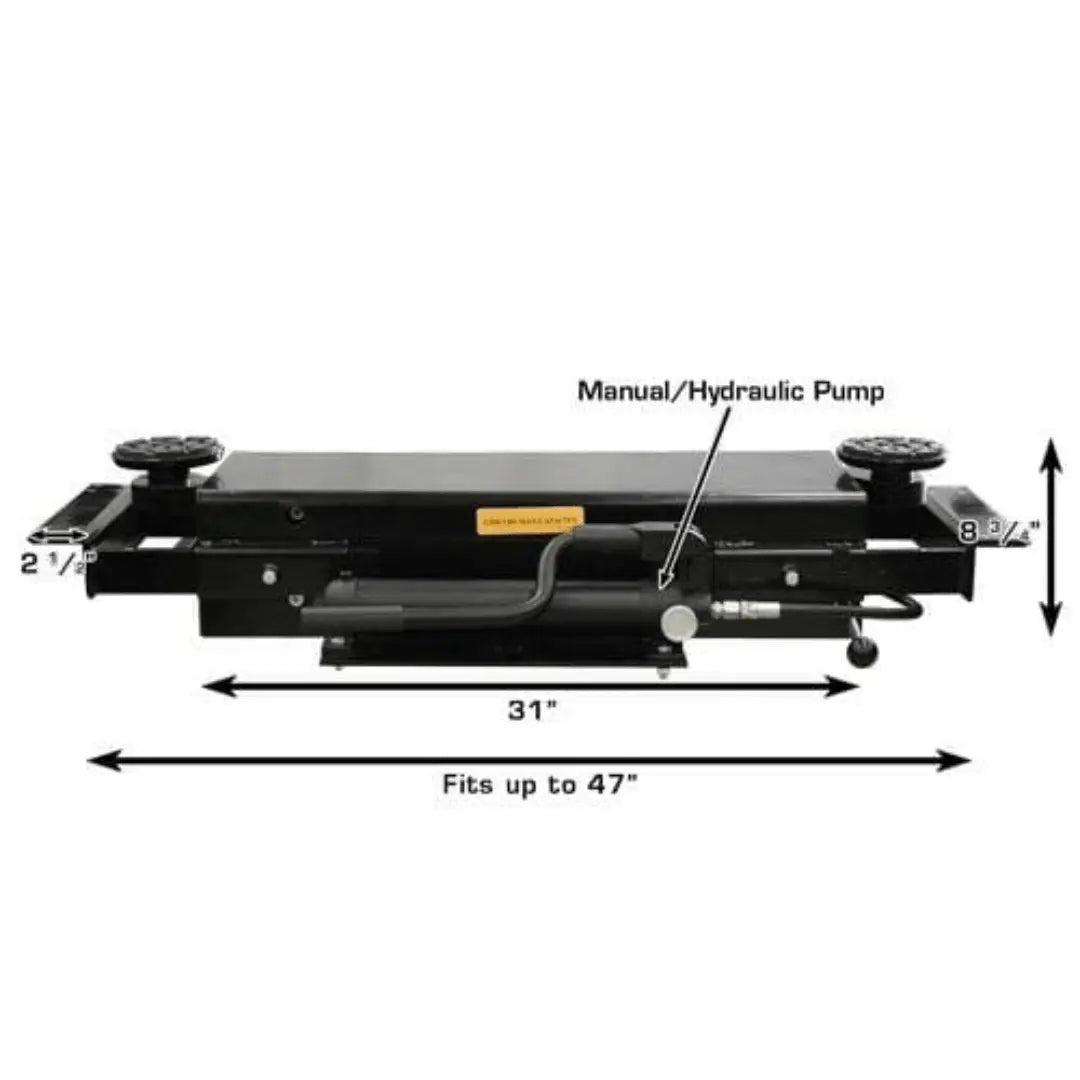

RJ35 Sliding Bridge Jack
- Sliding Bridge Jack
- Capacity: 3,500 lbs.

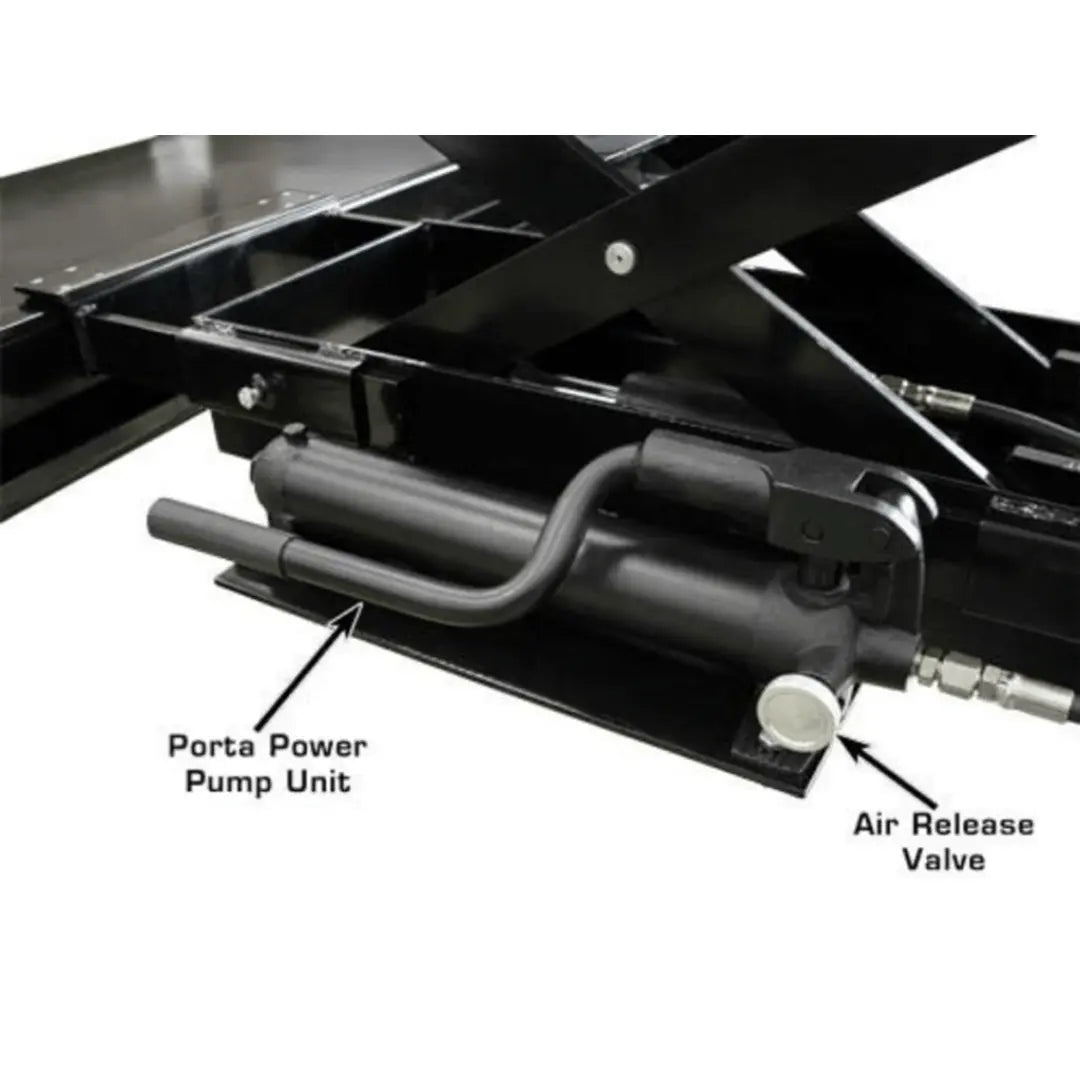

- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions

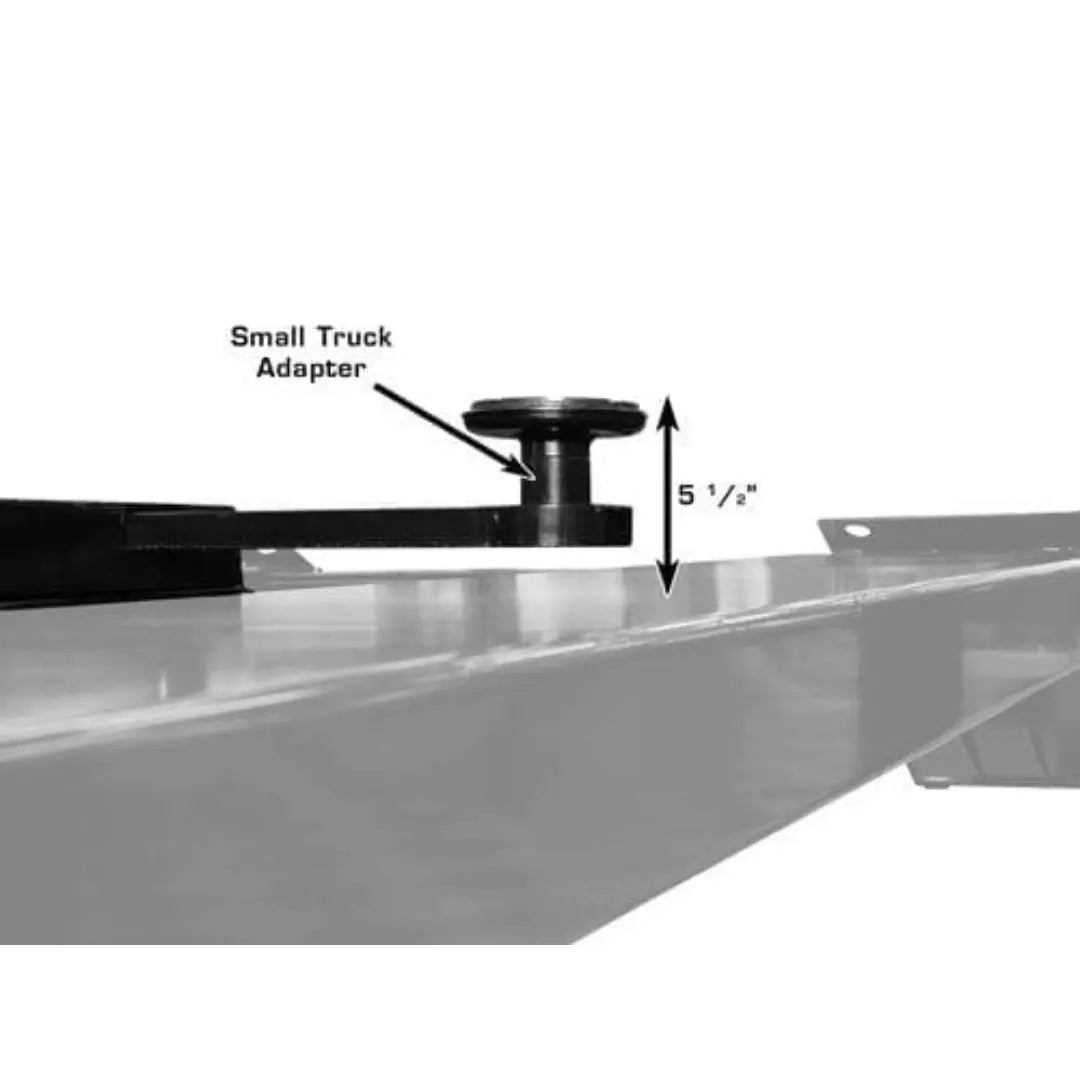

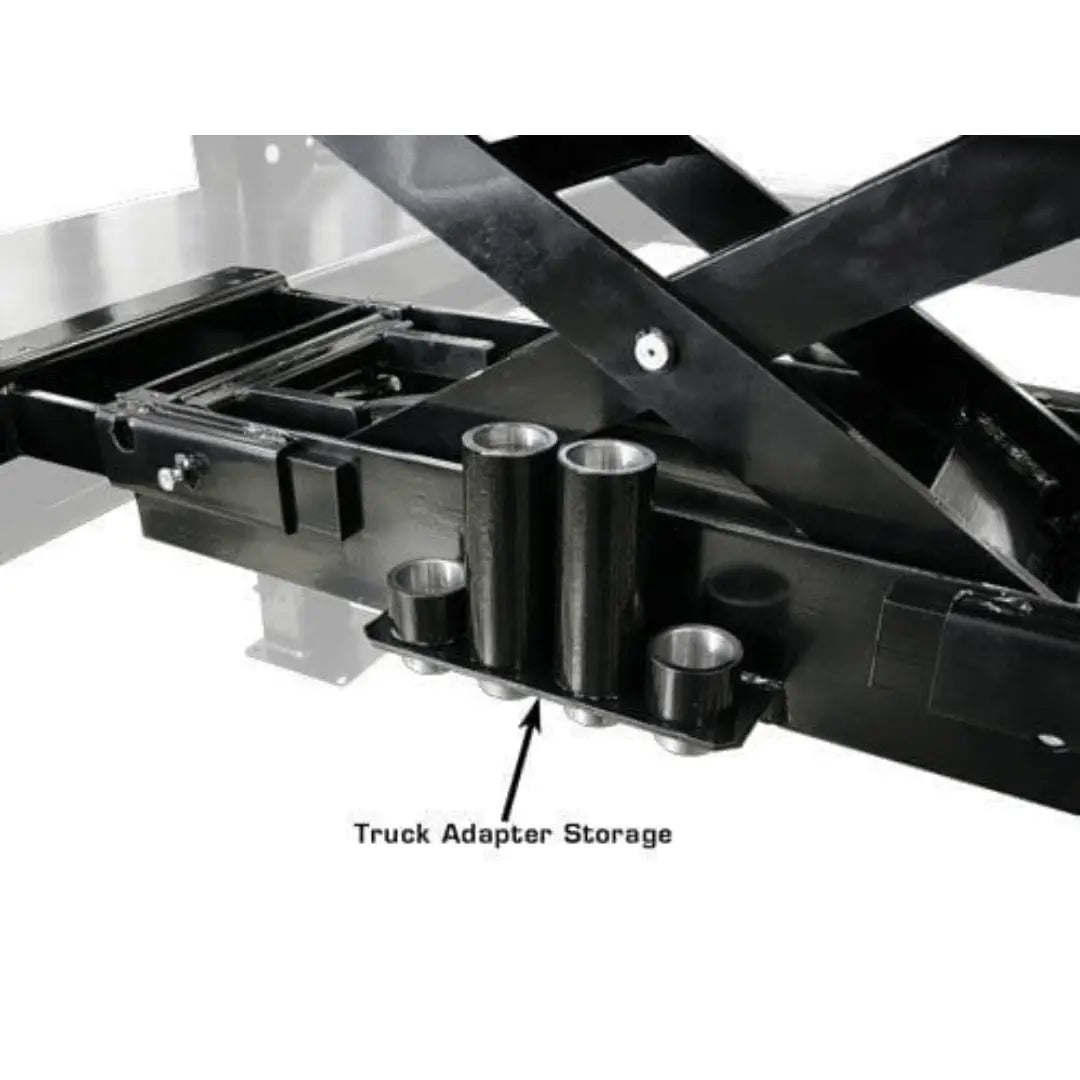

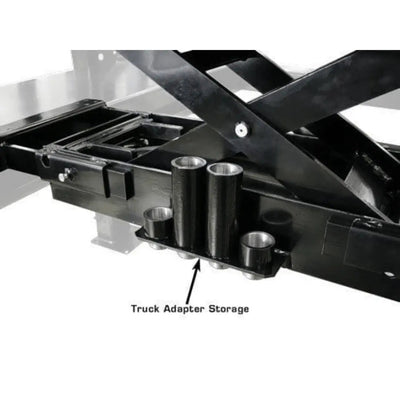

- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Product Specifications

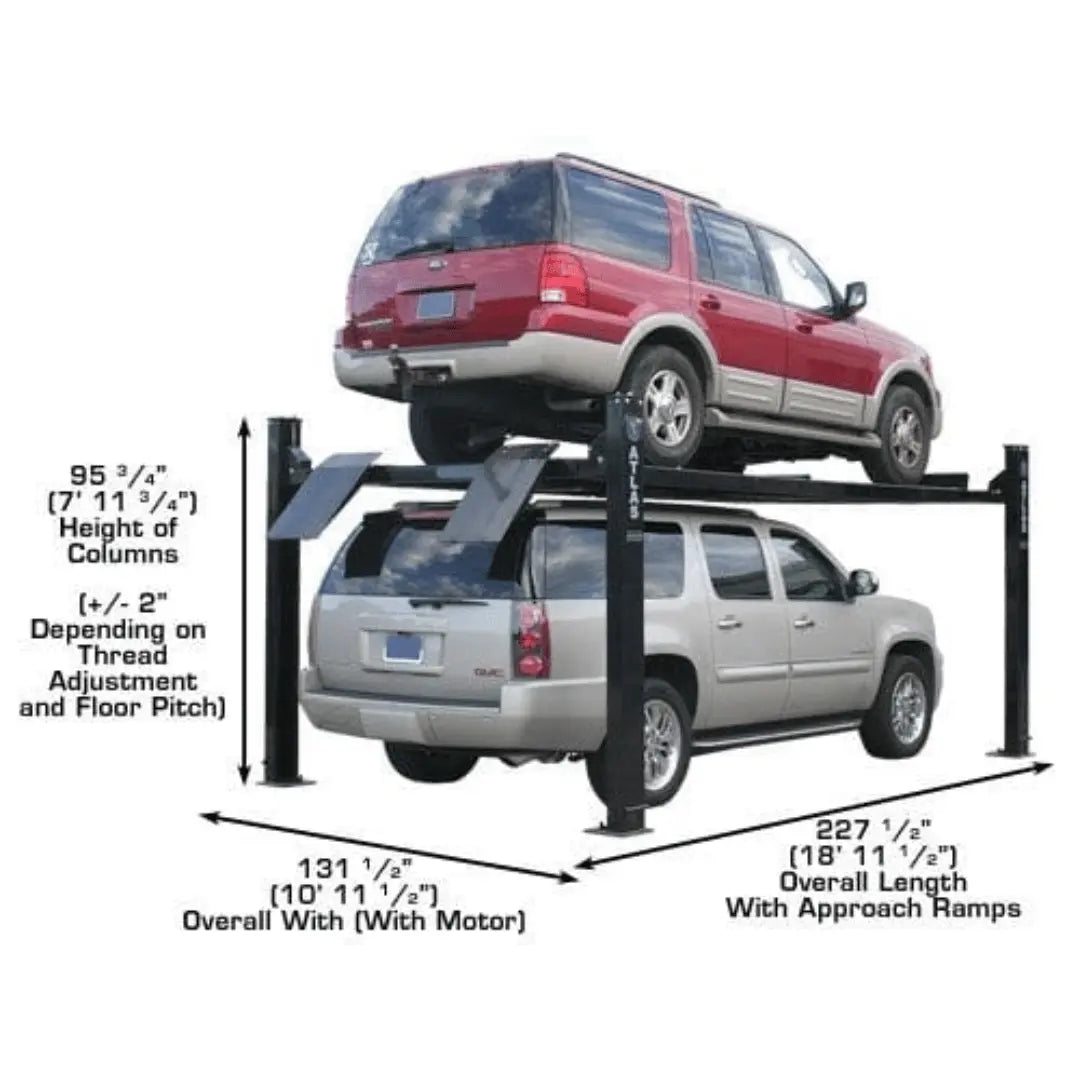

Atlas® Garage PRO9000 Specifications
| Capacity | 9,000 lbs. |

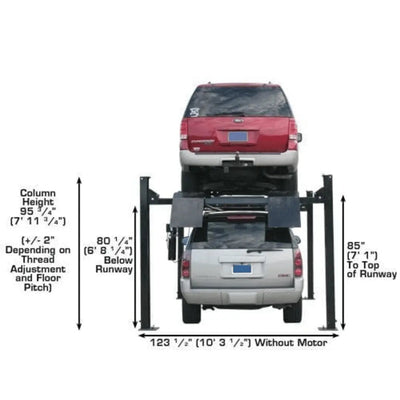

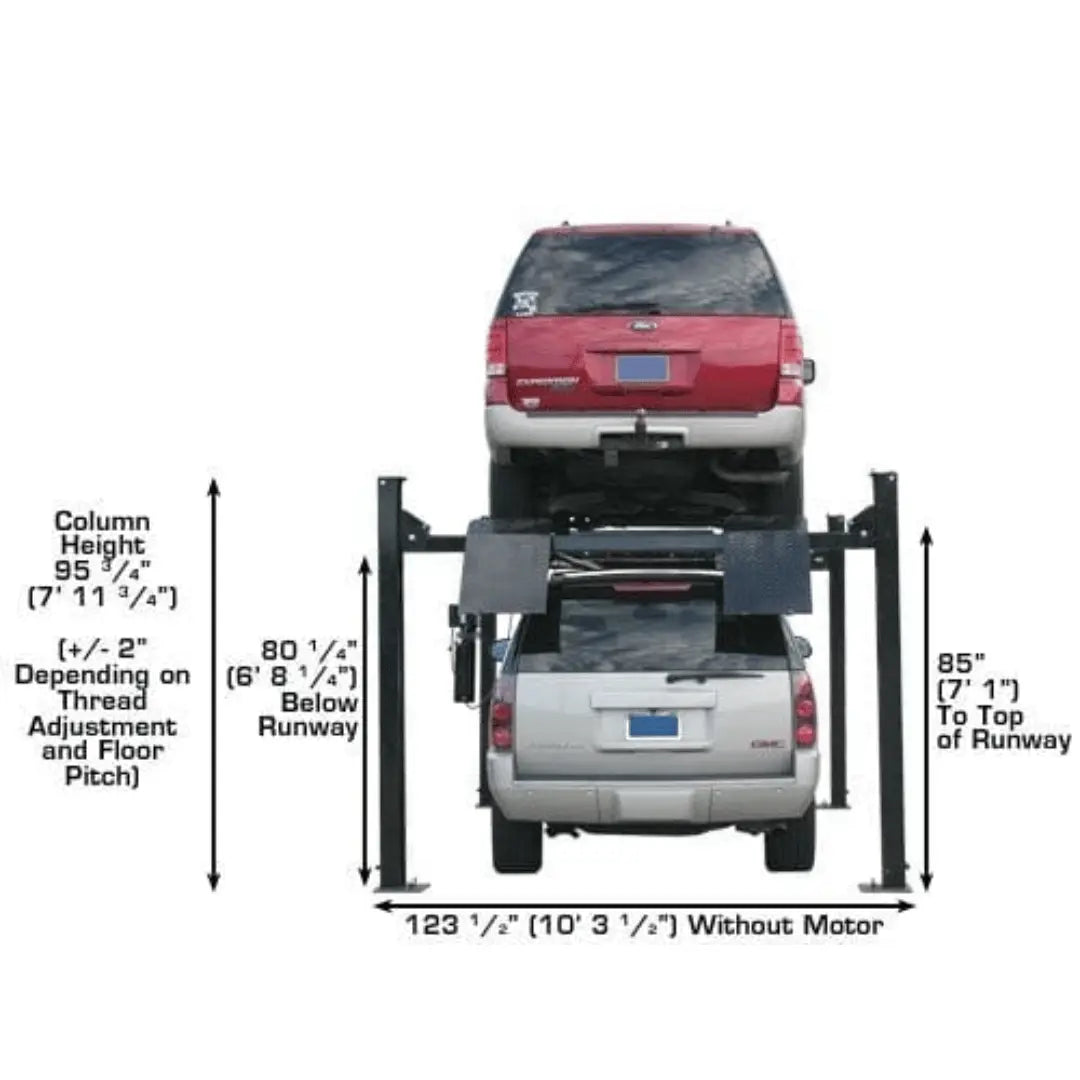

| Lifting Height To Top Of Runway | 85" (7' 1") |

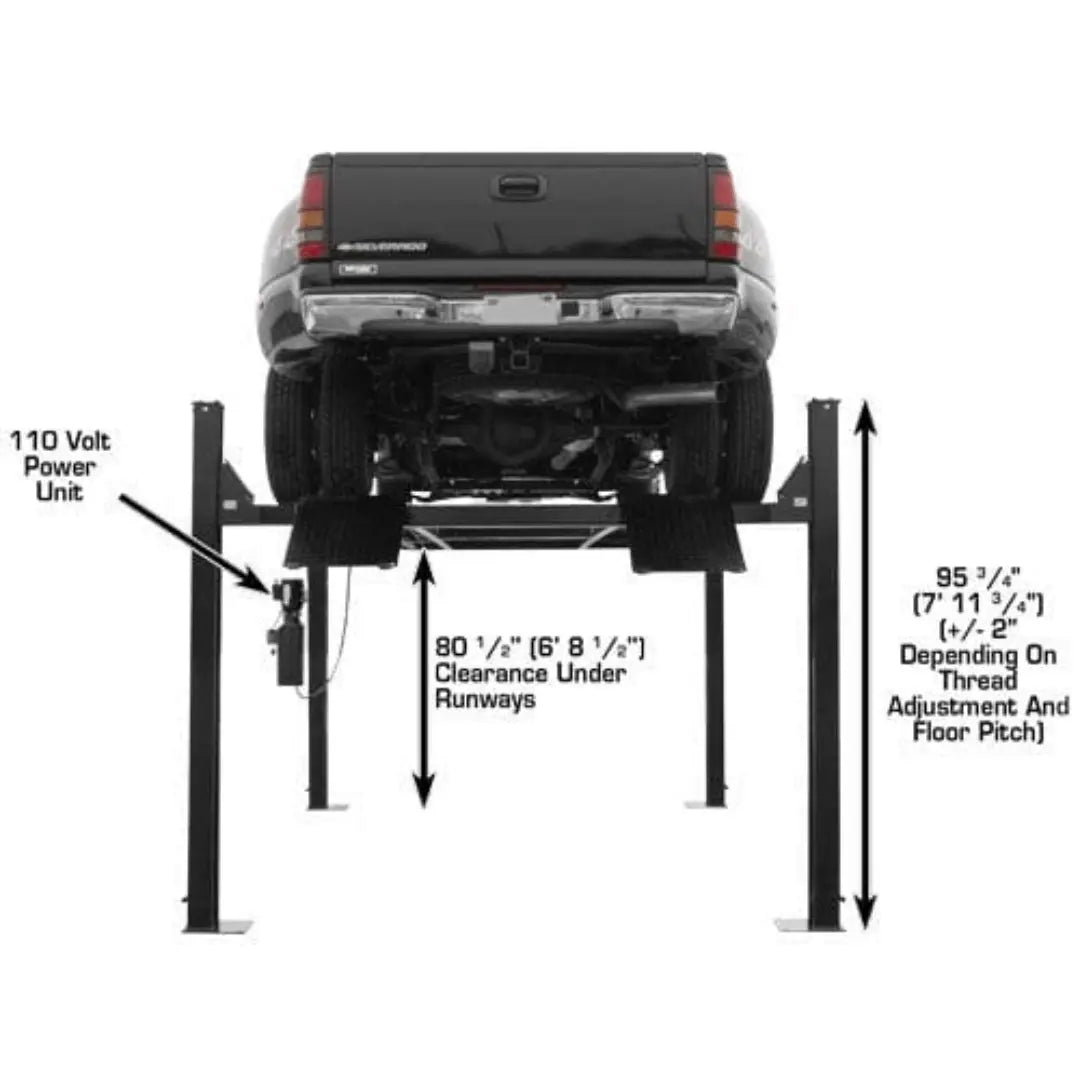

| Clearance Under Runways | 80 1/4" (6' 8 1/4") |

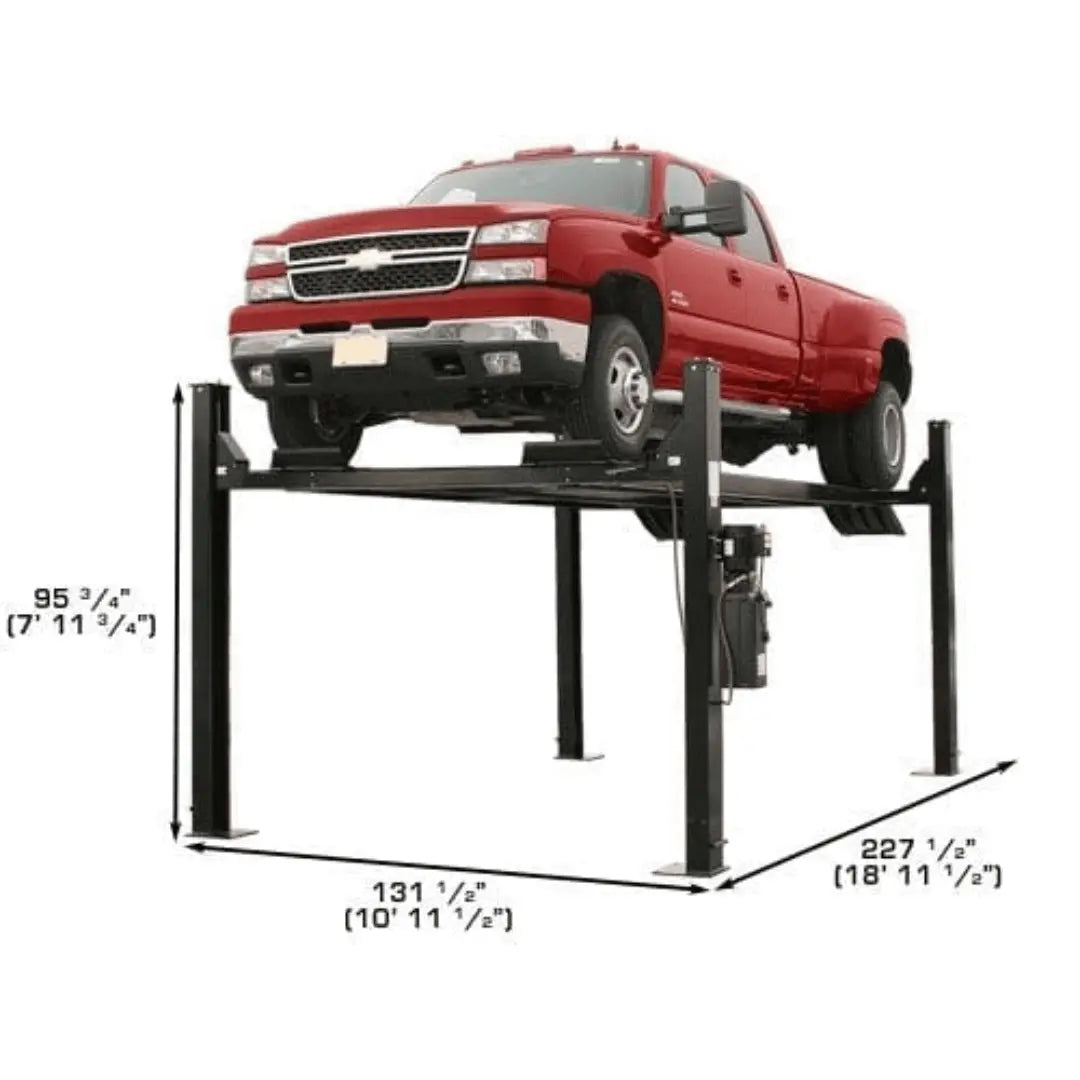

| Height Of Columns | 95 3/4" (7' 11 3/4") |
| Overall Width (Without Motor) | 123 1/2" (10' 3 1/2") |

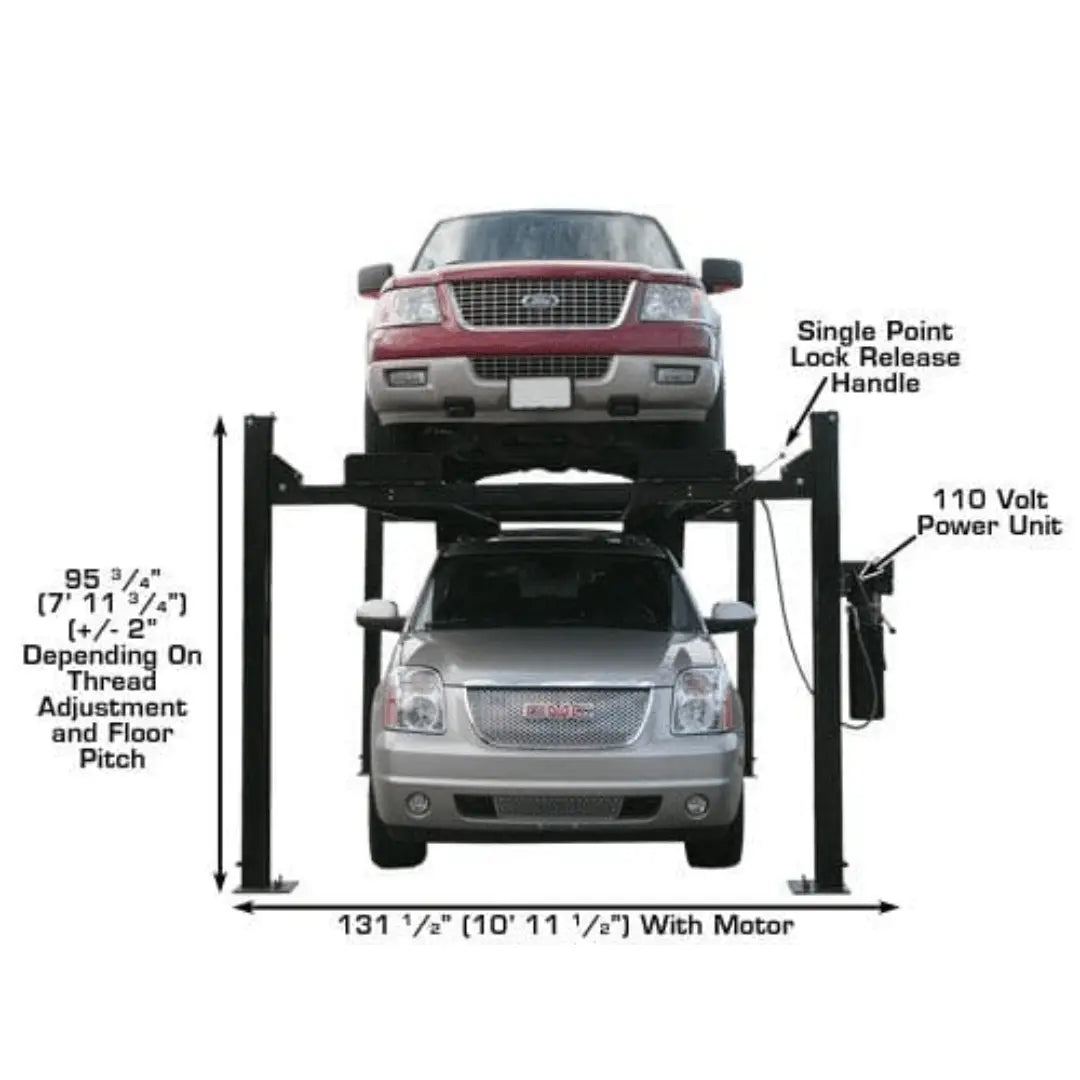

| Overall Width (With Motor) | 131 1/2" (10' 11 1/2") |

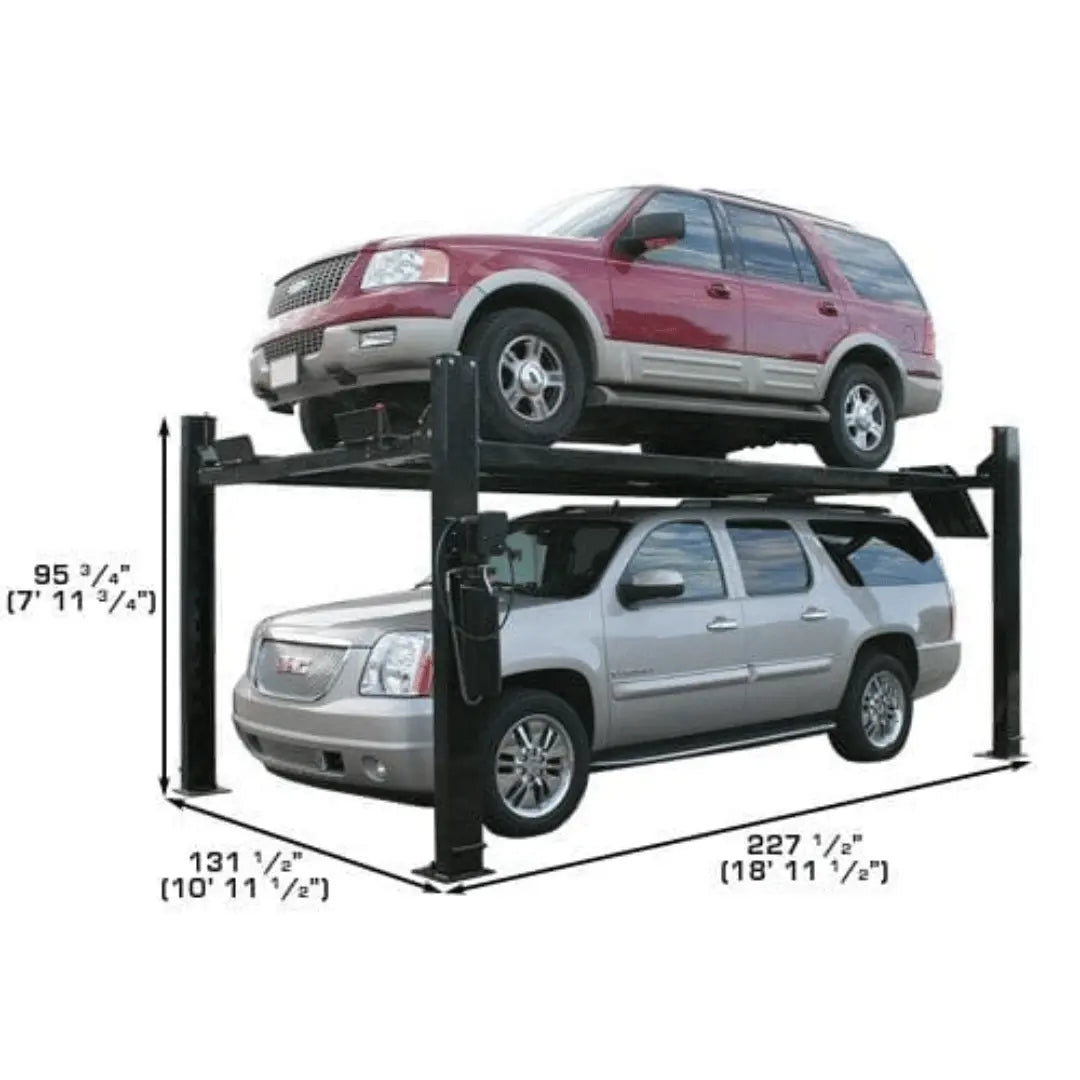

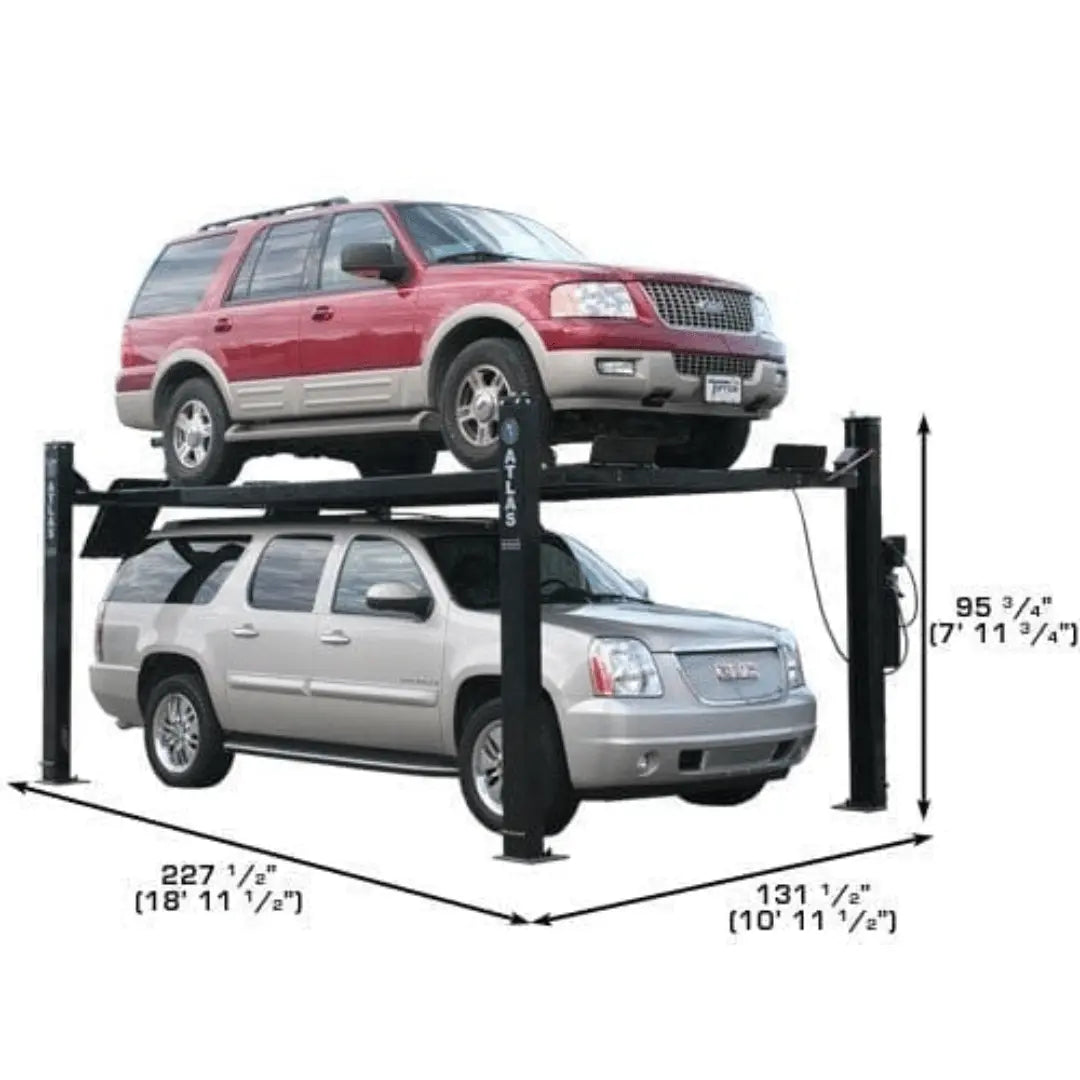

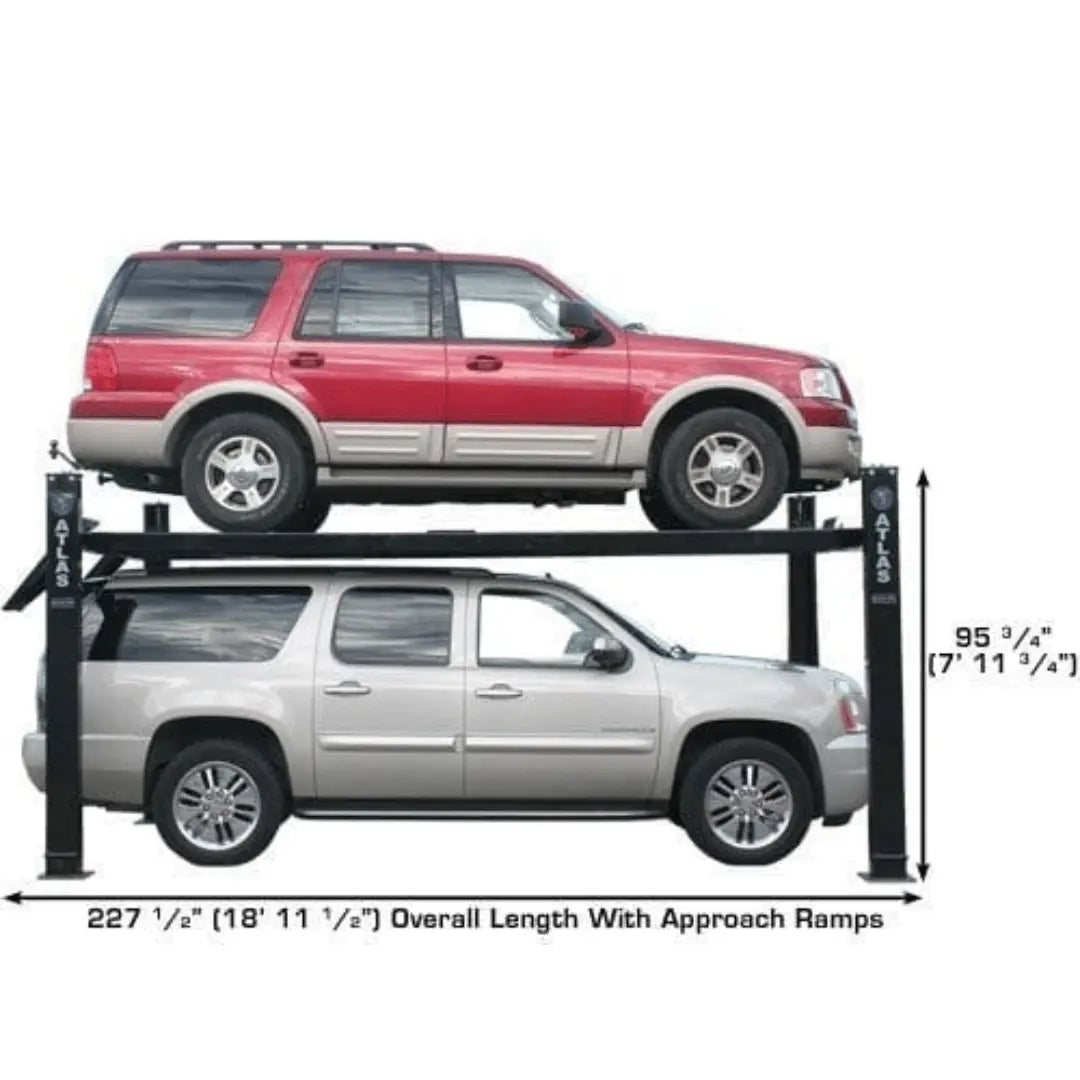

| Overall Length With Approach Ramp | 227 1/2" (18' 11 1/2”) |
| Approach Ramp | 31" (2' 7") |

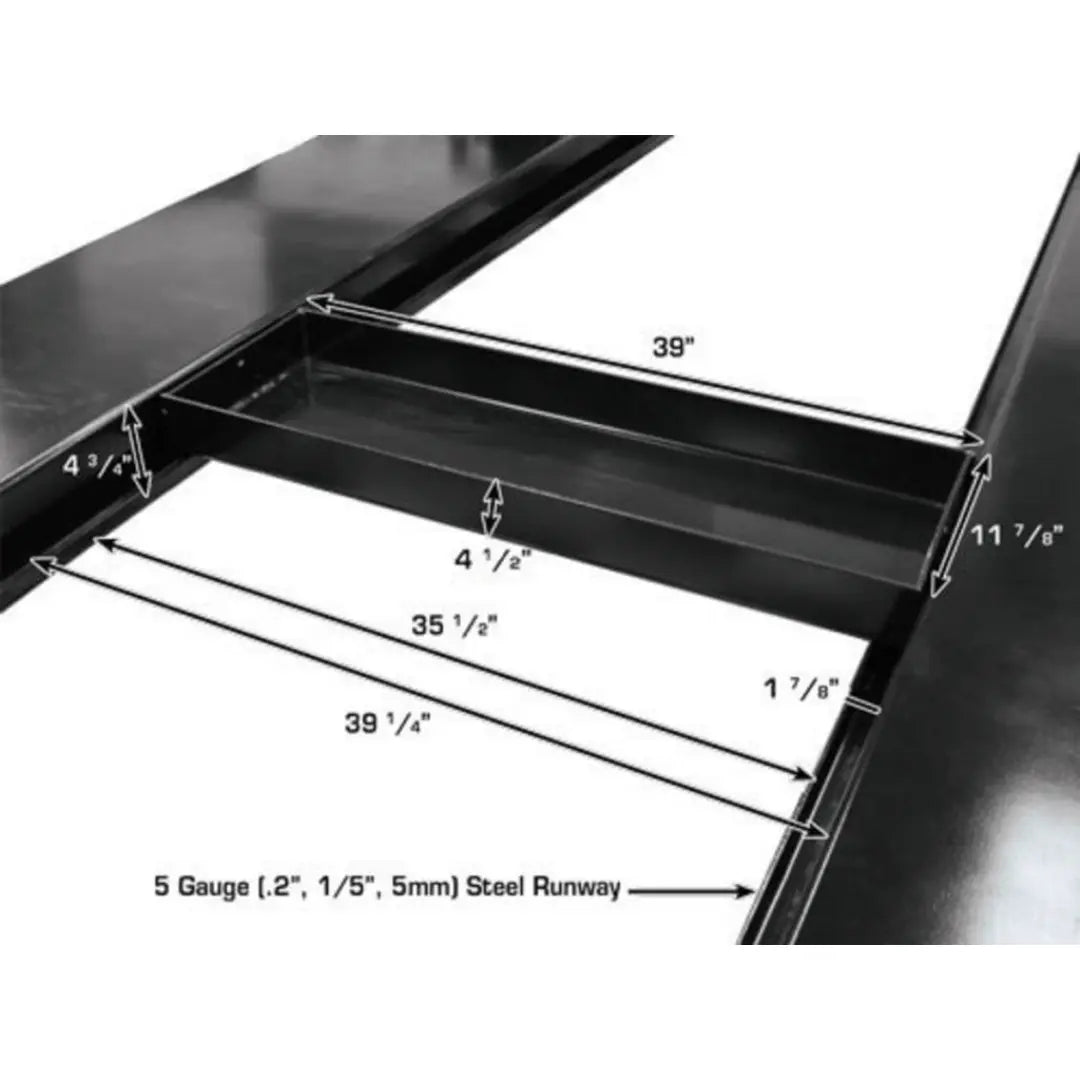

| Runway Width | 21 1/4" (w/ Rails) or 20" (Driving Surface) |
| Runway Length | 199 1/2" (16' 7 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 39 3/4" (3' 3 3/4") |
| Width Between Runway Rails | 35 1/2" (2' 11 1/2") |
| Outside Runway To Outside Runway | 79" (6' 7") |

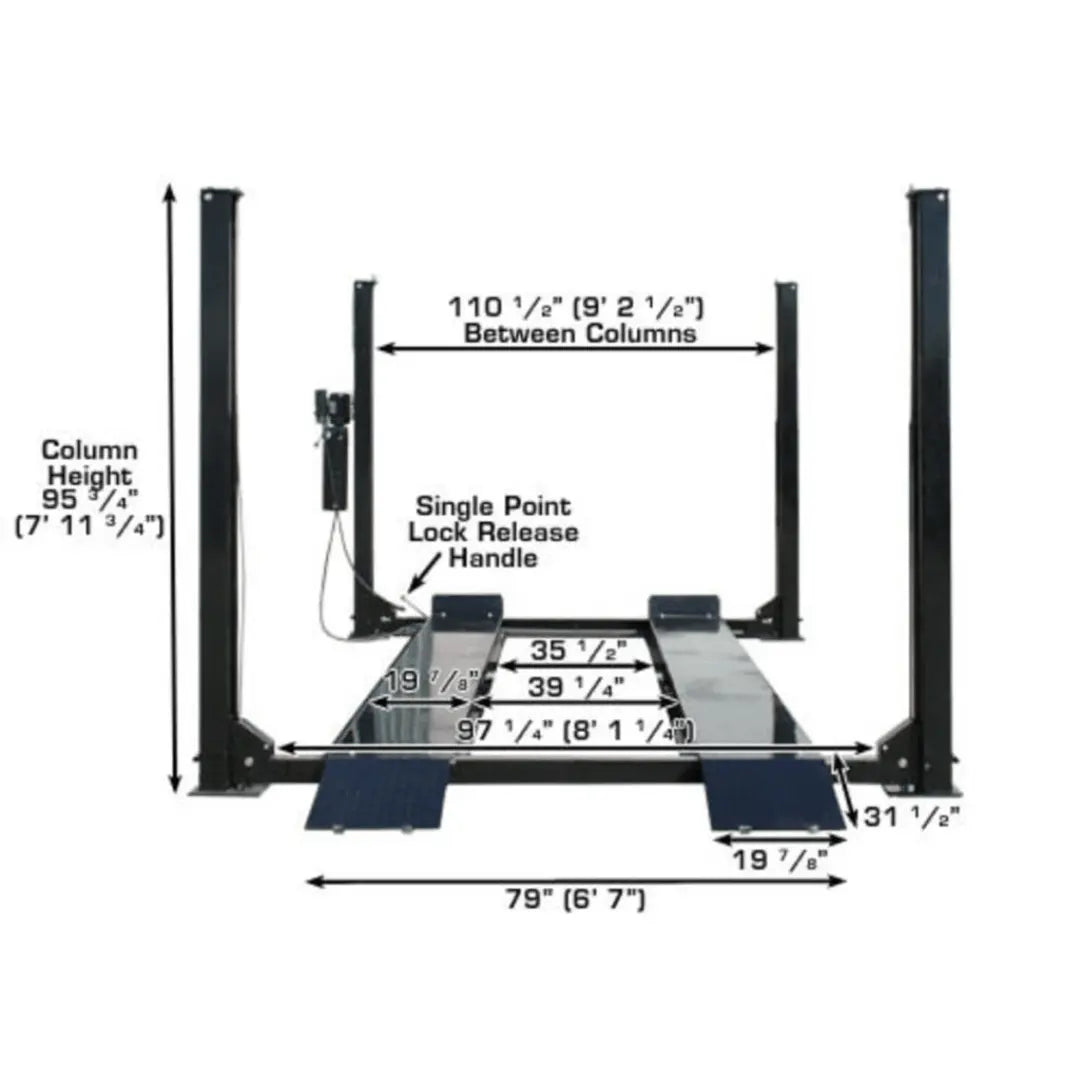

| Clearance Between Columns | 110 1/2" (9' 2 1/2") |

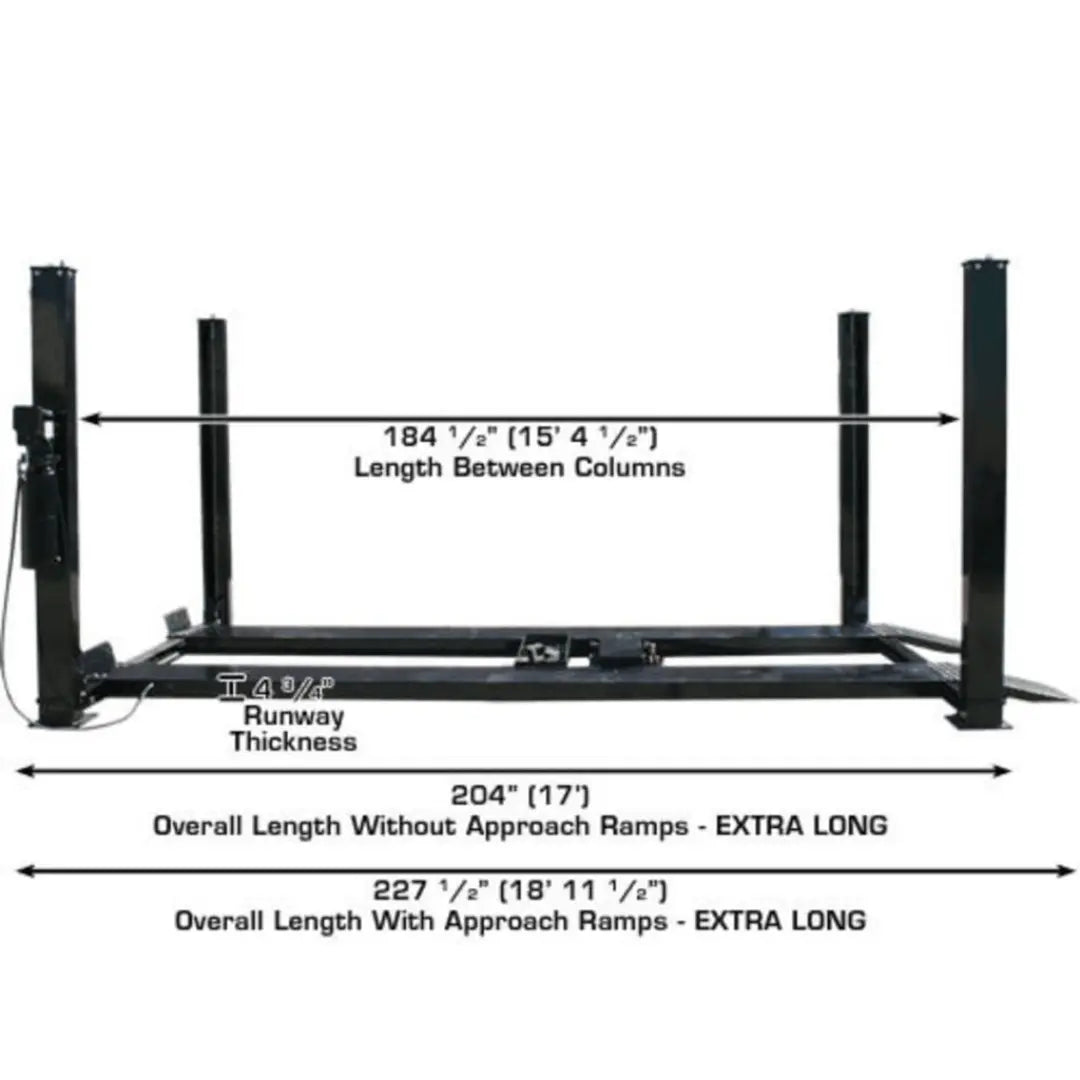

| Length Between Columns | 184 1/2" (15' 4 1/2") |
| Maximum Wheel Base | 187" (15' 7") |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 97 1/4" (8' 1 1/4") |
| Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 2,300 lbs. |

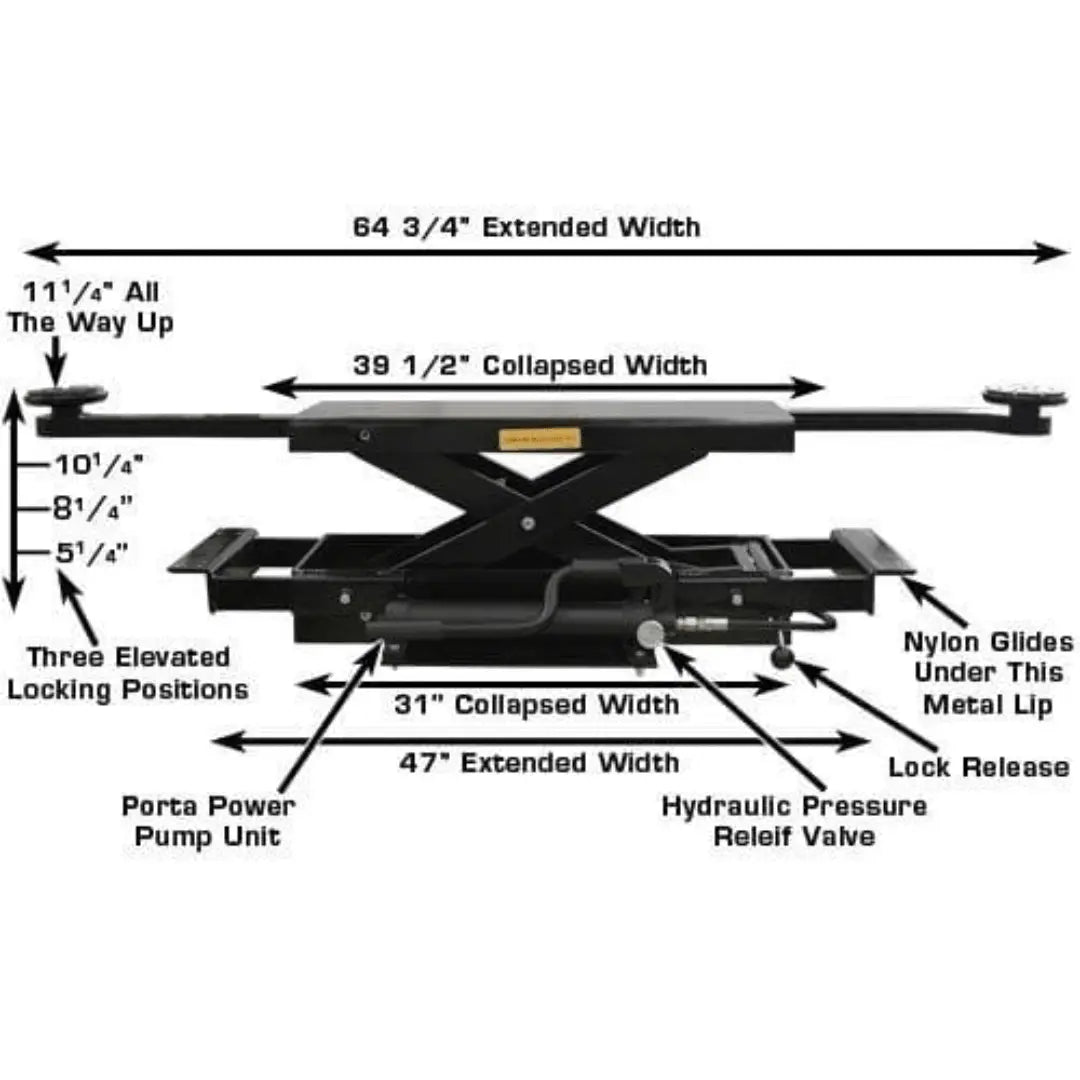

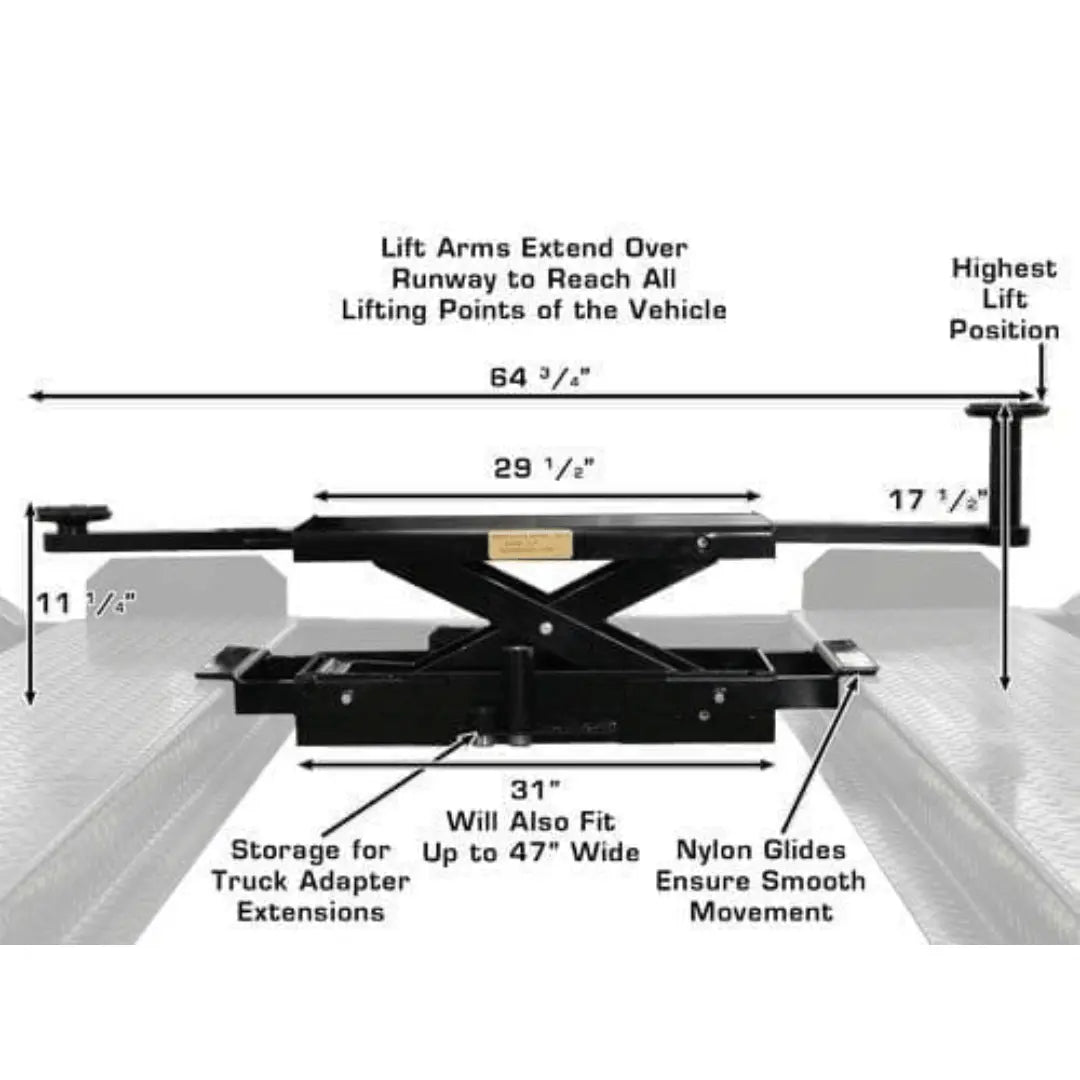

Atlas® PROJACK35 Specifications
| Maximum Capacity | 3,500 lbs. |
| Maximum Width | 64 3/4" (5' 4 3/4") |
| Minimum Width | 29 1/2" (2' 5 1/2") |

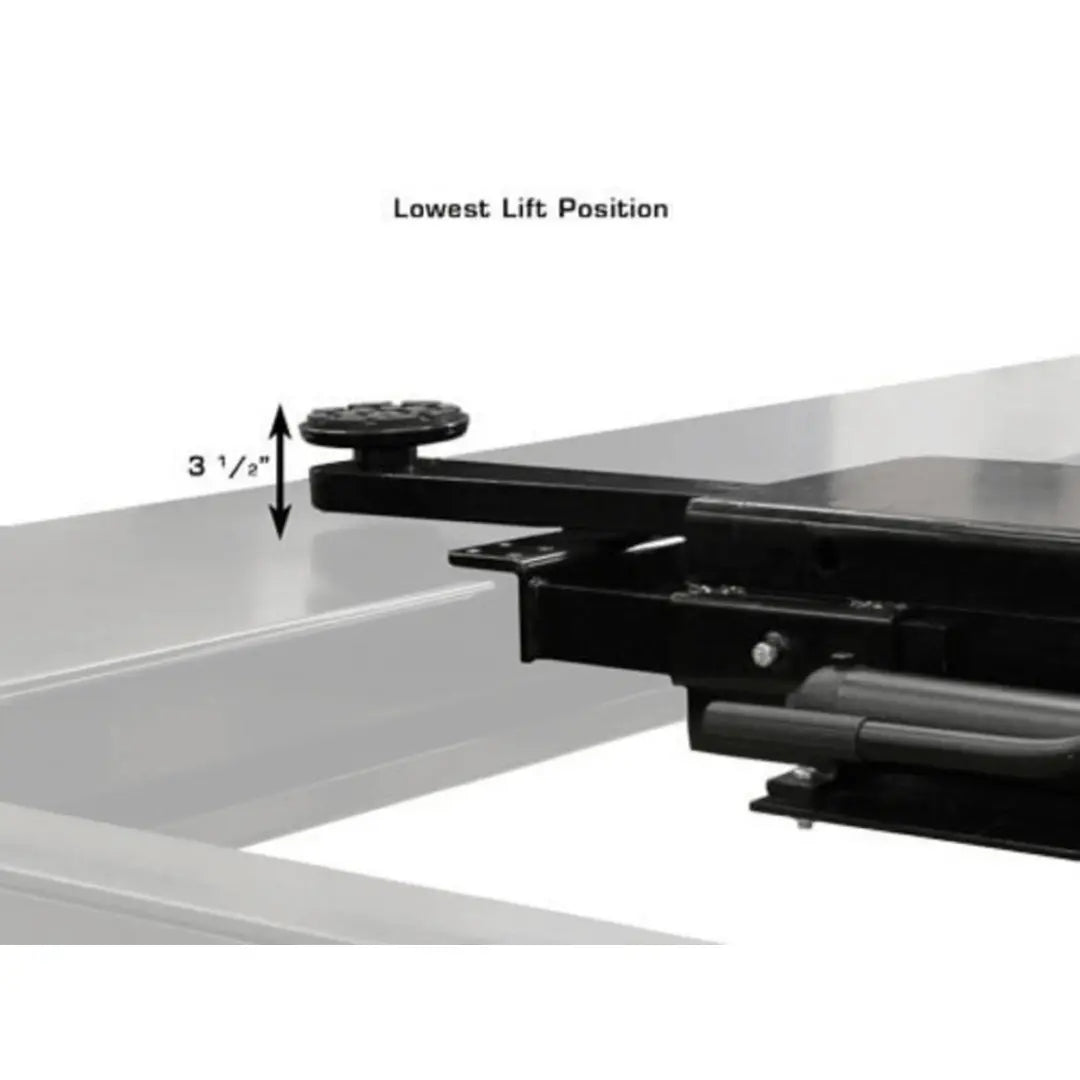

| Minimum Height with Lift Pad Above Runway | 3 1/2" (MAY VARY BY LIFT) |
| Lift Pad Height Above Arm | 1 3/8" |
| Max Raised height w/o Adapters | 11" |

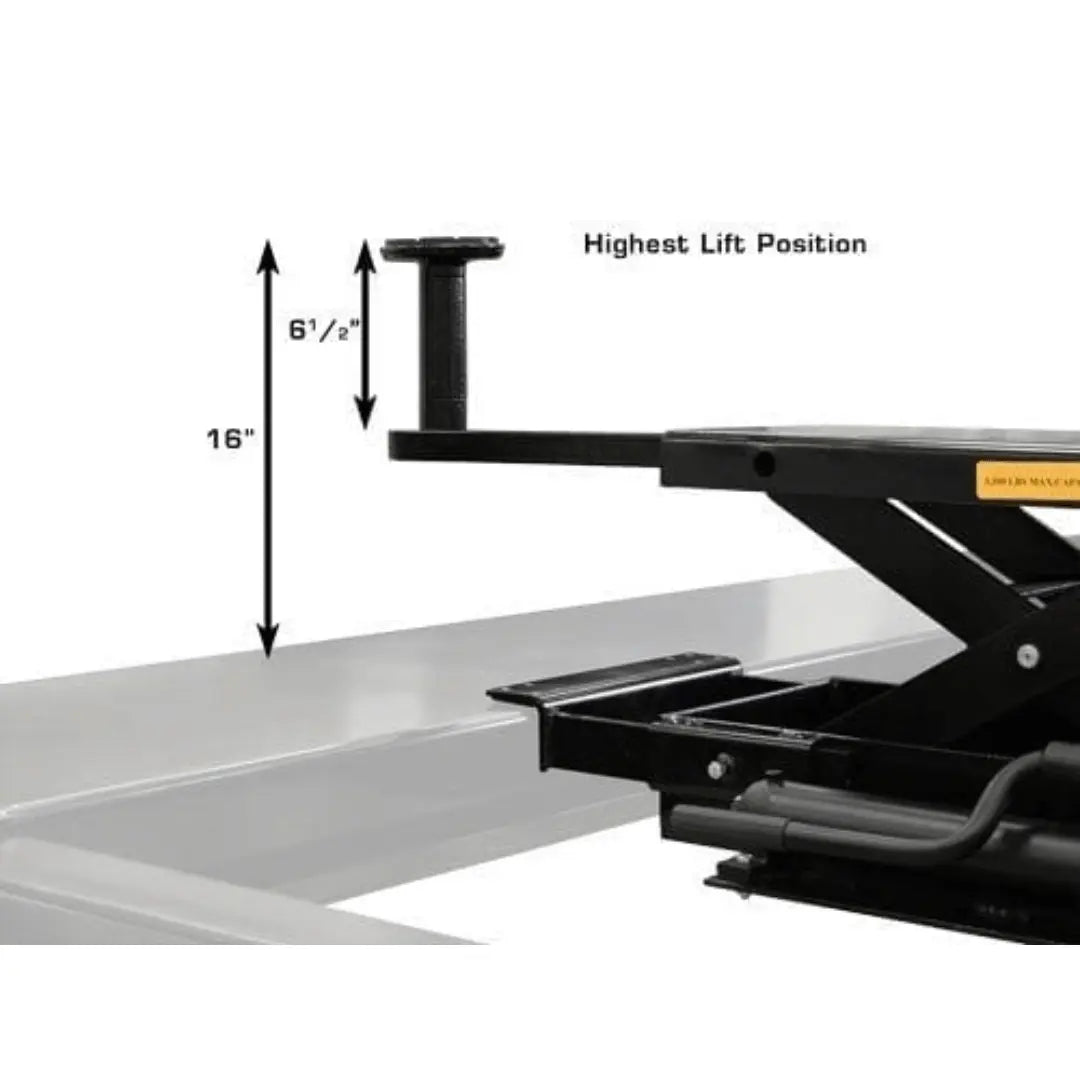

| Max Raised height w/ Adapters | 17 1/4" |
| Adapter Heights | 2 each 1.5", 5" |
| Arm Hole/Adapter Peg Size | 1.5" |

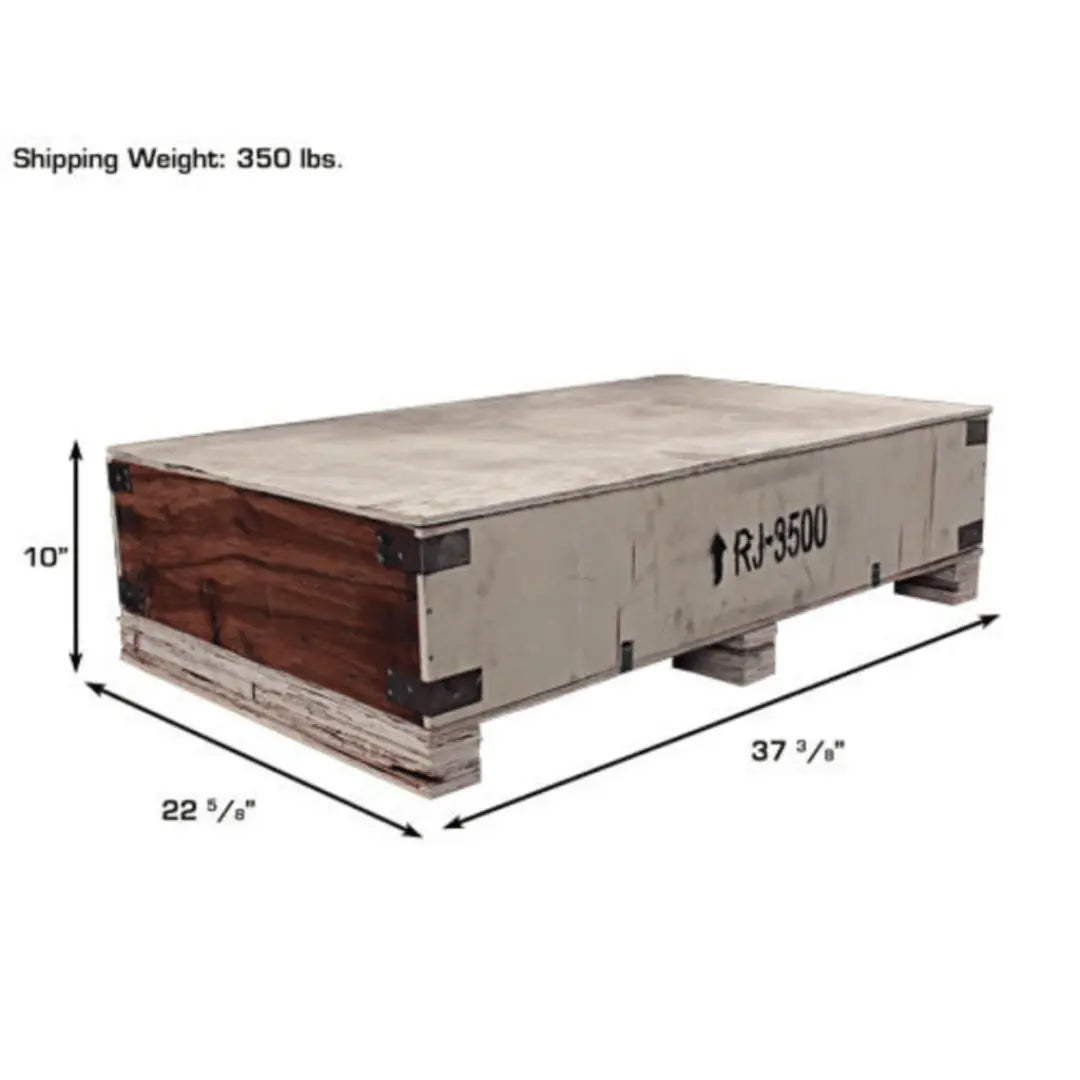

| Shipping Weight | 350 lbs |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
