Amgo PRO-40 40,000 lb 4 Post Lift
- Free Shipping
- Certified Car Lifts
- 30-Day Hassle-Free Returns
- In stock, ready to ship
Amgo PRO-40 40,000 lb 4 Post Lift

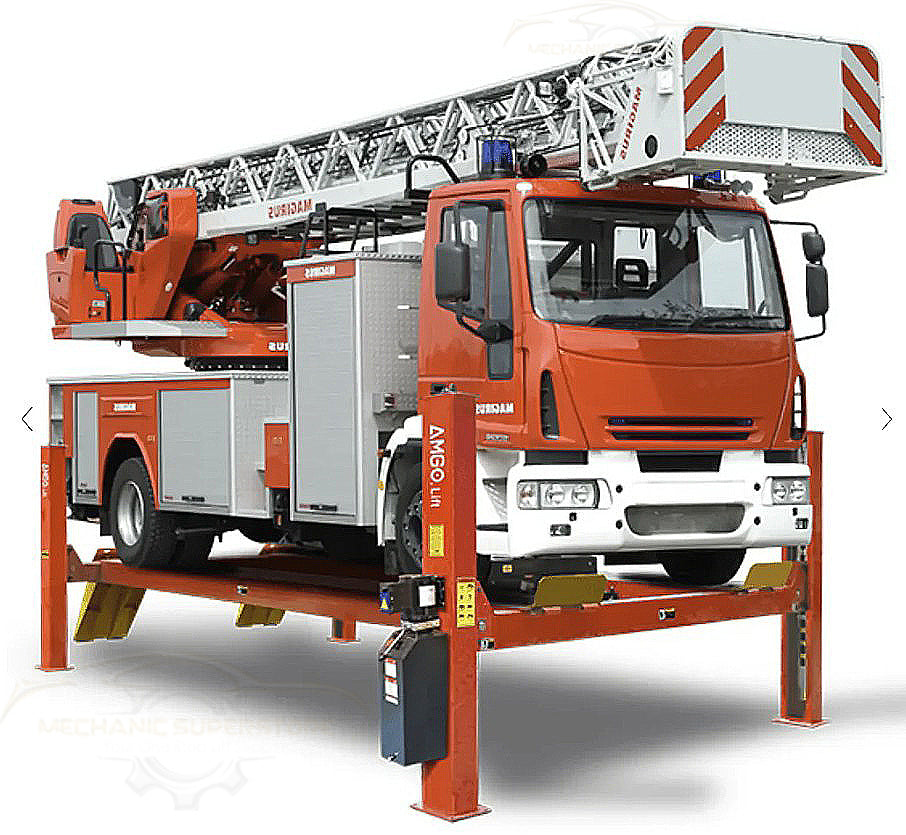

4 Post Lift - The AMGO PRO-40 40,000 lb chain-driven 4 post car lift is built for the most demanding commercial environments—tank trucks, buses, fire apparatus, and extra-large fleet vehicles alike. This 4 post vehicle lift delivers unmatched strength with its massive capacity and aircraft-grade cable-driven system, ensuring safe and stable performance under extreme loads.
Featuring mechanical self-locking safety devices with air-released lock, dual primary safety locks, and a cable-slack protection system, this 4 post auto lift prioritizes operator safety and reliability. Its non-skid diamond plate runways and rugged hydraulic cylinder with precision-engineered seals ensure smooth, consistent operation even under full load.
Designed for versatility and accessibility, the PRO-40 offers a generous 129 ⅞″ drive-through clearance, adjustable runway widths, and extended platform lengths—allowing easy access below wide or dual-rear vehicles. Its ETL-certified power unit and 2.0 HP, single-phase motor deliver consistent performance with minimal maintenance.
Whether you're running a heavy-duty truck shop, city fleet garage, or industrial maintenance facility, the AMGO PRO-40 offers rock-solid performance, safety, and durability at the highest level.

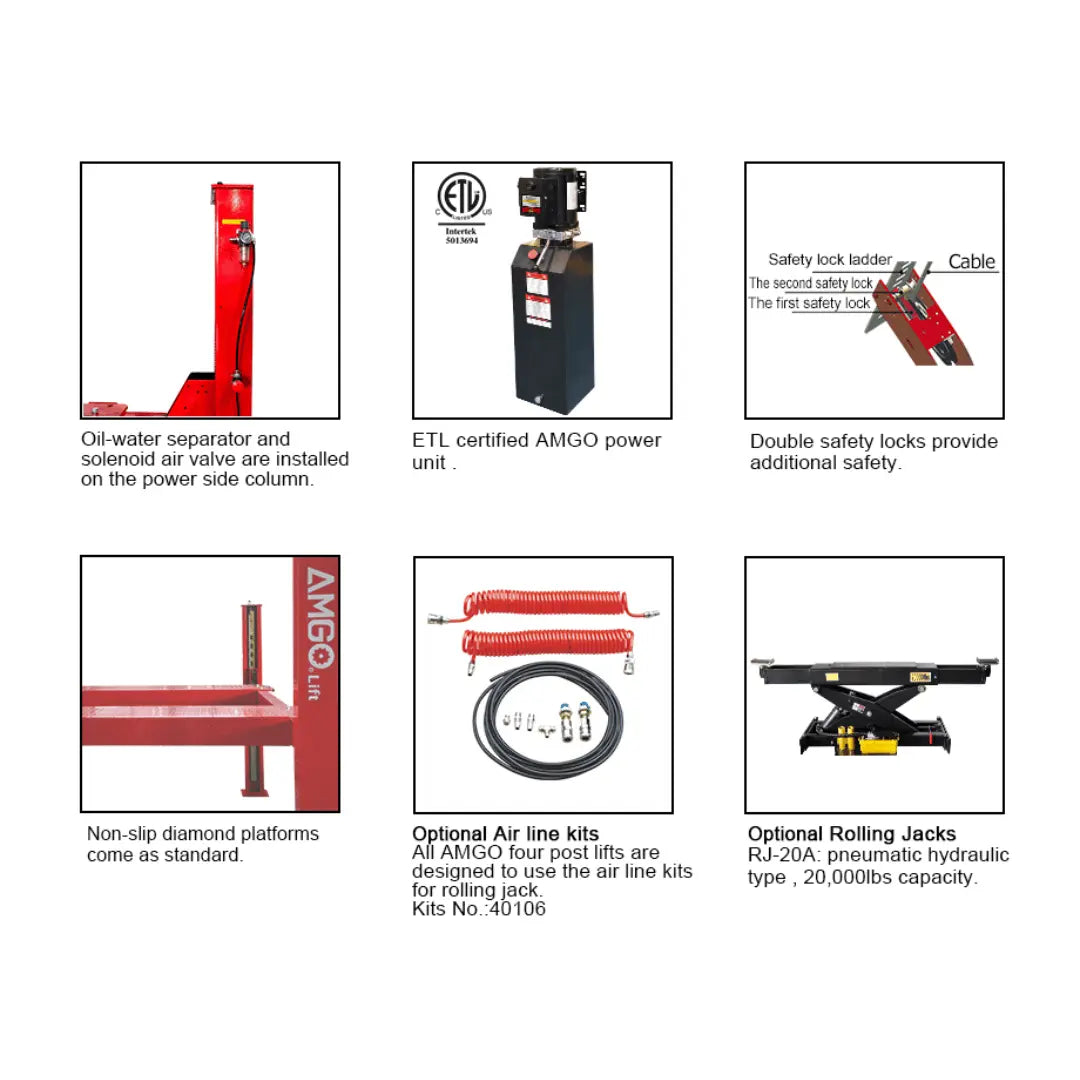

Product Features
- 40,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.

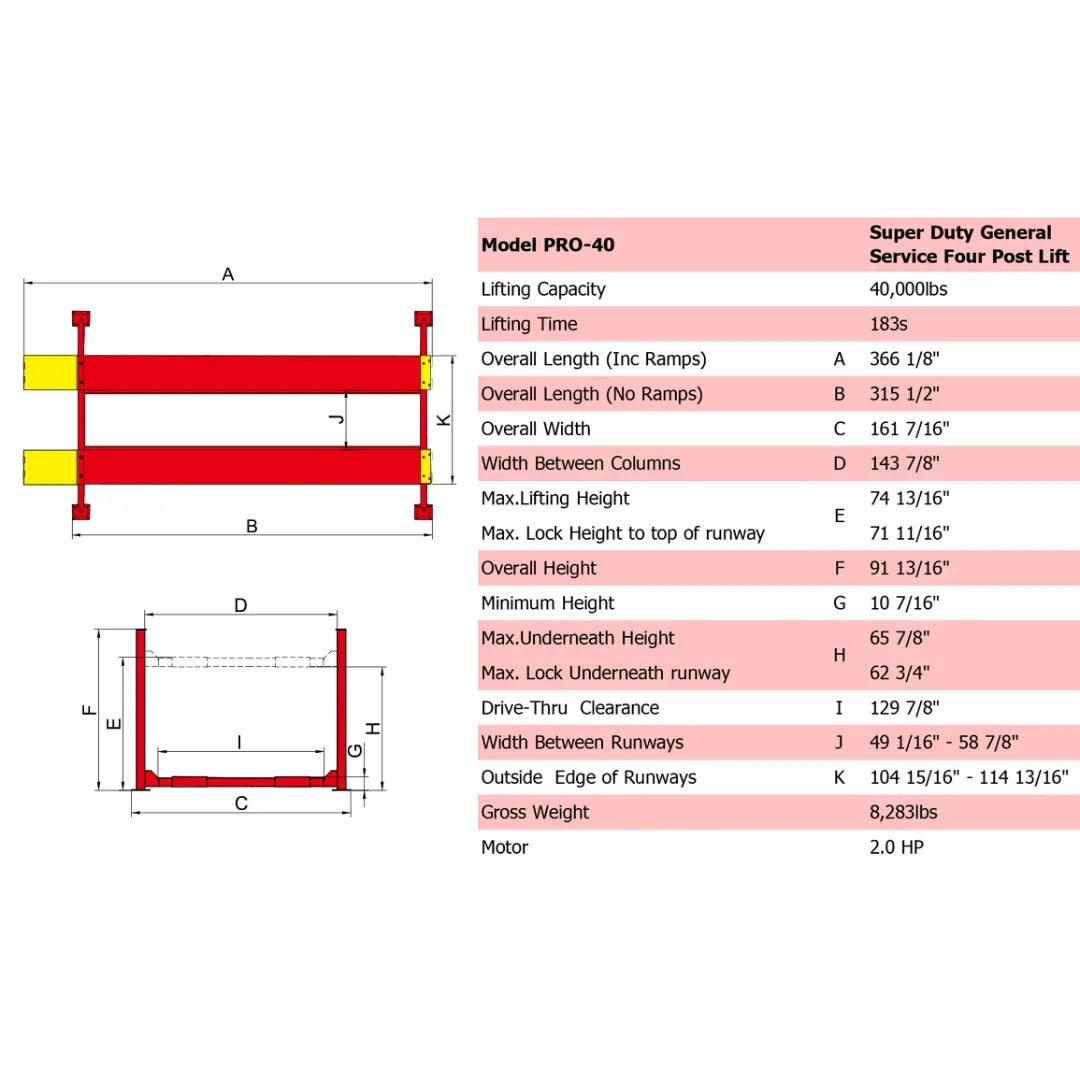

Product Specifications
| Model | PRO-40 |
|---|---|
| Lifting Capacity | 40,000 lbs |
| Lifting Time | 183S |
| A: Overall Length (Inc.Ramps) | 366 1/8″ |
| B: Overall Length (No.Ramps) | 315 1/2″ |
| C: Overall Width | 161 7/16″ |
| D: Width Between Columns | 143 7/8″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 129 7/8″ |
| J: Width Between Runways | 49 1/16″ - 58 7/8″ |
| K: Outside Edge of Runways | 104 15/16″ - 114 13/16″ |
| Gross Weight | 8,283 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
