Atlas PRO-9D 9,000 lb 2-Post Overhead Lift

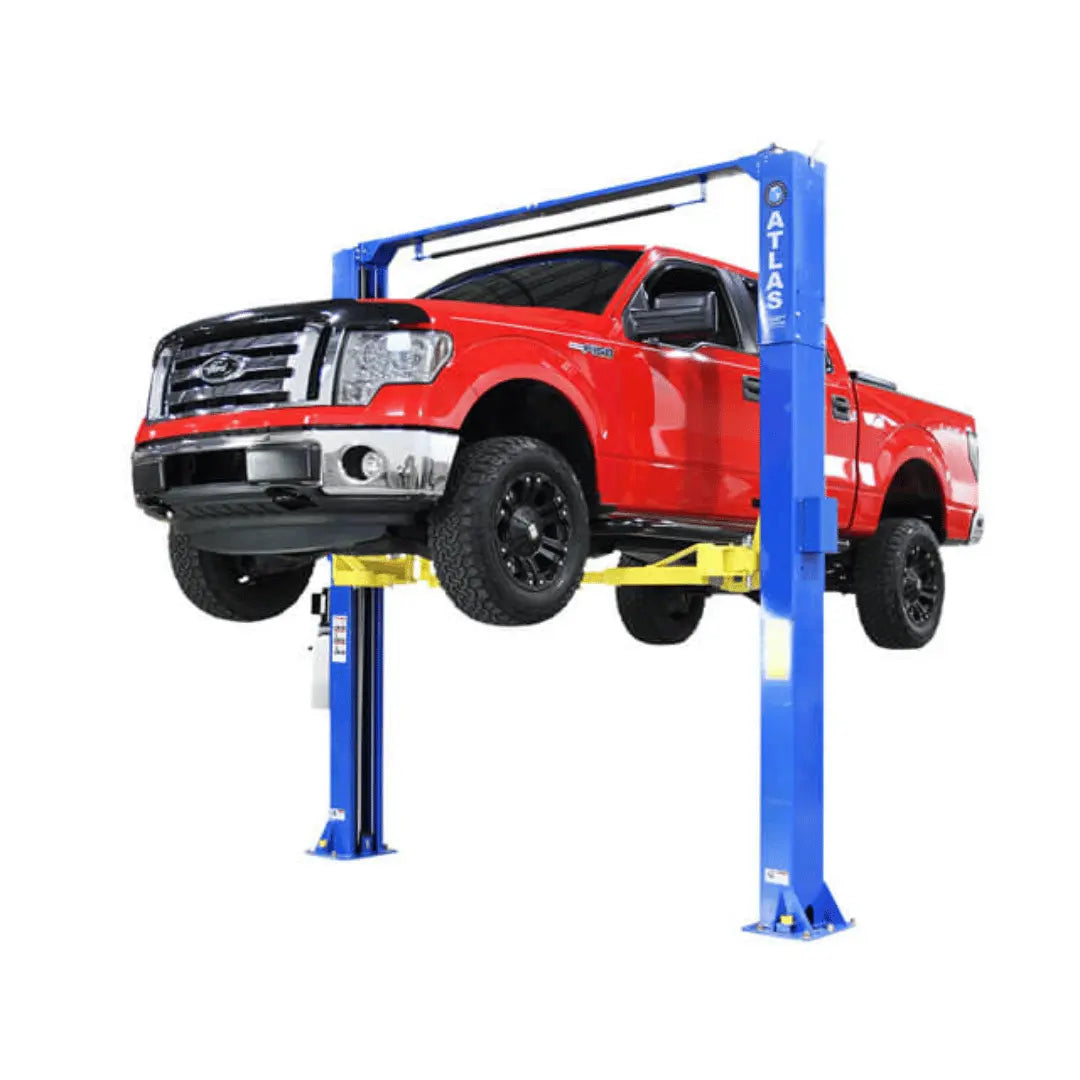

The Atlas® PRO-9D two post above ground overhead lift is the perfect choice for those smaller commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The 12 foot tall Atlas® PRO-9D is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.

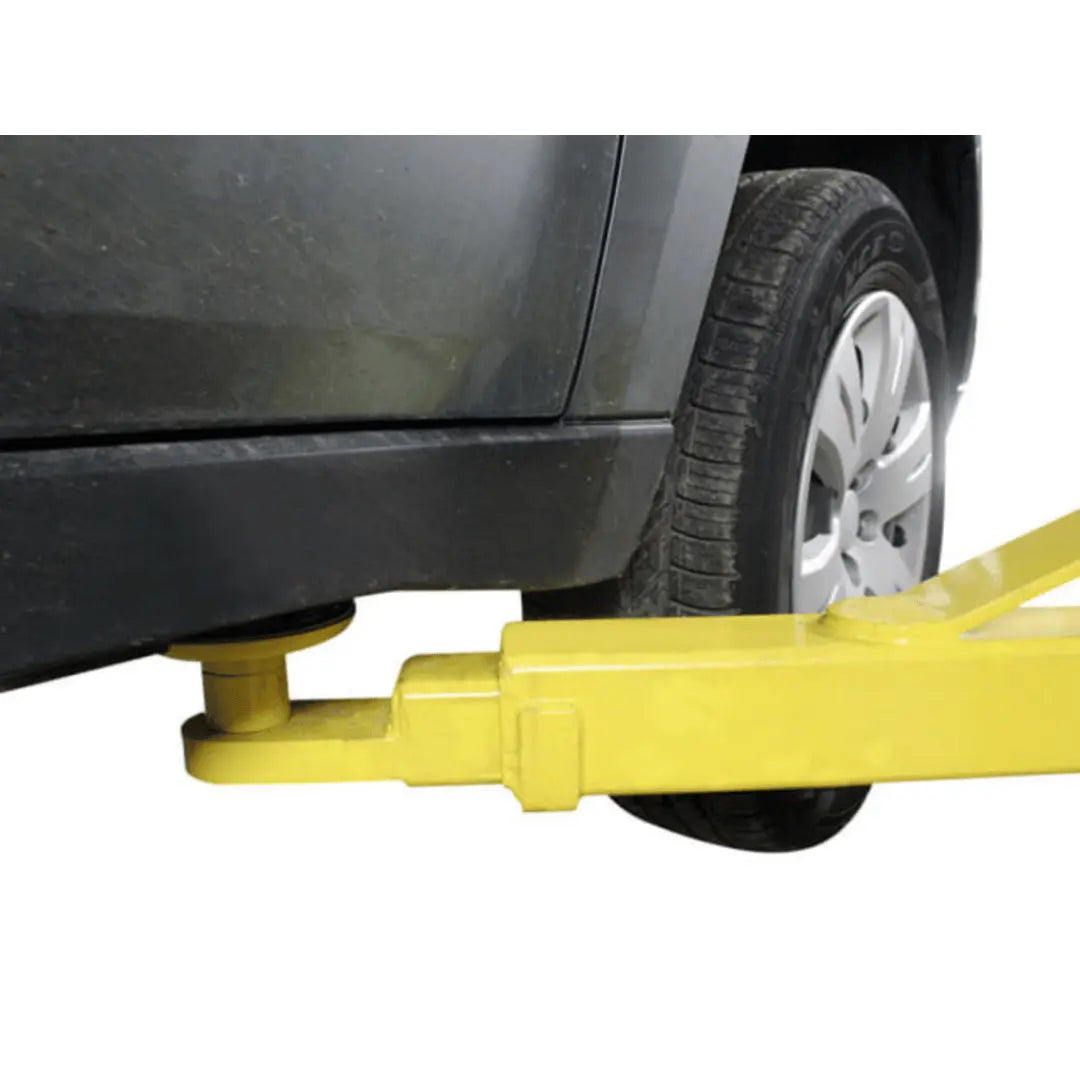

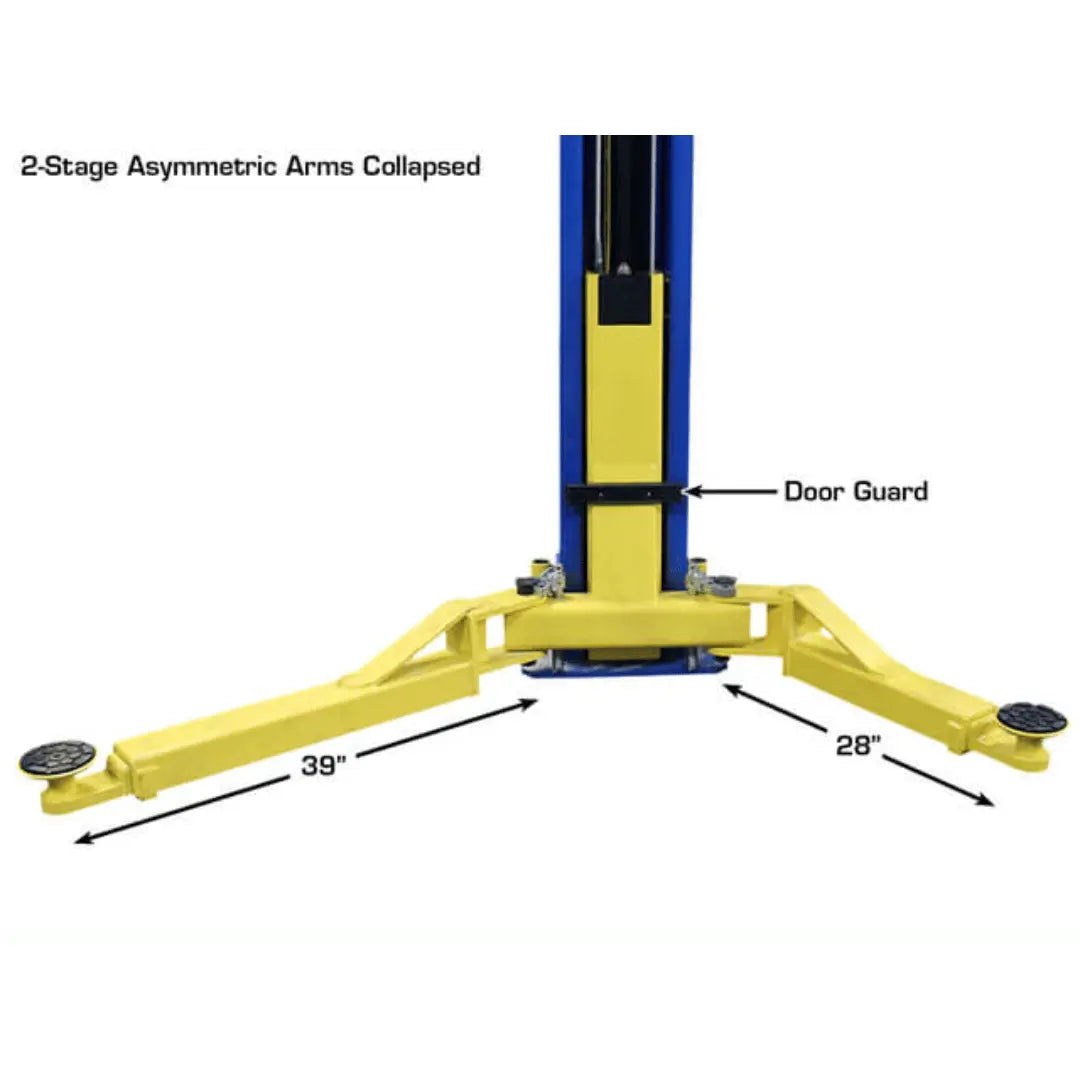

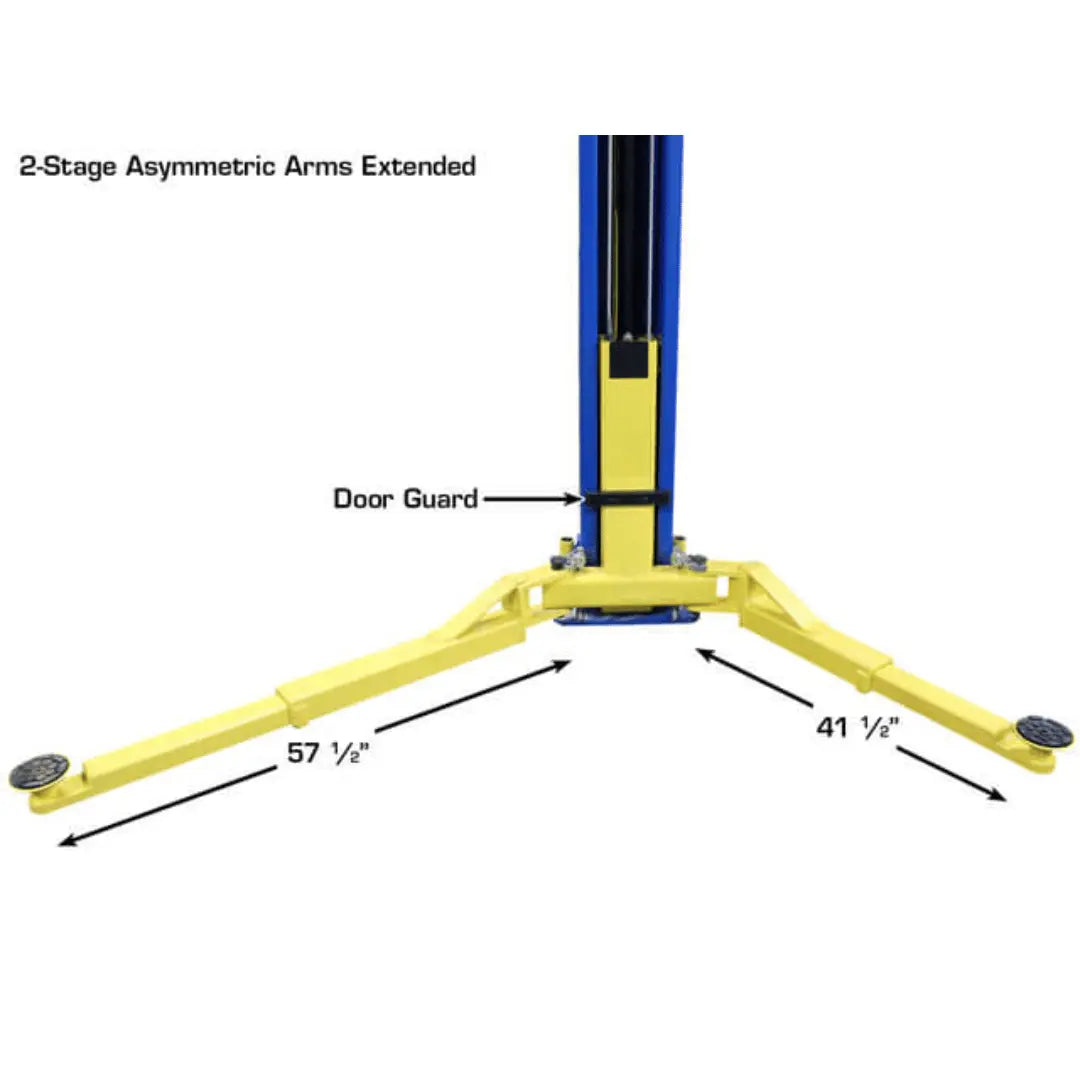

The Atlas® PRO-9D has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

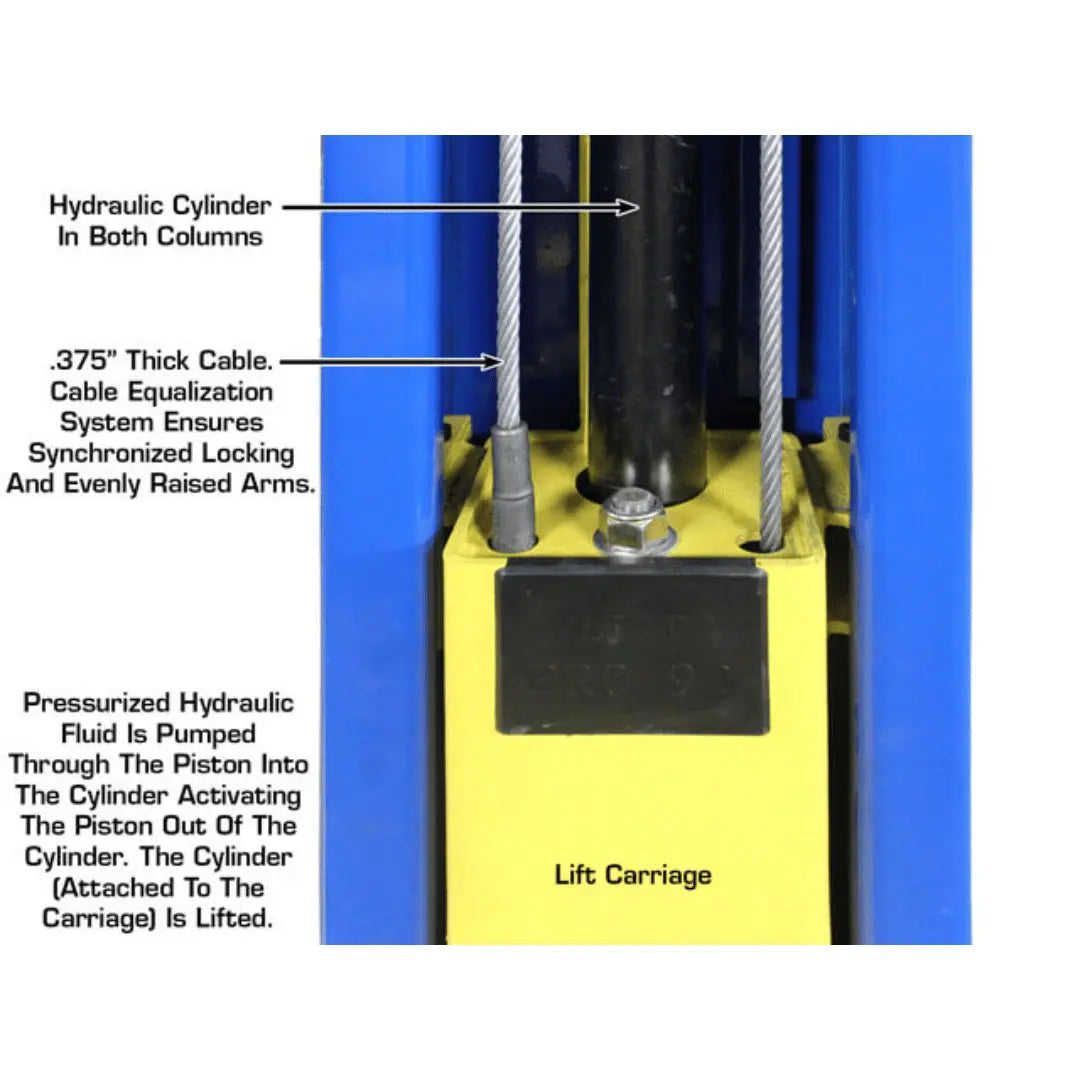

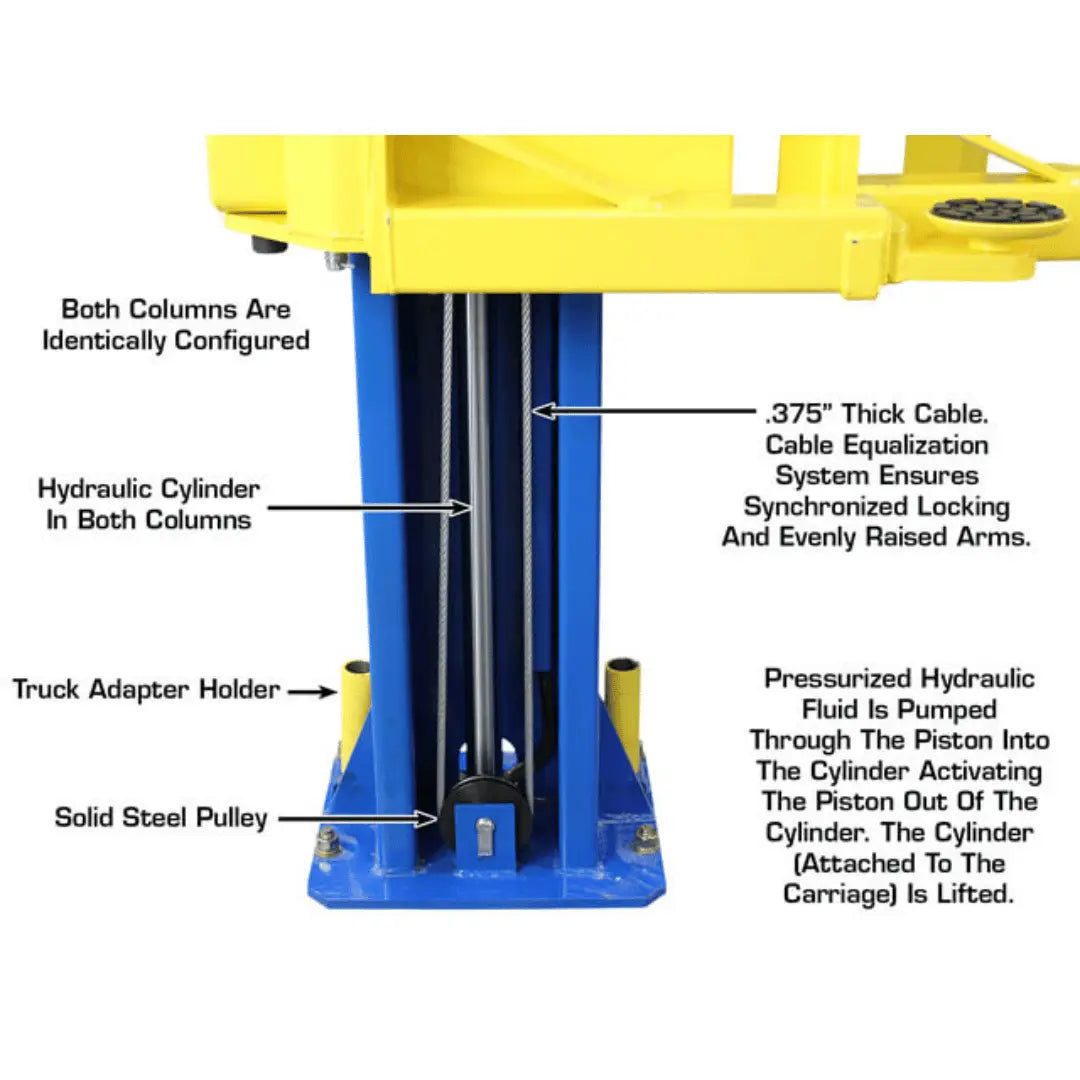

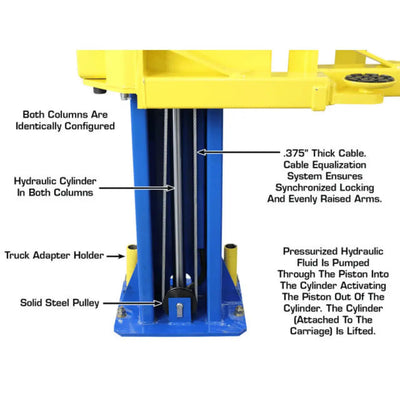

The PRO-9D has dual direct drive cylinder, this direct drive system, with fewer moving parts, ensures years of excellent lifting service from your Atlas above ground hoist.
Product Features
- 9,000 lb. Capacity
- Overhead, Open-Floor design

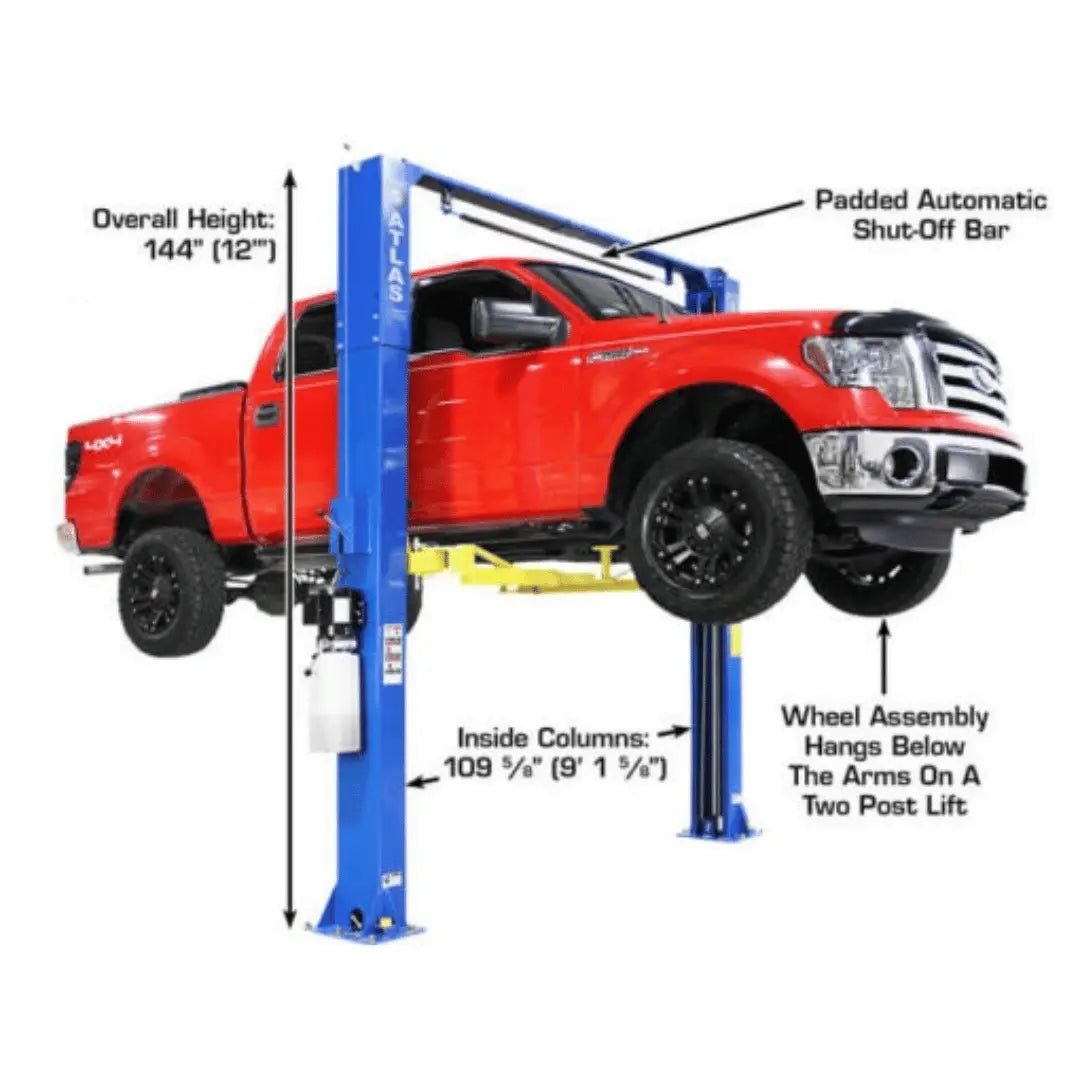

- Overall Height: 144″ (12′)
- Asymmetric/Symmetric Arms

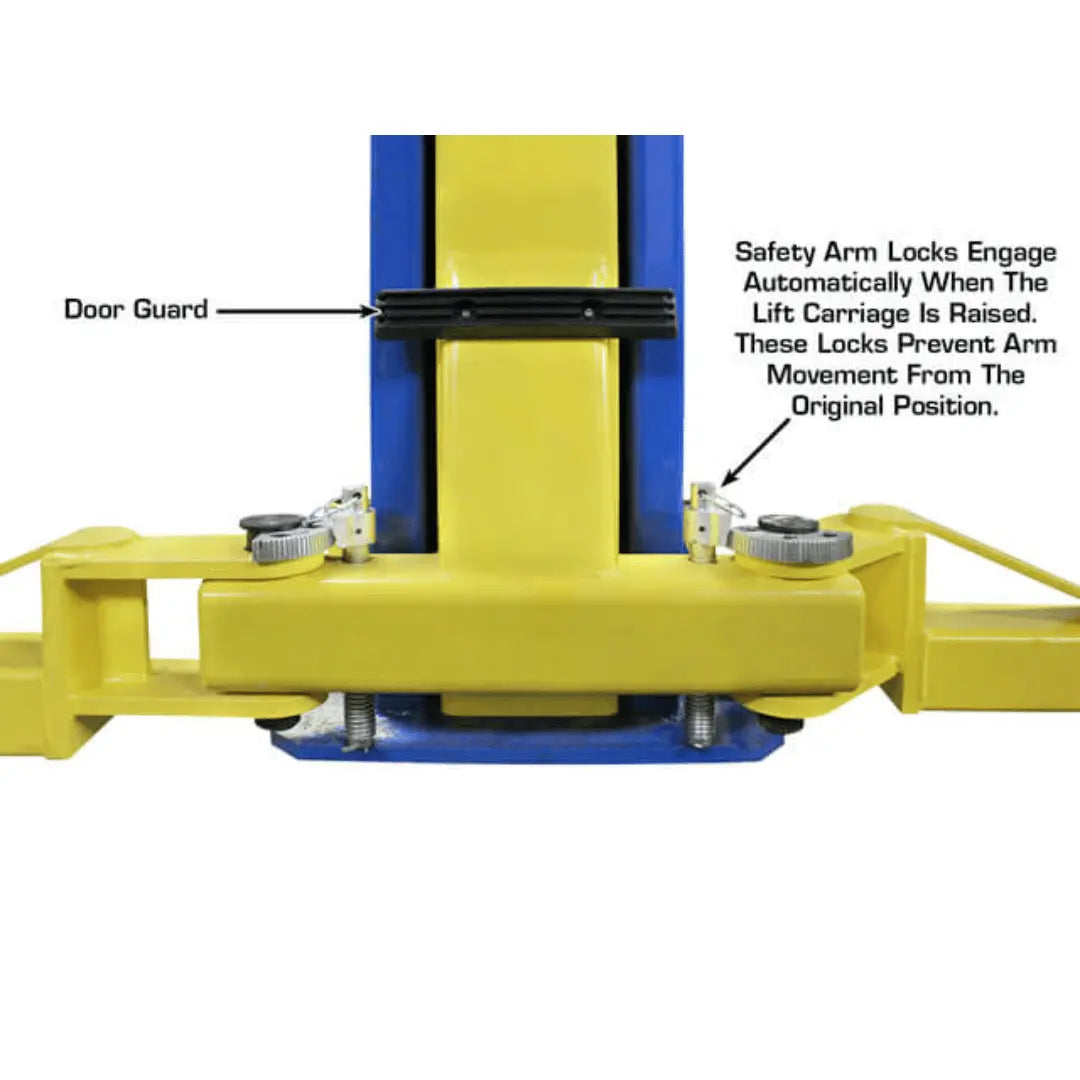

- Automatic Arm Restraints

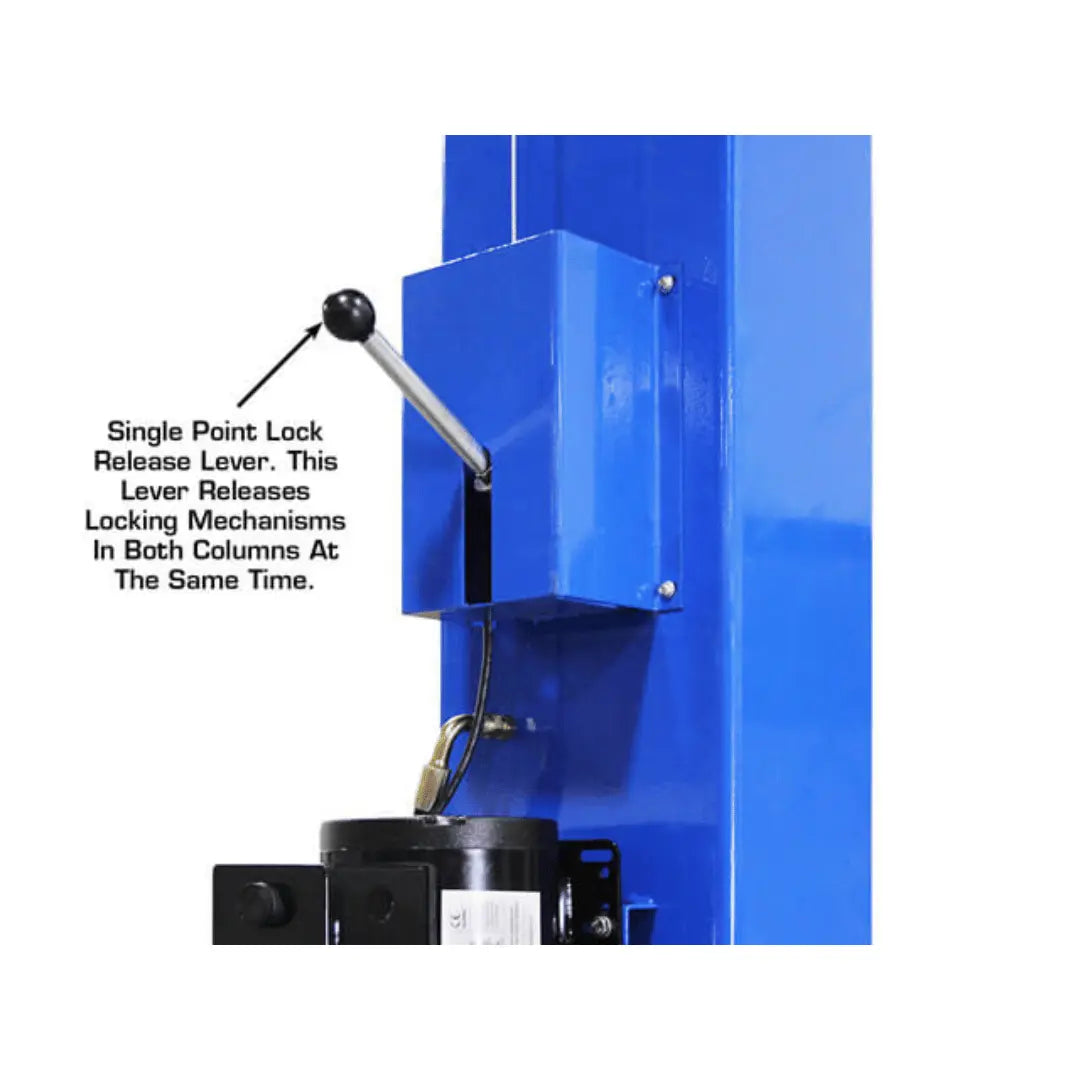

- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Direct-Drive Cylinders
- Powder Coat Finish

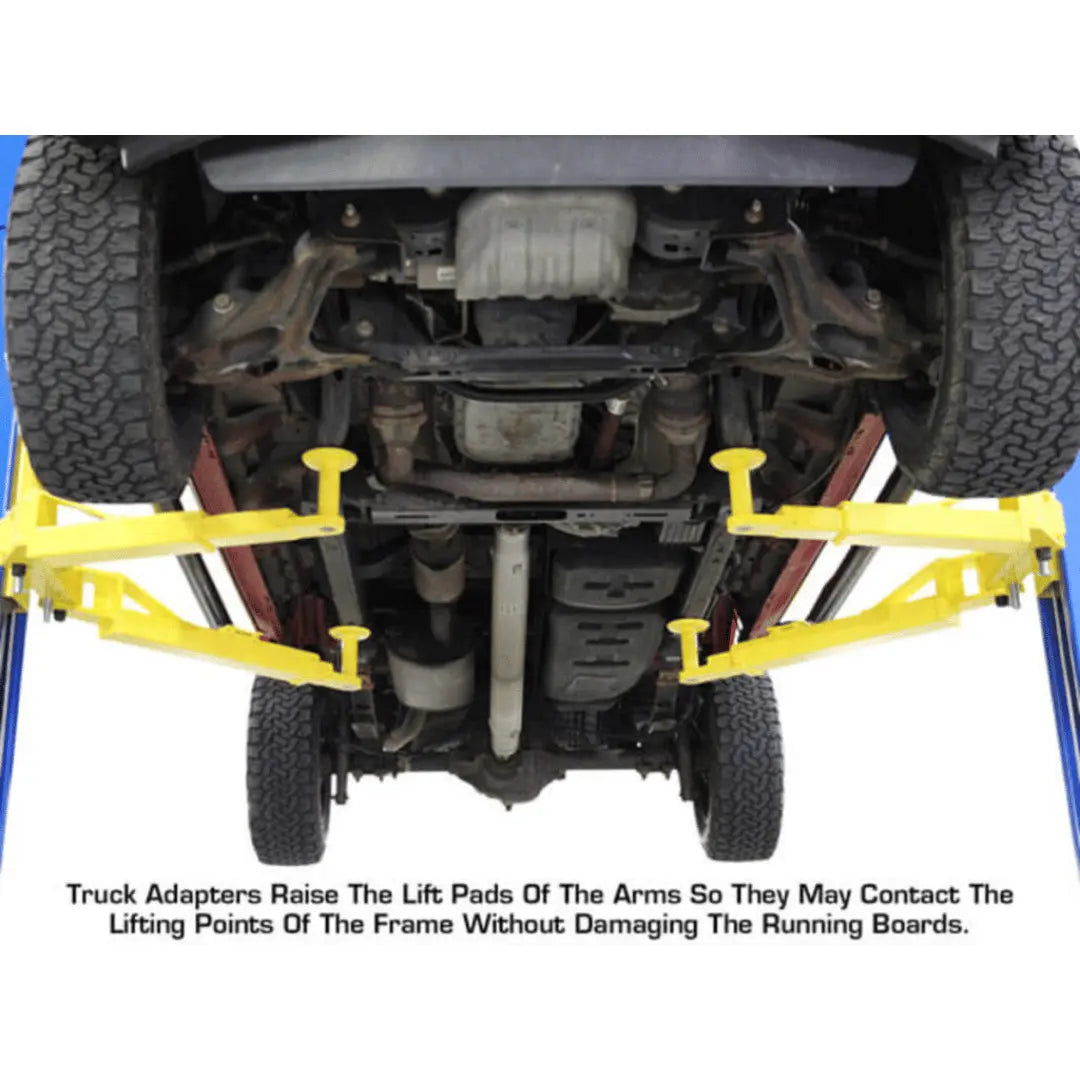

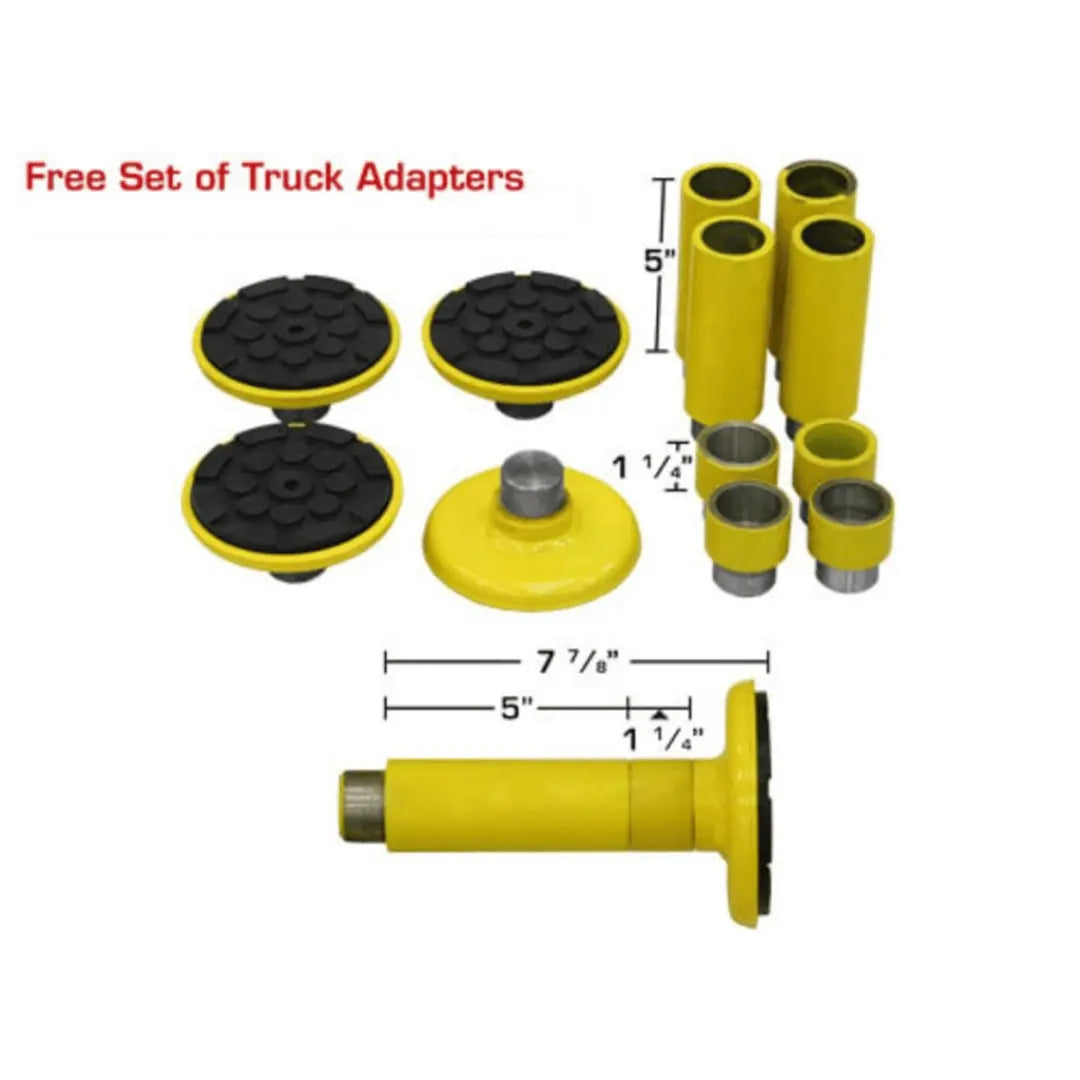

- Free 8 Piece Truck Adapter Set

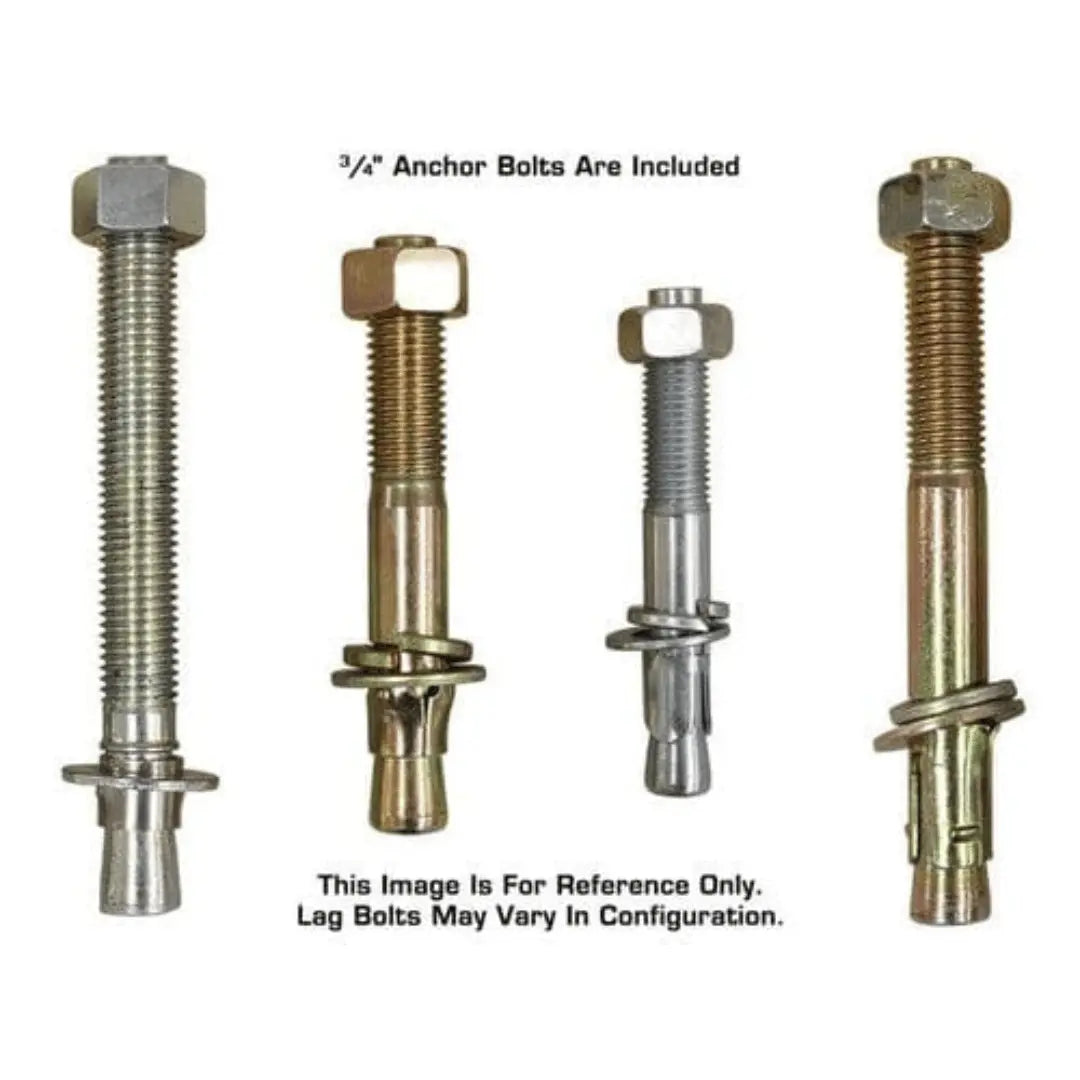

- Mounting Hardware Included

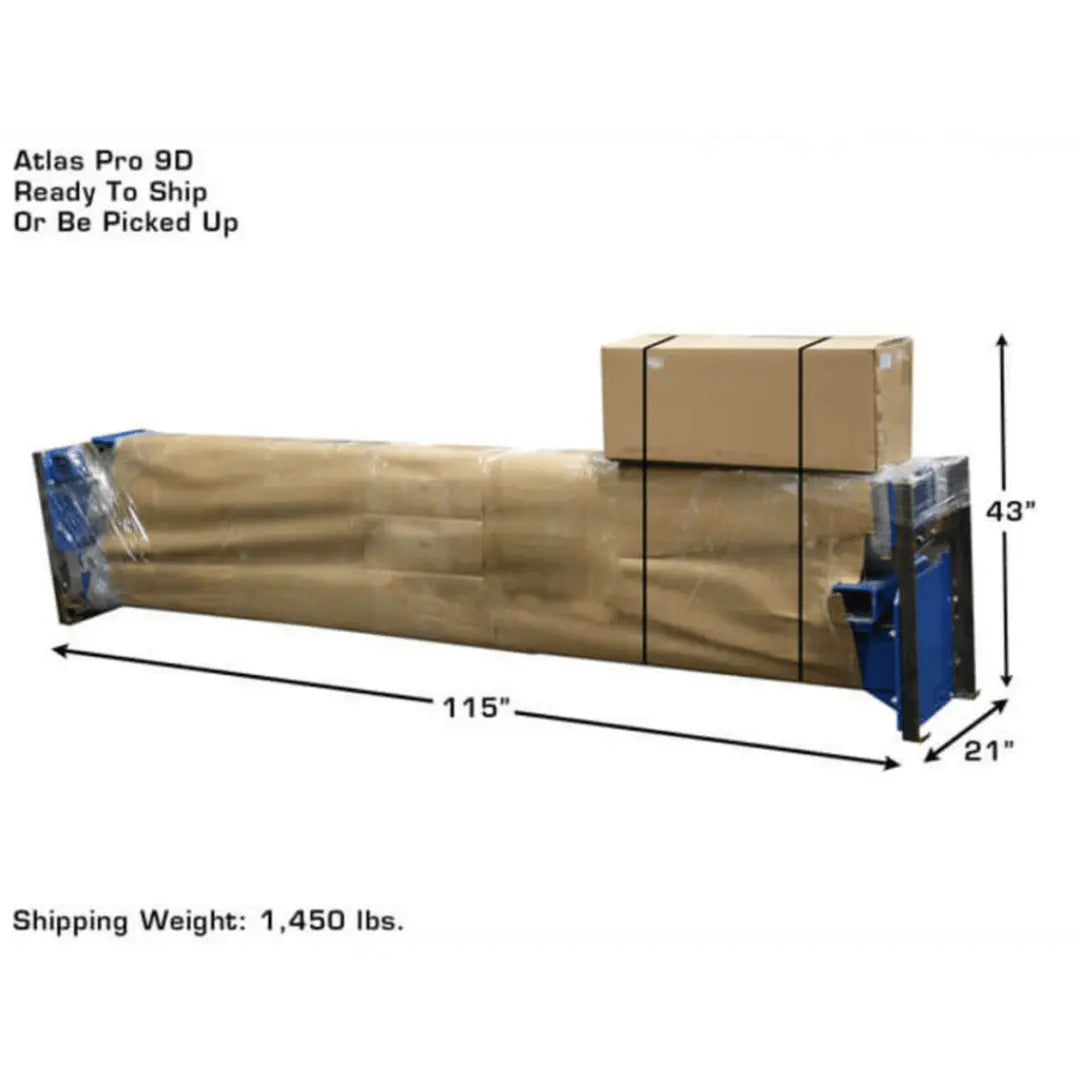

- Shipping Weight: 1,450 lbs.
- 5-year Structural Warranty, 2-year Hydraulic-Power Warranty
Product Specifications
| Model | PRO-9D |
| Capacity | 9,000 lbs. |

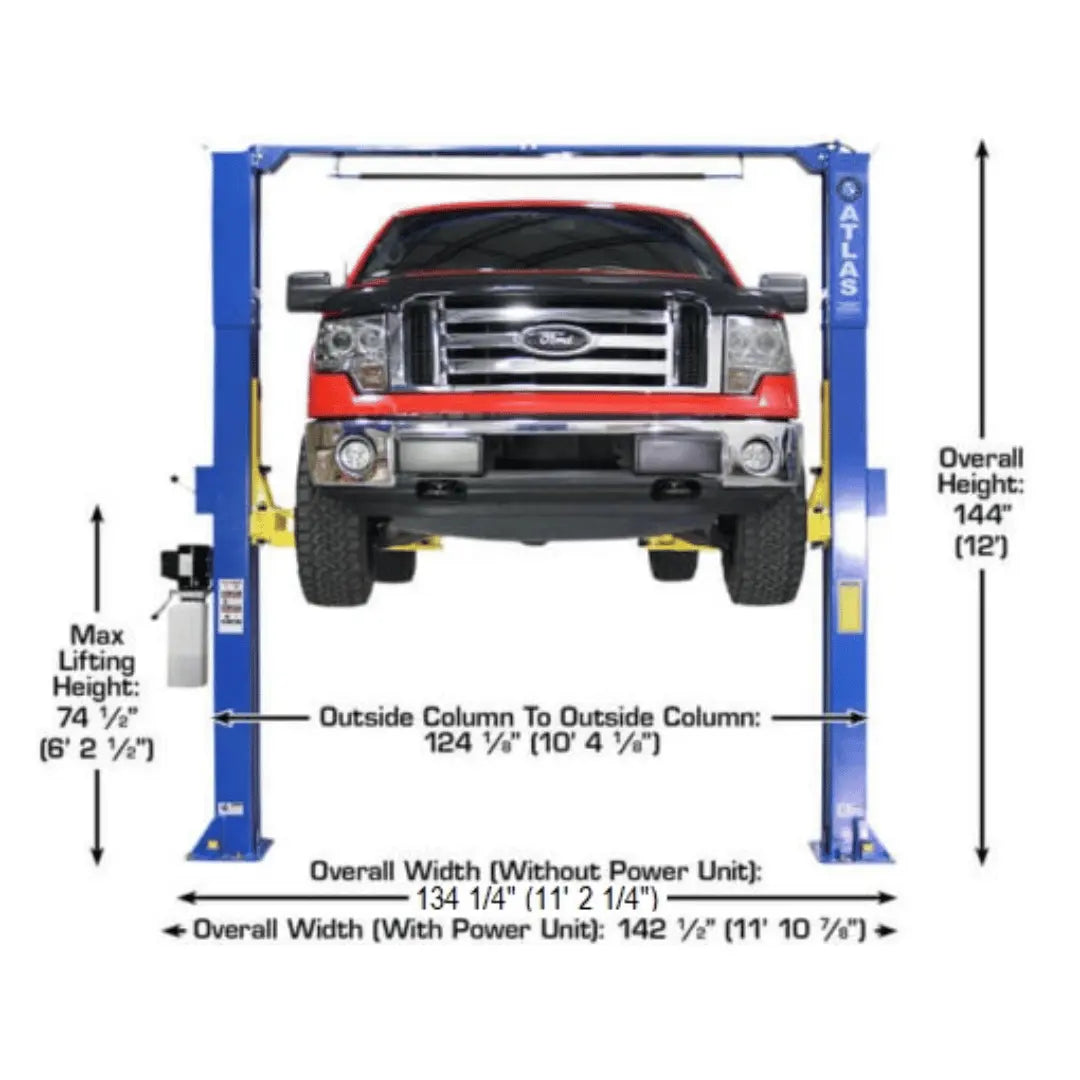

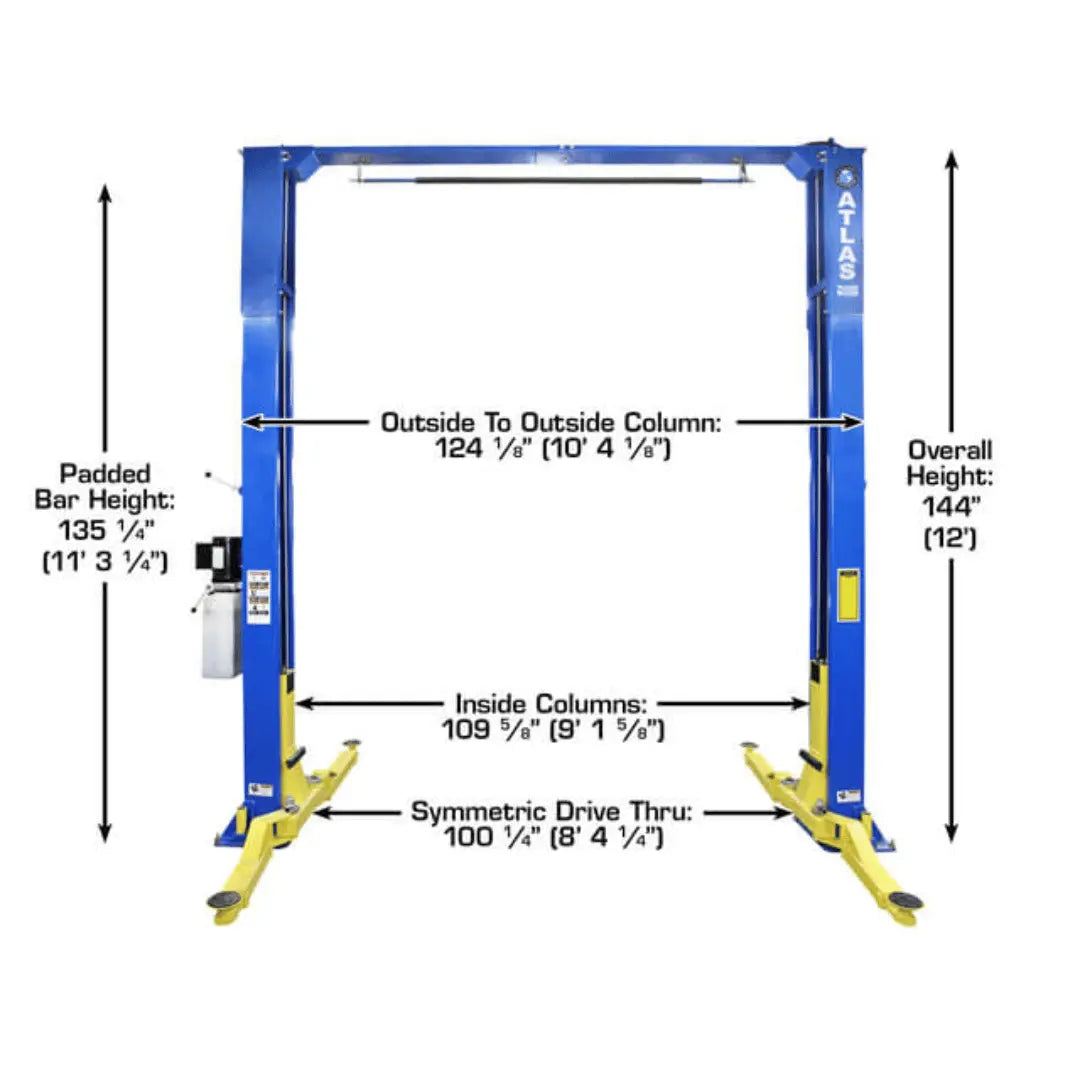

| Overall Height | 144" (12’) |
| Overall Floor Width | 134 1/2" (11’ 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10’ 4 7/8") |
| Maximum Lift Height (Without Adapters) | 68" |

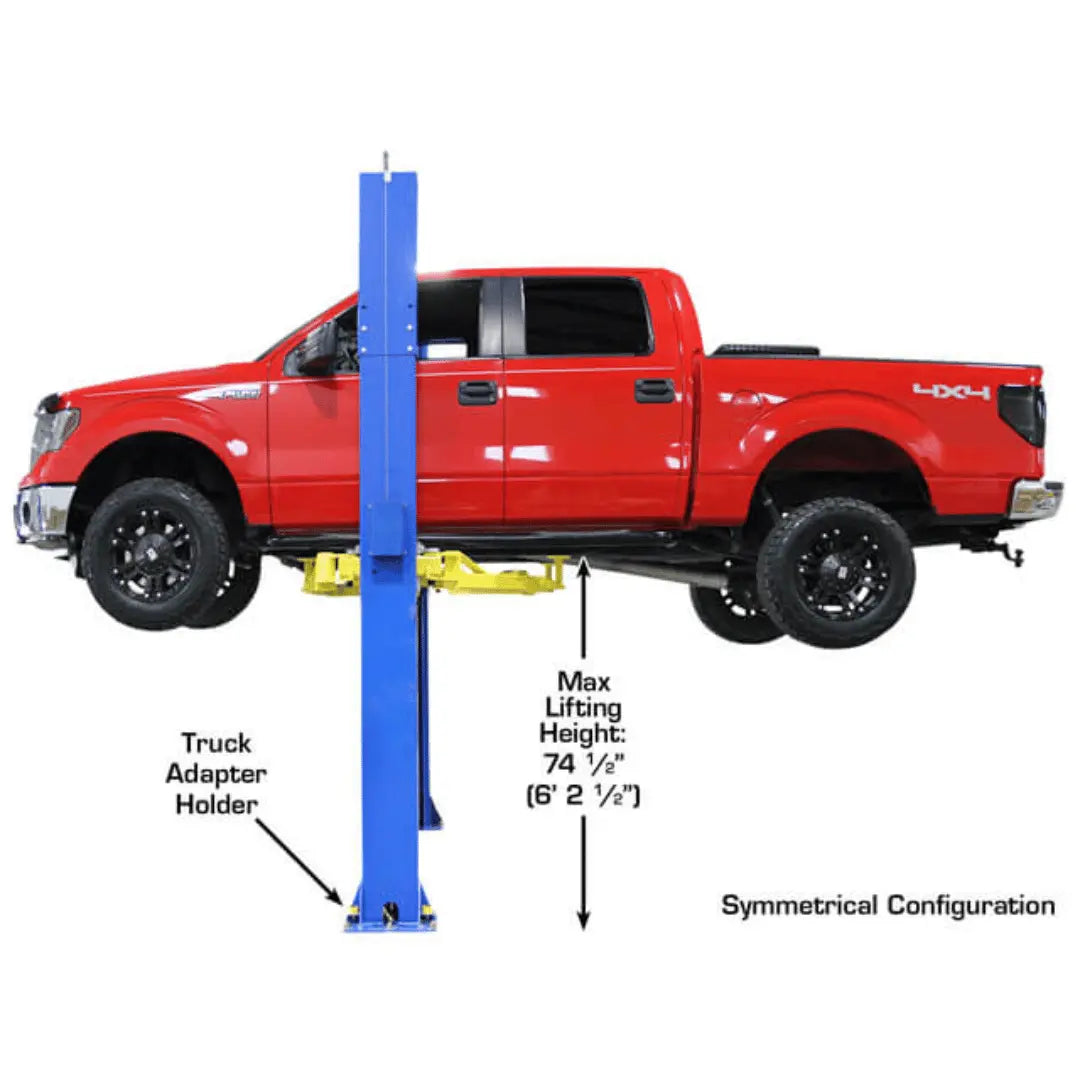

| Maximum Lift Height (With Adapters) | 74 1/4" |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 110” (9’ 2”) |

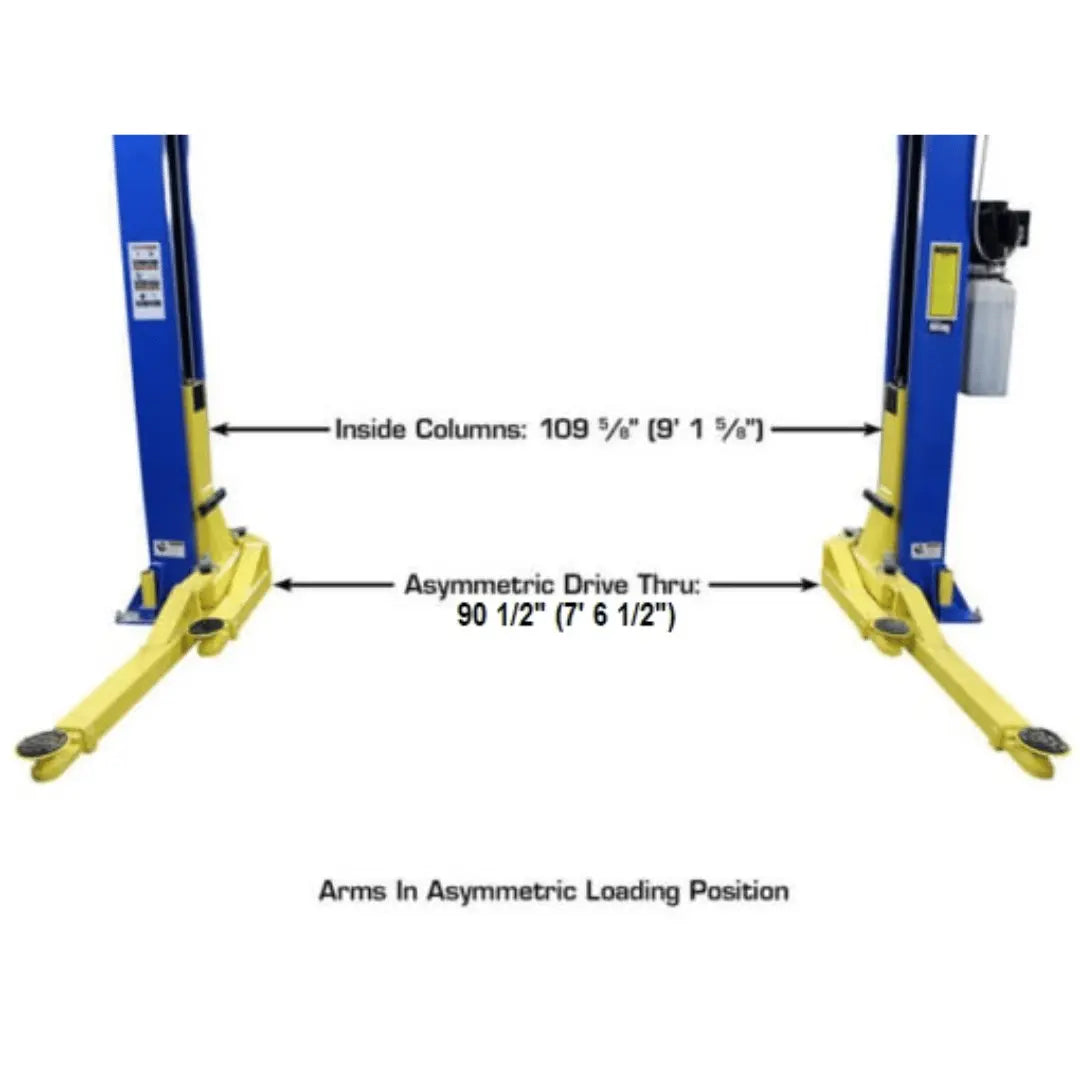

| Drive Thru | 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric |

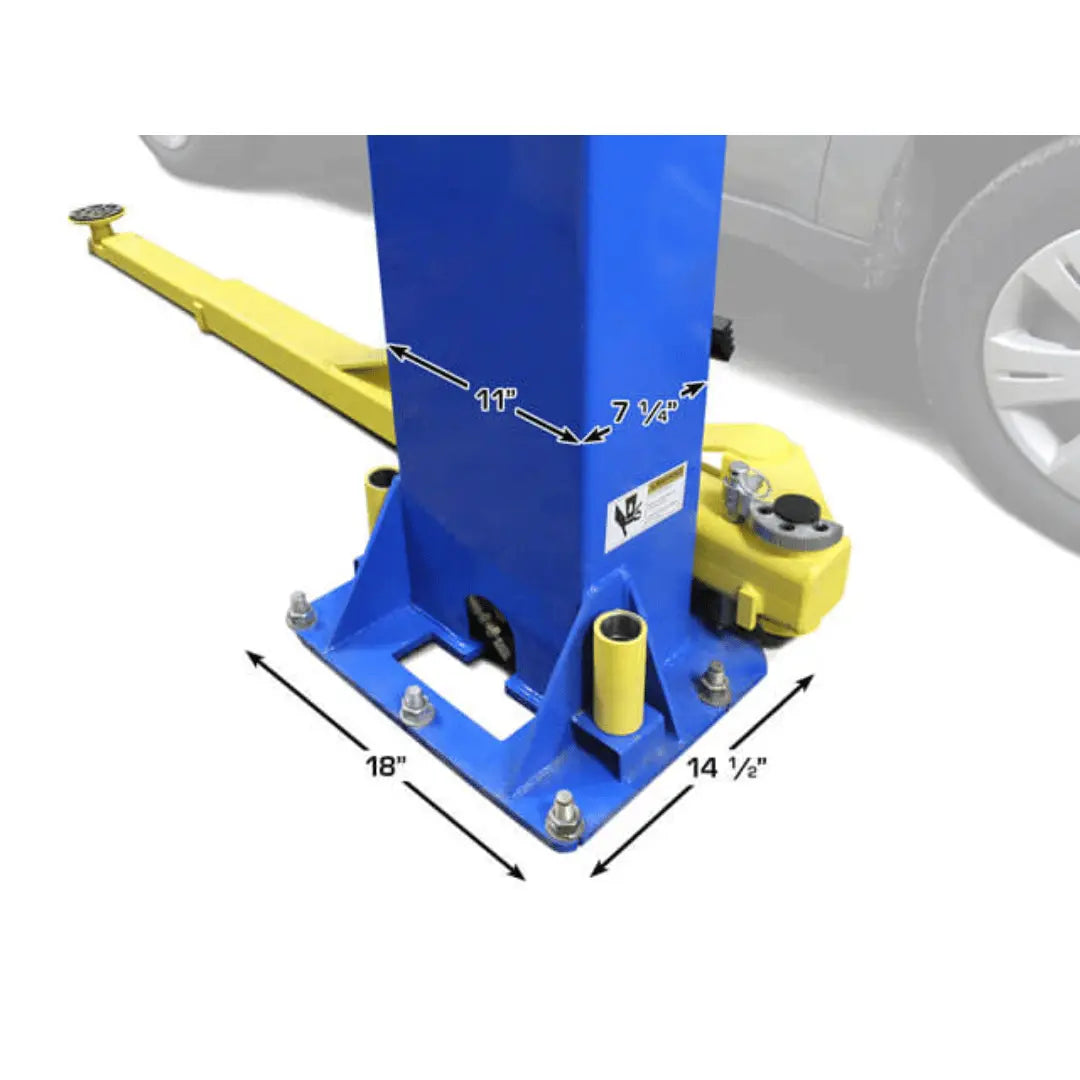

| Column Size | 7 1/4" x 11" |
| Column Thickness of Steel | 5mm |
| Base Of Lift | 14 1/4" x 18" |

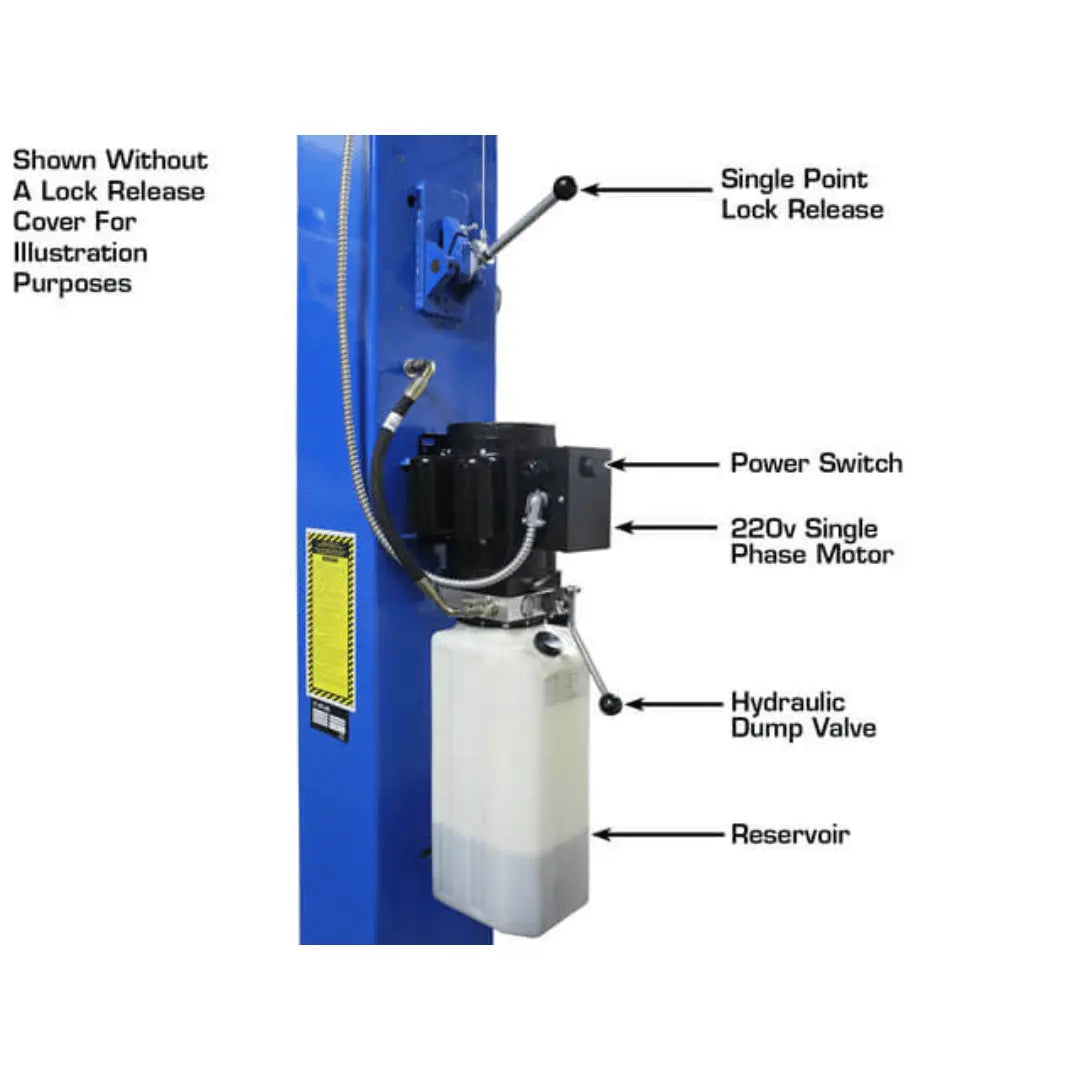

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |

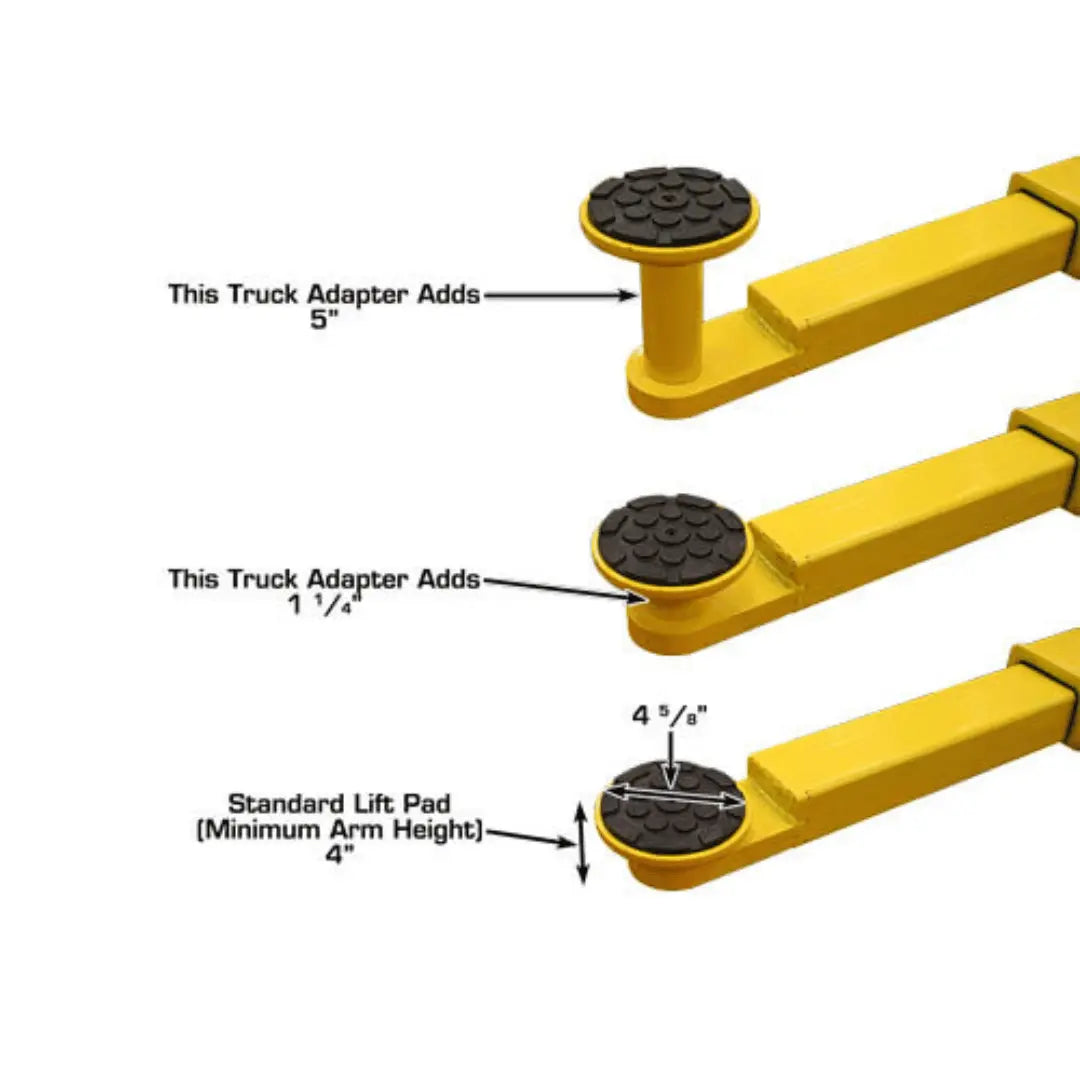

| Adapter Heights | 4 Each 1.5”, 5” |
| Arm Hole/Adapter Peg Size | 1.5” |
| Requires a minimum of | 4" of concrete with a 3000 psi. rating |
| Shipping Weight | 1,450 lbs. |
