Challenger Lifts SA10 10000 lbs Asymmetric 2 Post Car Lift
- Free Shipping
- Certified Car Lifts
- 30-Day Hassle-Free Returns
- In stock, ready to ship

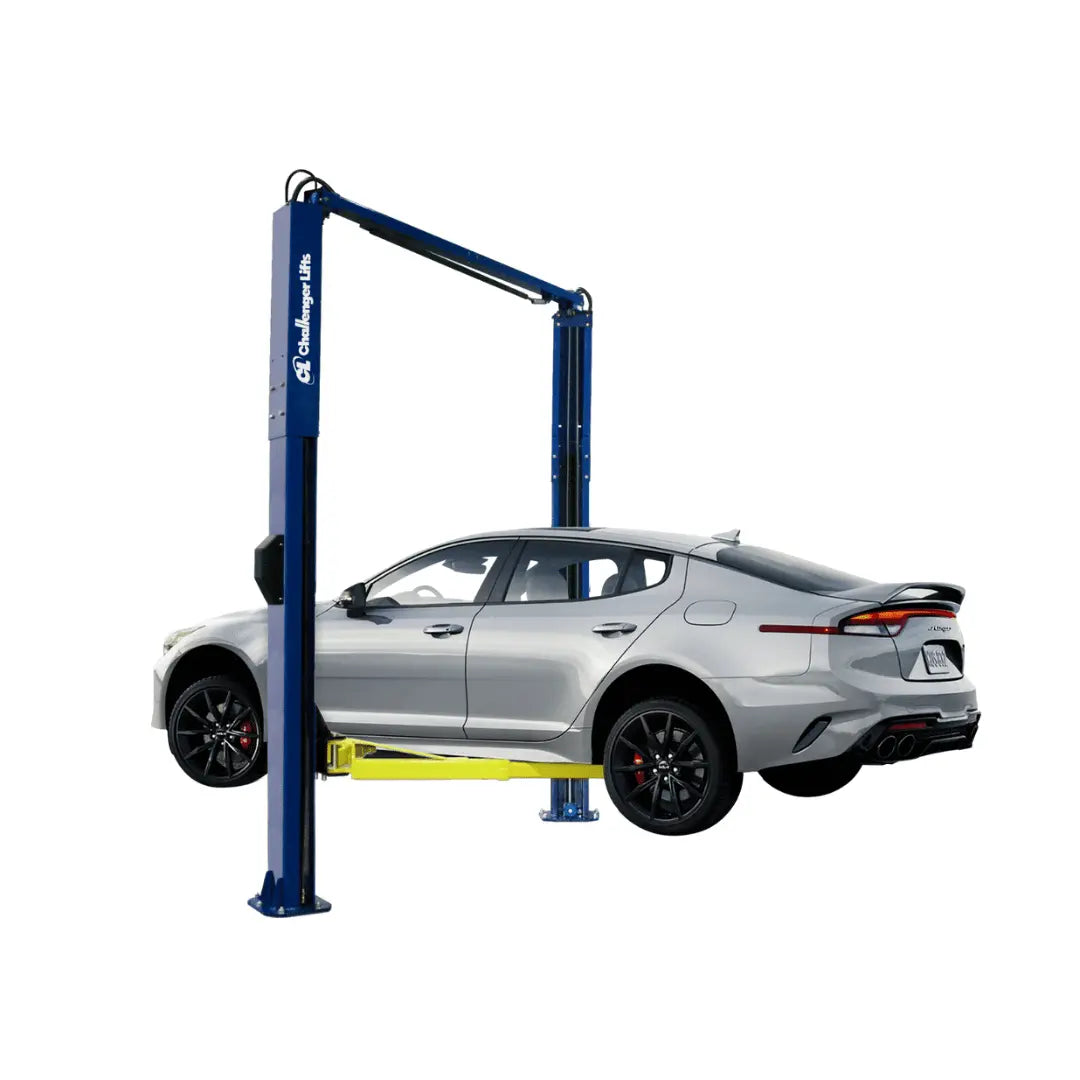

Challenger Lifts SA10 10000 lbs Asymmetric 2 Post Car Lift
If you are researching to purchase a car lift, Challenger’s SA10 2-post car lift offers 10,000 lb. capacity. You can install the SA10 in either symmetric or asymmetric position, depending on your service needs. The SA10 also features adjustable height and width options to further customize it to meet your needs. Innovative 3-stage front and 2-stage rear arms provide greater overall sweep.
Product Features
- 10,000 lb. lift capacity
- 3-stage front arms provide greater sweep for versatility and ease of spotting
- Can be installed in either symmetric or asymmetric position, depending on your service needs
- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Adjustable heights and widths provide versatility at installation for service facilities with special constraints
- Single-point mechanical lock release system allows technician to disengage both columns simultaneously
- Padded overhead shut off system prevents vehicle damage
- Premium powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
Product Specifications
| Model | SA10 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Lift Configuration | Asymmetric |
| Arm Configuration | 3-Stage Front/ 2-Stage Rear |
| Rise Height | 74.5” |
| Overall Height | 136.5” / 142.5” |
| Overall Height (Cylinder Extended) | 142.5” |
| 2’ Height Extension Available | Yes |
| Overall Width | 129” / 135” |
| Drive-Thru Clearance | 92.75” / 98.75” |
| Floor to Overhead Switch | 131.125” / 137.125” |
| Front Arm Reach | 22.375” / 41.5” |
| Rear Arm Reach | 38.25” / 59” |
| Screw Pad Height | 4.75” / 6.875” |
| Inside Columns | 106.75” / 112.75” |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 43s |
| Ceiling Height Required | 12' |
| ALI/ETL Certified | Yes |
| Colors Available | Red, Blue |
Pick Up and Delivery
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
